2015 PEUGEOT BOXER Owners Manual

7
Seat belts 106-108
Airbags 1 10-112
Deactivating the passenger's front airbag 111 , 11 4
Parking brake,

handbrake
98
Front seats, adjustments 71-72
Seat with variable damping 72
2-seat bench 73
Child seats
113-1

16, 119-120
12 volt socket,
uSB port 79, 81-82 Battery (+), charging,
starting
142-144earth point (-) 128, 142
Fuses in the right hand door pillar 145, 147
IntErIor
Seats / rear bench seats 74-75
Rear heating / air

conditioning
65-66
Sliding side door
20
Folding foot board 84
Sliding side windows 83
Rear view mirror
85
Lane departure warning system
105
Cab courtesy lamp 80, 152
Changing a courtesy lamp bulb
149, 152
ISOFIX mountings 117-118
tools, jack 76, 156
Accessories
124
Load space
81-82
● stowing rings,
● load retainer,
● interior roof box,
● side trims,
● 12 volt socket,
● courtesy lamp,
torch 83
IntErIor
1
OVeRVIeW
Location

8
Lane departure warning system 105
Hill descent control 104
Intelligent traction Control 103
ASR, DSC 101-102
Vehicle configuration
90-91
Setting the time 91
Reversing camera 95touch screen audio system 183-230
Audio system 231-247
tachograph 93 Cab fittings
76-80
● cigarette lighter,
● glove box - cooled,
● overhead storage,
● portable ashtray,
● courtesy lamps,
● 12 volt socket / USB port,
● writing table / multifunction
support,
●
storage compartments.
Demisting-defrosting
59
Central locking 22
Locking indicator lamp 22
Hazard warning lamps 98 Ventilation, heating,


A/C
60-62, 63-64
● manual air conditioning,
● mono-zone digital air
conditioning,
●
air recirculation.
Opening the bonnet
127
Dashboard fuses
145-146

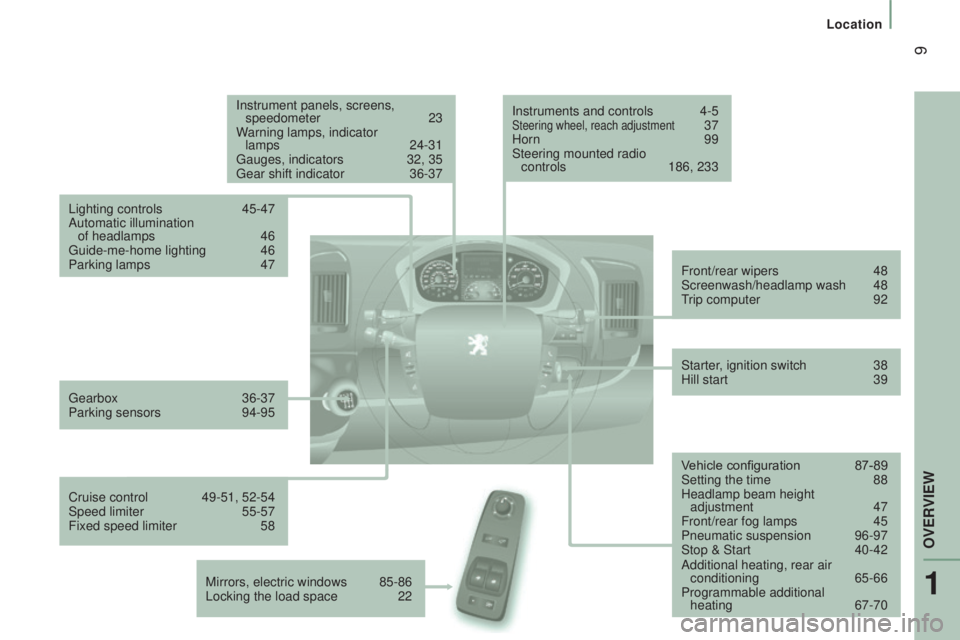

InStruMEntS And controLS
Location

9
Instrument panels, screens, speedometer 23
Warning lamps, indicator

lamps
24-31gauges, indicators 32, 35gear shift indicator 36-37
Lighting controls
45-47
Automatic illumination of headlamps
46guide-me-home lighting 46
Parking lamps 47
Vehicle configuration
87-89
Setting the time 88
Headlamp beam height adjustment
47
Front/rear fog lamps 45
Pneumatic suspension 96-97
Stop & Start 40-42
Front/rear wipers
48
Screenwash/headlamp wash 48trip computer 92
Starter, ignition switch
38
Hill start 39
Cruise control
49-51, 52-54
Speed limiter 55-57
Fixed speed limiter 58 Instruments and controls
4-5Steering wheel, reach adjustment 37
Horn 99
Steering mounted radio controls
186, 233
Mirrors, electric windows
85-86
Locking the load space 22 Additional heating, rear air
conditioning
65-66
Programmable additional heating
67-70
gearbox 36-37
Parking sensors 94-95
1
OVeRVIeW
Location

10
Changing a wiper blade 155
Bulbs, lighting, changing bulbs
149-154
Very cold conditions protectors 84
Opening the bonnet, stay
127under the bonnet 128
Labels / Precautions 168-171engines 177-178
Identification markings, serial
number

, paint, tyres
182
Levels
129-130
● dipstick,
● brake fluid,
● screenwash / headlamp wash
fluid
●
power steering fluid,
● coolant.
Water bleed, Diesel filter
131
Particle filter 133emission control 33, 139
Checks
131-133
● battery,
● air/passenger compartment filter,● oil filter,
● manual gearbox,
● parking brake,
● brake discs and pads.
tEcHnIcAL dAtA - MAIntEnAncE
Dimensions 172-176
Weights 179-181
engine fuses 145, 148
Location

11

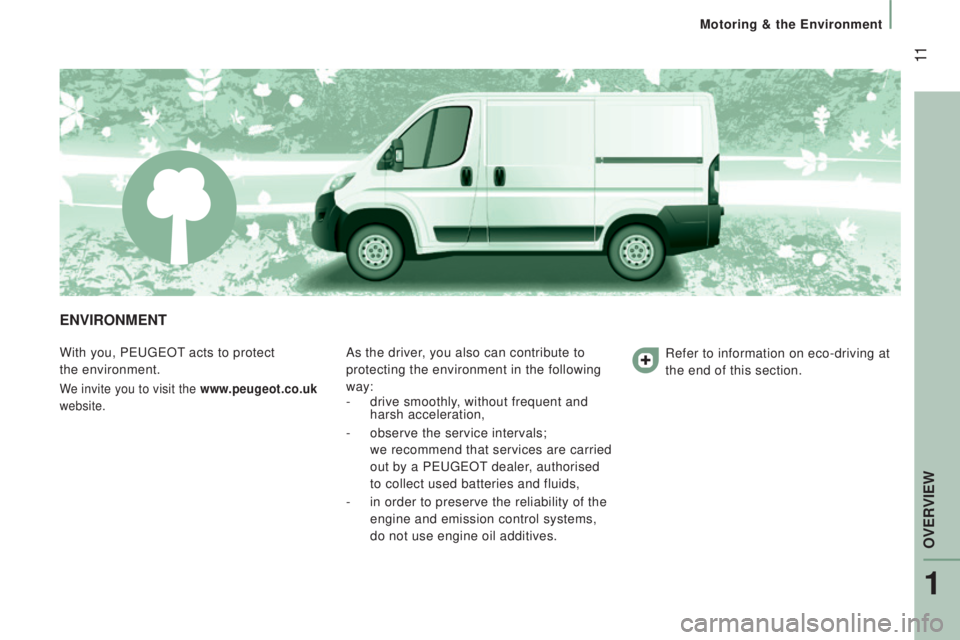

EnVIronMEnt
With you, PeugeOt acts to protect
the
environment.
We invite you to visit the www.peugeot.co.uk
website.
As the driver, you also can contribute to
protecting the environment in the following
way:
-
drive smoothly, without frequent and


harsh acceleration,
-
observe the service intervals;
we
recommend that services are carried


out by a P
eugeOt dealer, authorised


to collect used batteries and fluids,
-
in order to preserve the reliability of the
engine and emission control systems,


do not use engine oil additives. Refer to information on eco-driving at
the end of this section.
1
OVeRVIeW
Motoring & the environment

12
Eco-drIVInG
o
ptimise the use of your gearbox
With a manual gearbox, move off gently and change up without
waiting. While accelerating changing up early. If your vehicle has
the system, the gear shift indicator invites you to engage the most
suitable gear; follow its instructions as soon as it is displayed in
the instrument panel.
drive smoothly
Maintain a safe distance between vehicles, use engine
braking rather than the brake pedal, and press the accelerator
progressively.
these practices contribute towards a reduction in

fuel consumption and CO
2 emissions and also helps reduce the
background traffic noise.
If your vehicle has cruise control, make use of the system at
speeds above 20 mph (30 km/h) when the traffic is flowing well.
control the use of your electrical equipment
Before moving off, if the passenger compartment is too warm,
ventilate it by opening the windows and air vents before using the
air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air
vents open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (window
blinds...).
Switch off the air conditioning, unless it has automatic digital
regulation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of
light does not require their use.
eco-driving is a range of everyday practices that allow the motorist to o\
ptimise their fuel consumption and CO2 emissions.
Avoid running the engine before moving off, particularly in winter;
your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the\

consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
Motoring & the environment

13

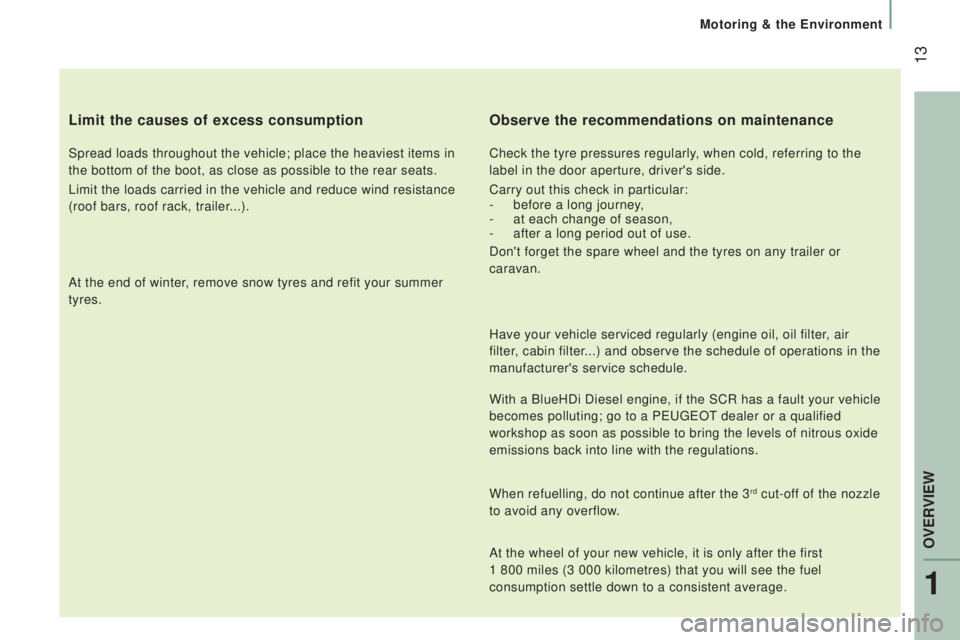

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in
the bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack, trailer...).
At the end of winter, remove snow tyres and refit your summer
tyres.
observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the
label in the door aperture, driver's side.
Carry out this check in particular:
-
before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or
caravan.
Have your vehicle serviced regularly (engine oil, oil filter

, air
filter, cabin filter...) and observe the schedule of operations in the
manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR has a fault your vehicle
becomes polluting; go to a P
eugeOt dealer or a qualified
workshop as soon as possible to bring the levels of nitrous oxide


emissions back into line with the regulations.
When refuelling, do not continue after the 3
rd cut-off of the nozzle
to avoid any overflow.
At the wheel of your new vehicle, it is only after the first
1
800 miles (3 000 kilometres) that you will see the fuel


consumption settle down to a consistent average.
1
OVeRVIeW
Motoring & the environment

14

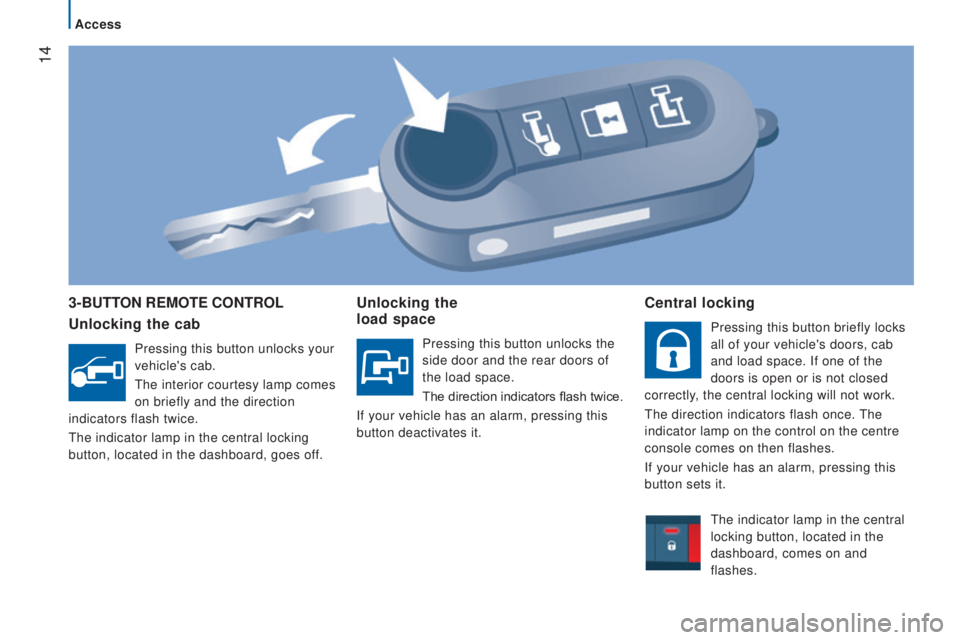

3-Button rEMotE controL
u
nlocking the cab
Pressing this button unlocks your
vehicle's cab.
the interior courtesy lamp comes


on briefly and the direction
indicators flash twice.
the indicator lamp in the central locking


button, located in the dashboard, goes off.
unlocking the
load space
Pressing this button unlocks the
side door and the rear doors of
the load space.
The direction indicators flash twice.
If your vehicle has an alarm, pressing this
button deactivates it.
central locking
Pressing this button briefly locks
all of your vehicle's doors, cab
and load space. If one of the
doors is open or is not closed
correctly, the central locking will not work.
the direction indicators flash once. the


indicator lamp on the control on the centre
console comes on then flashes.
If your vehicle has an alarm, pressing this
button sets it.
the indicator lamp in the central


locking button, located in the
dashboard, comes on and
flashes.
