2015 PEUGEOT BOXER Owners Manual

15
2-Button rEMotE controL
c
entral unlocking
Pressing this button
simultaneously unlocks all of your
vehicle's doors.
the interior courtesy lamp comes


on for a moment and the direction indicators
flash twice.
If your vehicle has an alarm, pressing this
button deactivates it.
the indicator lamp in the central locking


button, located in the dashboard, goes off.
central locking
Pressing this button
simultaneously locks all of your
vehicle's doors. If one of the
doors is open or not fully closed,
the central locking does not take place.
the direction indicators flash twice.
If your vehicle has an alarm, pressing this


button sets it.
deadlocking
Pressing this button twice in
succession deadlocks the
vehicle. It is then impossible to
open the doors from the inside or
the outside.
the direction indicators flash three times.
Folding / unfolding the key
Press this button to release the
key from its housing.
to fold the key, press the button


then fold the key into the housing.
Never leave anyone inside the vehicle
when it is deadlocked.
If you do not press the button, there is
a risk of damaging the mechanism.
the indicator lamp in the central


locking button, located in the
dashboard, comes on and
flashes.
2
Access
rEAdY to SEt oFF

16
KEY
this locks and unlocks the vehicle's doors,
opens and closes the fuel filler cap, as well
as starting and stopping the engine.
rEMotE controL BAttErY
Reference: CR 2032/3 volts.
changing the battery
- Press the button to eject the key.
-

t
urn the screw 1 from the closed


padlock to the open padlock using a
screwdriver with a thin lip.
-


u
se the screwdriver as a lever to extract

the battery holder housing 2 .-
Remove the housing and change the
battery
3 observing the polarities.
-
Put the battery holder housing 2 back

inside the key and secure it by turning
the screw 1 .
there is a risk of damage if the


replacement battery is not of the
correct type.
Only use batteries which are identical or of
an equivalent type to those recommended
by a P
eugeOt dealer. take used batteries
to an authorised collection point.
Access

17MAIn FunctIonS oF tHE KEY
type of keyunlocking the cabinLocking the doorsunlocking the rear doors
Mechanical key
turn anti-clockwise (driver's side).turn clockwise (driver's side). -
Remote control -
Signalling
Direction indicators 2 flashes.1 flash.2 flashes.
Indicator lamp in the central
locking control button on the


dashboard Off.
On for about 3 seconds, then
flashing. Flashing.
using the mechanical key in the drivers' door lock barrel does not activa\
te (set) or deactivate the alarm.
2
Access
rEAdY to SEt oFF

18ELEctronIc IMMoBILISEr
All of the keys contain an electronic
immobiliser device.
this device locks the engine supply system.

It is activated automatically when the key is
removed from the ignition. Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
the simultaneous use of other high


frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
the remote control does not operate while


the key is in the ignition, even if the ignition
is off, except for reinitialisation.
Good practice
Make a careful note of the key number. If the
keys are are lost, it will be easier for your
P
eugeOt dealer to help if you can supply
this number and the confidential card.
Do not make any modifications to the


electronic immobiliser system.
this warning lamp is switched of
f
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started.
use another key and

have the faulty key checked by a P
eugeOt
dealer. After the ignition is switched on, a dialogue

is established between the key and the
electronic immobiliser system.
conFIdEntIAL cArd
this is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a P
eugeOt
dealer on the electronic immobiliser system.
this code is hidden by a film, which should


be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
When purchasing a second-hand vehicle:
-
ensure that you are given the
confidential card,
-
have the keys memorised by a
P
eugeOt dealer to ensure that the
keys in your possession are the only


ones which can start the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition
when leaving the vehicle, even for a short
time.
Access

19remote control fault
unlock the doors by using the key in the
door lock; the alarm is triggered.
Switch on the ignition, recognition of the
key's code turns of
f the alarm.
Locking the doors by using the key in
the door lock does not set the alarm.
deactivation using the remote control
When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.
deactivation of the anti-tilt
protection*
Press this control to deactivate
the protection (when towing the
vehicle with the alarm on, for
example).
the protection remains active


until the doors are unlocked with the central
locking.

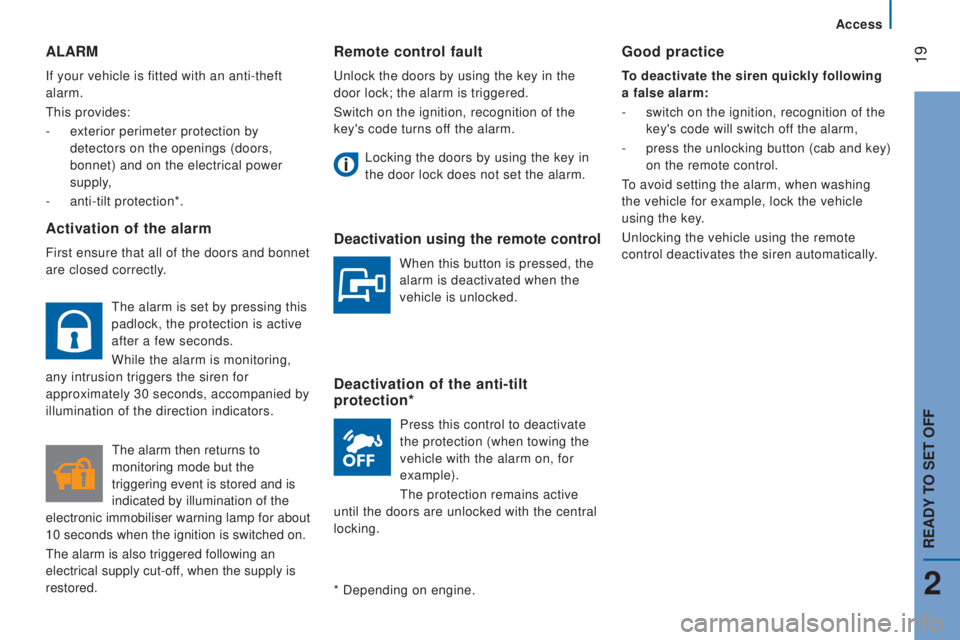

ALArM
If your vehicle is fitted with an anti-theft
alarm.
this provides:
-
exterior perimeter protection by
detectors on the openings (doors,


bonnet) and on the electrical power
supply,
-
anti-tilt protection*.
Activation of the alarm
First ensure that all of the doors and bonnet
are closed correctly.
*
Depending on engine.
Good practice
to deactivate the siren quickly following
a false alarm:
-
switch on the ignition, recognition of the
key's code will switch of

f the alarm,
-
press the unlocking button (cab and key)
on the remote control.
to avoid setting the alarm, when washing
the vehicle for example, lock the vehicle


using the key.
unlocking the vehicle using the remote


control deactivates the siren automatically.
the alarm is set by pressing this


padlock, the protection is active
after a few seconds.
While the alarm is monitoring,
any intrusion triggers the siren for
approximately 30 seconds, accompanied by
illumination of the direction indicators.
the alarm then returns to


monitoring mode but the
triggering event is stored and is
indicated by illumination of the
electronic immobiliser warning lamp for about
10
seconds when the ignition is switched on.
the alarm is also triggered following an


electrical supply cut-off, when the supply is
restored.
2
Access
rEAdY to SEt oFF

20
Front doorSchild lock
this prevents opening of the sliding side
door from the inside.
Press the control located on the edge of the
side door
.use the corresponding button on the remote

control or use the key in the driver's door
lock barrel to unlock.
Pull the handle towards you.
SLIdInG SIdE door
take care not to obstruct the guide space
on the floor in order for the door to slide
correctly.
From outside
Pull the handle towards you then towards
the rear.
From inside
to unlock and open, push the handle
towards the rear .
ensure that the door opens fully in order


for the latch at the bottom of the door to
engage.
to release and close, pull the handle while
sliding the door

.
Do not drive with the sliding side door
open.
Access

21

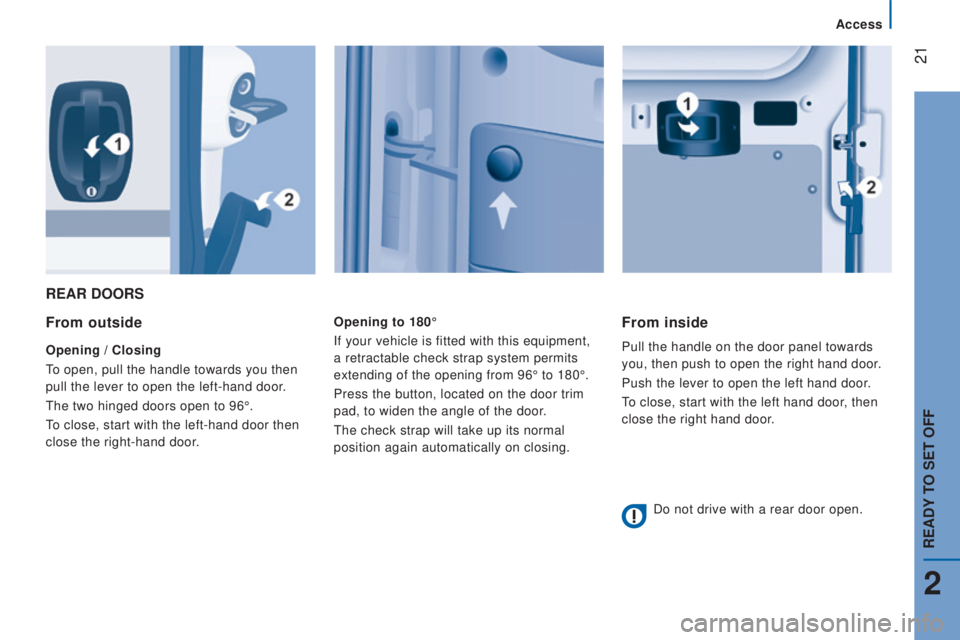

rEAr doorS
From outside
opening / closing
to open, pull the handle towards you then
pull the lever to open the left-hand door

.
the two hinged doors open to 96°.
to close, start with the left-hand door then
close the right-hand door

.
opening to 180°
If your vehicle is fitted with this equipment,

a retractable check strap system permits
extending of the opening from 96° to 180°.
Press the button, located on the door trim
pad, to widen the angle of the door.
the check strap will take up its normal


position again automatically on closing.
From inside
Pull the handle on the door panel towards
you, then push to open the right hand door.
Push the lever to open the left hand door.
to close, start with the left hand door, then


close the right hand door.
Do not drive with a rear door open.
2
Access
rEAdY to SEt oFF

22

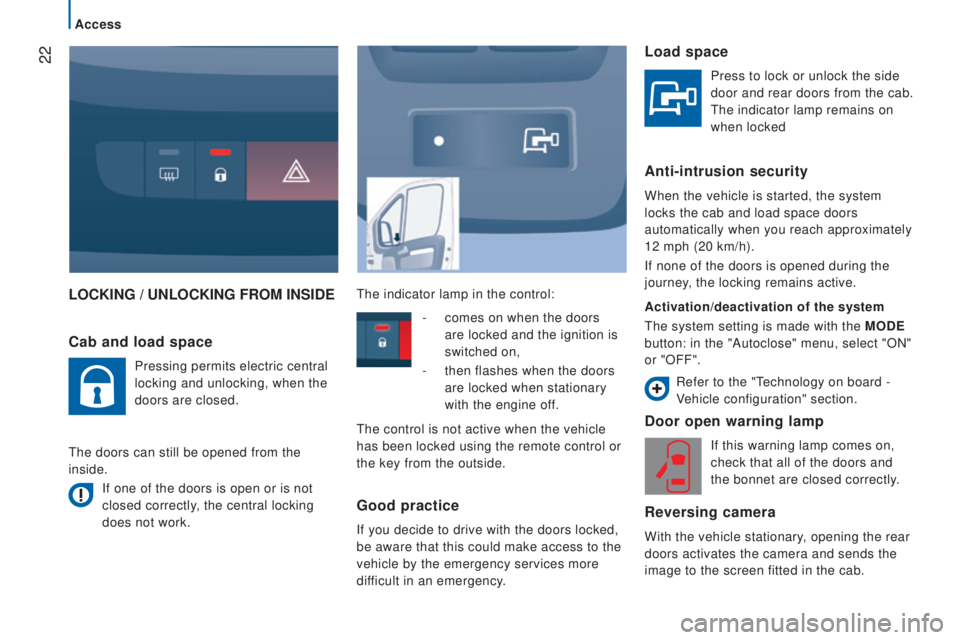

LocKInG / unLocKInG FroM InSIdEd
oor open warning lamp
If this warning lamp comes on,
check that all of the doors and
the bonnet are closed correctly.
reversing camera
With the vehicle stationary, opening the rear
doors activates the camera and sends the
image to the screen fitted in the cab.
cab and load space
Pressing permits electric central
locking and unlocking, when the
doors are closed.
the doors can still be opened from the

inside.
If one of the doors is open or is not
closed correctly, the central locking
does not work.
the indicator lamp in the control:
Load space
Press to lock or unlock the side
door and rear doors from the cab.
the indicator lamp remains on


when locked
Anti-intrusion security
When the vehicle is started, the system
locks the cab and load space doors
automatically when you reach approximately
12 mph (20 km/h).
If none of the doors is opened during the
journey, the locking remains active.
Activation/deactivation of the system
the system setting is made with the

M
odE
button: in the "Autoclose" menu, select "ON"


or "OFF".
-
comes on when the doors
are locked and the ignition is


switched on,
-
then flashes when the doors
are locked when stationary


with the engine off.
the control is not active when the vehicle


has been locked using the remote control or
the key from the outside.
Good practice
If you decide to drive with the doors locked,
be aware that this could make access to the
vehicle by the emergency services more
difficult in an emergency. Refer to the "
technology on board -
V
ehicle configuration" section.
Access
