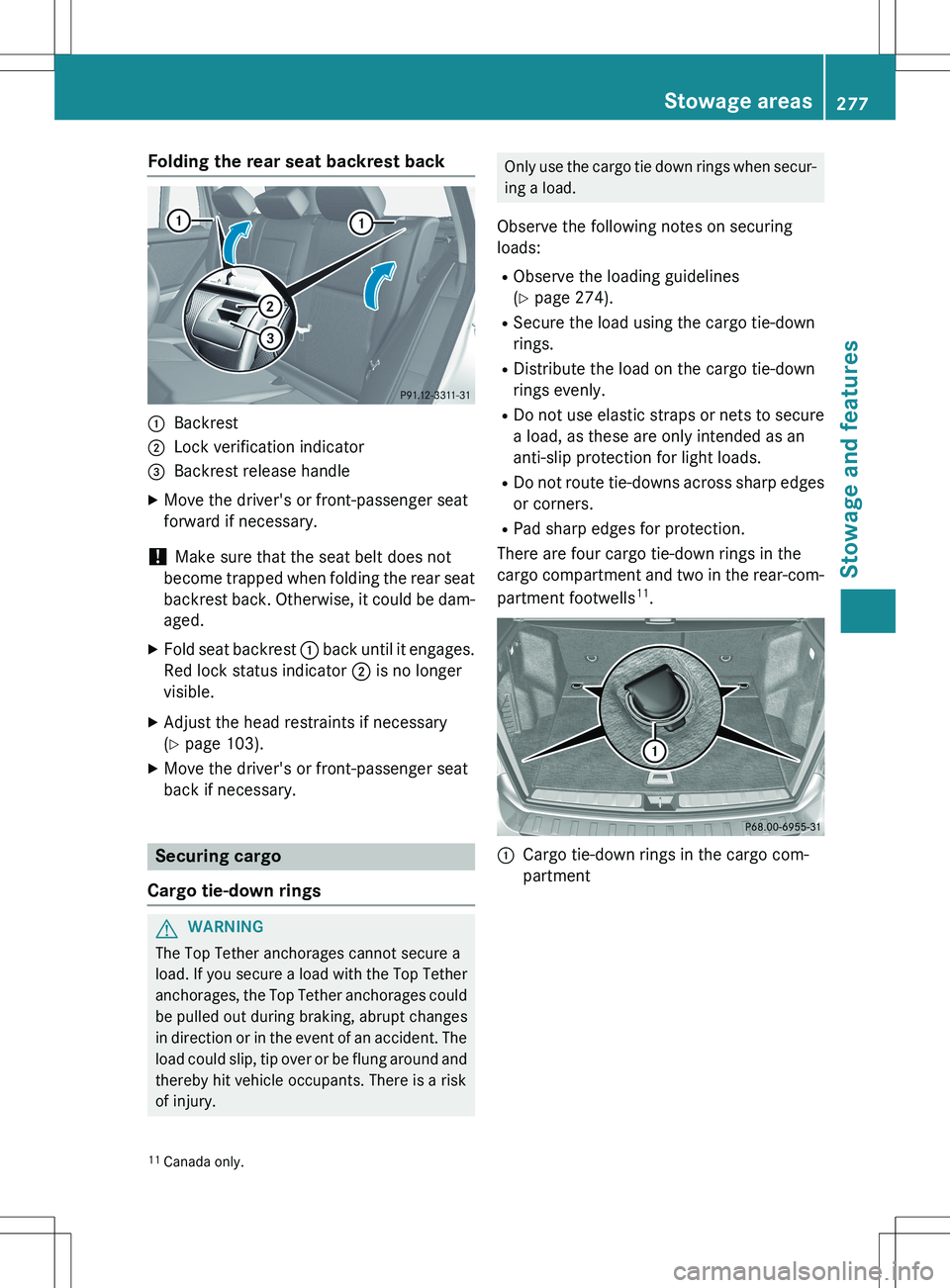

Folding the rear seat backrest back
:Backrest
;Lock verification indicator
=Backrest release handle
X Move the driver's or front-passenger seat
forward if necessary.
! Make sure that the seat belt does not
become trapped when folding the rear seat backrest back. Otherwise, it could be dam- aged.
X Fold seat backrest : back until it engages.
Red lock status indicator ; is no longer
visible.
X Adjust the head restraints if necessary
(Y page 103).
X Move the driver's or front-passenger seat
back if necessary.
Securing cargo
Cargo tie-down rings
GWARNING
The Top Tether anchorages cannot secure a
load. If you secure a load with the Top Tether
anchorages, the Top Tether anchorages could be pulled out during braking, abrupt changes
in direction or in the event of an accident. The load could slip, tip over or be flung around and
thereby hit vehicle occupants. There is a risk
of injury.
Only use the cargo tie down rings when secur- ing a load.
Observe the following notes on securing
loads:
R Observe the loading guidelines
(Y page 274).
R Secure the load using the cargo tie-down
rings.
R Distribute the load on the cargo tie-down
rings evenly.
R Do not use elastic straps or nets to secure
a load, as these are only intended as an
anti-slip protection for light loads.
R Do not route tie-downs across sharp edges
or corners.
R Pad sharp edges for protection.
There are four cargo tie-down rings in the
cargo compartment and two in the rear-com- partment footwells 11
.
:Cargo tie-down rings in the cargo com-
partment
11 Canada only.
Stowage areas277
Stowage and features
Z

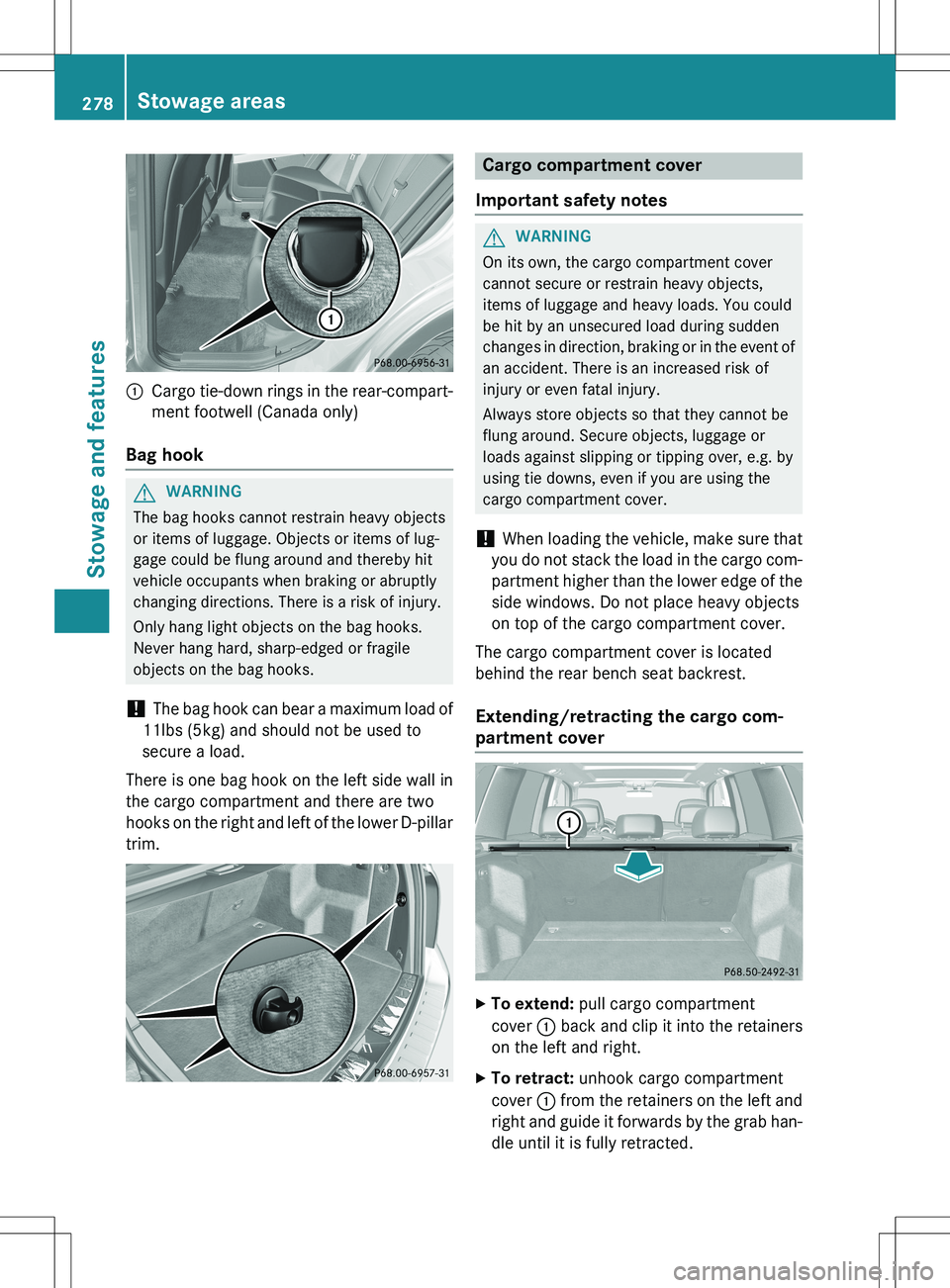

:Cargo tie-down rings in the rear-compart-
ment footwell (Canada only)
Bag hook
GWARNING
The bag hooks cannot restrain heavy objects
or items of luggage. Objects or items of lug-
gage could be flung around and thereby hit
vehicle occupants when braking or abruptly
changing directions. There is a risk of injury.
Only hang light objects on the bag hooks.
Never hang hard, sharp-edged or fragile
objects on the bag hooks.
! The bag hook can bear a maximum load of
11lbs (5kg) and should not be used to
secure a load.
There is one bag hook on the left side wall in
the cargo compartment and there are two
hooks on the right and left of the lower D-pillar
trim.
Cargo compartment cover
Important safety notes
GWARNING
On its own, the cargo compartment cover
cannot secure or restrain heavy objects,
items of luggage and heavy loads. You could
be hit by an unsecured load during sudden
changes in direction, braking or in the event of an accident. There is an increased risk of
injury or even fatal injury.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping over, e.g. by
using tie downs, even if you are using the
cargo compartment cover.
! When loading the vehicle, make sure that
you do not stack the load in the cargo com-
partment higher than the lower edge of the side windows. Do not place heavy objects
on top of the cargo compartment cover.
The cargo compartment cover is located
behind the rear bench seat backrest.
Extending/retracting the cargo com-
partment cover
X To extend: pull cargo compartment
cover : back and clip it into the retainers
on the left and right.
X To retract: unhook cargo compartment
cover : from the retainers on the left and
right and guide it forwards by the grab han-
dle until it is fully retracted.
278Stowage areas
Stowage and features

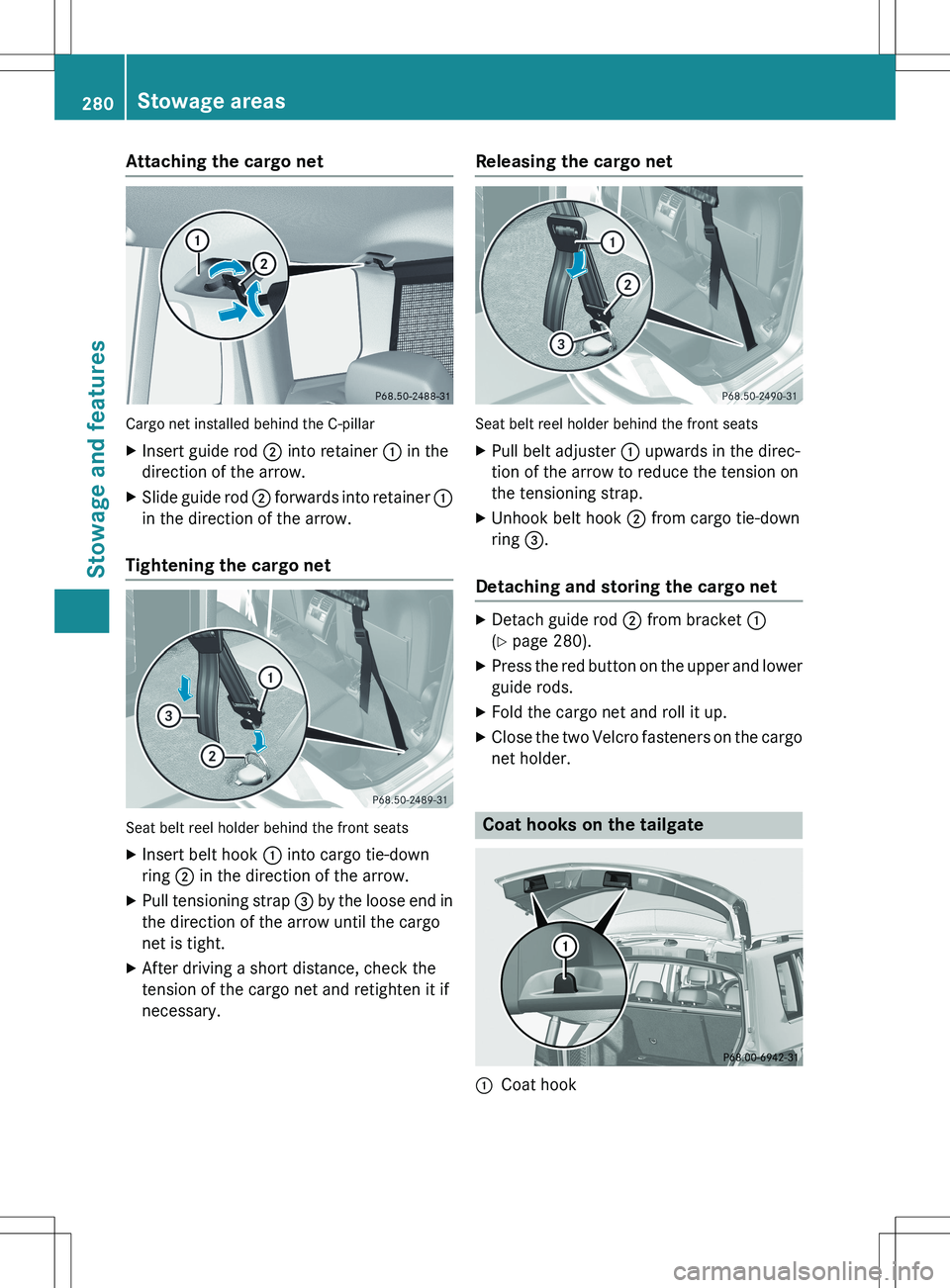

Attaching the cargo net
Cargo net installed behind the C-pillar
XInsert guide rod ; into retainer : in the
direction of the arrow.
X Slide guide rod ; forwards into retainer :
in the direction of the arrow.
Tightening the cargo net
Seat belt reel holder behind the front seats
X Insert belt hook : into cargo tie-down
ring ; in the direction of the arrow.
X Pull tensioning strap = by the loose end in
the direction of the arrow until the cargo
net is tight.
X After driving a short distance, check the
tension of the cargo net and retighten it if
necessary.
Releasing the cargo net
Seat belt reel holder behind the front seats
X Pull belt adjuster : upwards in the direc-
tion of the arrow to reduce the tension on
the tensioning strap.
X Unhook belt hook ; from cargo tie-down
ring =.
Detaching and storing the cargo net
X
Detach guide rod ; from bracket :
( Y page 280).
X Press the red button on the upper and lower
guide rods.
X Fold the cargo net and roll it up.
X Close the two Velcro fasteners on the cargo
net holder.
Coat hooks on the tailgate
:Coat hook
280Stowage areas
Stowage and features

Stowage well under the cargo com-
partment floor
GWARNING
If you drive when the cargo compartment flooris open, objects could be flung around, thus
striking vehicle occupants. There is a risk of
injury, particularly in the event of sudden
braking or a sudden change in direction.
Always close the cargo compartment floor
before a journey.
X To open: open the tailgate.
X Holding the ribbing, press handle : down-
wards ;.
Handle : folds up.
X Swing the cargo compartment floor
upwards using handle : until it rests
against the cargo compartment cover.
X Release hook = from the bracket on the
underside of the cargo compartment floor.
X Engage hook = into rain trough ?.
iStowage compartments A and B can be
used to stow small, light and flat objects.
! Before you close the tailgate, unhook the
hook from the rain trough and fold the trunk floor down.
X To close: unhook hook = from rain
trough ?.
X Fasten hook = to the bracket on the
underside of the cargo compartment floor.
X Fold the cargo compartment floor down.
X Press the cargo compartment floor down
until it engages.
Roof carrier
Important safety notes
GWARNING
When you load the roof, the center of gravity
of the vehicle rises and the driving character- istics change. If you exceed the maximum roof
load, the driving characteristics, as well as
steering and braking, will be greatly impaired.There is a risk of an accident.
Never exceed the maximum roof load and
adjust your driving style.
! Mercedes-Benz recommends that you
only use roof carriers that have been tested
and approved for Mercedes-Benz vehicles.
This helps to prevent damage to the vehi-
cle.
Stowage areas281
Stowage and features
Z

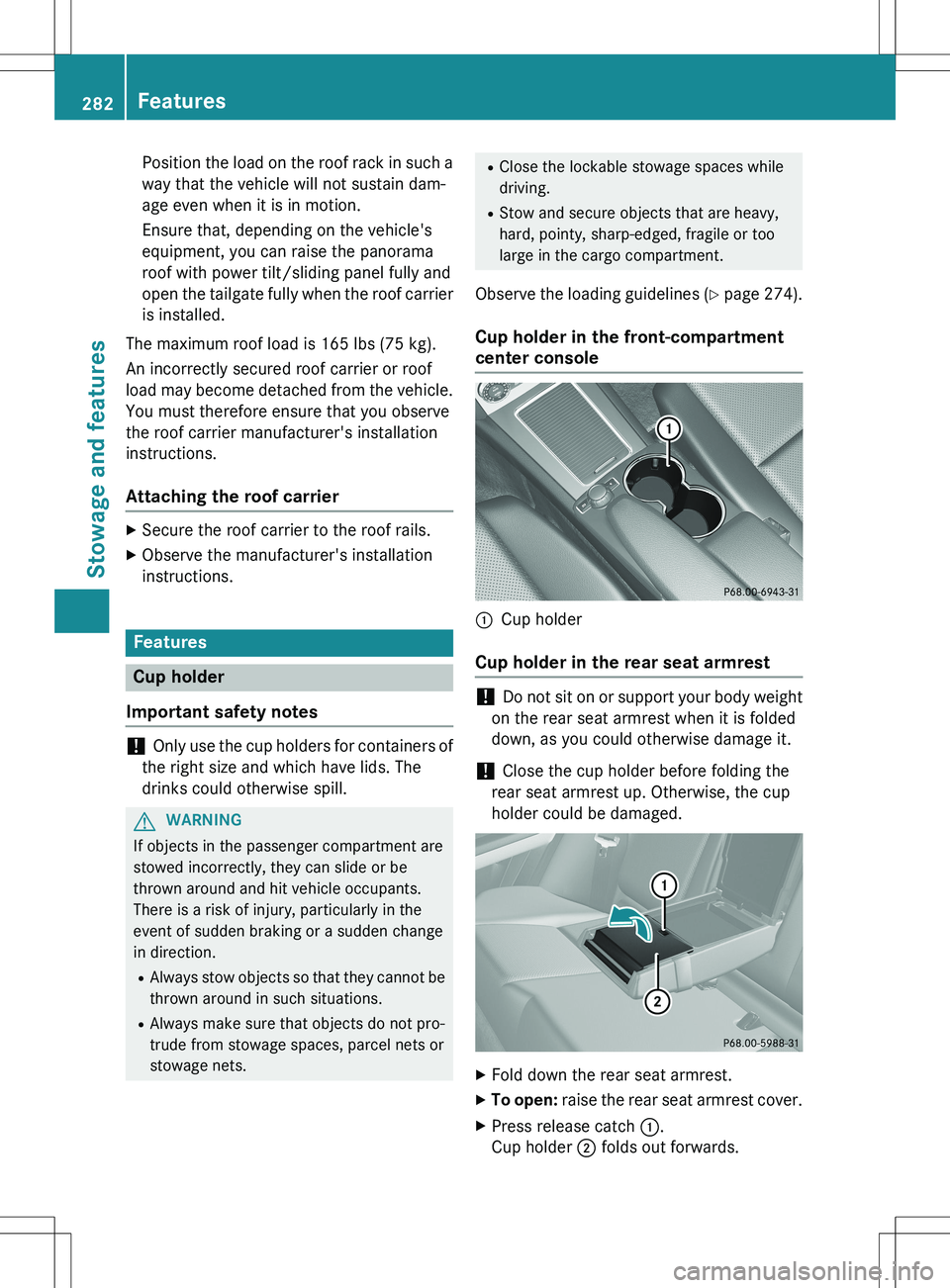

Position the load on the roof rack in such a
way that the vehicle will not sustain dam-
age even when it is in motion.
Ensure that, depending on the vehicle's
equipment, you can raise the panorama
roof with power tilt/sliding panel fully and
open the tailgate fully when the roof carrier is installed.
The maximum roof load is 165 lbs (75 kg).
An incorrectly secured roof carrier or roof
load may become detached from the vehicle.
You must therefore ensure that you observe
the roof carrier manufacturer's installation
instructions.
Attaching the roof carrier
X Secure the roof carrier to the roof rails.
X Observe the manufacturer's installation
instructions.
Features
Cup holder
Important safety notes
! Only use the cup holders for containers of
the right size and which have lids. The
drinks could otherwise spill.
GWARNING
If objects in the passenger compartment are
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants.
There is a risk of injury, particularly in the
event of sudden braking or a sudden change
in direction.
R Always stow objects so that they cannot be
thrown around in such situations.
R Always make sure that objects do not pro-
trude from stowage spaces, parcel nets or
stowage nets.
R Close the lockable stowage spaces while
driving.
R Stow and secure objects that are heavy,
hard, pointy, sharp-edged, fragile or too
large in the cargo compartment.
Observe the loading guidelines ( Y page 274).
Cup holder in the front-compartment
center console
:Cup holder
Cup holder in the rear seat armrest
! Do not sit on or support your body weight
on the rear seat armrest when it is folded
down, as you could otherwise damage it.
! Close the cup holder before folding the
rear seat armrest up. Otherwise, the cup
holder could be damaged.
X Fold down the rear seat armrest.
X To open: raise the rear seat armrest cover.
X Press release catch :.
Cup holder ; folds out forwards.
282Features
Stowage and features

XSwing the rear seat armrest cover back
down, if necessary.
X To close: raise the rear seat armrest cover.
Swing cup holder ; back until it engages.

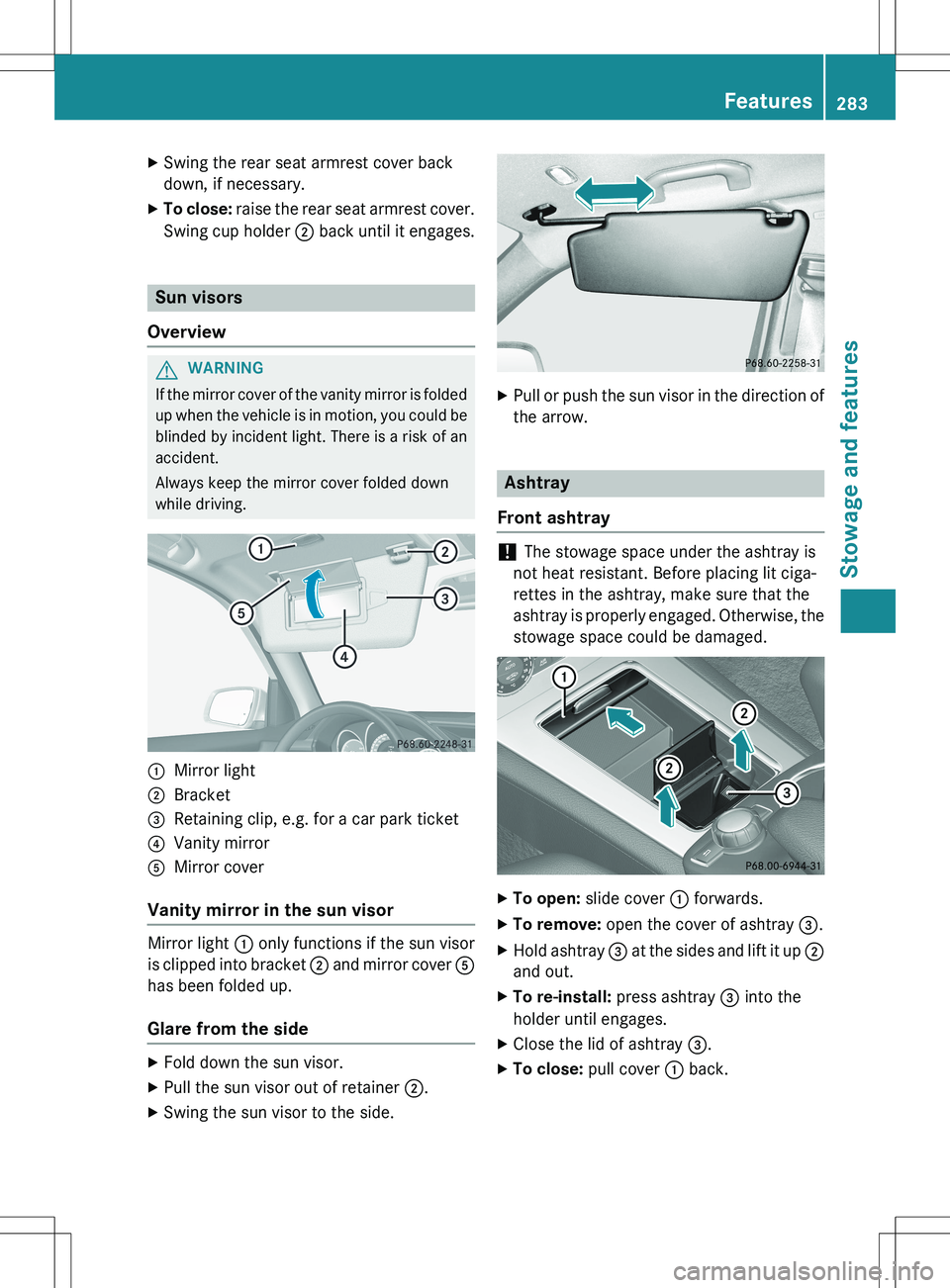

Sun visors
Overview
GWARNING
If the mirror cover of the vanity mirror is folded up when the vehicle is in motion, you could be
blinded by incident light. There is a risk of an
accident.
Always keep the mirror cover folded down
while driving.
:Mirror light
;Bracket
=Retaining clip, e.g. for a car park ticket
?Vanity mirror
AMirror cover
Vanity mirror in the sun visor
Mirror light : only functions if the sun visor
is clipped into bracket ; and mirror cover A
has been folded up.
Glare from the side
X Fold down the sun visor.
X Pull the sun visor out of retainer ;.
X Swing the sun visor to the side.
XPull or push the sun visor in the direction of
the arrow.
Ashtray
Front ashtray
! The stowage space under the ashtray is
not heat resistant. Before placing lit ciga-
rettes in the ashtray, make sure that the
ashtray is properly engaged. Otherwise, the
stowage space could be damaged.
X To open: slide cover : forwards.
X To remove: open the cover of ashtray =.
X Hold ashtray = at the sides and lift it up ;
and out.
X To re-install: press ashtray = into the
holder until engages.
X Close the lid of ashtray =.
X To close: pull cover : back.
Features283
Stowage and features
Z

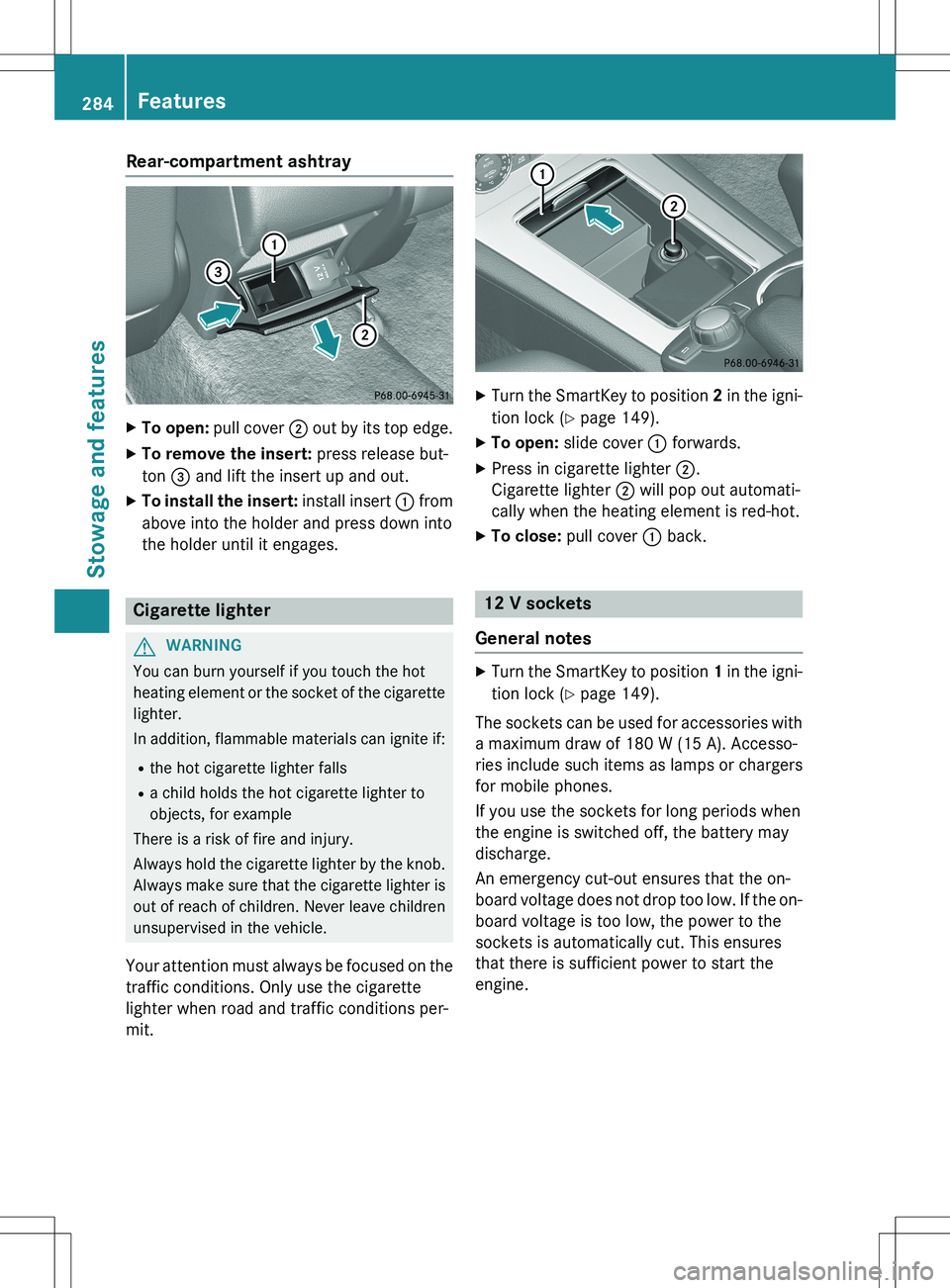

Rear-compartment ashtray
XTo open: pull cover ; out by its top edge.
X To remove the insert: press release but-
ton = and lift the insert up and out.
X To install the insert: install insert : from
above into the holder and press down into
the holder until it engages.
Cigarette lighter
GWARNING
You can burn yourself if you touch the hot
heating element or the socket of the cigarette lighter.
In addition, flammable materials can ignite if:
R the hot cigarette lighter falls
R a child holds the hot cigarette lighter to
objects, for example
There is a risk of fire and injury.
Always hold the cigarette lighter by the knob.
Always make sure that the cigarette lighter is
out of reach of children. Never leave children unsupervised in the vehicle.
Your attention must always be focused on the traffic conditions. Only use the cigarette
lighter when road and traffic conditions per-
mit.
X Turn the SmartKey to position 2 in the igni-
tion lock ( Y page 149).
X To open: slide cover : forwards.
X Press in cigarette lighter ;.
Cigarette lighter ; will pop out automati-
cally when the heating element is red-hot.
X To close: pull cover : back.
12 V sockets
General notes
X Turn the SmartKey to position 1 in the igni-
tion lock ( Y page 149).
The sockets can be used for accessories with a maximum draw of 180 W (15 A). Accesso-
ries include such items as lamps or chargers
for mobile phones.
If you use the sockets for long periods when
the engine is switched off, the battery may
discharge.
An emergency cut-out ensures that the on-
board voltage does not drop too low. If the on-
board voltage is too low, the power to the
sockets is automatically cut. This ensures
that there is sufficient power to start the
engine.
284Features
Stowage and features

Socket in the front-compartment center
console
X To open: slide cover : forwards.
X Lift up the cover of socket ;.
X To close: pull cover : back.
Socket in the rear-compartment center
console
X
Pull cover ; out by its top edge.
X Lift up the cover of socket :.
115 V socket
Important safety notes
GDANGER
When a suitable device is connected, the
115 V power socket will be carrying a high
voltage. You could receive an electric shock if the connector cable or the 115 V power
socket is pulled out of the trim or is damaged
or wet. There is a risk of fatal injury.
R Use only connector cables that are dry and
free of damage.
R When the ignition is off, make sure that the
115 V power socket is dry.
R Have the 115 V power socket checked or
replaced immediately at a qualified speci-
alized workshop if it is damaged or has been
pulled out of the trim.
R Never plug the connector cable into a 115 V
power socket that is damaged or has been pulled out of the trim.
GDANGER
If you reach into the power socket or plug
inappropriate devices into the power socket,
you could receive an electric shock. There is a risk of fatal injury.
Only connect appropriate devices to the
power socket.
! Note that work and repairs on the 115 V
power socket should only be carried out by
qualified specialist personnel.
General notes
115 V power socket : provides an alternat-
ing voltage of 115 V so that small electronic
devices can be connected. These devices,
such as games consoles, chargers and lap-
tops, should not consume more than a maxi-
mum of 150 watts altogether.
Requirements for operation of these devices:
R the electronic device that you connect has
a suitable connector and conforms to
standards specific to the country you are in.
R the plug of the electronic device is plugged
into 115 V power socket :.
R the maximum wattage of the device to be
connected must not exceed 150 watts.
R the on-board power supply is within a per-
missible voltage range.
R the 12 V sockets in the rear compartment
and the cargo compartment are opera-
tional ( Y page 284).
Features285
Stowage and features
Z
