2015 MAZDA MODEL CX-5 Owners Manual (in English)

Black plate (521,1)
The following personalization features can be changed by the vehicle owner.
Items in which the feature setting can be changed differ depending on the market and specification.Item Feature Factory Setting Available Settings
Power door lock Changes the auto lock/unlock function setting for all
the doors according to the vehicle speed, the vehicle
power supply condition, and the selector lever
position.
Refer to Auto Lock/Unlock Function on page 3-14.
Refer to Setup on page 5-55. Lock: Driving,
Unlock: IGN Off Off/Lock When
Driving/Lock: Shift From P, Unlock: In P/Lock When
Shifting Out Of P
Keyless entry
system The method for unlocking the doors using the
transmitter can be changed.
Refer to Transmitter on page 3-4.
Refer to Setup on page 5-55.
Once: Driver's,
Twice: All Doors Touch Once: All
Doors
The time required for the doors to relock
automatically after unlocking with the transmitter can
be changed.
Refer to Setup on page 5-55. 60 seconds
30 seconds/90
seconds
Advanced keyless
entry system The volume of the answer-back beep during advanced
keyless entry system operation can be changed.
Refer to Locking, Unlocking with Request Switch
(With the advanced keyless function) on page 3-11.
Refer to Setup on page 5-55.
Medium Off/Low/High
The function to automatically lock the doors when
leaving the vehicle while carrying the key can be
changed.
Refer to Setup on page 5-55. Off
On
The method for unlocking the doors using the request
switch can be changed.
Refer to Locking, Unlocking with Request Switch
(With the advanced keyless function) on page 3-11.
Refer to Setup on page 5-55. Once: Driver's,
Twice: All Doors Touch Once: All
Doors
The time required for the doors to relock
automatically after unlocking with the transmitter can
be changed.
Refer to Setup on page 5-55. 60 seconds
30 seconds/90
seconds
Illumination entry The time required for the interior lamp to turn off
automatically can be changed
(prevents battery depletion when a door is open/ajar).
Refer to Setup on page 5-55.
30 minutes
60 minutes/10
minutes
The time required for the interior lamp to turn off
automatically after all doors are closed can be
changed.
Refer to Setup on page 5-55. 15 seconds
7.5 seconds/30
seconds/60 seconds
Three-flash turn
signal The three-flash turn function can be changed.
Refer to Setup on page 5-55.
On
Off
Auto-wiper control The auto-wiper control function can be changed.
Refer to Setup on page 5-55. On
(Rain Sensing) Off (Intermittent)
Personalization Features
9-11
CX-5_8DR2-EA-14A_Edition1 Page521
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (522,1)
ItemFeatureFactory Setting Available Settings
Auto headlight
off
*1The time required for headlights to turn off after
ignition is switched off can be changed.
Refer to Setup on page 5-55. 30 seconds0 seconds*2/
60 seconds/
90 seconds/
120 seconds
Auto-light control The headlight illumination on/off timing based on
surrounding lightness/darkness can be changed.
Refer to Setup on page 5-55. MediumLight/Medium
Light/Medium
Dark/Dark
Turn indicator The turn indicator beep volume level can be changed.
Refer to Trip Computer and INFO Switch on page
4-18. High Low
Lights-on
reminder
*3
The volume of the lights-on reminder warning alarm
can be changed.
Refer to Trip Computer and INFO Switch on page
4-18. Off High/Low
Blind Spot
Monitoring (BSM)
system The volume of the BSM warning beep can be
changed.
Refer to Trip Computer and INFO Switch on page
4-18.
High Low/OFF
Multi-information
display operation
sound The operation sound volume for the following
operations can be changed.
lTrip computer data clearing
The INFO switch is pressed for 1.5 seconds or
longer while the average fuel economy or average
vehicle speed is displayed.
lNumerical value scroll
The Up/Down switch is pressed for 1.5 seconds or
longer, such as while the maintenance monitor
period setting screen is displayed.
Refer to Trip Computer and INFO Switch on page
4-18. High Low/OFF
9-12
Personalization Features
CX-5_8DR2-EA-14A_Edition1 Page522
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (523,1)
ItemFeatureFactory Setting Available Settings
Meter display The distance unit can be changed.
Refer to Trip Computer and INFO Switch on page
4-18.
miles or km km or miles
The display language can be changed.
Refer to Trip Computer and INFO Switch on page
4-18. English, French,
or Spanish
English/French/Spanish
The temperature unit can be changed.
Refer to Trip Computer and INFO Switch on page
4-18. °F or °C °C or °F
Smart City Brake
Support (SCBS) The system can be changed so that Smart City Brake
Support (SCBS) does not operate.
*4
Refer to Trip Computer and INFO Switch on page
4-18.
ON OFF
*1 If the setting is changed to 0 seconds, the following operation is performed according to the headlight switch position:
lAtposition: Headlights turn off immediately after the ignition is switched off.lAt any position other than: Headlights do not turn off after the ignition is switched off.
*2 When set to 0 seconds, the lights-on reminder is operable.
*3 The setting of the lights-on reminder can be changed with the time setting of auto headlight off function set to 0 seconds.
Refer to Lights-On Reminder on page 7-32.
*4 Though these systems can be turned OFF, doing so will defeat the purpose of the system and Mazda recommends that these systems remain ON.
Personalization Features
9-13
CX-5_8DR2-EA-14A_Edition1 Page523
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (524,1)
9-14
CX-5_8DR2-EA-14A_Edition1 Page524
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (525,1)
10Index
10-1
CX-5_8DR2-EA-14A_Edition1 Page525
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (526,1)
A
Accessory Socket ............................ 5-114
Adaptive Front Lighting System
(AFS) ................................................ 4-59
Add-On Non-Genuine Parts and
Accessories ....................................... 8-19
Advanced KeyOperational range ......................... 3-9
Advanced Keyless Entry System ........ 3-8
Air Bag Systems ............................... 2-40
All-Wheel Drive
(AWD) Operation ............................. 4-86
Antilock Brake System (ABS) .......... 4-82
Audio Control Switch Adjusting the Volume ................ 5-57
Mute Switch ............................... 5-57
Seek Switch ................................ 5-57
Audio System Antenna ...................................... 5-13
Audio Control Switch ................ 5-56
Audio Set (Type A) .................... 5-25
Audio Set (Type B) .................... 5-35
AUX/USB/iPod mode ................ 5-58
Operating Tips for Audio
System ........................................ 5-13
Satellite Radio ............................ 5-44
Automatic Transaxle Driving tips ................................ 4-53
Manual shift mode ..................... 4-49
Shift-lock override ..................... 4-48
Shift-lock system ....................... 4-48
Transaxle ranges ........................ 4-47
B
Battery ............................................... 6-31
Maintenance ............................... 6-32
Specifications ............................... 9-4
B
Battery runs out ................................. 7-14Jump-Starting ............................. 7-14
Beep Sounds Air bag/front seat belt pretensioner
system warning .......................... 7-33
Blind spot monitoring
(BSM) system warning .............. 7-35
Ignition not switched off
(STOP) warning ......................... 7-33
Key left-in-luggage compartment
warning ...................................... 7-34
Key left-in-vehicle warning ....... 7-34
Key removed from vehicle
warning ...................................... 7-34
Lights-on reminder ..................... 7-32
Request switch inoperable
warning ...................................... 7-34
Seat belt warning ........................ 7-33
Tire inflation pressure warning ... 7-34
Blind Spot Monitoring
(BSM) System .................................. 4-97 BSM OFF switch ..................... 4-100
BSM warning light ..................... 4-99
Care of radar sensors ................ 4-100
Bluetooth® ....................................... 5-77 Bluetooth® Audio .................... 5-102
Bluetooth® Hands-Free ............. 5-83
Troubleshooting ....................... 5-106
Body Lubrication .............................. 6-26
Bottle Holder ................................... 5-117
Brakes Brakes assist ............................... 4-73
Foot brake .................................. 4-71
Pad wear indicator ...................... 4-73
Parking brake ............................. 4-72
Break-In Period ................................. 3-39
10-2
Index
CX-5_8DR2-EA-14A_Edition1 Page526
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (527,1)
C
Capacities ............................................ 9-5
Carbon Monoxide ............................. 3-23
Cargo Securing Loops ..................... 5-119
Cell Phones ....................................... 8-20
Center Console ................................ 5-119
Child RestraintChild-restraint system
installation .................................. 2-28
Installing child-restraint
systems ....................................... 2-29
LATCH child-restraint
systems ....................................... 2-36
Child Safety Locks for Rear Doors ... 3-18
Climate Control System ...................... 5-2 Fully Automatic Type .................. 5-9
Gas specifications ........................ 9-7
Manual Type ................................ 5-5
Operating Tips .............................. 5-2
Vent Operation ............................. 5-3
Clock ............................................... 5-113
Cruise Control ................................... 4-89
Cruise Control Set Vehicle Speed ..... 4-15
Cup Holder ...................................... 5-116
Customer Assistance ........................... 8-2
D
Dashboard Illumination .................... 4-13
Daytime Running Lights ................... 4-59
Defogger Mirror ......................................... 4-66
Rear window .............................. 4-66
Dimensions ......................................... 9-5
Door Locks ....................................... 3-10
Driving In Flooded Area ................... 3-43
Driving on Uneven Road .................. 3-44
D
Driving Tips ...................................... 3-39 Automatic transaxle ................... 4-53
Break-in period .......................... 3-39
Driving in flooded area .............. 3-43
Driving on uneven road ............. 3-44
Floor mat .................................... 3-40
Hazardous driving ...................... 3-40
Money-saving suggestions ......... 3-39
Overloading ............................... 3-43
Rocking the vehicle .................... 3-41
Winter driving ............................ 3-41
Dynamic Stability Control (DSC) ..... 4-84
E
Emergency Starting Push-Starting .............................. 7-17
Starting a Flooded Engine .......... 7-17
Emergency Towing Tiedown Hooks .......................... 7-21
Towing Description .................... 7-20
Emission Control System .................. 3-22
Engine Coolant ....................................... 6-23
Engine Compartment
Overview .................................... 6-20
Exhaust gas ................................ 3-23
Hood release .............................. 6-18
Oil .............................................. 6-21
Starting ......................................... 4-3
Essential information .......................... 6-2
Event Data Recorder ......................... 8-21
Exhaust Gas ...................................... 3-23
Index
10-3
CX-5_8DR2-EA-14A_Edition1 Page527
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

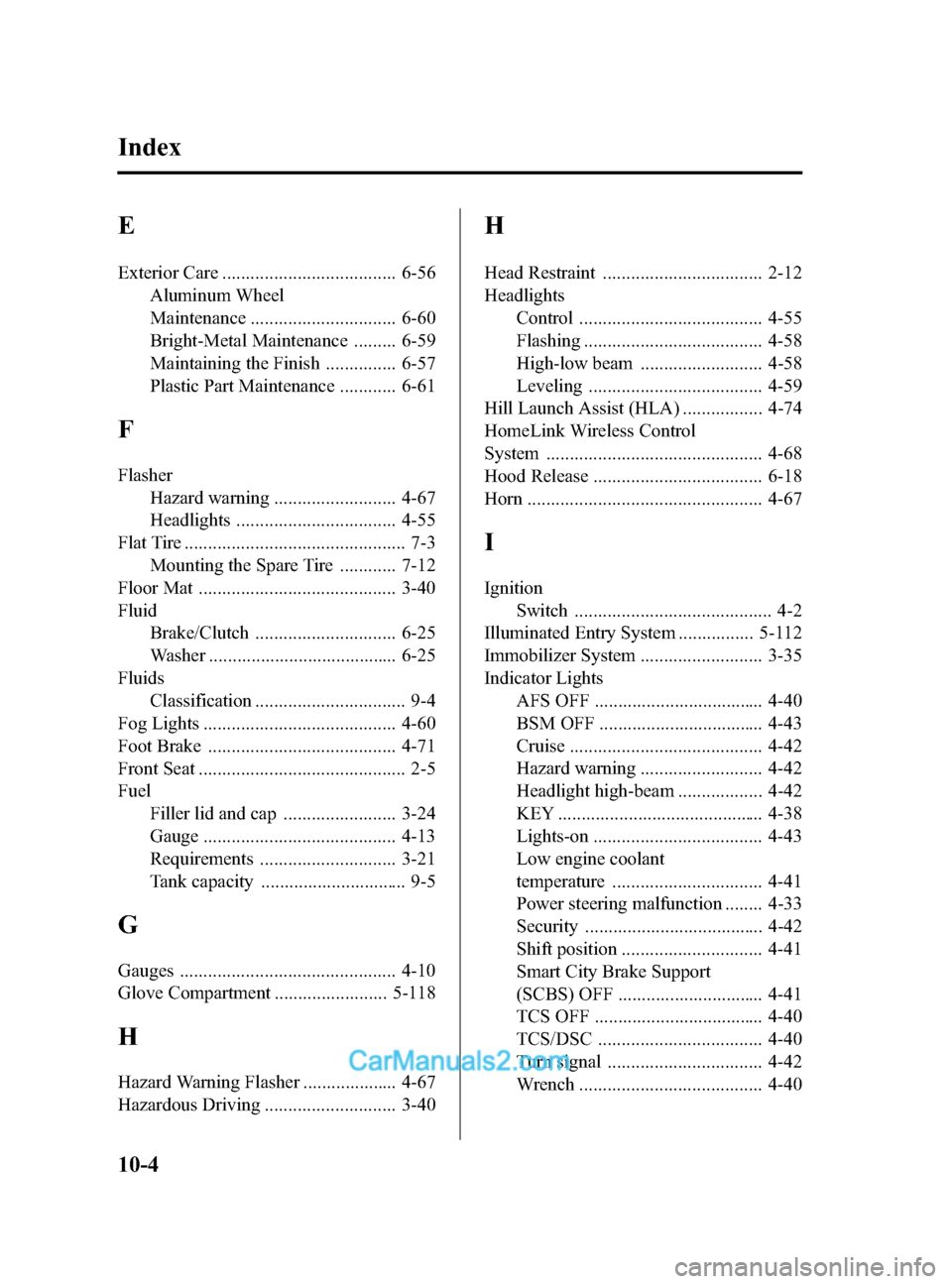

Black plate (528,1)
E
Exterior Care ..................................... 6-56Aluminum Wheel
Maintenance ............................... 6-60
Bright-Metal Maintenance ......... 6-59
Maintaining the Finish ............... 6-57
Plastic Part Maintenance ............ 6-61
F
FlasherHazard warning .......................... 4-67
Headlights .................................. 4-55
Flat Tire ............................................... 7-3 Mounting the Spare Tire ............ 7-12
Floor Mat .......................................... 3-40
Fluid Brake/Clutch .............................. 6-25
Washer ........................................ 6-25
Fluids Classification ................................ 9-4
Fog Lights ......................................... 4-60
Foot Brake ........................................ 4-71
Front Seat ............................................ 2-5
Fuel Filler lid and cap ........................ 3-24
Gauge ......................................... 4-13
Requirements ............................. 3-21
Tank capacity ............................... 9-5
G
Gauges .............................................. 4-10
Glove Compartment ........................ 5-118
H
Hazard Warning Flasher .................... 4-67
Hazardous Driving ............................ 3-40
H
Head Restraint .................................. 2-12
Headlights
Control ....................................... 4-55
Flashing ...................................... 4-58
High-low beam .......................... 4-58
Leveling ..................................... 4-59
Hill Launch Assist (HLA) ................. 4-74
HomeLink Wireless Control
System .............................................. 4-68
Hood Release .................................... 6-18
Horn .................................................. 4-67
I
Ignition
Switch .......................................... 4-2
Illuminated Entry System ................ 5-112
Immobilizer System .......................... 3-35
Indicator Lights
AFS OFF .................................... 4-40
BSM OFF ................................... 4-43
Cruise ......................................... 4-42
Hazard warning .......................... 4-42
Headlight high-beam .................. 4-42
KEY ............................................ 4-38
Lights-on .................................... 4-43
Low engine coolant
temperature ................................ 4-41
Power steering malfunction ........ 4-33
Security ...................................... 4-42
Shift position .............................. 4-41
Smart City Brake Support
(SCBS) OFF ............................... 4-41
TCS OFF .................................... 4-40
TCS/DSC ................................... 4-40
Turn signal ................................. 4-42
Wrench ....................................... 4-40
10-4
Index
CX-5_8DR2-EA-14A_Edition1 Page528
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A
