2015 MAZDA MODEL CX-5 Owners Manual (in English)

Black plate (401,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs: When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children: Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
q Replacing Exterior Light Bulbs
Headlights (With xenon fusion
headlights)
Low/High beam bulbs
You cannot replace the low/high beam
bulbs by yourself. The bulbs must be
replaced at an Authorized Mazda Dealer.
Daytime running lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the connector from the unit by pressing the tab on the connector
with your finger and pulling the
connector backward.
Maintenance and Care
Owner Maintenance
6-41
CX-5_8DR2-EA-14A_Edition1 Page401
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (402,1)
4. Turn the socket and bulb assembly toremove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight back out of the
socket.
5. Install the new bulb in the reverse order
of the removal procedure.
Headlights (With halogen headlights)
Low-beam bulbs, High-beam bulbs/
Daytime running lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Lift the hood.
3. (Right side)
Remove the windshield washer fluid
reservoir from the guide.
Windshield washer
fluid reservoir Guide
4. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
Low-beam bulbs
High-beam bulbs/Daytime running
lights
5. Turn the socket and bulb assembly to remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
6-42
Maintenance and Care
Owner Maintenance
CX-5_8DR2-EA-14A_Edition1 Page402
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

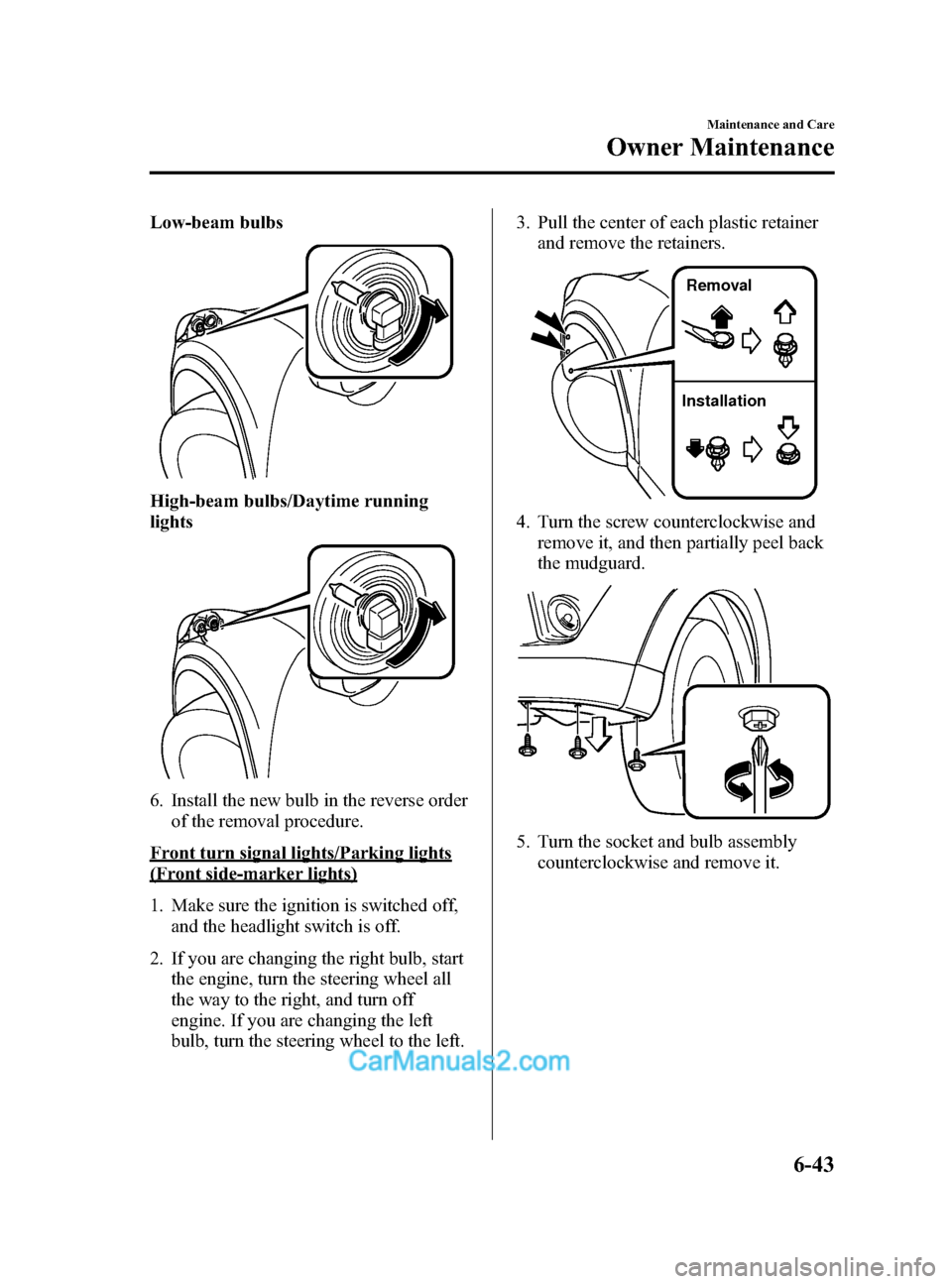

Black plate (403,1)
Low-beam bulbs
High-beam bulbs/Daytime running
lights
6. Install the new bulb in the reverse orderof the removal procedure.
Front turn signal lights/Parking lights
(Front side-marker lights)
1. Make sure the ignition is switched off,and the headlight switch is off.
2. If you are changing the right bulb, start the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left. 3. Pull the center of each plastic retainer
and remove the retainers.
InstallationRemoval
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.
5. Turn the socket and bulb assemblycounterclockwise and remove it.
Maintenance and Care
Owner Maintenance
6-43
CX-5_8DR2-EA-14A_Edition1 Page403
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (404,1)
6. Disconnect the bulb from the socket.
7. Install the new bulb in the reverse orderof the removal procedure.
Fog lightsí
1. Make sure the ignition is switched off,and the headlight switch is off.
2. If you are changing the right bulb, start the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer and remove the retainers.
InstallationRemoval
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.
5. Disconnect the connector from the unitby pressing the tab on the connector
with your finger and pulling the
connector downward.
6-44
Maintenance and Care
íSome models.
Owner Maintenance
CX-5_8DR2-EA-14A_Edition1 Page404
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (405,1)
6. Turn the socket and bulb assembly toremove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight back out of the
socket.
7. Install the new bulb in the reverse order
of the removal procedure.
Side-turn signal lights
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
Brake lights/Taillights, Rear turn signal
lights, Rear side-marker lights,
Taillights (Liftgate side), Reverse lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Remove the cover with a cloth- wrapped flathead screwdriver to the
cover. Brake lights/Taillights, Rear turn signal
lights, Rear side-marker lights
Taillights (Liftgate side), Reverse lights
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Maintenance and Care
Owner Maintenance
6-45
CX-5_8DR2-EA-14A_Edition1 Page405
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (406,1)
Brake lights/Taillights
Rear turn signal lights
Rear side-marker lights
Taillights (Liftgate side)
Reverse lights
5. Install the new bulb in the reverse orderof the removal procedure.
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
License plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
6-46
Maintenance and Care
Owner Maintenance
CX-5_8DR2-EA-14A_Edition1 Page406
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

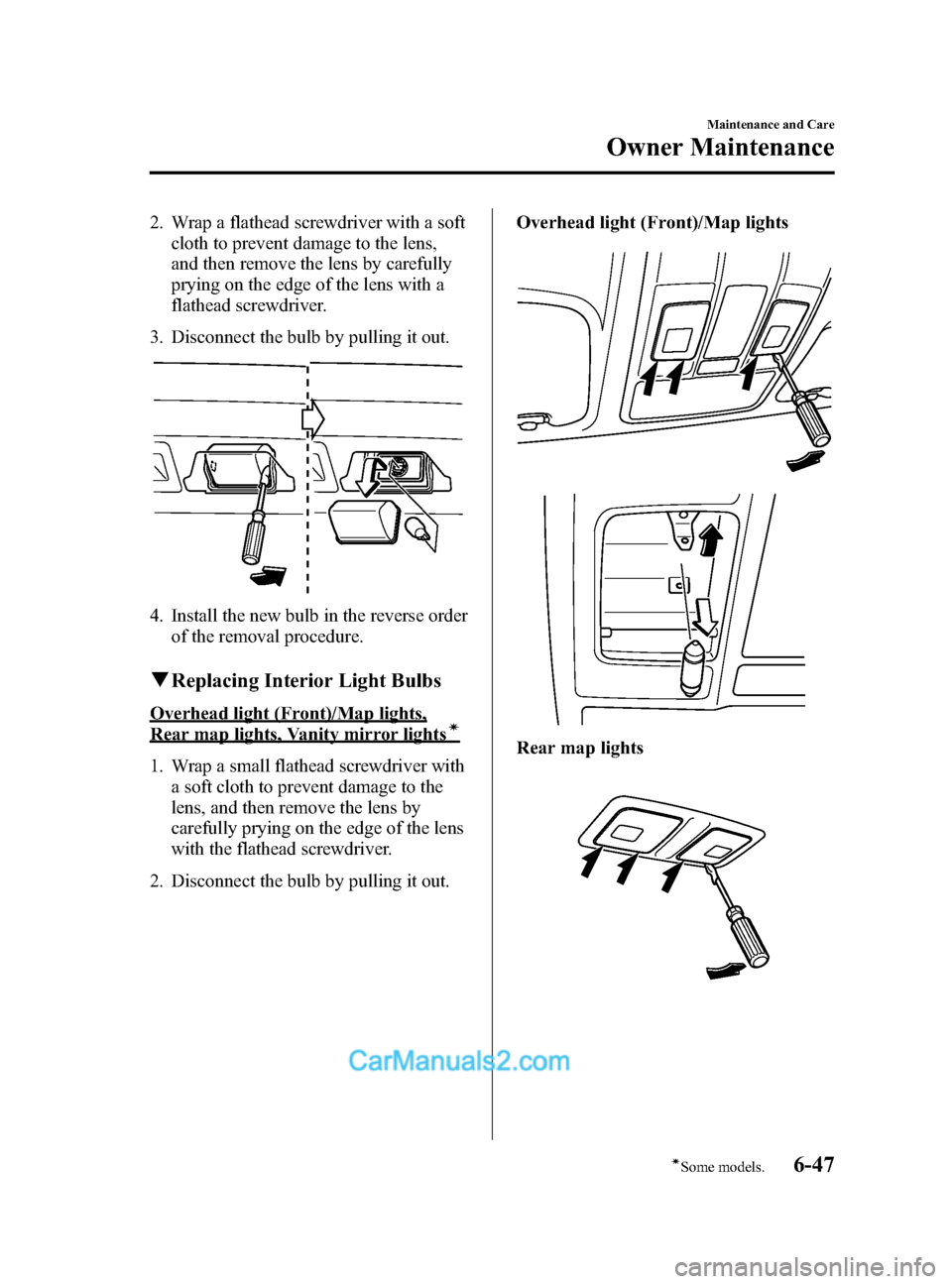

Black plate (407,1)
2. Wrap a flathead screwdriver with a softcloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order of the removal procedure.
qReplacing Interior Light Bulbs
Overhead light (Front)/Map lights,
Rear map lights, Vanity mirror lightsí
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out. Overhead light (Front)/Map lightsRear map lights
Maintenance and Care
Owner Maintenance
6-47íSome models.
CX-5_8DR2-EA-14A_Edition1 Page407
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (408,1)
Vanity mirror lights
3. Install the new bulb in the reverse orderof the removal procedure.
Luggage compartment light
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens unit by
carefully prying on the edge of the lens
unit with the flathead screwdriver.
2. Disconnect the electrical connectorfrom the bulb by pressing the tab on
the connector with your finger and
pulling the connector.
CAUTION
When replacing the bulb always
disconnect the connector first.
Otherwise, electric and electronic
devices could be shorted.
6-48
Maintenance and Care
Owner Maintenance
CX-5_8DR2-EA-14A_Edition1 Page408
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A
