CAUTION
If the automatic transaxle warning
light/warning indication illuminates,
the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult
an Authorized Mazda Dealer as soon
as possible.
qPower Steering Malfunction
Warning Indication/Indicator Light
Type B
This indicator light illuminates when the
ignition is switched ON, and turns off
when the engine is started.
Type A/Type B
The power steering malfunction indicator
light/warning indication illuminates or
flashes if there is a malfunction with the
power steering while the engine is
running.
If the indicator light/warning indication
illuminates or flashes, park the vehicle in
a safe place immediately and stop the
engine.
If the indicator light/warning indication
does not turn off even if the engine is
restarted afterwards, consult an
Authorized Mazda Dealer.NOTE
lIf the indicator light/warning indication
illuminates or flashes, the power steering
will not operate normally. If this happens,
the steering wheel can still be operated,
however, the operation may feel heavy
compared to normal, and the steering
wheel could vibrate when turning.
lRepeatedly jerking the steering wheel left
and right while the vehicle is stopped or
moving extremely slowly will cause the
power steering system to go into protective
mode which will make the steering feel
heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and
wait several minutes for the system to
return to normal.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.
When Driving
Instrument Cluster and Display
4-33
CX-5_8DR2-EA-14A_Edition1 Page161
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A

Black plate (162,1)
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qLow Fuel Warning Light
This warning light signals that the fuel
tank will soon be empty.
Refuel as soon as possible.
qCheck Fuel Cap Warning
Indication/Indicator Lightí
Type B
This warning light illuminates for a few
seconds when the ignition is switched
ON.
Type A/Type B
If the check fuel cap warning light
illuminates/indication while driving, the
fuel-filler cap may not be installed
properly. Stop the engine and reinstall the
fuel-filler cap.
Refer to Fuel-Filler Cap on page 3-24.
qSeat Belt Warning Light
Driver's seat
Front passenger's seatí
With warning light for front
passenger's seat
The seat belt warning light illuminates if
the driver or front passenger's seat is
occupied and the seat belt is not fastened
with the ignition switched ON.
4-34
When Driving
íSome models.
Instrument Cluster and Display
CX-5_8DR2-EA-14A_Edition1 Page162
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A

Black plate (163,1)
Without warning light for front
passenger's seat
The seat belt warning light illuminates if
the driver's seat is occupied and the seat
belt is not fastened with the ignition
switched ON.
Seat belt reminder
NOTE
Consult an Authorized Mazda Dealer to
deactivate or restore the belt reminder. Though
the belt reminder can be deactivated, doing so
will defeat the purpose of the system to warn
the driver and the front passenger in the event
that their seat belts are not fastened. For the
safety of the driver and front passenger, Mazda
recommends not deactivating the belt
reminder.
Front seat
If the vehicle is driven with the driver or
front passenger's seat belt unfastened, the
seat belt warning light illuminates and a
warning beep sounds.
NOTE
Some models do not have the seat belt
reminder function for the front passenger's
seat.
If the driver or front passenger's seat belt
is unfastened (only when the front
passenger seat is occupied) and the
vehicle is driven at a speed faster than
about 20 km/h (12 mph), the warning
light will flash and a beep sound will be
heard. After a short time, the warning
light stops flashing, but remains
illuminated, and the beep sound stops.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed
falls below 20 km/h (12 mph).NOTE
lThe warning light flashes and a beep sound
will be heard for about 6 seconds if the
driver's seat belt is not fastened when the
ignition is switched ON.
lIf a driver or front passenger's seat belt is
unfastened after the beep sound turns off
(warning light remains illuminated), and
the vehicle speed exceeds 20 km/h (12
mph), the warning light flashes and beep
sound activates again.
lPlacing heavy items on the front passenger
seat may cause the front passenger seat belt
warning function to operate depending on
the weight of the item.
lTo allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on the
front passenger seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
lWhen a small child sits on the front
passenger seat, it is possible that the
warning light will not operate.
q
Door-Ajar Warning Indication/
Warning Light
Type A
Type B
When Driving
Instrument Cluster and Display
4-35
CX-5_8DR2-EA-14A_Edition1 Page163
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A

Black plate (164,1)

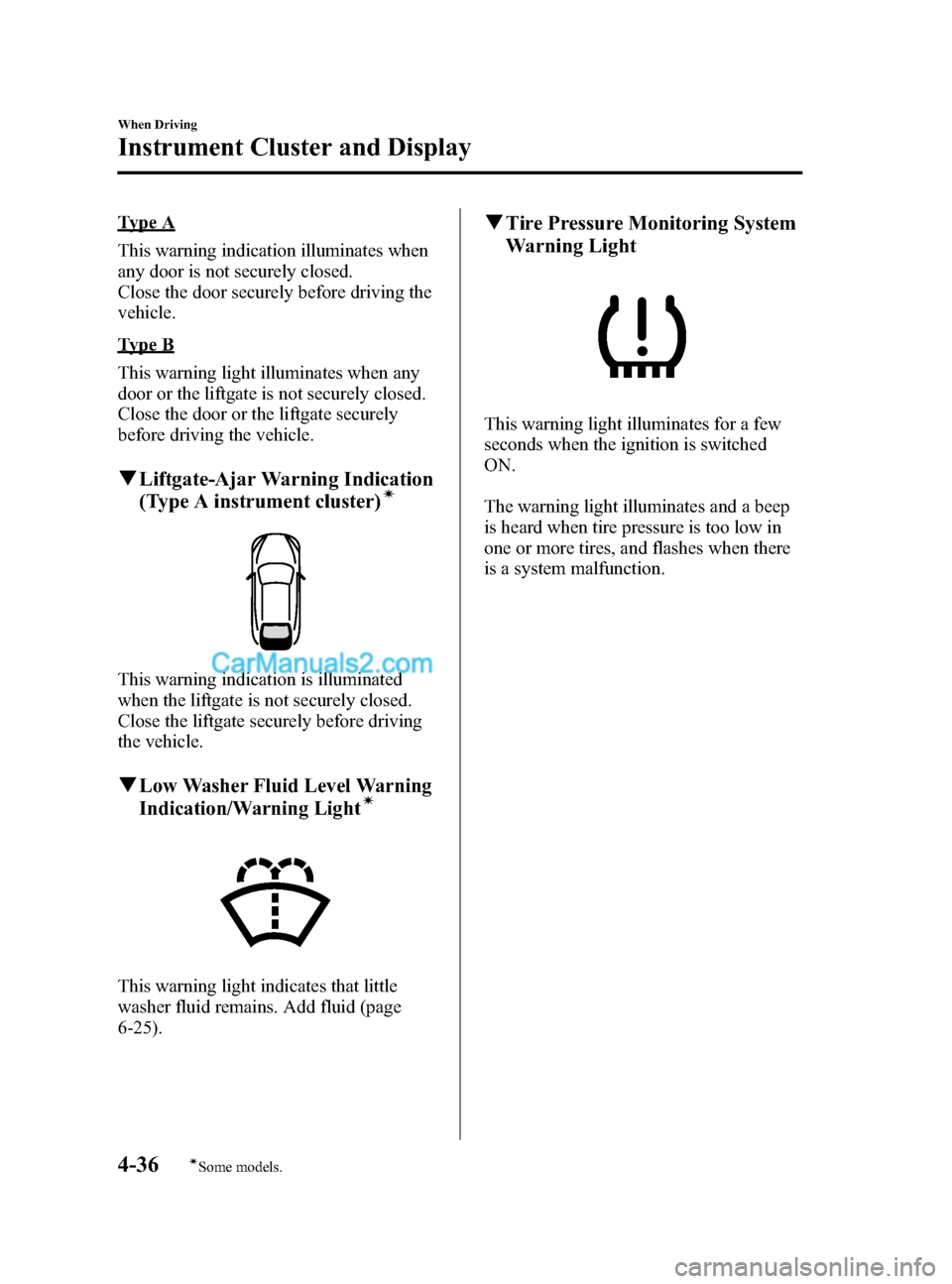

Type A
This warning indication illuminates when
any door is not securely closed.
Close the door securely before driving the
vehicle.
Type B
This warning light illuminates when any
door or the liftgate is not securely closed.
Close the door or the liftgate securely
before driving the vehicle.
qLiftgate-Ajar Warning Indication
(Type A instrument cluster)í
This warning indication is illuminated
when the liftgate is not securely closed.
Close the liftgate securely before driving
the vehicle.
qLow Washer Fluid Level Warning
Indication/Warning Lightí
This warning light indicates that little
washer fluid remains. Add fluid (page
6-25).
qTire Pressure Monitoring System
Warning Light
This warning light illuminates for a few
seconds when the ignition is switched
ON.
The warning light illuminates and a beep
is heard when tire pressure is too low in
one or more tires, and flashes when there
is a system malfunction.
4-36
When Driving
íSome models.
Instrument Cluster and Display
CX-5_8DR2-EA-14A_Edition1 Page164
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A

Black plate (165,1)
WARNING
If the tire pressure monitoring system
warning light illuminates or flashes, or
the tire pressure warning beep sound is
heard, decrease vehicle speed
immediately and avoid sudden
maneuvering and braking:If the tire pressure monitoring system
warning light illuminates or flashes,
or the tire pressure warning beep
sound is heard, it is dangerous to
drive the vehicle at high speeds, or
perform sudden maneuvering or
braking. Vehicle drivability could
worsen and result in an accident.
To determine if you have a slow leak
or a flat, pull over to a safe position
where you can check the visual
condition of the tire and determine if
you have enough air to proceed to a
place where air may be added and
the system monitored again by an
Authorized Mazda Dealer or a tire
repair station.
Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken
care of as soon as possible before it
develops into a more serious
situation that could lead to tire
failure and a dangerous accident.
Warning light illuminates/Warning
beep sounds
When the warning light illuminates, and
the warning beep sound is heard (about 3
seconds), tire pressure is too low in one or
more tires. Adjust the tire pressure to the correct tire
pressure and initialize TPMS. Refer to the
specification charts (page 9-8).
NOTE
lPerform tire pressure adjustment when the
tires are cold. Tire pressure will vary
according to the tire temperature, therefore
let the vehicle stand for 1 hour or only drive
it 1.6 km (1 mile) or less before adjusting
the tire pressures. When pressure is
adjusted on hot tires to the cold inflation
pressure, the TPMS warning light/beep may
turn on after the tires cool and pressure
drops below specification.
Also, an illuminated TPMS warning light,
resulting from the tire air pressure dropping
due to cold ambient temperature will
remain illuminated even if the ambient
temperature rises. In this case, it will also
be necessary to adjust the tire air pressures.
If the TPMS warning light illuminates due
to a drop in tire air pressure, make sure to
check and adjust the tire air pressures.
lTires lose air naturally over time and the
TPMS cannot tell if the tires are getting too
soft over time or you have a flat. However,
when you find one low tire in a set of four-
that is an indication of trouble; you should
have someone drive the vehicle slowly
forward so you can inspect any low tire for
cuts and any metal objects sticking through
tread or sidewall. Put a few drops of water
in the valve stem to see if it bubbles
indicating a bad valve. Leaks need to be
addressed by more than simply reinflating
the tire as leaks are dangerous - take it to
an Authorized Mazda Dealer.
If the warning light illuminates again even
after the tire pressures are adjusted and the
TPMS initialization is performed, there
may be a tire puncture. Replace the
punctured tire with the temporary spare
tire (page 7-7).
When Driving
Instrument Cluster and Display
4-37
CX-5_8DR2-EA-14A_Edition1 Page165
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A

Black plate (166,1)
Warning light flashes
If the tire pressure monitoring system has
a malfunction, the tire pressure warning
light flashes for about 1 minute when the
ignition is switched ON and then
continues illuminating. Have your vehicle
checked by an Authorized Mazda Dealer
as soon as possible.
qKEY Warning Light (Red)/KEY
Indicator Light (Green)
Type A
“Keyless System Inspection Required ”
is displayed
This message is displayed if the advanced
keyless entry & push button start system
has a problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the above message is indicated, or
the push button start indicator light
(amber) flashes, the engine may not
start. If the engine cannot be started,
try starting it using the emergency
operation for starting the engine, and
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8. “
Set Power to OFF ”is displayed
This message is displayed when the
driver's door is opened without switching
the ignition off.
“ Key not found ”is displayed
This message is displayed when any of
the following operations is performed
with the key out of the operational range
or placed in areas inside the cabin where it
is difficult for the key to be detected.
lThe push button start is pressed with
the ignition switched off
lThe ignition is switched onlThe driver's door is opened or all doors
are closed without switching the
ignition off
“ Depress the Brake Pedal and Touch
the Key to the Start Button ”
(Automatic Transaxle vehicle)/ “Depress
the Clutch Pedal and Touch the Key to
the Start Button ”(Manual Transaxle
vehicle) is displayed
This message is displayed when any of
the following operations is performed
with the key out of the operational range
or placed in areas inside the cabin where it
is difficult for the key to be detected.
lThe push button start is pressed with
the ignition switched off
lBrake pedal (Automatic transaxle
vehicle)/Clutch pedal (Manual
transaxle vehicle) is depressed with the
ignition switched off
“ Key Battery is low ”is displayed
This message is displayed when the
remaining battery power of the key is low
and the ignition is switched from on to
off.
4-38
When Driving
Instrument Cluster and Display
CX-5_8DR2-EA-14A_Edition1 Page166
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A

Black plate (167,1)
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
Type B
This indicator has two colors.
KEY Warning Light (Red)
When illuminated
If any malfunction occurs in the keyless
entry system, it illuminates continuously.
CAUTION
If the key warning indicator light
illuminates or the push button start
indicator light (amber) flashes, the
engine may not start. If the engine
cannot be started, try starting it
using the emergency operation for
starting the engine, and have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
When flashing
lUnder the following conditions, the
KEY warning light (red) flashes to
notify the driver that the ignition
cannot be switched from off.
lThe key battery is dead.lThe key is not within operational
range.
lThe key is placed in areas where it is
difficult for the system to detect the
signal (page 3-6).
lA key from another manufacturer
similar to the key is in the
operational range.
lUnder the following conditions, the
KEY warning light (red) will flash
continuously when the ignition has not
been switched off to notify the driver
that the key has been removed from the
vehicle. The KEY warning light (red)
will stop flashing when the key is back
inside the vehicle:
The ignition has not been switched off
and all the doors and the liftgate are
closed after removing the key from the
vehicle.
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
KEY Indicator Light (Green)
When illuminated
When the brake pedal is depressed with
an automatic transaxle or the clutch pedal
is depressed with a manual transaxle, the
system confirms that the correct key is
inside the vehicle, the KEY indicator light
(green) illuminates, and the engine can be
started (page 4-3).
When flashing
When the ignition is switched from ON to
off, the KEY indicator light (green)
flashes for approximately 30 seconds
indicating that the remaining battery
power is low. Replace with a new battery
before the key becomes unusable.
Refer to Replace Electrical Battery on
page 6-33.
When Driving
Instrument Cluster and Display
4-39
CX-5_8DR2-EA-14A_Edition1 Page167
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A

Black plate (168,1)
qWrench Indicationí
Perform maintenance in accordance with
the message.
qTCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.
If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
NOTE
lIn addition to the indicator light flashing, a
slight lugging sound will come from the
engine. This indicates that the TCS/DSC is
operating properly.
lOn slippery surfaces, such as fresh snow, it
will be impossible to achieve high rpm
when the TCS is on.
qTCS OFF Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched
ON.
It also illuminates when the TCS OFF
switch is pressed and TCS is switched off.
Refer to TCS OFF Switch on page 4-84.
If the light remains illuminated and the
TCS is not switched off, take your vehicle
to an Authorized Mazda Dealer. The DSC
may have a malfunction.
qAFS OFF Indicator Lightí
When illuminated
This indicator light illuminates briefly
when the ignition is switched ON, and
then turns off.
Pressing the AFS OFF switch cancels the
AFS function and illuminates the
indicator light.
When flashing
The indicator light flashes continuously if
the system is malfunctioning. Consult an
Authorized Mazda Dealer.
4-40
When Driving
íSome models.
Instrument Cluster and Display
CX-5_8DR2-EA-14A_Edition1 Page168
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
