2015 MAZDA MODEL CX-5 Owners Manual (in English)

Black plate (497,1)

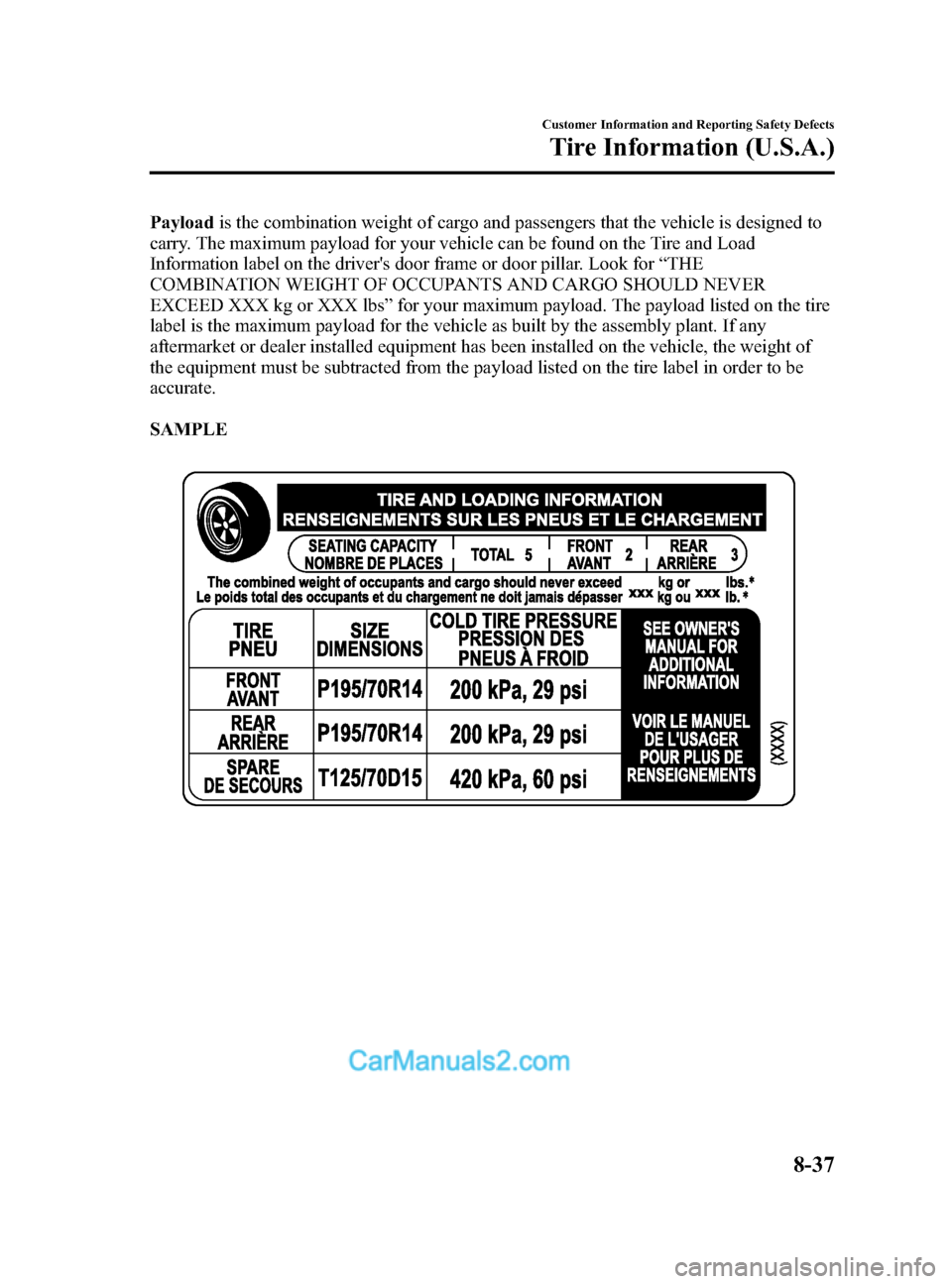

Payloadis the combination weight of cargo and passengers that the vehicle is designed to
carry. The maximum payload for your vehicle can be found on the Tire and Load
Information label on the driver's door frame or door pillar. Look for “THE
COMBINATION WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER
EXCEED XXX kg or XXX lbs” for your maximum payload. The payload listed on the tire
label is the maximum payload for the vehicle as built by the assembly plant. If any
aftermarket or dealer installed equipment has been installed on the vehicle, the weight of
the equipment must be subtracted from the payload listed on the tire label in order to be
accurate.
SAMPLE
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-37
CX-5_8DR2-EA-14A_Edition1 Page497
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (498,1)
CARGO
Cargo Weightincludes all weight added to the Base Curb Weight, including cargo and
optional equipment. When towing, trailer tongue load or king pin weight is also part of
cargo weight.
The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the “combination weight of occupants and cargo should never exceed ”value on the tire
label.
Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg
(849 lbs) for the “combination weight of occupants and cargo should never exceed ”:
The cargo weight limit with one occupant is 385 kg (849 lbs) _
68 kg (150 lbs) = 317 kg
(699 lbs)
The cargo weight limit with two occupants is 385 kg (849 lbs) _
(68 × 2) kg ( (150 × 2)
lbs) = 249 kg (549 lbs)
If the weight of the occupant increases, the cargo weight limit decreases by that much.
GAW (Gross Axle Weight) is the total weight placed on each axle (front and rear) -
including vehicle curb weight and all payload.
8-38
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
CX-5_8DR2-EA-14A_Edition1 Page498
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (499,1)
GAWR (Gross Axle Weight Rating)is the maximum allowable weight that can be carried
by a single axle (front or rear). These numbers are shown on the Safety Compliance
Certification Label located on the driver's door frame or door pillar. The total load on
each axle must never exceed its GAWR.
GVW
GVW (Gross Vehicle Weight) is the Vehicle Curb Weightcargopassengers.
GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is
shown on the Safety Compliance Certification Label located on the driver's door
frame or door pillar. The GVW must never exceed the GVWR.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-39
CX-5_8DR2-EA-14A_Edition1 Page499
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (500,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
GCW
8-40
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
CX-5_8DR2-EA-14A_Edition1 Page500
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (501,1)
GCW (Gross Combination Weight)is the weight of the loaded vehicle (GVW) plus the
weight of the fully loaded trailer.
GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated
for operation at GVWR, not at GCWR. Separate functional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs). The GCW must
never exceed the GCWR.
Maximum Loaded Trailer Weight is the highest possible weight of a fully loaded trailer
the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or
external), a tongue load of 10 _
15% (conventional trailer) or king pin weight of 15 _
25%
(fifth-wheel trailer), and driver only (150 lbs). Consult your dealership (or the RV and
Trailer Towing Guide provided by your dealership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weight refers to the amount of the weight that a
trailer pushes down on a trailer hitch.
Examples: For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 500 to 750 lbs. For an 11,500 lb fifth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.
WARNING
Exceeding GVWR or GAWR Specifications: Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement
tires with a higher limit than the originals do not increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-41
CX-5_8DR2-EA-14A_Edition1 Page501
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (502,1)
Steps for Determining the Correct Load Limit
Steps for Determining Correct Load Limit-
(1) Locate the statement“The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs.” on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load
capacity. For example, if the “XXX ”amount equals 1400 lbs. and there
will be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 _
750 (5 × 150) = 650
lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this
reduces the available cargo and luggage load capacity of your vehicle.
8-42
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
CX-5_8DR2-EA-14A_Edition1 Page502
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (503,1)
Declaration of Conformity
qKeyless Entry System/Immobilizer System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-43
CX-5_8DR2-EA-14A_Edition1 Page503
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

Black plate (504,1)
qBlind Spot Monitoring (BSM) System
Radiation Hazard
This BSM (blind spot monitoring) device emits intentional electromagnetic radiation in the
24 GHz to 25 GHz frequency range. The total radiated average power over the entire
bandwidth is below _
14 dBm (40 µW). The active emitting antenna surface is 72 cm
2;
therefore the radiated power density in front of the BSM device is 0.55 µW/cm2. This
value is far below the legal human exposure protection limit of 1 mW/cm2(MPE) in
Europe and US.
Declaration of compliance for 24 GHz blind spot radar
(U.S.A)
FCC ID: OAYBSDTX
This vehicle is equipped with a 24 GHz blind spot monitoring (BSM) radar system, which
complies with part 15 of the FCC rules. Operation is subject to the following conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
3. This device may only work when the vehicle is in operation pursuant to § 15. 252 (a) (4).
(CANADA)
IC:4135A-BSDTX
This device complies with the radio standards specification RSS-220 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
(MEXICO)
RLVCOBS10-0567
NOTE
During printing time of this user manual the approvals listed above are granted. Further countries
may become available or actual certification identifiers may be subject to change or update.
WARNING
Changes or modifications not expressively approved by the party responsible for
compliance could void the user's authority to operate the equipment.
8-44
Customer Information and Reporting Safety Defects
Declaration of Conformity
CX-5_8DR2-EA-14A_Edition1 Page504
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A
