2015 MAZDA MODEL CX-5 Owners Manual (in English)

Black plate (321,1)
2. Touch theon-screen
button.
3. Touch the device name which you want to delete.
4. Touch the
on-screen button.
5. Touch the
on-screen button.
NOTE
If you want to delete all of the pairing devices,
restore the default settings.
Changing PIN code
PIN code (4 digits) can be changed.
1. Touch the
on-screen tab.
2. Touch the
on-screen
button.
3. Touch the
on-screen button.
4. Delete the PIN code which is currently set.
5. Input the new PIN code to be set.
6. Touch the
on-screen button.
Restoring default settings
All the pairing device information and
phonebook data can be deleted.
1. Touch the
on-screen tab.
2. Touch the
on-screen
button.
3. Touch the
on-screen button.
4. Touch the
on-screen button.
q Available Language
The Bluetooth®Hands-Free System
applies to the following languages:
lEnglishlSpanishlFrench Refer to Setup on page 5-55.
q
Voice Recognition
The Mazda Bluetooth®Hands-free system
can be used to make calls or operate the
audio unit using voice recognition which
includes numerous convenient commands.
In this section, the basic operation of the
voice recognition is explained.
Activating Voice Recognition
To Activate the Main Menu: Press the talk
button.
To Activate the Phone Menu: After
activating the main menu, say “Phone ”.
To Activate the Navi Menu: After
activating the main menu, say
“ Navigation ”.
NOTE
lWhen activating the Phone Menu from the
Main Menu, the user is informed of the
available options (Call, Dial, Redial, Call
back ,Setup or Emergency) via voice
navigation.
lFor voice recognition details with the
navigation system, refer to the separate
“ NAVIGATION SYSTEM Owner's
Manual” .
Ending Voice Recognition
Use one of the following methods:
lPress and hold the talk button.lPress the hang-up button.
Skipping Voice Guidance (for faster
operation)
Press and release the talk button.
Interior Features
Bluetooth®
5-81
CX-5_8DR2-EA-14A_Edition1 Page321
Thursday, November 21 2013 8:49 AM
Form No.8DR2-EA-14A

Black plate (322,1)

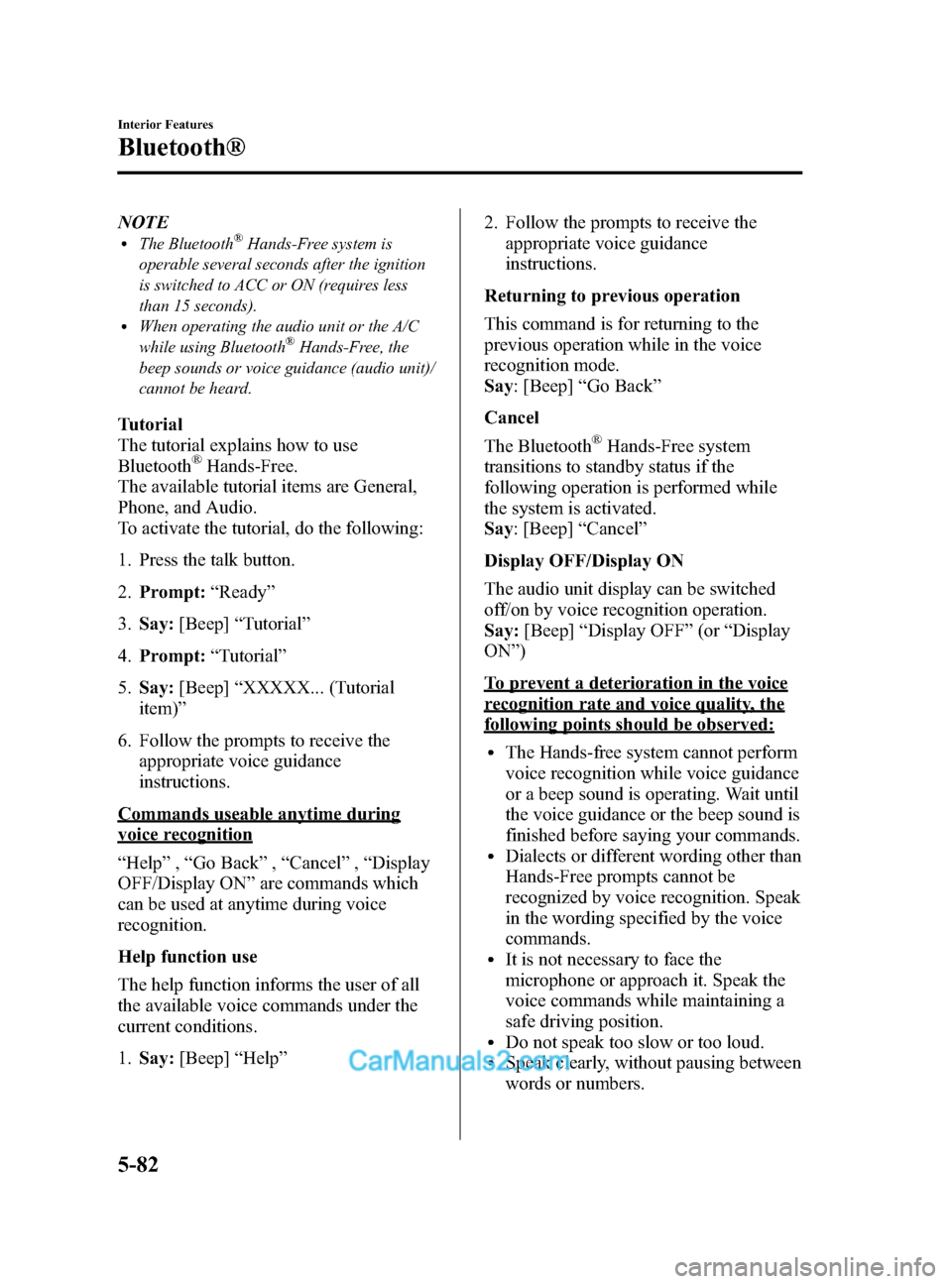

NOTElThe Bluetooth®Hands-Free system is
operable several seconds after the ignition
is switched to ACC or ON (requires less
than 15 seconds).
lWhen operating the audio unit or the A/C
while using Bluetooth®Hands-Free, the
beep sounds or voice guidance (audio unit)/
cannot be heard.
Tutorial
The tutorial explains how to use
Bluetooth
®Hands-Free.
The available tutorial items are General,
Phone, and Audio.
To activate the tutorial, do the following:
1. Press the talk button.
2. Prompt: “Ready ”
3. Say: [Beep] “Tutorial ”
4. Prompt: “Tutorial ”
5. Say: [Beep] “XXXXX... (Tutorial
item) ”
6. Follow the prompts to receive the appropriate voice guidance
instructions.
Commands useable anytime during
voice recognition
“Help ”,“Go Back ”,“Cancel” ,“Display
OFF/Display ON ”are commands which
can be used at anytime during voice
recognition.
Help function use
The help function informs the user of all
the available voice commands under the
current conditions.
1. Say: [Beep] “Help ” 2. Follow the prompts to receive the
appropriate voice guidance
instructions.
Returning to previous operation
This command is for returning to the
previous operation while in the voice
recognition mode.
Say : [Beep] “Go Back ”
Cancel
The Bluetooth
®Hands-Free system
transitions to standby status if the
following operation is performed while
the system is activated.
Say : [Beep] “Cancel ”
Display OFF/Display ON
The audio unit display can be switched
off/on by voice recognition operation.
Say: [Beep] “Display OFF ”(or “Display
ON ”)
To prevent a deterioration in the voice
recognition rate and voice quality, the
following points should be observed:
lThe Hands-free system cannot perform
voice recognition while voice guidance
or a beep sound is operating. Wait until
the voice guidance or the beep sound is
finished before saying your commands.
lDialects or different wording other than
Hands-Free prompts cannot be
recognized by voice recognition. Speak
in the wording specified by the voice
commands.
lIt is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.
lDo not speak too slow or too loud.lSpeak clearly, without pausing between
words or numbers.
5-82
Interior Features
Bluetooth®
CX-5_8DR2-EA-14A_Edition1 Page322
Thursday, November 21 2013 8:49 AM
Form No.8DR2-EA-14A

Black plate (323,1)
lClose the windows and/or the
moonroof to reduce loud noises from
outside the vehicle. Turn down the
airflow of the air-conditioning system
while Bluetooth
®Hands-Free is being
used.
lMake sure the vents are not directing
air up towards the microphone.
NOTE
If the voice recognition performance is not
satisfactory.
Refer to Troubleshooting on page 5-106.
Bluetooth® Hands-Free
q Making a Call
Phonebook Usage
Telephone calls can be made by saying
the contact name in the downloaded
phonebook or the name of a person whose
phone number has been registered in the
Bluetooth
®Hands-Free. Refer to Import
contact (Download Phonebook).
1. Press the talk button.
2. Prompt: “Ready.”
3. Say: [Beep] “Phone call ”
4. Prompt: “Name, please. ”
5. Say: [Beep] “XXXXX... (Ex. “John ”)”
(Say a name registered in the
phonebook.)
The name spoken will be searched for
in the phonebook.
If a contact is matched, go to Step 7.
If multiple contacts are matched, go to
Step 6.
6. Prompt: “Would you like to call
XXXXX... (Choice 1)? ”
(Person you would like to call)
Say: [Beep] “Yes. ”Then go to Step 7.
(Person you do not want to call)
Say: [Beep] “No ”Then go to Step 6
(Maximum 3 times)
7. Prompt: “Would you like to call
XXXXX... (Ex. “John ”) at home, at
work, or mobile, or other... or press the
hang-up button to exit Hands-Free
mode. ”
8. Say: [Beep] “XXXXX... (Ex. “at
home ”)”
Interior Features
Bluetooth®
5-83
CX-5_8DR2-EA-14A_Edition1 Page323
Thursday, November 21 2013 8:49 AM
Form No.8DR2-EA-14A

Black plate (324,1)
9.Prompt: “XXXXX... (Ex. “John ”)
XXXX (Ex. “at home ”). Press the pick-
up button to call, or say Go Back to
enter a different name. ”
10. (Dialing) Press the pick-up button or
say “Call ”. Then go to Step 11.
(Name correction) Say,“Go Back ”.
Then go back to Step 4.
11. The call is made.
NOTE
The name in the phonebook and location can
be combined.
Ex. In Step 5, say, “John home ”, then, Steps 6
to 8 can be skipped.
Screen operation
1. Touch the
on-screen tab to
display the phonebook screen.
2. Touch the contact you would like to call to display the details for the
contact.
3. Touch the desired phone number to make the call.
Import contact (Download Phonebook)
Phonebook data from your device (Mobile
phone) can be sent and registered to your
Bluetooth
®Hands-Free phonebook using
Bluetooth®.
1. Touch the
on-screen tab.
2. Touch the
on-screen
button.
3. Touch the
or
on-screen button to switch to the
device operation. NOTE
lIf the phonebook has been already
registered to the Hands-Free unit, the
current phonebook is overwritten during
“
all phonebooks download ”.
lA maximum of 1000 contacts can be
registered to the phonebook.
lPhonebook, incoming/outgoing call record,
and speed dialing memory are exclusive to
each mobile phone to protect privacy.
4. Download will be started from the
mobile phone.
Phonebook data deletion
1. Touch the
on-screen tab.
2. Touch the contact information which you want to delete.
3. Touch the
on-screen button.
Call History Usage
A call can be made using the call history
(incoming/outgoing history) downloaded
from the mobile phone (Redial/Call back).
The call history is downloaded
automatically when connecting or pairing
the Hands-Free and mobile phone.
NOTE
If an anonymous call is received, the phone
number displayed in the Incoming Call History
may be random numbers. This is because a
mobile phone sends random numbers to the
vehicle. In this case, please be aware that the
Redial and Call back functions below may not
operate.
Redial Function
This voice command makes a call to the
last person you called (either from your
mobile phone or from the vehicle).
1. Press the talk button.
5-84
Interior Features
Bluetooth®
CX-5_8DR2-EA-14A_Edition1 Page324
Thursday, November 21 2013 8:49 AM
Form No.8DR2-EA-14A

Black plate (325,1)
2.Prompt: “Ready.”
3. Say: [Beep] “Phone redial ”
4. A call is made to the most recent call in the Call history (outgoing).
Call back Function
This voice command makes a call to the
last person who called you.
1. Press the talk button.
2.Prompt: “Ready.”
3. Say: [Beep] “Phone call back ”
4. A call is made to the most recent call in the Call history (incoming).
Speed Dial Function
A maximum of eight telephone numbers
can be registered. It will take less time to
make a call after registering the telephone
number. In addition, you do not have to
look for the person you want to call in the
phonebook.
Speed Dial registration from
phonebook
1. Touch the
on-screen tab.
2. Touch the
on-screen button.
3. Touch the contact you would like to register to the speed dial.
4. Touch the telephone number you would like to register.
5. Verify that the registered name and telephone number are displayed in the
phonebook, and touch the
on-
screen button.
Making calls using the Speed Dial
1. Touch the
on-screen tab. 2. Touch the contact information you
would like to call.
Changing contact
1. Touch the
on-screen tab.
2. Touch the
on-screen button.
3. Touch the
on-screen button.
4. Touch the contact you would like to register to the speed dial.
5. Touch the telephone number you would like to register.
6. Verify that the registered name and telephone number are displayed in the
phonebook, and touch the
on-
screen button.
Speed Dial contact deleting
1. Touch the
on-screen tab.
2. Touch the
on-screen button for
the contact you would like to delete.
3. Touch the
on-screen button to
display the confirmation screen.
4. Touch the
on-screen button.
Telephone Number Input
NOTE
Practice this while parked until you are
confident you can do it while driving in a non-
taxing road situation. If you are not completely
comfortable, make all calls from a safe
parking position, and only start driving when
you can devote your full attention to driving.
1. Press the talk button.
2. Prompt: “Ready.”
3. Say: [Beep] “Phone dial ”
4. Prompt: “Number, please ”
Interior Features
Bluetooth®
5-85
CX-5_8DR2-EA-14A_Edition1 Page325
Thursday, November 21 2013 8:49 AM
Form No.8DR2-EA-14A

Black plate (326,1)
5.Say: [Beep] “XXXXXXXXXXX (Ex.
“ 5551234 ”) (Telephone number) ”
6. Prompt: “XXXXXXXXXXX. (Ex
“ 5551234 ”) (Telephone number (first
choice)) ”
7. Prompt: “Press the pick-up button to
dial, or continue to add numbers. You
can also say ‘Option A ’or ‘Option B’
to replace the last block of digits with
the displayed alternate, or say ‘Go
Back ’to delete the last block of digits. ”
NOTE
Option A is the second candidate, Option B is
the third, and they may not be presented
depending on the conditions.
8. (Dialing)
Press the pick-up button or say, “Dial ”,
then go to Step 9.
(Adding/inputting telephone
number)
Say, “XXXX ”(desired telephone
number). Then go to Step 5.
(The last recognized telephone
number is replaced by Option A or
B)
Say, “Option A ”or “Option B” . Then
go to Step 6.
(Telephone number correction)
Say, “Go Back ”. The prompt replies,
“ The last entered numbers have been
removed ”. Then go back to Step 4 or
Step 7.
9. The call is made.
Screen operation
1. Input the telephone number using the numerical keypad.
2. Touch the
on-screen button to
make the call. Numeral or symbol entry
Use the numerical keypad.
Long-press the
on-screen button to
input
.
Touch the
on-screen button to delete
the currently input value.
Emergency calls
A call can be made to the emergency
phone number (911: U.S.A/Canada, 066:
Mexico) using the voice input command.
It may not function properly in some areas
in Mexico.
1. Press the talk button.
2. Prompt: “Ready ”
3. Say: [Beep] “Phone emergency ”
4. Prompt: “Press the Pick-Up button to
dial the Emergency number.”
5. (Dialing) Press the pick-up button or say “Call. ”
6. Prompt: “Dialing XXX (911: U.S.A/C
anada, 066: Mexico). ”
Automatic 911 (U.S.A./Canada only)
If the vehicle is involved in a moderate to
severe collision, a call is made
automatically to 911 from the connected
device.
1. If the vehicle is involved in a moderate to severe collision, notification of the
call to 911 is made via audio and
screen display. To cancel the call, press
the
on-screen button or hang-up
button within 10 seconds.
2. If the
on-screen button or hang-
up button is not pressed within 10
seconds, the call is made to 911
automatically.
5-86
Interior Features
Bluetooth®
CX-5_8DR2-EA-14A_Edition1 Page326
Thursday, November 21 2013 8:49 AM
Form No.8DR2-EA-14A

Black plate (327,1)
NOTElAutomatic 911 is a secondary function of
the audio entertainment system. Therefore,
the automatic 911 function does not assure
that the call is always made to 911 after an
accident occurs.
lA Hands-free device must be paired and
connected. The 911 operator can verify the
vehicle's position information using the
Hands-free device GPS if equipped.
The 911 operator can verify the vehicle’s
position information.
(Switching automatic 911 on and off)
The system can be set to not call 911 if
the vehicle is involved in a moderate to
severe collision.
CAUTION
Though the system can be set to not
call 911, doing so will defeat the
purpose of the system to immediately
contact rescue personnel to assist you
after your accident. For the safety of
the driver and all passengers, Mazda
recommends that the Automatic 911
system remain activated so that a
call will be made to 911 when needed.
1. Touch the
on-screen tab.
2. Touch the
on-screen
button.
3. Touch the
on-screen button or
on-screen button.
4. Touch the
on screen button.
q Receiving an Incoming Call
1. Prompt: “Incoming call, press the
pick-up button to answer ”
2. To accept the call, press the pick-up button or touch the
on-screen
button.
To reject the call, press the hang-up
button or touch the
on-screen
button.
NOTE
To stop receiving phone calls, turn the Don't
Disturb Me function on.
q Hanging Up a Call
Press the hang-up button or touch the
on-screen button during the call.
qMute
The microphone can be muted during a
call.
Touch the
on-screen button.
Touch the
on-screen button during
mute to cancel the mute.
q Transferring a call from Hands-
Free to a mobile phone
Communication between the Hands-Free
unit and a device (Mobile phone) is
canceled, and the line can be switched to
the device (Mobile phone) as a standard
call.
Touch the
on-screen button.
NOTE
If the ignition is switched off during a Hands-
Free call, the line is transferred to the device
(Mobile phone) automatically.
Interior Features
Bluetooth®
5-87
CX-5_8DR2-EA-14A_Edition1 Page327
Thursday, November 21 2013 8:49 AM
Form No.8DR2-EA-14A

Black plate (328,1)
qTransferring a call from a device
(mobile phone) to Hands-Free
Communication between devices (mobile
phone) can be switched to Bluetooth®
Hands-Free.
Touch the
on-screen button.
qCall interrupt
A call can be interrupted to receive an
incoming call from a third party.
To switch to a new incoming call.
Touch the
on-screen button or press
the pick-up button on the steering wheel.
NOTE
lAfter receiving a new incoming call, the
previous call is placed on hold.
lTouch theon-screen button or press
the hang-up button on the steering wheel to
refuse a call.
Switching between calls
Touch the
on-screen button or
press the pick-up button on the steering
wheel.
Three-way call function
Touch the
on-screen button.
q DTMF (Dual Tone Multi-
Frequency Signal) Transmission
This function is used when transmitting
DTMF via the Numerical Keypad. The
receiver of a DTMF transmission is
generally a home telephone answering
machine or a company's automated
guidance call center.
1. Touch the
on-screen button
after connecting to a home device or
service to display the tone transmission
screen. 2. Input the number using a numerical
keypad.
NOTE
If the DTMF code has two or more digits or
symbols, each one must be transmitted
individually.
q Receiving and Replying to
Messages (only MAP 1.0)
SMS (Short Message Service) messages,
MMS (Multimedia Messaging Service)
messages, and E-mail received by
connected devices can be downloaded,
displayed, and played (read by the
system).
Additionally, replies can also be made to
calls and messages in the received
messages.
Downloading messages
Up to 15 new messages can be
downloaded and displayed from a
connected device.
1. Touch the
on-screen tab.
2. Touch the
on-screen button.
NOTE
lMessages that have not been read are
downloaded first.
lAttached data is not downloaded.lMessages up to 160-bytes can be
downloaded.
lA message list is created for each device.lIf there are unread messages, the receive
icon is displayed.
lIf the connected device does not correspond
to MAP 1.0, the AT command is used to
download. The downloaded message
indicates that it is already read.
lDownloading using the AT command may
not function depending on the connected
device.
5-88
Interior Features
Bluetooth®
CX-5_8DR2-EA-14A_Edition1 Page328
Thursday, November 21 2013 8:49 AM
Form No.8DR2-EA-14A
