2015 LEXUS RX450h Owners Manual

6574-3. Do-it-yourself maintenance
4
Maintenance and care Holding a rag under the end, pull the dipsti ck out and check the
oil level.
Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as th at already in the
engine.
Make sure to check th e oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.STEP 5
STEP 6
Engine oil
selection  P. 8 0 2
Oil quantity
(Low  Full) 1.6 qt. (1.5 L, 1.3 Imp. qt.)
Items Clean funnel
STEP 1
STEP 2
STEP 3

6584-3. Do-it-yourself maintenance
■
Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following situ-
ations, oil consumption may increase, and engine oil may need to be refilled in
between oil maintenance intervals. ●
When the engine is new, for example di rectly after purchasing the vehicle or
after replacing the engine●
If low quality oil or oil of an inappropriate viscosity is used●
AWD models with towing package: When driving at high engine speeds or with
a heavy load, when towing, or when driving while accelerating or decelerating
frequently●
2WD models and AWD models without towing package: When driving at high
engine speeds or with a heavy load, or when driving while accelerating or
decelerating frequently●
When leaving the engine id ling for a long time, or when driving frequently
through heavy traffic
CAUTION■
Used engine oil ●
Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammati on or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.●
Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in househol d trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●
Do not leave used engine oil within the reach of children.

6594-3. Do-it-yourself maintenance
4
Maintenance and care
Coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine and hybrid system are cold.
Engine coolant reservoir
Reservoir cap
“FULL” line
“LOW” line If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. (  P. 788)NOTICE■
To prevent serious engine damage
Check the oil level on a regular basis.■
When replacing the engine oil ●
Be careful not to spill engine oil on the vehicle components.●
Avoid overfilling, or the engine could be damaged.●
Check the oil level on the dipstick every time you refill the vehicle.●
Be sure the engine oil filler cap is properly tightened.

6604-3. Do-it-yourself maintenance
Power control unit coolant reservoir
Reservoir cap
“FULL” line
“LOW” line If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. (  P. 788)
■
Coolant selection
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and
50% deionized water. (Minimum temperature: -31  F [-35  C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45%
deionized water. (Minimum temperature: -44  F [-42  C])
For more details about coolant, contact your Lexus dealer.
■
If the coolant level drops within a short time of replenishing
Visually check the radiators, hoses, engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in
the cooling systems.

6614-3. Do-it-yourself maintenance
4
Maintenance and care
Radiator and condenser
Check the radiator and condenser an d clear away any foreign objects.
If either of the above parts are extremely dirty or you are not sure of their
condition, have your vehicle checked by your Lexus dealer. CAUTION■
When the engine and hybrid system are hot
Do not remove the coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE■
When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water
and antifreeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.■
If you spill coolant
Be sure to wash it off with water to prevent damaging to parts or paint.
CAUTION■
When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause serious inju-
ries, such as burns.

6624-3. Do-it-yourself maintenance
Brake fluid
■ Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.
■ Adding fluid
Make sure to check the fluid type and prepare the necessary item. Fluid type FMVSS No.116 DOT 3 or SAE J1703
Items Clean funnel
■
Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking efficiency.
Use only newly opened brake fluid.
CAUTION■
When filling the reservoir
Take care because brake fluid can harm your hands or eyes and damage painted
surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean water
immediately.
If you still experience discomfort, see a doctor.

6634-3. Do-it-yourself maintenance
4
Maintenance and care
Washer fluid
If any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.NOTICE■
If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear out or
when the fluid level in the accumulator is high.
If the reservoir needs frequent re filling, may be a serious problem.
CAUTION■
When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as washer fluid
contains alcohol and may catch fire if spilled on the hybrid system etc.
NOTICE■
Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.

6644-3. Do-it-yourself maintenance

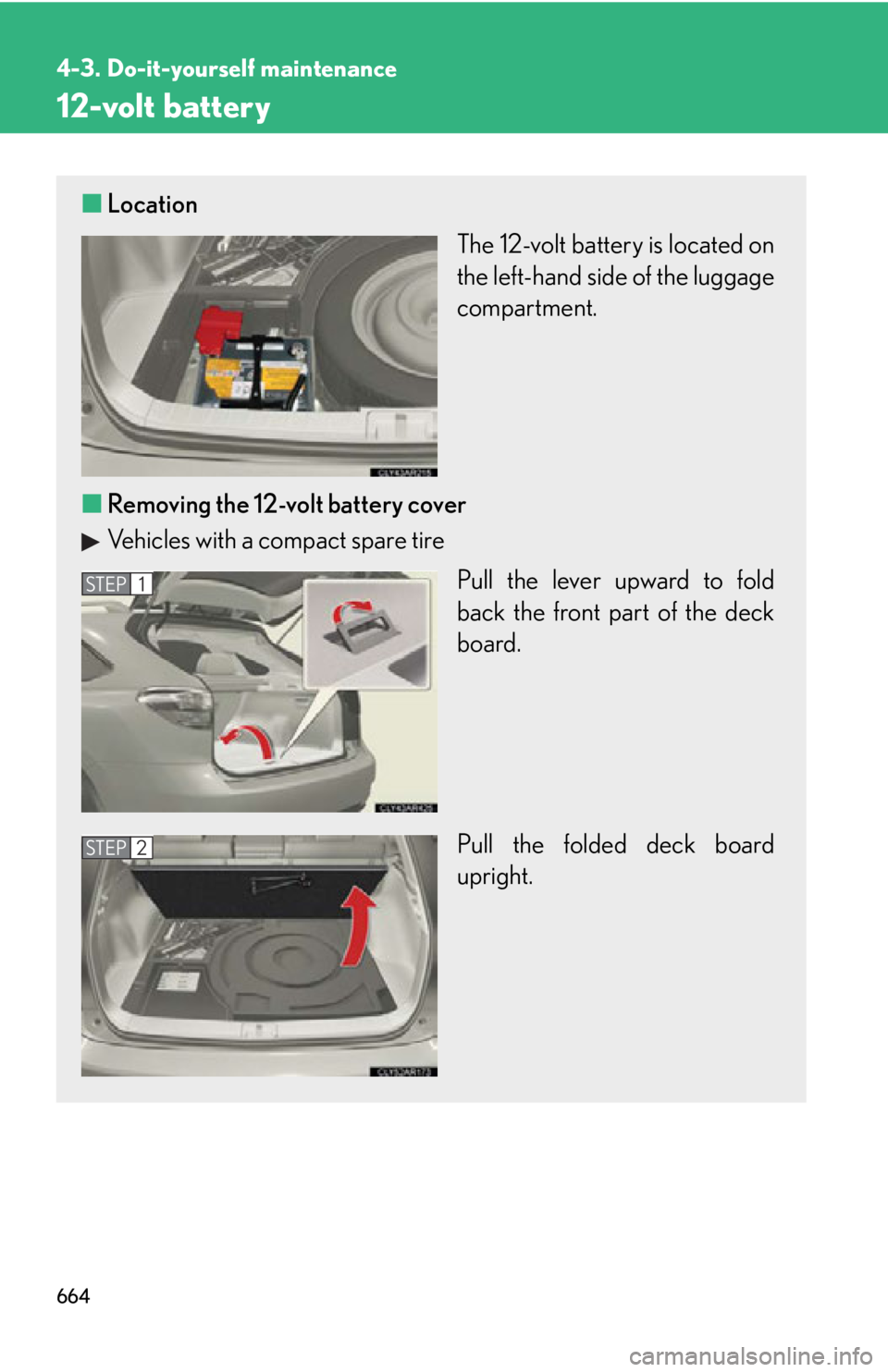

12-volt battery ■ Location
The 12-volt battery is located on
the left-hand side of the luggage
compartment.
■ Removing the 12-volt battery cover
Vehicles with a compact spare tire
Pull the lever upward to fold
back the front part of the deck
board.
Pull the folded deck board
upright.STEP 1
STEP 2
