2015 LEXUS RX450h Owners Manual

7925-2. Steps to take in an emergency
NOTICE■
When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power control
unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid system too
quickly can cause damage to the hybrid system.■
To prevent damage to the cooling system
Observe the following precautions: ●
Avoid contaminating the coolant with foreig n matter (such as sand or dust etc.).●
Do not use any coolant additives.

5
When trouble arises
7935-2. Steps to take in an emergency
If the vehicle becomes stuck
■
When it is difficult to free the vehicleCarry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Stop the hybrid system. Set the parking brake and shift the shift
lever to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some ot her material under the front
wheels to help provide traction.
Restart the hybrid system.
Shift the shift lever to the D or R position and release the park-
ing brake. Then, while exercising caution, depress the acceler-
ator pedal.STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
Press the VSC off switch to turn off TRAC.

7945-2. Steps to take in an emergency
CAUTION■
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back sudden ly as it becomes free. Use extreme cau-
tion.■
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE■
To avoid damage to the hybrid transmission and other components●
Avoid spinning the front wheels and depressing the accelerator pedal more than
necessary.●
If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.

5
When trouble arises
7955-2. Steps to take in an emergency
If your vehicle has to be stopped in an emergency
CAUTION
■
If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel heavier to
turn. Decelerate as much as possible before turning off the hybrid system.Only in an emergency, such as if it becomes impossible to stop the vehicle
in the normal way, stop the vehicle using the following procedure:
Steadily step on the brake pe dal with both feet and firmly
depress it. Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicl e in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehi-
cle speed as much as possible.
To stop the hybrid system, press
and hold the “POWER” switch
for 2 consecutive seconds or
more, or press it briefly 3 times
or more in succession.
Stop the vehicle in a safe place by the road.STEP 1
STEP 2
STEP 3
STEP 4
STEP 3
STEP 4
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP 5

7965-2. Steps to take in an emergency

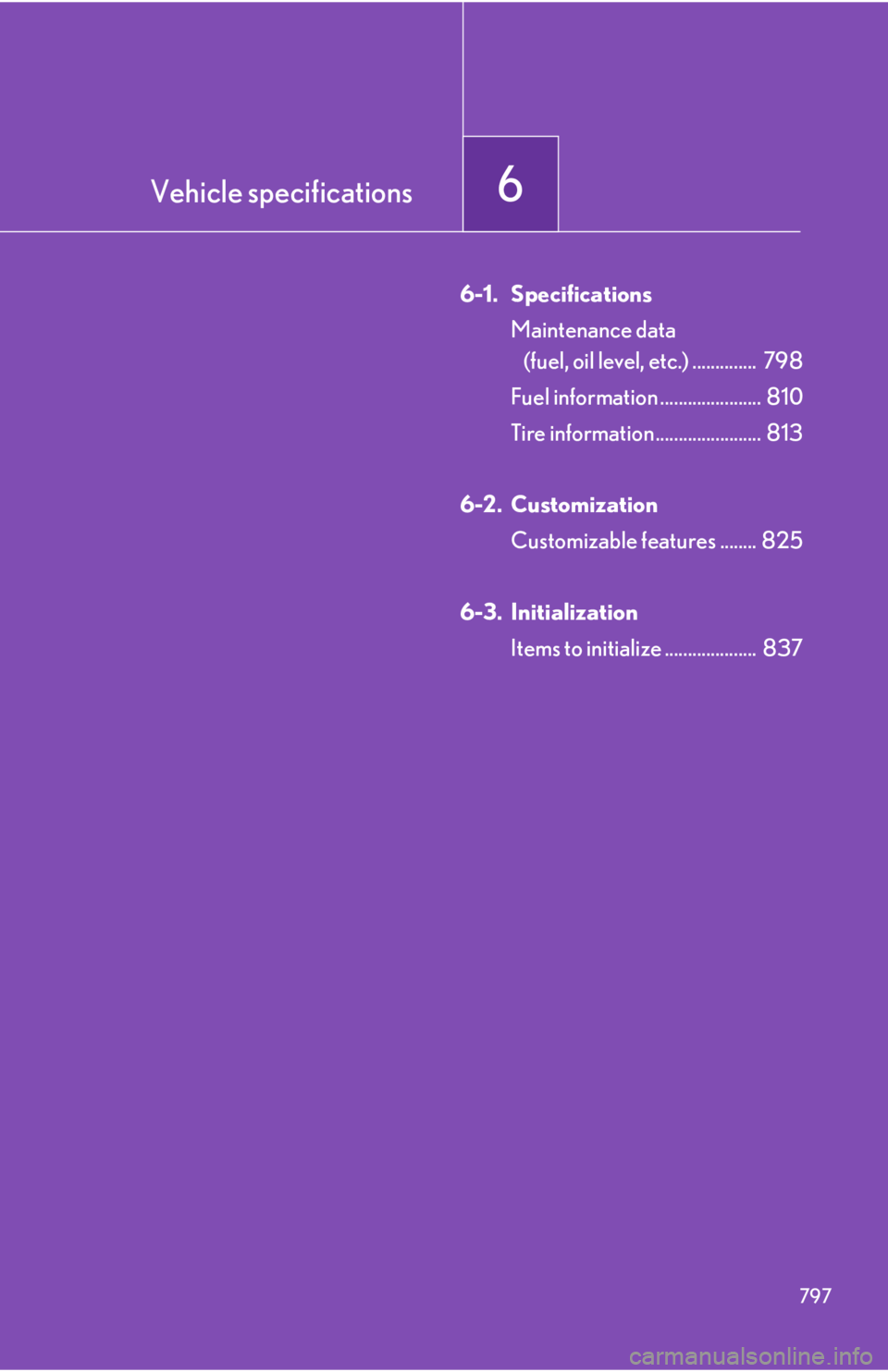

Vehicle specifications
6
7976-1. Specifications
Maintenance data
(fuel, oil level, etc.) .............. 798
Fuel information ...................... 810
Tire information....................... 813
6-2. Customization
Customizable features ........ 825
6-3. Initialization
Items to initialize .................... 837

7986-1. Specifications
Maintenance data (fue l, oil level, etc.)Dimensions and weight
* 1
: Unladen vehicles
* 2
: Vehicles without roof antenna and roof rails
* 3
: Vehicles with roof antenna but without roof rails
* 4
: Vehicles with roof rails
* 5
: AWD models with towing package onlyOverall length 187.8 in. (4770 mm)
Overall width 74.2 in. (1885 mm)
Overall height
* 1
66.3 in. (1685 mm)
* 2
66.7 in. (1695 mm)
* 3
67.9 in. (1725 mm)
* 4
Wheelbase 107.9 in. (2740 mm)
Tr e a d Front 64.2 in. (1630 mm)
Rear 64.0 in. (1625 mm)
Vehicle capacity weight
(Occupants + luggage) 2WD
825 lb. (370 kg)
AW D
885 lb. (400 kg)
Trailer Weight Rating
(trailer weight + cargo weight)
* 5
3500 lb. (1588 kg)

7996-1. Specifications
6
Vehicle specifications Vehicle identification
■ Vehicle identification number
The vehicle identification number (V IN) is the legal id entifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel. On some mod-
els, this number is also stampe d under the front passenger seat.
This number is also on the Certifi-
cation Label.
