2015 LEXUS NX300h Owners Manual

6179-1. Specifications
9
Vehicle specifications

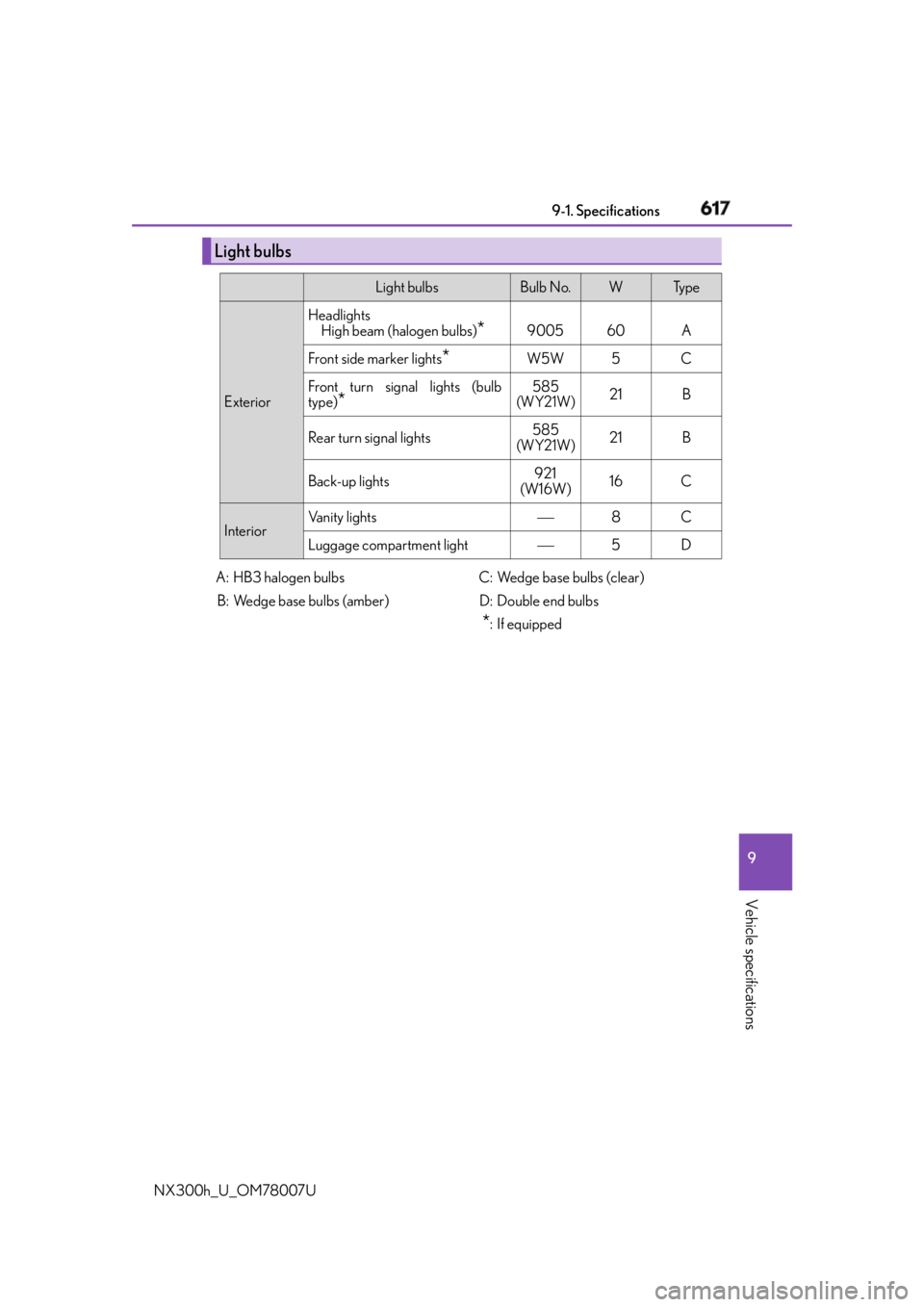

NX300h_U_OM78007U Light bulbs Light bulbs Bulb No. W Ty p e
Exterior Headlights
High beam (halogen bulbs)
* 9005 60 A
Front side marker lights
* W5W 5 C
Front turn signal lights (bulb
type)
* 585
(WY21W) 21 B
Rear turn signal lights 585
(WY21W) 21 B
Back-up lights 921
(W16W) 16 C
Interior Vanity lights  8 C
Luggage compartment light  5 D
A: HB3 halogen bulbs
B: Wedge base bulbs (amber) C: Wedge base bulbs (clear)
D: Double end bulbs
* : If equipped

618 9-1. Specifications
NX300h_U_OM78007UFuel information ■
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only accom-
modates the special nozzle on unleaded fuel pumps. ■
Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you are
using. If driveability problems persist, try ch anging the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer. ■
Gasoline quality standards ●
Automotive manufacturers in the U.S.A., Eu rope and Japan have developed a specifi-
cation for fuel quality called the World-Wi de Fuel Charter (WWFC), which is expected
to be applied worldwide. ●
The WWFC consists of four cat egories that are based on required emission levels. In
the U.S., category 4 has been adopted. ●
The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction through better performance. ■
Recommendation of the use of gasoli ne containing detergent additives●
Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits. ●
All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.●
Lexus strongly recommends the use of Top Ti er Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official
website www.toptiergas.com.You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher. Use of
unleaded gasoline with an octane rating lower than 87 may result in engine
knocking. Persistent knocking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A.

6199-1. Specifications
9
Vehicle specifications
NX300h_U_OM78007U ■
Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformul ated gasoline that contains oxygenates
such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is ava ilable in many areas.
Lexus recommends the use of cleaner bu rning gasoline and appropriately blended
reformulated gasoline. These types of gaso line provide excellent vehicle performance,
reduce vehicle emissions and improve air quality. ■
Non-recommendation of the use of blended gasoline
●
If you use gasohol in your vehicle, be sure th at it has an octane rating no lower than 87.●
Lexus does not recommend the use of gasoline containing methanol.■
Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasolin e that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instru ment cluster may come on. If this happens,
contact your Lexus dealer for service. ■
If your engine knocks ●
Consult your Lexus dealer. ●
You may occasionally notice light knocking fo r a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern. ●
Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol). DO NOT use gasoline
containing more than
15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

620 9-1. Specifications
NX300h_U_OM78007U NOTICE ■
Notice on fuel quality ●
Do not use improper fuels. If improper fuels are used, the engine will be damaged. ●
Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters
causing the emission control system to malfunction. ●
Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system da mage or vehicle performance problems.●
Using unleaded gasoline with an octane number or rating lower than the level previ-
ously stated will cause persistent heavy knocking.
At worst, this will le ad to engine damage.■
Fuel-related poor driveability
If poor driveability is encounte red after using a different type of fuel (poor hot starting,
vaporization, engine knocking, etc.), disc ontinue the use of that type of fuel.■
When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

6219-1. Specifications
9
Vehicle specifications
NX300h_U_OM78007UTire information 
Full-size tire 
Compact spare tireTy p i c a l t i r e s y m b o l s

622 9-1. Specifications
NX300h_U_OM78007U Ti r e s i z e (  P. 6 2 4 )
DOT and Tire Identification Number (TIN) (  P. 6 2 3 )
Location of treadwear indicators (  P. 5 1 6 )
Tire ply composition and materials Plies are layers of rubber-coated parallel co rds. Cords are the strands which form the
plies in a tire.
Radial tires or bias-ply tires A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply
tire.
TUBELESS or TUBE TYPE A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire
has a tube inside the tire and the tube maintains the air pressure.
Load limit at maximum cold tire inflation pressure (  P. 5 2 0 )
Maximum cold tire inflation pressure (  P. 6 1 5 )This means the pressure to which a tire may be inflated.
Uniform tire quality grading For details, see “Uniform Tire Quality Grading” that follows.
Summer tires or all season tires (  P. 5 2 0 )An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer
tire.
“TEMPORARY USE ONLY” A compact spare tire is identified by the phrase “TEMPORARY USE ONLY” molded
on its sidewall. This tire is design ed for temporary emergency use only.1
2
3
4
5
6
7
8
9
10
11

6239-1. Specifications
9
Vehicle specifications
NX300h_U_OM78007U DOT symbol
*Tire Identification Number (TIN)
Tire manufacturer’s identification
mark
Ti r e s i z e c o d e
Manufacturer’s optional tire type
code (3 or 4 letters)
Manufacturing week
Manufacturing year
* : The DOT symbol certifies that the tire co nforms to applicable Federal Motor Vehicle
Safety Standards.Typical DOT and Tire Identification Number (TIN) 1
2
3
4
5
6
7

624 9-1. Specifications
NX300h_U_OM78007U ■
Typical tire size information
The illustration indicates typical tire size.
Ti r e u s e
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol (alphabet with one letter)■
Tire dimensions
Section width
Tire height
Wheel diameterTire size 1
2
3
4
5
6
7
1
2
3
