NX300h_U_OM78007UEmission inspection and maintenance (I/M) programsThe OBD system determines that a problem exists somewhere in the emission
control system. Your vehicle may not pa ss the I/M test and may need to be
repaired. Contact your Lexus dealer to service the vehicle. ●
When the 12-volt battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may not be com-
pletely set. ●
When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary malfunction
and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehicle is driven
40 or more times.
Contact your Lexus dealer to prepare the vehicle for re-testing.Some states have vehicle emission inspection programs which include OBD
(On Board Diagnostics) checks. The OBD system monitors the operation of
the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M test in the following situations:
When the malfunction indicator lamp s till remains on af ter several driv-
ing trips
If your vehicle does not pass the I/M test

498 7-3. Do-it-yourself maintenance

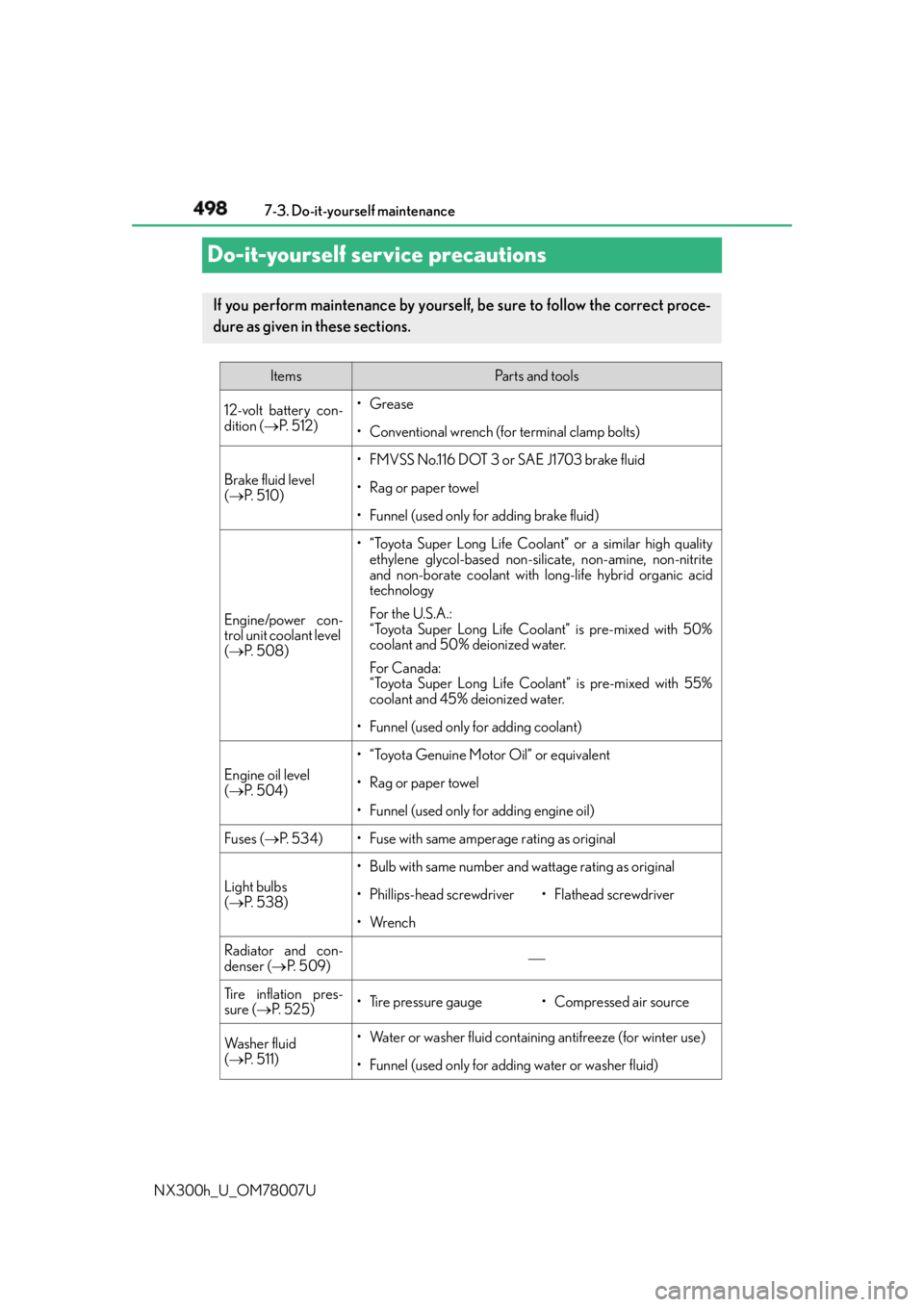

NX300h_U_OM78007UDo-it-yourself service precautions If you perform maintenance by yourself, be sure to follow the correct proce-
dure as given in these sections. Items Pa r t s a n d t o o l s
12-volt battery con-
dition (  P. 5 1 2 ) •Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
(  P. 5 1 0 ) • FMVSS No.116 DOT 3 or SAE J1703 brake fluid
•Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/power con-
trol unit coolant level
(  P. 5 0 8 ) • “Toyota Super Long Life Coolant” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with 50%
coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed with 55%
coolant and 45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(  P. 5 0 4 ) • “Toyota Genuine Motor Oil” or equivalent
•Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (  P. 5 3 4 ) • Fuse with same amperage rating as original
Light bulbs
(  P. 5 3 8 ) • Bulb with same number and wattage rating as original
• Phillips-head screwdriver •Flathead screwdriver
•Wrench
Radiator and con-
denser (  P. 5 0 9 ) 
Tire inflation pres-
sure (  P. 5 2 5 ) •Tire pressure gauge • Compressed air source
Wa s h e r f l u i d
(  P. 511) • Water or washer fluid containi ng antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

4997-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_U_OM78007U WA R N I N G
The engine compartment contains many mechanisms and fluids that may move suddenly,
become hot, or become electrically energized. To avoid death or serious injury, observe
the following precautions. ■
When working on the engine compartment ●
Make sure that the indicator on the power switch and the “READY” indicator are
both off. ●
Keep hands, clothing and tools away from the moving fan and engine drive belt.●
Be careful not to touch the engine, power control unit, radiator, exhaust manifold, etc.
right after driving as they may be hot. Oil and other fluids may also be hot. ●
Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment. ●
Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flamma-
ble. ■
When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automatically start to
run if the air conditioning is on and/or the coolant temperature is high. (  P. 5 0 9 )■
Safety glasses
Wear safety glasses to prevent flying or fallin g material, fluid spray, etc. from getting in
your eyes.
NOTICE ■
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.

500 7-3. Do-it-yourself maintenance
NX300h_U_OM78007UHood Pull the hood lock release lever. The hood will pop up slightly.
Pull up the auxiliary catch lever and
lift the hood.Release the lock from the inside of the vehicle to open the hood. 1
2
WA R N I N G ■
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and cause
an accident, which may result in death or serious injury.

5017-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_U_OM78007UPositioning a floor jack ◆ Front
◆ Rear
Before raising your vehicle with a floor jack: Remove the cover.
Remove the bolt
Remove the cover
Raising your vehicle with a floor jack.When using a floor jack, follow the instructions in the manual provided with
the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
1
1
2
2

502 7-3. Do-it-yourself maintenance
NX300h_U_OM78007UEngine compartment
■
12-volt battery
 P. 5 1 2Fuse box (  P. 5 3 4 )
Engine coolant reservoir
(  P. 5 0 8 )
Engine oil filler cap (  P. 505)
Power control unit coolant reservoir
(  P. 5 0 8 )
Brake fluid reservoir (  P. 5 1 0 ) Radiator (  P. 5 0 9 )
Condenser (  P. 5 0 9 )
Electric cooling fans
Engine oil level dipstick
(  P. 5 0 4 )
Wa s h e r f l u i d t a n k (  P. 5 1 1 )1
2
3
4
5 6
7
8
9
10

5037-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_U_OM78007U ■
Removing the engine compartment cover
■
Installing the clips
Insert
PressEngine compartment cover
1
2
NOTICE ■
After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.

504 7-3. Do-it-yourself maintenance
NX300h_U_OM78007U With the engine at operating temperatur e and turned off, check the oil level on
the dipstick. ■
Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
off the hybrid system, wait more than 5 minutes for the oil to drain back into
the bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully with its
protruding areas ( in the illus-
tration) pointing towards engine.
Holding a rag under the end, pull the dipstick out and check the oil level.
Low
Normal
Excessive
Wipe the dipstick and reinsert it fully.Engine oil 1
2
3
4
1
5
Measuring side1
2
3
6
