2015 LEXUS LX570 Owners Manual

2892-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ● Operating narrow mode
Touch while in parallel parking assist mode.
Confirm the warning on the caut ion screen. If y ou agree, touch
“I Agree”. To cancel narrow mode, touch .
When the system is switched to narrow mode, the indicator on
will be turned on.
Touch again to switch the
system to the normal mode.STEP 1
STEP 2
STEP 3

2902-4. Using other driving systems
LX570_OM_OM60L96U_(U) Lexus parking assist monitor precautions
■ Area displayed on screen
The parking assist monitor displays
an image of the view from the
bumper of the rear area of the
vehicle.
To adjust the image on the parking
assist monitor screen. (  P. 406)
• The area displayed on the
screen may vary according to
vehicle orientation condi-
tions.
• Objects which are close to
either corner of the bumper
or under the bumper cannot
be seen on the screen.
• The camera uses a special
lens. The distance of the
image that appears on the
screen differs from the actual
distance.
• Items which are located
higher than the camera may
not be displayed by the moni-
tor.Corners of bumper

2912-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■ Lexus parking assist monitor camera
The camera for the parking assist
monitor is located above the
license plate.
● Using the camera
If dirt or foreign matter (such as water droplets, snow, mud etc.) is
adhering to the camera, it cannot tra nsmit a clear image. In this case,
flush it with a large quantity of water. After that, rinse the camera lens
with water and wipe it clean with a soft and wet cloth.

2922-4. Using other driving systems
LX570_OM_OM60L96U_(U) ■ Differences between the screen and the actual road
The distance guide lines and the vehicle width extension guide lines
may not actually be parallel with th e dividing lines of the parking space,
even when they appear to be so. Be sure to check visually.
The distances between the vehicle wi dth extension guide lines and the
left and right dividing lines of the parking space may not be equal, even
when they appear to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road surfaces. In
any of the following situations, th ere is a margin of error between the
guide lines on the screen and the ac tual distance /course on the road.
● When the ground behind the vehicle slopes up sharply
The distance guide lines will
appear to be closer to the vehicle
than the actual distance. Because
of this, objects will appear to be
farther away than they actually are.
In the same way, there will be a
margin of error between the
guidelines and the actual distance/
course on the road.

2932-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ● When the ground behind the vehicle slopes down sharply
The distance guide lines will
appear to be further from the vehi-
cle than the actual distance.
Because of this, objects will appear
to be closer than they actually are.
In the same way, there will be a
margin of error between the
guidelines and the actual distance/
course on the road.
● When any part of the vehicle sags
When any part of the vehicle sags
due to the number of passengers
or the distribution of the load,
there is a margin of error between
the guide lines on the screen and
the actual distance/course on the
road.A margin of error

2942-4. Using other driving systems

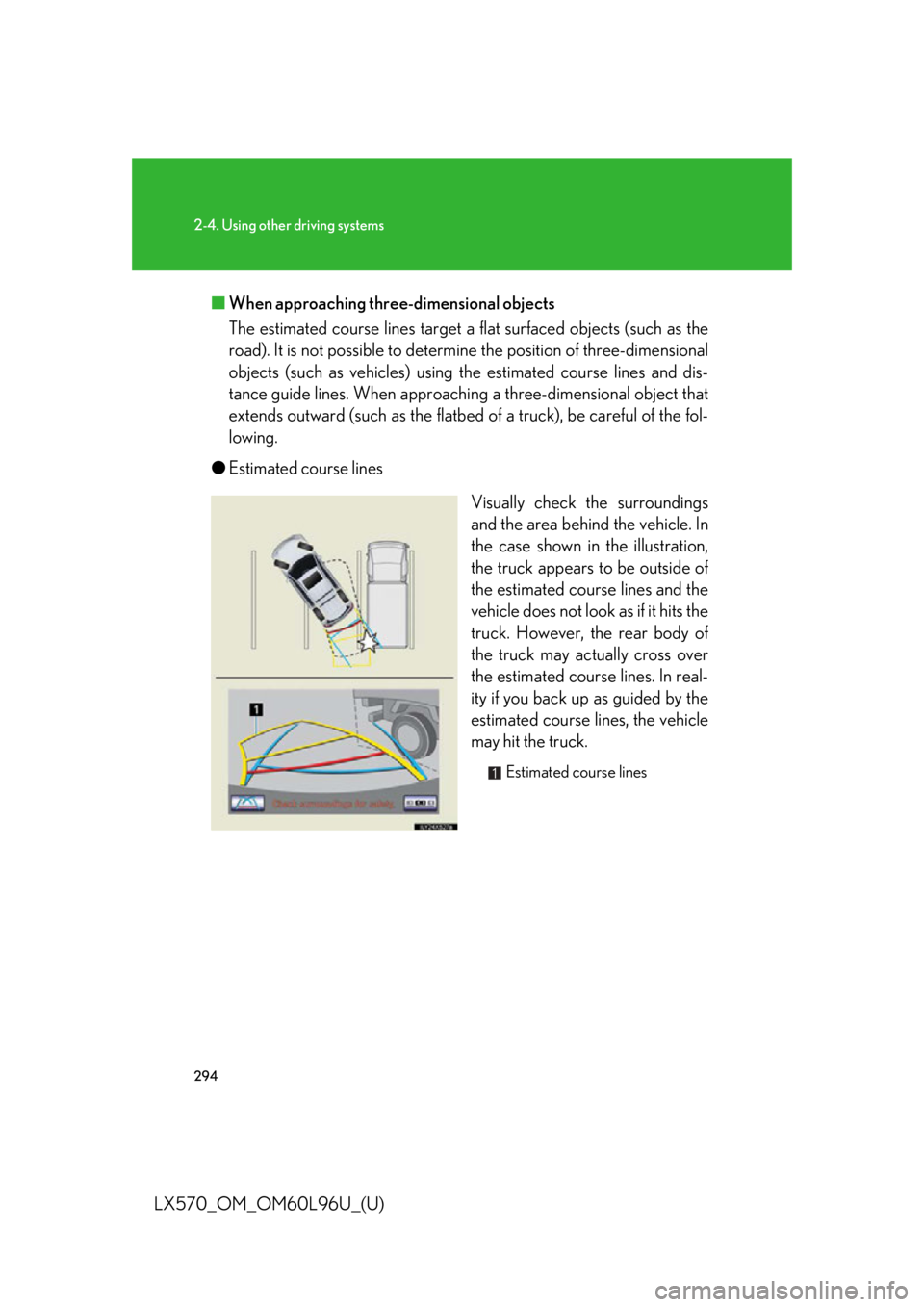

LX570_OM_OM60L96U_(U) ■ When approaching three-dimensional objects
The estimated course lines target a flat surfaced objects (such as the
road). It is not possible to determ ine the position of three-dimensional
objects (such as vehicles) using th e estimated course lines and dis-
tance guide lines. When approaching a three-dimensional object that
extends outward (such as the flatbed of a truck), be ca reful of the fol-
lowing.
● Estimated course lines
Visually check the surroundings
and the area behind the vehicle. In
the case shown in the illustration,
the truck appears to be outside of
the estimated course lines and the
vehicle does not look as if it hits the
truck. However, the rear body of
the truck may actu ally cross over
the estimated course lines. In real-
ity if you back up as guided by the
estimated course lines, the vehicle
may hit the truck. Estimated course lines

2952-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ● Distance guidelines
Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point B. How-
ever, in reality if you back up to
point A, you will hit the truck. On
the screen, it appears that A is
closest and C is furthest away.
However, in reality, the distance to
A and C is the same, and B is far-
ther than A and C.

2962-4. Using other driving systems
LX570_OM_OM60L96U_(U) Things you should know
■ If you notice any symptoms
If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Lexus dealer. Symptom Likely cause Solution
The image is difficult to
see • The vehicle is in a dark
area
• The temperature
around the lens is
either high or low
• The outside tempera-
ture is low
• There are water drop-
lets on the camera
• It is raining or humid
•Foreign matter (mud
etc.) is adhering to the
camera
• There are scratches
on the camera
• Sunlight or headlights
are shining directly
into the camera
• The vehicle is under
fluorescent lights,
sodium lights, mercury
lights etc. If this happens due to these
causes, it does not indicate
a malfunction.
Back up while visually
checking the vehicle’s sur-
roundings. (Use the moni-
tor again once conditions
have been improved.)
To adjust the image on the
parking assist monitor
screen. (  P. 406)
