2015 Lexus CT200h Owner's Manual (in English)

432
CT200h_OM_OM76174U_(U)6-3. Using the storage features
Luggage compartment features
Raise the hook to use.
The cargo hooks are provided for
securing loose items.
Secure the first-aid kit.
To loosen
To t i g h t e n
Cargo hooks
First-aid kit storage belt (if equipped)
1
2

CT200h_OM_OM76174U_(U)

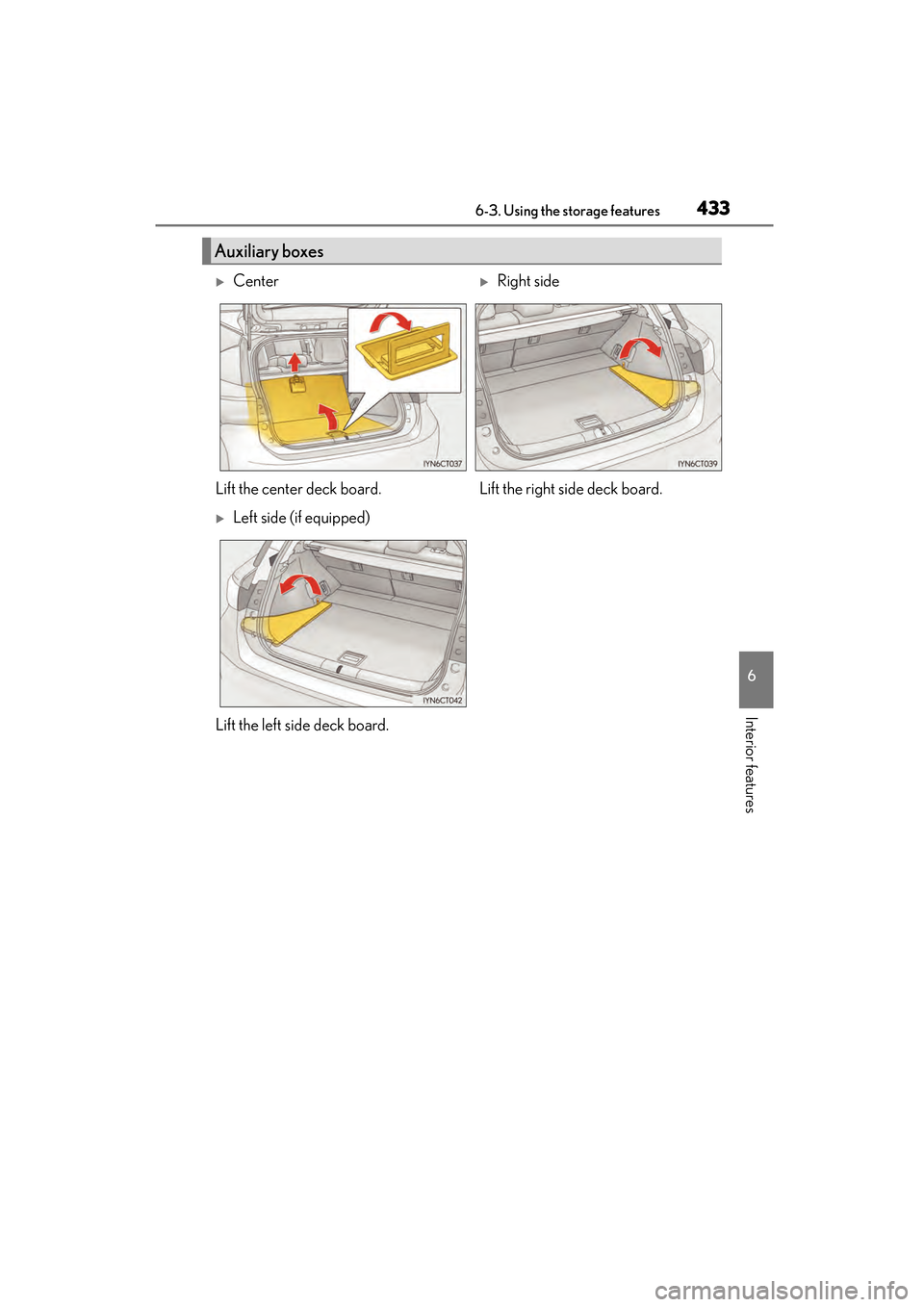

4336-3. Using the storage features
6
Interior features
Auxiliary boxes
XCenter XRight side
Lift the center deck board. Lift the right side deck board.
XLeft side (if equipped)
Lift the left side deck board.

434
CT200h_OM_OM76174U_(U)6-3. Using the storage features
■Using the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
■Removing the luggage cover
Retract the cover and release both
ends, then lift it out.
Luggage cover

CT200h_OM_OM76174U_(U)
4356-3. Using the storage features
6
Interior features
■Stowing the luggage coverRemove the side deck boards and
open the center auxiliary box.
Adjust the cover so that the infor-
mation label is facing up.
Fold the rear edge of the cover
over, replace the side deck
boards and close the center auxil-
iary box.
1
2
3
A part of the center auxiliary box can be used as
an Owner’s Manual holder.

436
CT200h_OM_OM76174U_(U)6-3. Using the storage features
WA R N I N G
●To avoid injury, always return the cargo hooks to their stowed positions when not in
use.
●If the deck boards are removed, return them to their original positions before driving.
In the event of sudden braking, an accident may occur due to an occupant being
struck by the deck boards or the
items stored in the auxiliary box.
●Do not allow children to climb on the luggage cover. Climbing on the luggage cover
could result in damage to the luggage cove r, possibly causing death or serious injury
to the child.

437
CT200h_OM_OM76174U_(U)6-4. Using the other interior features
6
Interior features
Other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is
opened.
If the vanity light remain on when the power sw itch is turned off, the light will go off auto-
matically after 20 minutes.
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for extended peri-
ods while the hybrid system is off.

438
CT200h_OM_OM76174U_(U)6-4. Using the other interior features
XVehicles with a navigation system
Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
XVehicles without navigation system
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour
*
*
:e.g. 1:00 to 1:29 →1:00
1:30 to 1:59 →2:00
The clock is displayed when the power switch is in ACCESSORY or ON mode.
Please use a power supply for electronic goods that use less than 12 VDC /10 A
(power consumption of 120 W).
When using electronic goods, make sure that the power consumption of all the
connected power outlets is less than 120 W.
XCenter console
Press down and release the lid.
Clock
1
2
3
Power outlet
1

CT200h_OM_OM76174U_(U)
4396-4. Using the other interior features
6
Interior features
Open the cover.
XAuxiliary box (if equipped)
Press the button.
Open the cover.
●The power outlet can be used when the power switch is in ACCESSORY or ON mode.
2
1
2
●The gap in the lid allows power cables to be
passed through even when the lid is closed.
(auxiliary box)
