2015 Lexus CT200h Owner's Manual (in English)

400
CT200h_OM_OM76174U_(U)5-22. Other function (Lexus Display Audio System)
Voice command system
Press the talk switch.
To cancel the voice command system,
press and hold the talk switch.
After a beep sounds, say the desired
command.
On the list screen, you can select the
desired command.
■Menu screen
To display the menu screen, move
the controller to the left.
Offer examples of commands
and operation methods
Adjust the settings for voice guid-
ance volume and voice recogni-
tion prompts. (“Hints” screen)
(→ P. 3 3 2 )
Start over voice recognition (except “Hints” screen)
Cancel voice recognition
■Microphone
→ P. 3 7 2
■When using the microphone
●It is unnecessary to speak directly into the microphone when giving a command.
●Wait for the confirmation beep before speaking a command.
The voice command system enables the audio and hands-free systems to be
operated using voice commands.
Operations of the voice command system can be performed by selecting the
menu corresponding to each function on the right part of the screen. Even if
any menu is selected, commands displayed on all menus can be operated.
Using the voice command system
1
2
1
2
3
4

CT200h_OM_OM76174U_(U)
4015-22. Other function (Lexus Display Audio System)
5
Audio system
●Voice commands may not be recognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
●In the following conditions, the system may not recognize the command properly and
using voice commands may not be possible:
• The command is incorrect or unclear. Note that certain words, accents or speech patterns may be diffi cult for the system to recognize.
• There is excessive background noise, such as wind noise.
■When searching for a track
●A USB memory or iPod must be connected to enable track searching and playback.
( → P. 3 2 6 )
●When a USB memory or iPod is connected, recognition data is created so tracks can
be searched using voice commands.
●Recognition data is updated under the following conditions:
• When the USB memory or iPod data has changed.
• When the voice recognition language is changed. (→ P. 3 2 9 )
●While the recognition data is being created or being updated, a track search cannot be
performed using a voice command.
■The Gracenote® media database
→ P. 3 5 1
Due to natural language speech recognition technology, this system enables rec-
ognition of a command when spoken naturally. However, the system cannot rec-
ognize every variation of each command.
In some situations, it is possible to omit the command for the procedure and
directly state the desired operation.
This function is available in English, Spanish and French.
Casual speech recognition

4025-22. Other function (Lexus Display Audio System)
CT200h_OM_OM76174U_(U)
■Expression examples for each function
*: Say the desired artist name or album name in the place of the “<>”.
Some recognizable voice commands and their actions are shown below as
examples.
XBasic
XPhone
CommandExpression examples
“Call ”Get me .
I need to call at right away.
“Dial ”Please dial the number <3334445555>.
Ring <3334445555>.
“Play Artist ”Play the artist .
I’d like to hear the band .*
“Play Album ”Play album .
Music from album .
*
Command list
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
“Go to ”Displays the command list of the selected tab
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Dial ”Places a call to the said phone number
“Call
”Place a call to the said phone type of the contact from
the phone book

CT200h_OM_OM76174U_(U)
4035-22. Other function (Lexus Display Audio System)
5
Audio system
XAudio
XInfo
CommandAction
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
“Turn Music On/Off”Turns the audio system on/off
“Play the

404
CT200h_OM_OM76174U_(U)5-22. Other function (Lexus Display Audio System)
Mobile Assistant
Press and hold the off hook switch
until you hear the beeps that indicate
the system is listening.
The Mobile Assistant can be used
only when the neighboring screen is
displayed.
To cancel the Mobile Assistant, select
“Cancel”, or press and hold the off hook
switch.
To restart the Mobile Assistant for addi-
tional commands, press the off hook
switch. Mobile Assistant can only be
restarted after the system responds to a
voice command. After some phone and
music commands, the Mobile Assistant
feature will automatically end to com-
plete the requested action.
■Adjusting the volume
The volume of the Mobile Assistant can be adjusted using the “PWR•VOL” knob or
steering wheel volume switches. The Mobile Assistant and phone call volumes are syn-
chronized.
The Mobile Assistant feature on this sy
stem allows the activation of Apple’s
Siri® Eyes Free mode via the steering wheel switches. To operate the Mobile
Assistant, a compatible cellular phone must be registered and connected to
this system via Bluetooth
®. ( → P. 3 6 1 )
1
2

CT200h_OM_OM76174U_(U)

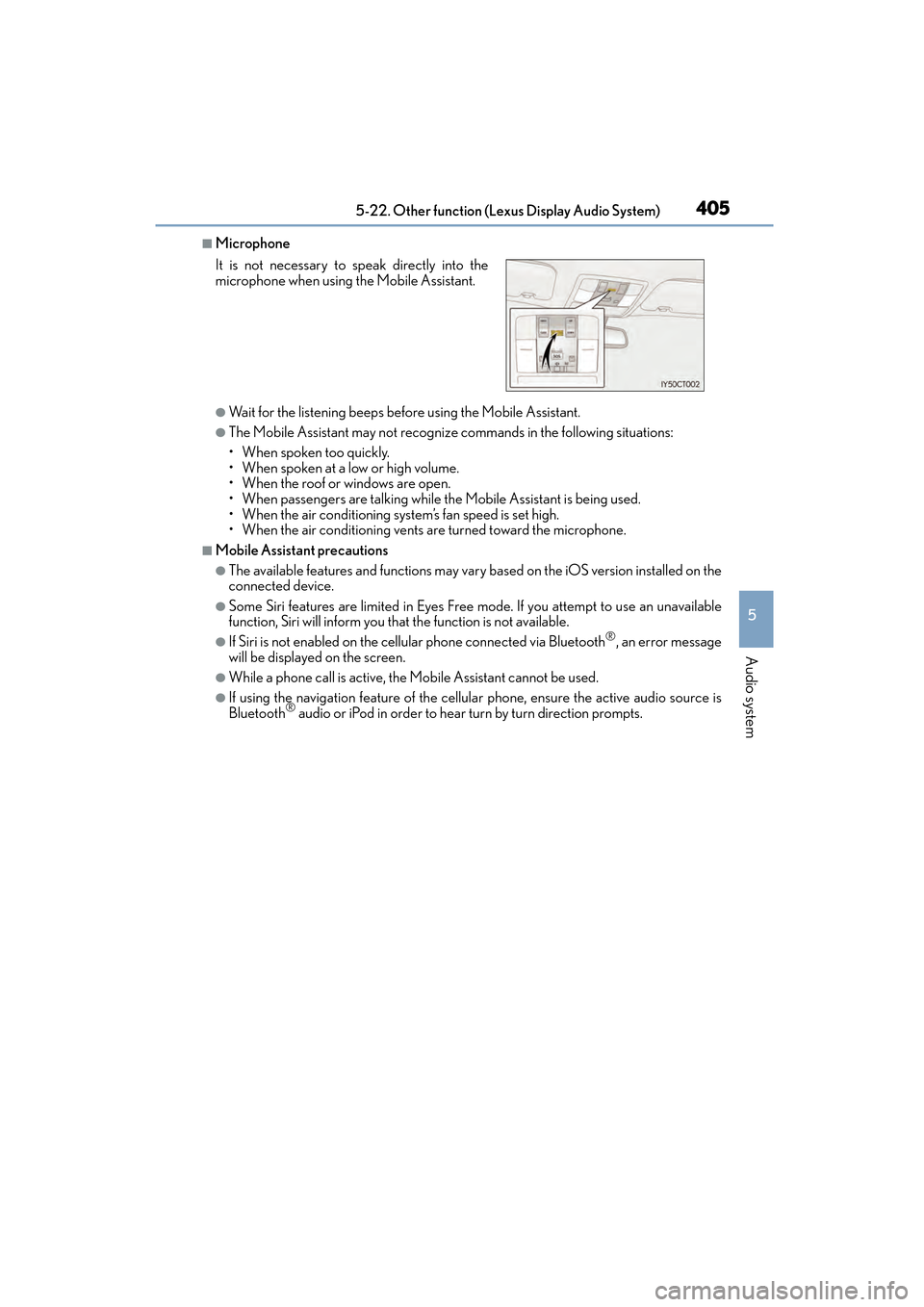

4055-22. Other function (Lexus Display Audio System)
5
Audio system
■Microphone
●Wait for the listening beeps before using the Mobile Assistant.
●The Mobile Assistant may not recognize commands in the following situations:
• When spoken too quickly.
• When spoken at a low or high volume.
• When the roof or windows are open.
• When passengers are talking while the Mobile Assistant is being used.
• When the air conditioning system’s fan speed is set high.
• When the air conditioning vents are turned toward the microphone.
■Mobile Assistant precautions
●The available features and functions may vary based on the iOS version installed on the
connected device.
●Some Siri features are limited in Eyes Free mode. If you attempt to use an unavailable
function, Siri will inform you that the function is not available.
●If Siri is not enabled on the cellular phone connected via Bluetooth®, an error message
will be displayed on the screen.
●While a phone call is active, the Mobile Assistant cannot be used.
●If using the navigation feature of the cellular phone, ensure the active audio source is
Bluetooth® audio or iPod in order to hear turn by turn direction prompts.
It is not necessary to speak directly into the
microphone when using the Mobile Assistant.

4065-22. Other function (Lexus Display Audio System)
CT200h_OM_OM76174U_(U)

407
CT200h_OM_OM76174U_(U)
6Interior features
6-1. Using the air conditioning system and defogger
Automatic air conditioning system (Vehicles with a
navigation system or Lexus
Display Audio System)......... 408
Automatic air conditioning system (Vehicles without a
navigation system or Lexus
Display Audio System)........... 416
Heated steering wheel/ seat heaters................................ 423
• Heated steering wheel....... 424
• Seat heaters............................ 424 6-2. Using the interior lights
Interior lights list ......................... 425• Personal/interior light main switch ............................. 425
•Front personal/ interior lights .......................... 426
• Rear interior light ................. 426
6-3. Using the storage features List of storage features .............427• Glove box ............................... 428
• Console box........................... 428
•Cup holders/ bottle holders/
door pockets.......................... 428
• Auxiliary boxes .....................430
Luggage compartment features........................................ 432
6-4. Using the other interior features
Other interior features ............ 437 • Sun visors ................................ 437
• Vanity mirrors ........................ 437
• Clock ........................................438
• Power outlet ...........................438
• Assist grips.............................. 440
Garage door opener..................441
Compass ....................................... 447
Safety Connect ........................... 453
