2015 Lexus CT200h Owner's Manual (in English)

168
CT200h_OM_OM76174U_(U)4-2. Driving procedures

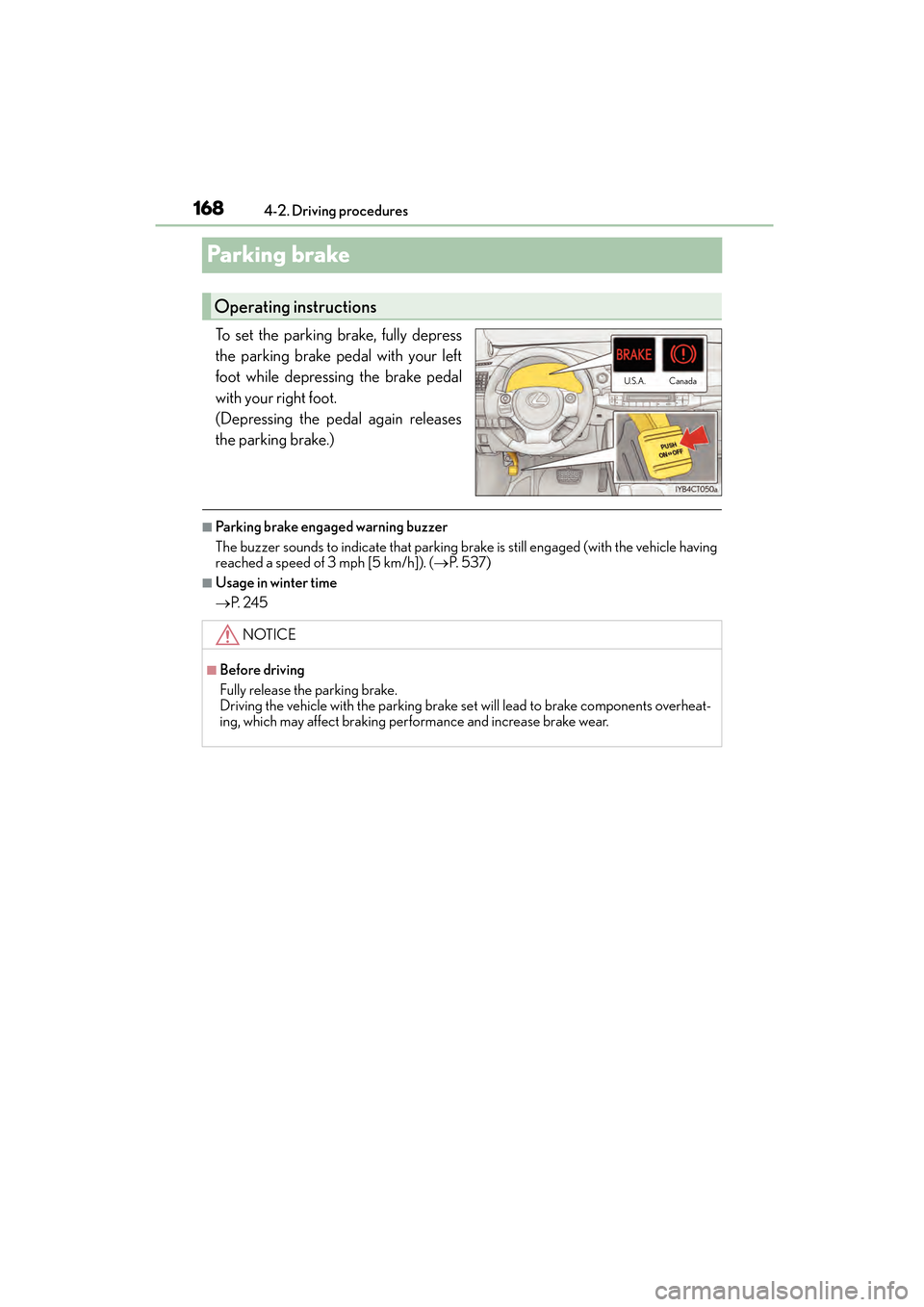

Parking brake
To set the parking brake, fully depress
the parking brake pedal with your left
foot while depressing the brake pedal
with your right foot.
(Depressing the pedal again releases
the parking brake.)
■Parking brake engaged warning buzzer
The buzzer sounds to indicate that parking br
ake is still engaged (with the vehicle having
reached a speed of 3 mph [5 km/h]). ( →P. 5 3 7 )
■Usage in winter time
→P. 2 4 5
Operating instructions
U. S. A. Canada
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake se
t will lead to brake components overheat-
ing, which may affect braking performance and increase brake wear.

169
CT200h_OM_OM76174U_(U)4-3. Operating the lights and wipers
4
Driving
Headlight switch
Turning the end of the lever tu
rns on the lights as follows:
XTy p e A
The headlights, side marker,
parking lights, daytime run-
ning lights and so on turn on
and off automatically (when
the power switch is in ON
mode).
The side marker, parking,
tail, license plate, daytime
running lights and instru-
ment panel lights turn on.
The headlights and all the
lights listed above (except
daytime running lights) turn
on.
The daytime running lights
turn off
The headlights can be operated manually or automatically.
Operating instructions
1
2
3
4

170
CT200h_OM_OM76174U_(U)4-3. Operating the lights and wipers
XTy p e B
The daytime running lights
turn on.
The side marker, parking,
tail, license plate, daytime
running lights and instru-
ment panel lights turn on.
The headlights and all the
lights listed above (except
daytime running lights) turn
on.
The headlights, side marker,
parking lights, daytime run-
ning lights and so on turn on
and off automatically (when
the power switch is in ON
mode).
With the headlights on, push the
lever away from you to turn on the
high beams.
Pull the lever toward you to the center
position to turn the high beams off.
Pull the lever toward you and release
it to flash the high beams once.
You can flash the high beams with the
headlights on or off.
■Daytime running light system
To make your vehicle more visible to other drivers, the parking lights turn on automati-
cally (at an increased intensit y) whenever the hybrid system is started and the parking
brake is released. Daytime running lights are not designed for use at night.
For the U.S.A.: Daytime running lights can be turned off by operating the headlight
switch to DRL OFF position.
1
2
3
4
Turning on the high beam headlights
1
2

CT200h_OM_OM76174U_(U)
1714-3. Operating the lights and wipers
4
Driving
■Headlight control sensor
■Automatic light off system
●When the headlights come on: The headlights and tail lights turn off 30 seconds after a
door is opened and closed if the power switch is turned to ACCESSORY mode or
turned off. (The lights turn off immediately if on the key is pressed after all the doors
are locked.)
●When only the tail lights come on: The tail lights turn off automatically if the power
switch is turned to ACCESSORY mode or tu rned off and the driver’s door is opened.
To turn the lights on again, turn the power switch to ON mode, or turn the light switch off
once and then back to or .
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number of passen-
gers and the loading condition of the vehicle to ensure that the headlights do not inter-
fere with other road users.
■12-volt battery-saving function
In order to prevent the vehicle 12-volt battery from discharging, if the headlights and/or
tail lights are on when the power switch is turned off the 12-volt battery saving function
will operate and automatically turn off all the lights after approximately 20 minutes.
When the power switch is turned to ON mode, the 12-volt battery-saving function will be
disabled.
When any of the following are performed, the 12-volt battery-saving function is canceled
once and then reactivated. All the lights will turn off automatically 20 minutes after the
12-volt battery-saving function has been reactivated:
●When the headlight switch is operated
●When a door is opened or closed
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: →P. 5 9 1 )
The sensor may not function properly if an
object is placed on the sensor, or anything that
blocks the sensor is affixed to the windshield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.

172
CT200h_OM_OM76174U_(U)4-3. Operating the lights and wipers
Fog light switch
XTy p e A
Turns the fog lights off
Turns the fog lights on
The fog lights secure excellent visibility in difficult driving conditions, such as
in rain and fog.
Operating instructions
1
2

CT200h_OM_OM76174U_(U)
1734-3. Operating the lights and wipers
4
Driving
XTy p e BTurns the fog lights off
Turns the fog lights on
■Fog lights can be used when
The headlights are on in low beam.
1
2
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.

174
CT200h_OM_OM76174U_(U)4-3. Operating the lights and wipers
Windshield wipers and washer
The wiper operation is selected by moving the lever as follows.
■Intermittent windshield wipers with interval adjuster (if equipped)
XTy p e A
Intermittent operation
Low speed operation
High speed operation
Temporary operation
Wiper intervals can be adjusted when intermittent operation is selected. Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent wind-
shield wiper frequency
Operating the wiper lever
1
2
3
4
5
6

CT200h_OM_OM76174U_(U)
1754-3. Operating the lights and wipers
4
Driving
Washer/wiper dual operation
The wipers will automatically operate
a couple of times after the washer
squirts.
Vehicles with headlight cleaners: If
the headlights are on, the headlight
cleaners will operate once.
XTy p e B
Intermittent operation
Low speed operation
High speed operation
Temporary operation
Wiper intervals can be adjusted when intermittent operation is selected. Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent wind-
shield wiper frequency
7
1
2
3
4
5
6
