3. Remove the electrical connectors.4.Rotate in a counterclockwise direction (on the left-hand
socket) or in a clockwise direction (on the right-hand
socket) and remove the bulb and bulb socket.
Electrical Connectors
Position Light/Daytime Running Light Assembly
1—DRLBulbSocket2 — Turn Signal Bulb Socket
8
IN CASE OF EMERGENCY 439

5. To replace the bulb gently push bulb and rotate
counterclockwise.
6. Insert the new bulb by pushing on it and turning it
clockwise. Make sure the bulb is correctly locked in
place.
7. Install the bulb and sockets and rotate them clockwise
(right side) and clockwise (left side), making sure that
it is properly locked.
8. Reconnect the electrical connectors.
9. Reinstall the access door.
Bulb and Socket Assembly1—Bulb2 — Rotate Bulb
440 IN CASE OF EMERGENCY

Front Fog Lights
To replace the bulbs proceed as follows:
1. Turn the front wheels completely.
2. Use a suitable tool to remove the access door.

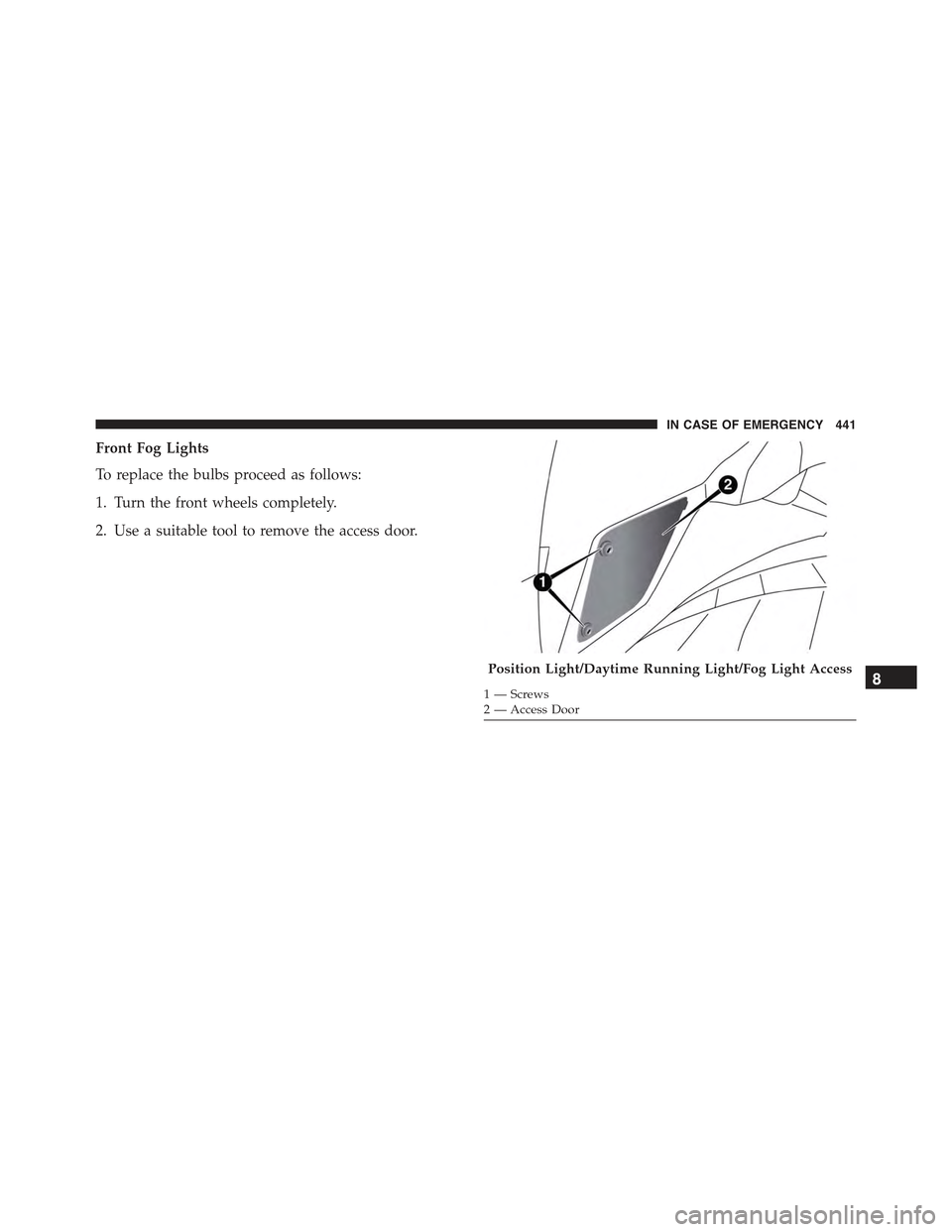

Position Light/Daytime Running Light/Fog Light Access
1—Screws2—AccessDoor
8
IN CASE OF EMERGENCY 441

3. By pushing the electrical connector tab remove the
electrical connector.
4. Rotate the bulb counterclockwise, and then replace the
bulb.
5. Insert the new bulb in the socket, making sure the bulb
is locked into place.
6. Reconnect the electrical connector.
7. Reinstall the access door.
Side Indicators
Front Side Indicators
To replace the bulb proceed as follows:
1. Operating from inside the engine compartment using
a suitable tool release the retaining clip.Fog Light Assembly
1—BulbSocket2 — Electrical Connector3—Bulb
442 IN CASE OF EMERGENCY

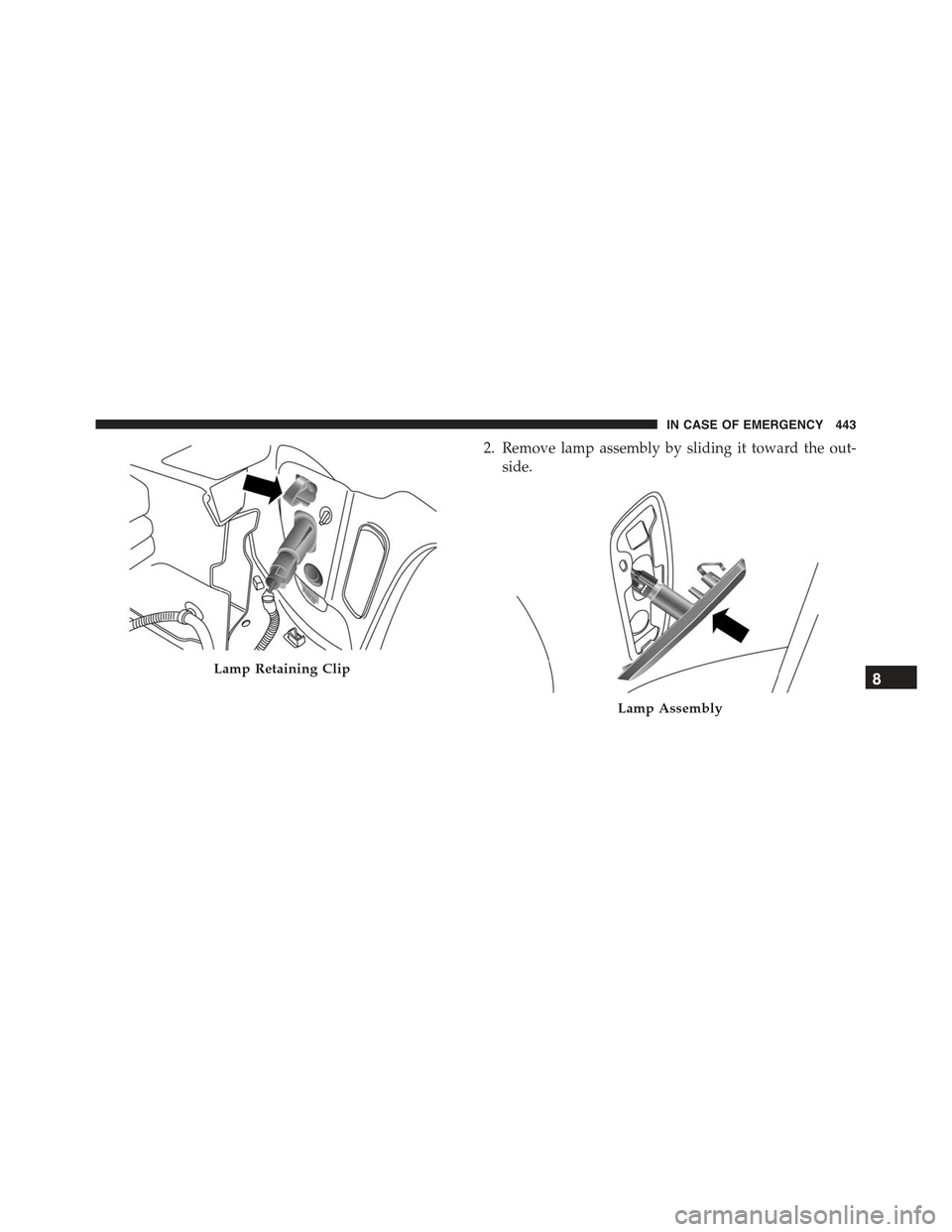

2. Remove lamp assembly by sliding it toward the out-
side.
Lamp Retaining Clip
Lamp Assembly
8
IN CASE OF EMERGENCY 443

3. Remove the electrical connector by pushing the tab
then disconnect the electrical connector.
4. Rotate counterclockwise to release the bulb socket
from the lamp assembly, and remove it.
Electrical ConnectorBulb Socket
444 IN CASE OF EMERGENCY

5. Remove the bulb from the socket
6. Insert the new bulb in the socket.
7. Reinstall the bulb and socket into the lamp assembly
by turning it clockwise, making sure it is locked into
place.
8. Reconnect the electrical connector.
9. Reinstall the lamp assembly on the car, making sure it
is locked into place.
Side Indicators on External Rear View Mirrors – (If
Equipped)
CAUTION!
The procedure is described as a guideline. For the
replacement of the lamp it is recommended that you
contact your authorized dealer.
Bulb8
IN CASE OF EMERGENCY 445

To replace the bulb proceed as follows:
1. Remove the mirror cap on the outside rear view
mirror.
Mirror Cap
Removing the mirror cap
