5. Reassemble the bulb housing and courtesy light hous-
ing making sure that they are properly locked.
6. Install the front courtesy light making sure that it is
properly locked.

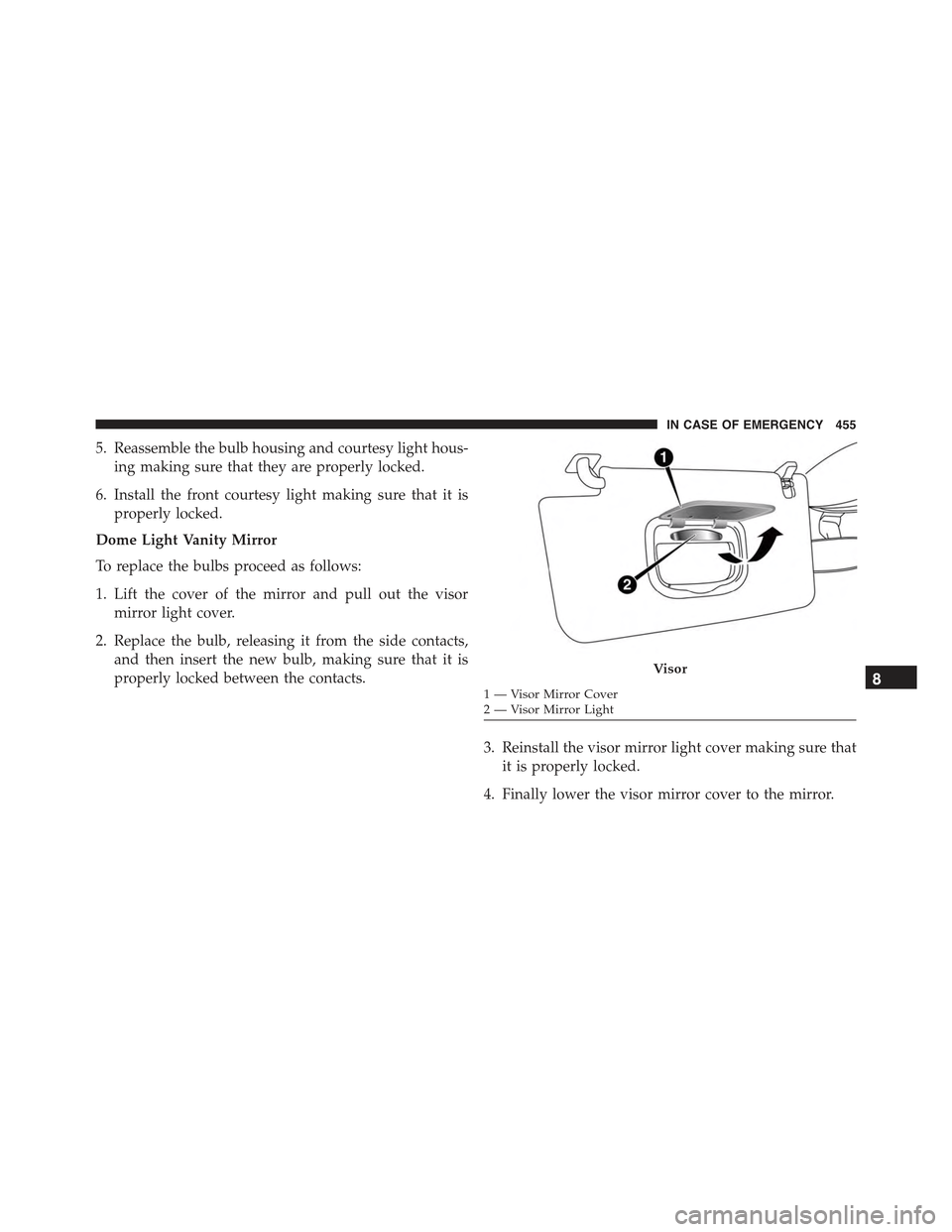

Dome Light Vanity Mirror
To replace the bulbs proceed as follows:
1. Lift the cover of the mirror and pull out the visor
mirror light cover.
2. Replace the bulb, releasing it from the side contacts,
and then insert the new bulb, making sure that it is
properly locked between the contacts.
3. Reinstall the visor mirror light cover making sure that
it is properly locked.
4. Finally lower the visor mirror cover to the mirror.
Visor
1—VisorMirrorCover2—VisorMirrorLight
8
IN CASE OF EMERGENCY 455

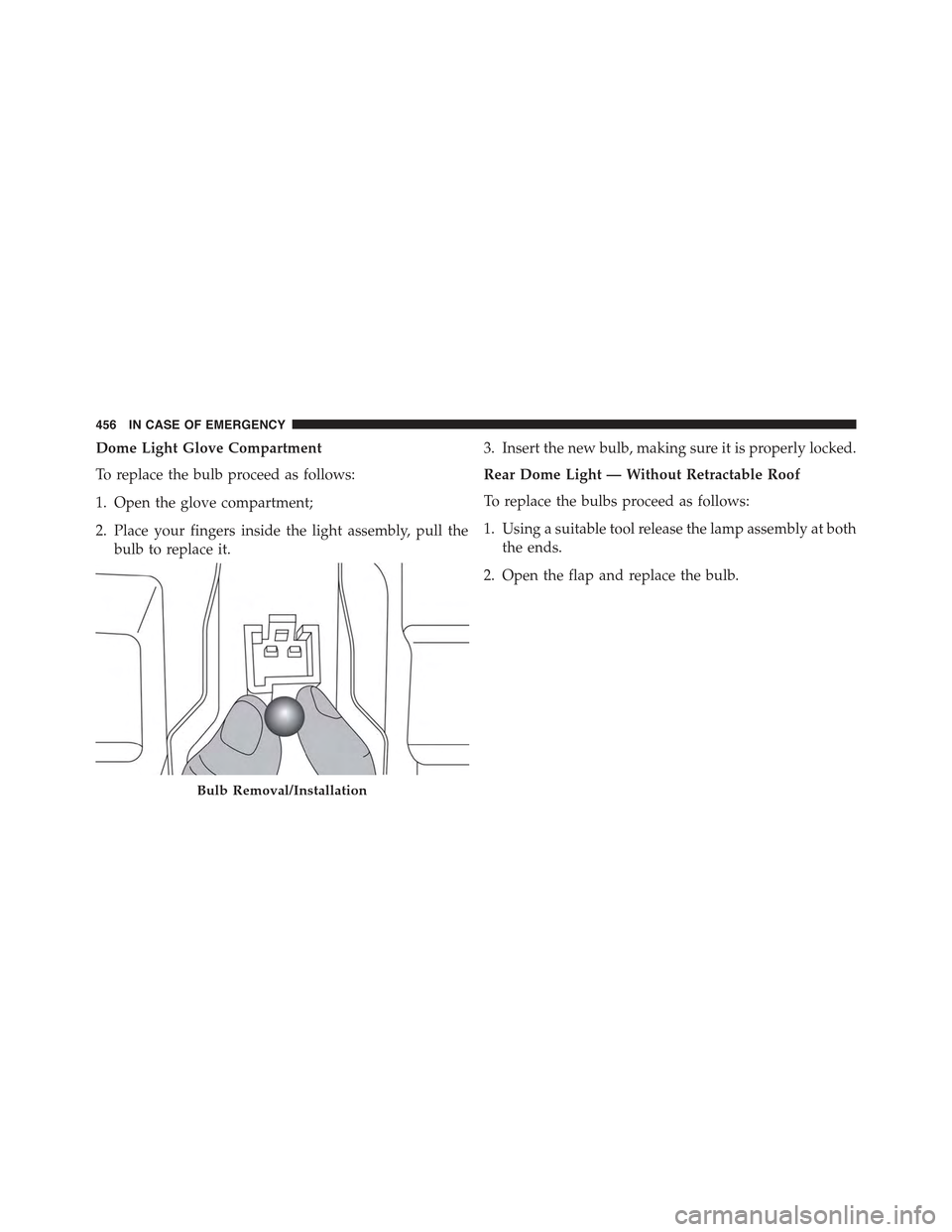

Dome Light Glove Compartment
To replace the bulb proceed as follows:
1. Open the glove compartment;
2. Place your fingers inside the light assembly, pull the
bulb to replace it.
3. Insert the new bulb, making sure it is properly locked.
Rear Dome Light — Without Retractable Roof
To replace the bulbs proceed as follows:
1. Using a suitable tool release the lamp assembly at both
the ends.
2. Open the flap and replace the bulb.
Bulb Removal/Installation
456 IN CASE OF EMERGENCY

3. Insert the new bulb, locking it between the contacts.
4. Reinstall the dome light.

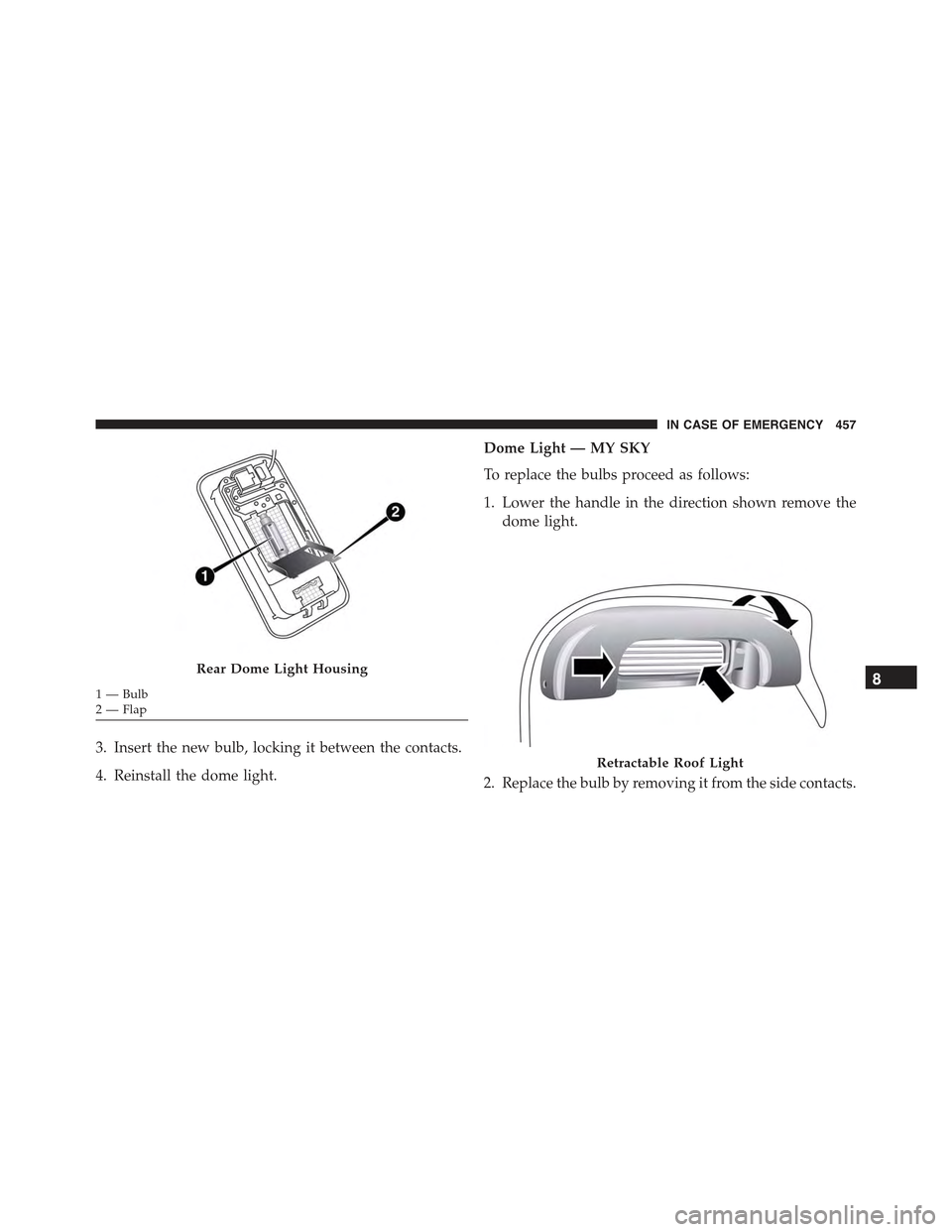

Dome Light — MY SKY
To replace the bulbs proceed as follows:
1. Lower the handle in the direction shown remove the
dome light.
2. Replace the bulb by removing it from the side contacts.
Rear Dome Light Housing
1—Bulb2 — Flap
Retractable Roof Light
8
IN CASE OF EMERGENCY 457

3. Insert the new bulb, locking it between the contacts.
4. Reinstall the dome light.

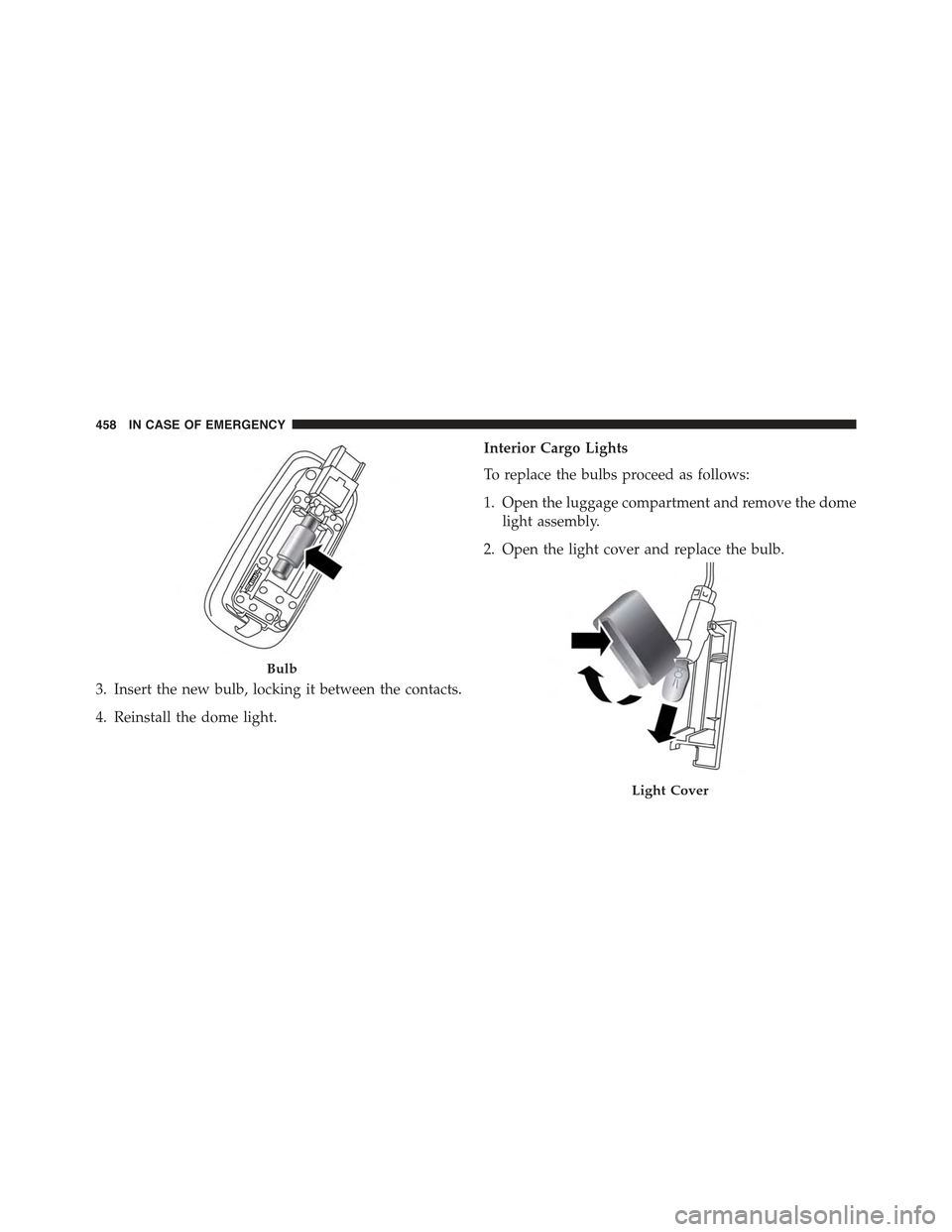

Interior Cargo Lights
To replace the bulbs proceed as follows:
1. Open the luggage compartment and remove the dome
light assembly.
2. Open the light cover and replace the bulb.
Bulb
Light Cover
458 IN CASE OF EMERGENCY

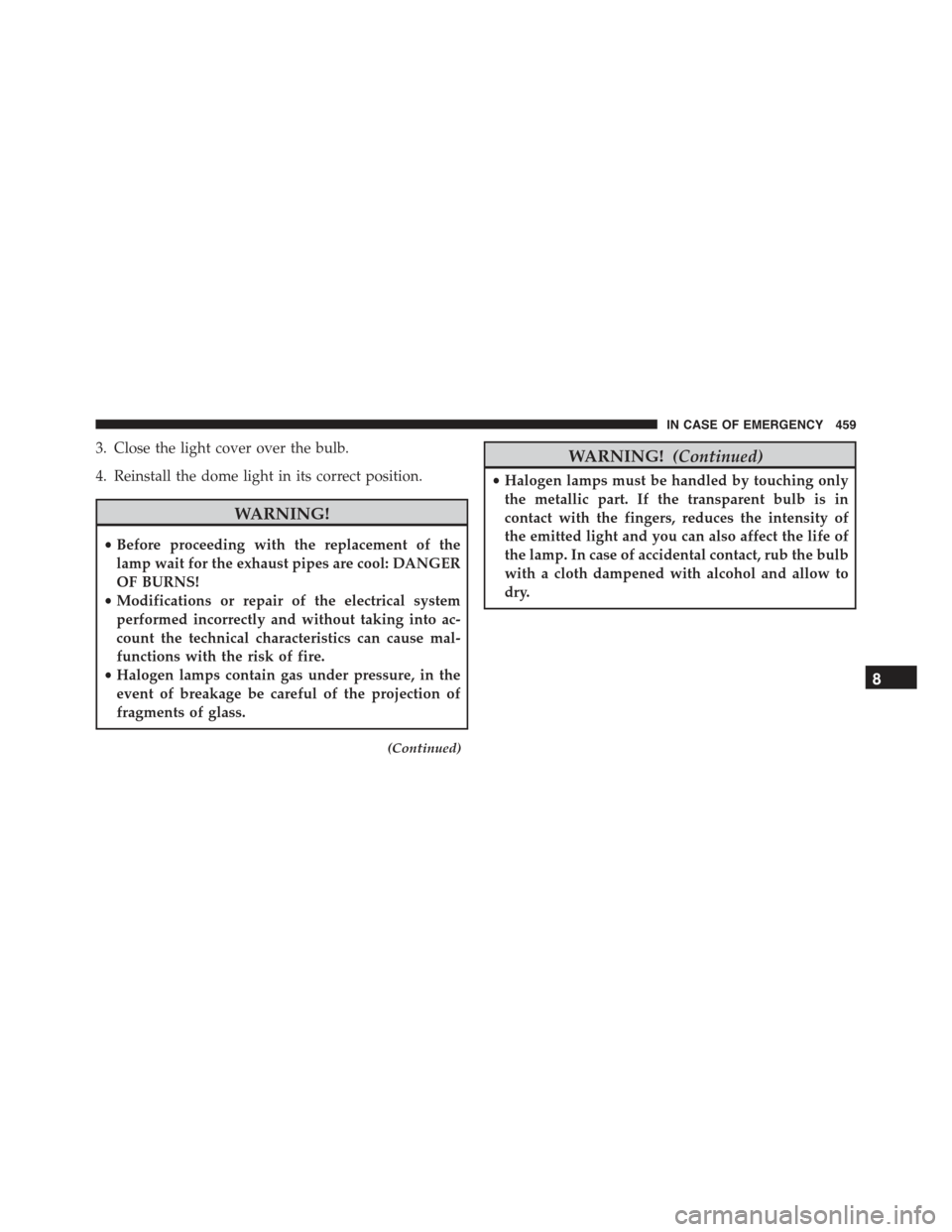

3. Close the light cover over the bulb.
4. Reinstall the dome light in its correct position.
WARNING!
•Before proceeding with the replacement of the
lamp wait for the exhaust pipes are cool: DANGER
OF BURNS!
•Modifications or repair of the electrical system
performed incorrectly and without taking into ac-
count the technical characteristics can cause mal-
functions with the risk of fire.
•Halogen lamps contain gas under pressure, in the
event of breakage be careful of the projection of
fragments of glass.
(Continued)
WARNING!(Continued)
•Halogen lamps must be handled by touching only
the metallic part. If the transparent bulb is in
contact with the fingers, reduces the intensity of
the emitted light and you can also affect the life of
the lamp. In case of accidental contact, rub the bulb
with a cloth dampened with alcohol and allow to
dry.
8
IN CASE OF EMERGENCY 459

FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
•If the replaced fuse blows again, contact an autho-
rized dealer.
(Continued)
WARNING!(Continued)
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
General Information
The fuses protect electrical systems against excessive
current.
When a device does not work you must check the
electrical circuit inside the fuse for a break/melt.
460 IN CASE OF EMERGENCY

Fuse Removal
To replace a fuse use the extractor attached to the fuse
cover (located on the inside of the engine compartment
fuse cover.
Blade Fuses
1 — Electrical Circuit2 — Blade Fuse With Good Electrical Circuit3 — Blade Fuse With Bad Electrical Circuit
Fuse Extractor Location
8
IN CASE OF EMERGENCY 461

Access To The Fuses
The fuses are grouped into four controllers located in the
engine compartment, under the instrument panel and on
the inside of the left side cargo trim panel.
Engine Compartment Fuses/Distribution Unit
The engine compartment fuse panel is located on the left
side of the engine compartment.
Engine Compartment Fuse Cavities
