2015 JEEP RENEGADE Owners Manual

•UP Arrow Button
Push and release the UP arrow button to scroll
upward through the main menu and
submenus.
•DOWN Arrow Button
Push and release the DOWN arrow button to
scroll downward through the main menu and
submenus.
•RIGHT Arrow Button
Push and release the RIGHT arrow button to
access the information screens or submenu
screens of a main menu item.
•BACK/LEFT Arrow Button
Push and release the LEFT arrow button to
access the information screens or submenu
screens of a main menu item.
•OK Button
The OK button may be used for the following:
Select
Reset (hold)
EVIC/DID Main Menu
The Main Menu is composed of several options that can
be selected using the control buttons above.
NOTE:
•The display mode of the menu items varies depending
on the type of display.
•For some items, a submenu is provided.
•In the Uconnect® system, some items on the menu are
not shown on the instrument panel display.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 207

Menu Items
The Menu has the following options:
•Speedometer
•Vehicle Info
•Driver Assist
•Fuel Consumption
•Trip
•Audio
•Alerts
•Display Setup
•Vehicle Setup
Speedometer
Push and release the UP or DOWN arrow button until
“Speedometer” is highlighted in the EVIC. Push the OK
button to change the speedometer scale from MPH
to km/h (km/h to MPH).
Vehicle Info
Push and release the UP or DOWN arrow button until
#Vehicle Info#is highlighted in the EVIC/DID. Push and
release the RIGHT arrow button and Coolant Temp will
be displayed. Push the RIGHT or LEFT arrow button to
scroll through the following information displays:
•Tire Pressure
View the information relating to the TPMS system (if
equipped).
•Engine Coolant Temperature
View the engine coolant temperature.
208 GETTING TO KNOW YOUR INSTRUMENT PANEL

•Transmission Temperature
Display the temperature of the automatic transmission (if
equipped).
•Engine Oil Temperature
View the engine oil temperature.
•Battery Voltage
View the voltage value (state of charge) of the battery.
Driver Assist
This menu item allows you to change the settings (#No-
tice LaneSense#and#Intensity LaneSense#) relating to the
LaneSense system (if equipped).
•Notice LaneSense
By selecting this function, you can select the#readiness#
of LaneSense, choosing between the options#Near,##Me-
dium,#or#Far.#
•Intensity LaneSense
Using this function, you can select the force applied to
the steering wheel to keep the car in the roadway through
the electrical drive system due to LaneSense.
Fuel Consumption
This menu item allows you to set the unit of measure-
ment for the#Fuel Consumption and Range.#
•Average Consumption/Instantaneous Consumption
By selecting these options, you can choose the unit of
measurement of the average consumption and the instan-
taneous, choosing between#MPG#or#l/100 km#or
#km/l.#
•Range
By selecting this option, you can choose the unit of
measurement for Range, choosing between#km#or
#miles.”
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 209

Trip
This menu item allows you to view information about the
#Trip Computer.#
The information displayed, for Trip A and for Trip B, are:
•Distance
(Miles or Km)
•Average Consumption
(MPG, or l/ 100km or km/l)
•Travel Time
(Hour/Minute)
Audio
This menu item allows you to view the instrument
cluster display and the information present on the dis-
play of the Uconnect® system.
The information displayed is:
•“Radio (AM or FM)”
View Radio Station Name (if equipped), frequency, and
graphical icon
•$MP3”
Title display or number song playing
•$USB$
Title display or number song playing
•$Ipod$
Display song title (if equipped)
See Phone
The instrument cluster display can also display the
information concerning phone mode.
210 GETTING TO KNOW YOUR INSTRUMENT PANEL

The information that can be displayed is the connection
status of the mobile phone (phone connected or discon-
nected), the active telephone calls/incoming/on hold,
and the management of double calls (first incoming
second waiting, etc.).
Alerts (Messages Stored)
This menu item allows you to display the information
messages/malfunction stored.
Vehicles With Multi-Functional Display Reconfigu-
rable
The background color of the display varies according to
the priorities of the failure:
•Failed Messages with low priority
Displays in yellow
•Failed Messages with high priority
Displays in red
Display Setup
This menu item allows you to change the position of the
information on the display.
Display Gears (Vehicles With Reconfigurable Multi-
Functional Display And Automatic Transmission)
By selecting this item, you can select the display mode,
the particulars relating to the automatic transmission,
and choose between the following options:
•$Single digit$
The right side of the display will show the letter concern-
ing the automatic transmission shift lever (P,N,R or D)
position. After approximately two seconds, the letter will
be displayed in a central position.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 211

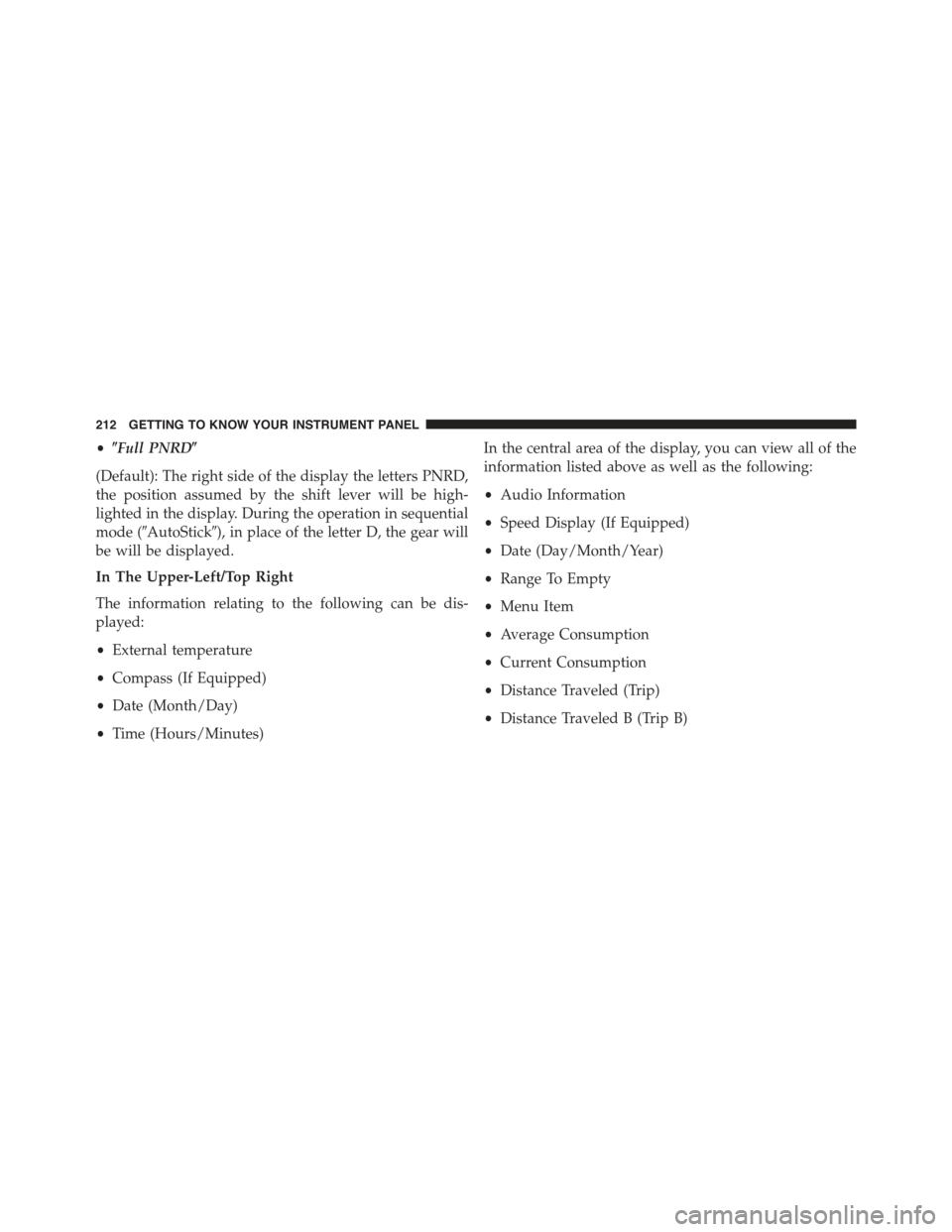

•$Full PNRD$
(Default): The right side of the display the letters PNRD,
the position assumed by the shift lever will be high-
lighted in the display. During the operation in sequential
mode (#AutoStick#), in place of the letter D, the gear will
be will be displayed.
In The Upper-Left/Top Right
The information relating to the following can be dis-
played:
•External temperature
•Compass (If Equipped)
•Date (Month/Day)
•Time (Hours/Minutes)
In the central area of the display, you can view all of the
information listed above as well as the following:
•Audio Information
•Speed Display (If Equipped)
•Date (Day/Month/Year)
•Range To Empty
•Menu Item
•Average Consumption
•Current Consumption
•Distance Traveled (Trip)
•Distance Traveled B (Trip B)
212 GETTING TO KNOW YOUR INSTRUMENT PANEL

Restore Default Settings
Selecting this item, and you can reset and restore the
default settings.
Vehicle Setup
This menu item allows you to change the settings for the
following:
•Display
•Units of measure
•Clock and Data
•Safety
•Safety and Assistance
•Lights
•Doors and Locks
•Compass (If Equipped)
Vehicles Equipped With Multifunctional Display
Reconfigurable:Menu items#Display#(you can select
only the items#See Phone#and#See Navigation,##Secu-
rity,#and#Safety & Assistance#(only#Volume Alerts#is
selectable) are present.
All other entries are displayed and selected on the
display of the Uconnect® system.
“Display”
By selecting the#Display,#you can access the following
settings:
•Language: allows you to select the language in which
to display the information/warnings.
•See Phone:allows you to view, on the instrument
cluster display, the information relating to Phone
mode displayed on the display of the Uconnect®
system.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 213

•See Navigation:allows you to view, on the instrument
cluster display, information relating to the navigation
mode.
$Units Of Measure$
By selecting the item#Units of measure,#you can select
the unit of measure to use for displaying various magni-
tudes.
Possible options are:
•US
•Metric
•Custom
$Clock & Data$
By selecting the item,#Clock & Data#you can adjust the
clock.
Possible options are:
•Set Time: adjust hours/minutes
•Set Format: adjust the time format#12h#(12 hours) or
#24h#(24 hours)
•Set Date: adjust day/month/year
Safety
By selecting the item “Safety,” you can make the follow-
ing adjustments:
•Speed Warning:
Set the vehicle speed limit (km/h or mph), which the
driver is notified through a visual and acoustic signaling
(display of a message and a symbol on the display).
•Speed Belt Buzzer:
This function is only viewable when the Seat Belt Re-
minder (SBR) system is active.
214 GETTING TO KNOW YOUR INSTRUMENT PANEL
