2015 JEEP RENEGADE Owners Manual

To retract the front panel to the open position, push the
Open/Close button.
From the fully open position, pull the Open/Close
switch: the front panel will close completely.
Venting The Front Panel
To vent the front panel push and release the vent switch.
During the vent operation any push on the Open/Close
switch will stop the closing of the panel.
NOTE:If the My Sky is in open position, the vent switch
must be held until the panel vents.
Anti-Pinch Feature
The front panel of the retractable roof is equipped with a
anti-pinch safety system that is able to detect the pres-
ence of an obstacle during the opening and closing
motion of the panel.
When this event occurs, the front panel stops and re-
verses immediately.
Operation Switch
1—FrontPanelOpen/CloseSwitch2—FrontPanelVentSwitch
4
GETTING TO KNOW YOUR VEHICLE 135

NOTE:With both panels removed the retractable roof
cannot be opened or closed.
Removing And Installing Panels
NOTE:
•Remove the panels only when the vehicle is stationary.
•The rear panel can be removed only when the front
panel is completely closed or removed.
Removing Panels
1. Front panel must be in the closed position to remove
panel.
2. From inside of the passenger compartment, insert the
supplied key into the latch key hole.
Supplied Key
136 GETTING TO KNOW YOUR VEHICLE

3. Rotate and keep the key turned to the symbol to
release the lock and pull the panel handle up at the
same time.
Latch Key HoleRotating Supplied Key
4
GETTING TO KNOW YOUR VEHICLE 137

4. Remove the key from the Latch Key Hole.5. Remove the panel(s).
Unlocking Panel HandleRemoving Key
138 GETTING TO KNOW YOUR VEHICLE

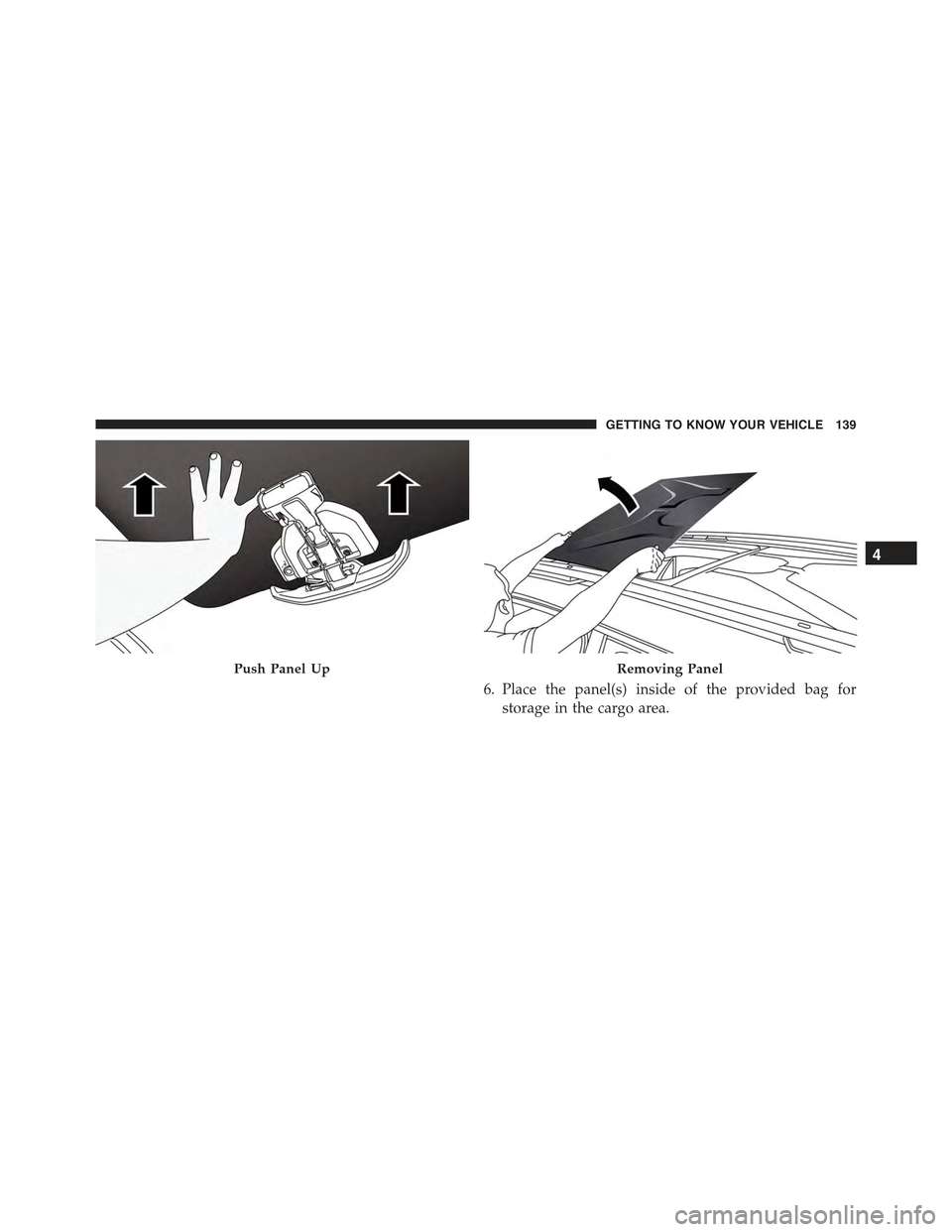

6. Place the panel(s) inside of the provided bag for
storage in the cargo area.
Push Panel UpRemoving Panel
4
GETTING TO KNOW YOUR VEHICLE 139

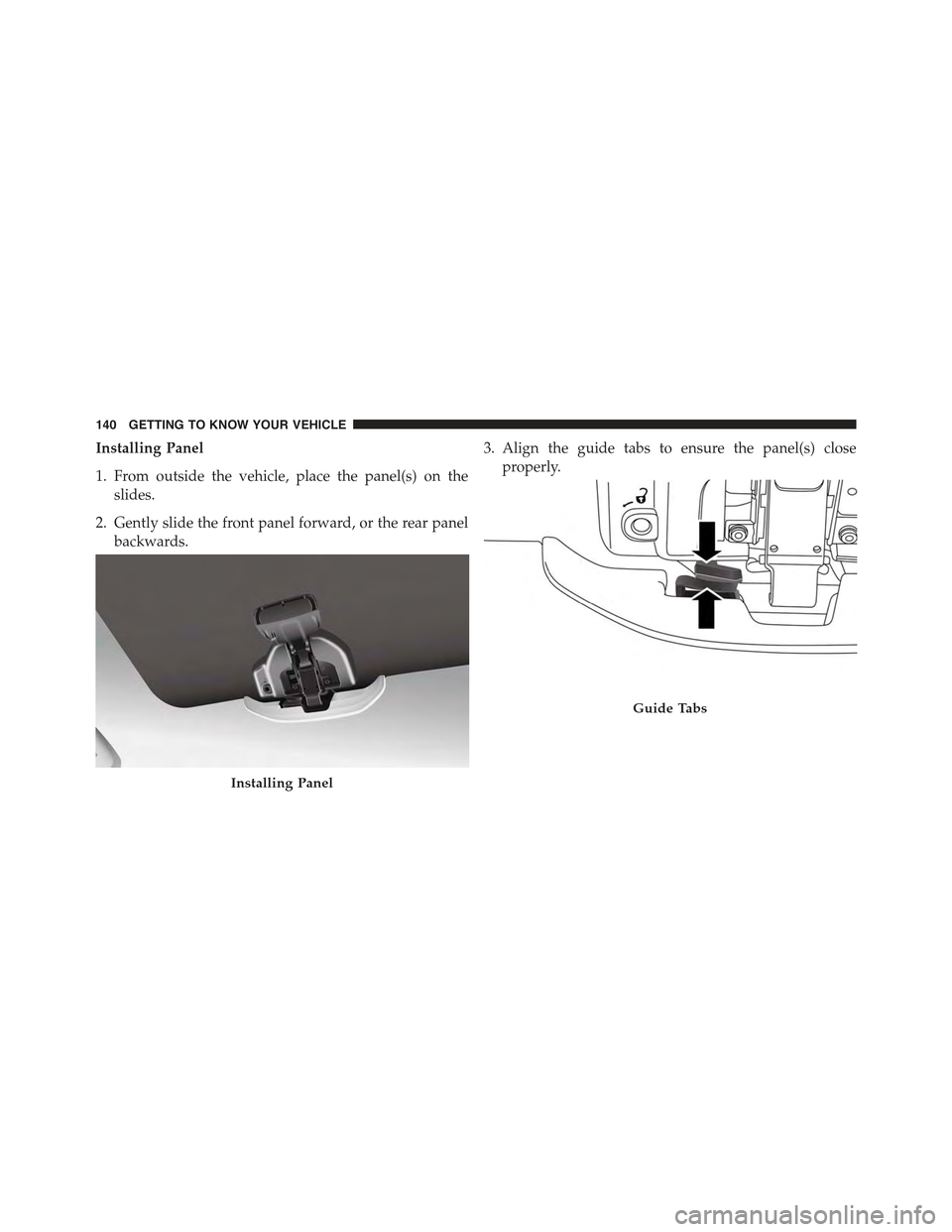

Installing Panel
1. From outside the vehicle, place the panel(s) on the
slides.
2. Gently slide the front panel forward, or the rear panel
backwards.
3. Align the guide tabs to ensure the panel(s) close
properly.
Installing Panel
Guide Tabs
140 GETTING TO KNOW YOUR VEHICLE

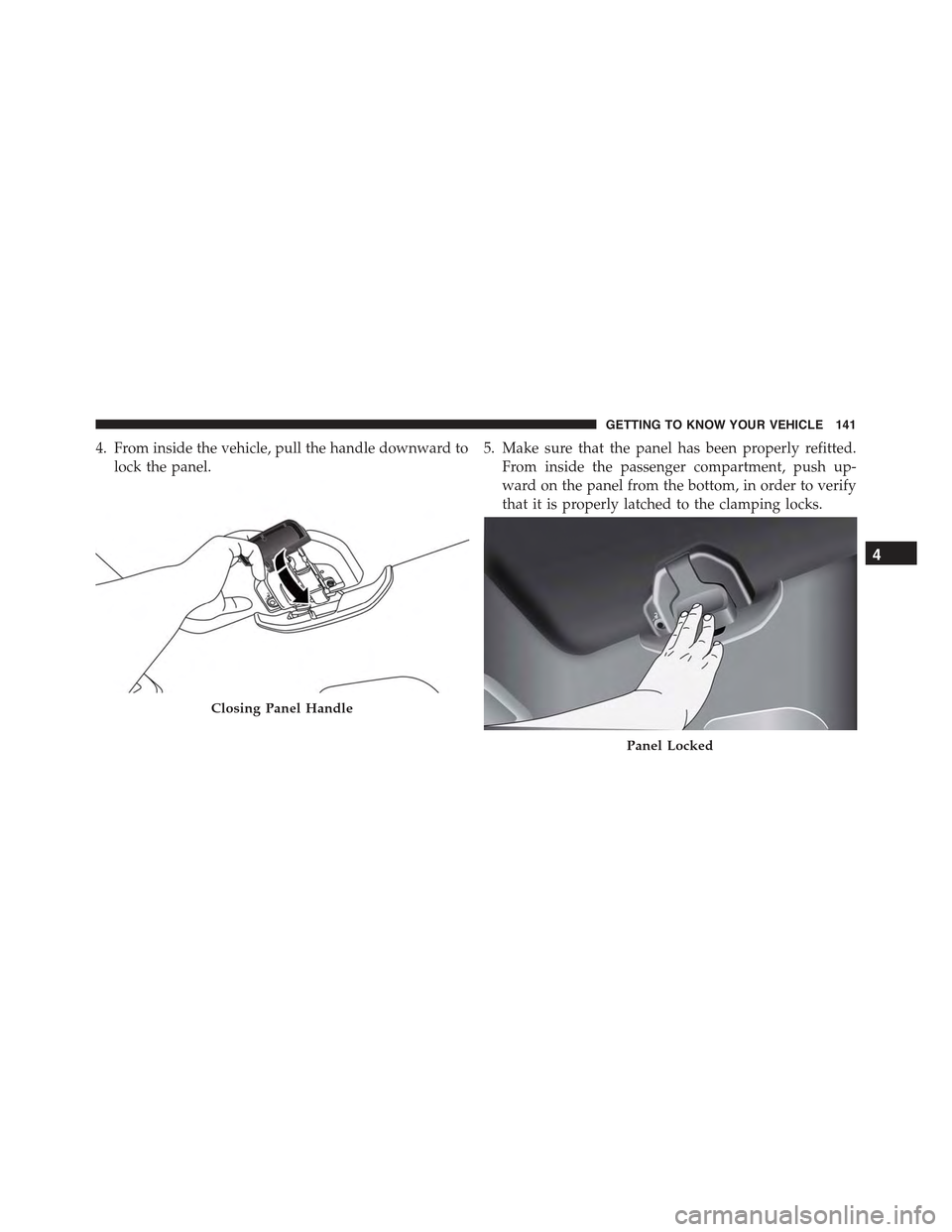

4. From inside the vehicle, pull the handle downward to
lock the panel.
5. Make sure that the panel has been properly refitted.
From inside the passenger compartment, push up-
ward on the panel from the bottom, in order to verify
that it is properly latched to the clamping locks.
Closing Panel Handle
Panel Locked
4
GETTING TO KNOW YOUR VEHICLE 141

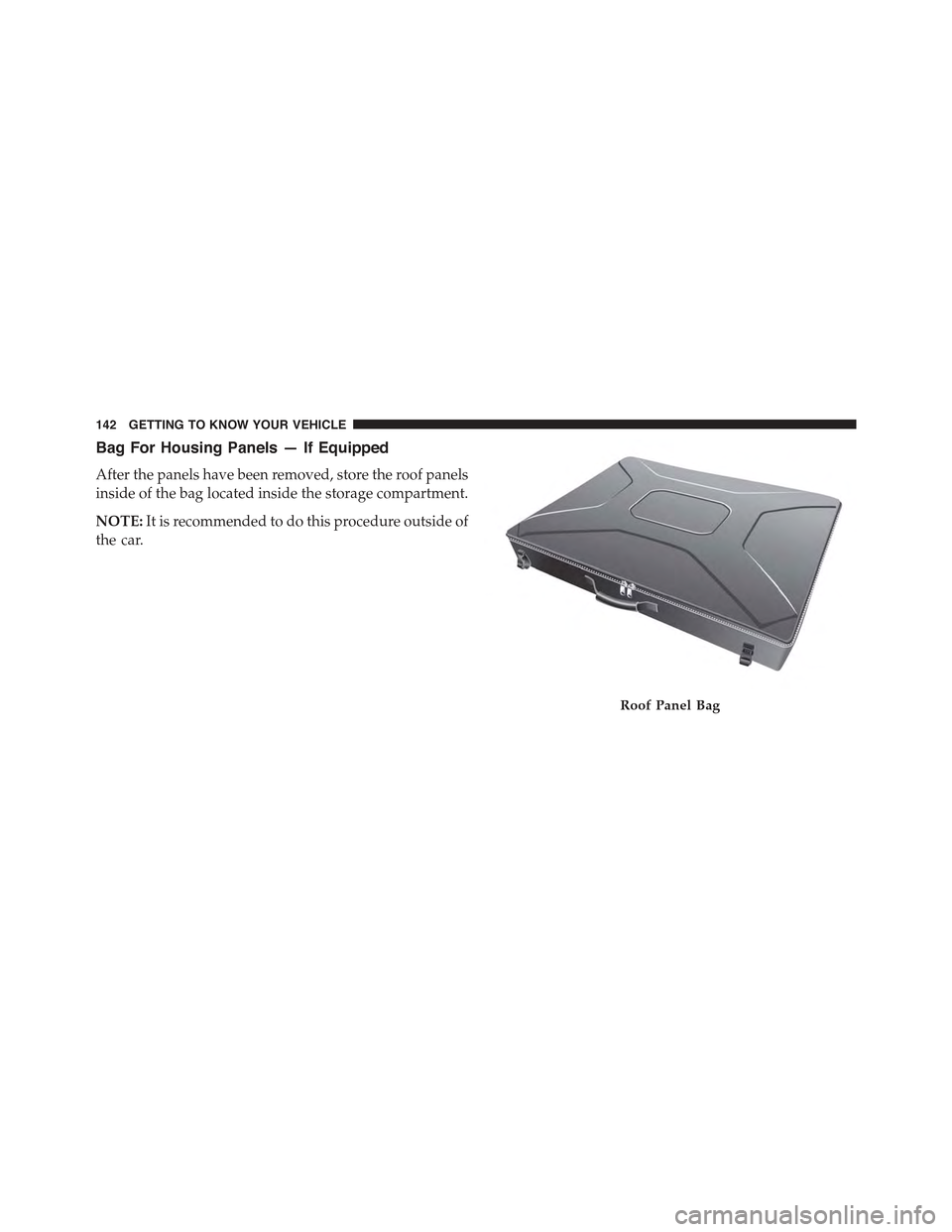

Bag For Housing Panels — If Equipped
After the panels have been removed, store the roof panels
inside of the bag located inside the storage compartment.
NOTE:It is recommended to do this procedure outside of
the car.
Roof Panel Bag
142 GETTING TO KNOW YOUR VEHICLE
