2015 JEEP RENEGADE Owners Manual

Enhanced Accident Response System Failure
•What Does It Mean
The light illuminates in case of failure of
the Enhanced Accident Response System.
•What To Do
Please contact an authorized dealer as soon as pos-
sible.
LaneSense System Failure
•What Does It Mean
The light illuminates if there is dirt on the
windshield that could interfere with the
proper operation of the camera.
For vehicles equipped with multifunctional display,
the icon is located on the top right side of the display.
LaneSense System Failure
The light illuminates on if there is a fault in the
LaneSense system.
•What To Do
Clean the windshield, using a soft, clean cloth, being
careful not to scratch it. If the light remains on,
contact an authorized dealer.
Loose Fuel Filler Cap Message Indicator
•What Does It Mean
This light will illuminate to indicate the
fuel filler cap is loose.
•What To Do
Properly close the filler cap.
Automatic Headlights Failure
•What Does It Mean
The light turns on to indicate the failure of
the main beam automatic headlights.
•What To Do
Please contact an authorized dealer as soon as pos-
sible.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 199

Transmission Over Temperature
•What Does It Mean
This light indicates that the automatic
transmission fluid temperature is running
hot. This may occur with heavy usage, such
as trailer towing.
•What To Do
Safely pull over and stop the vehicle. Shift the trans-
mission to PARK. Keep the engine off or at idle speed
until the light turns off.
Towing Hook Breakdown
•What Does It Mean
The light illuminates to indicate the failure
of the tow hook.
•What To Do
Please contact an authorized dealer.
Power Steering System Warning
•What Does It Mean
This light will illuminate to indicate a fail-
ure in the Electronic Power Steering System
(EPS). Although it will still be possible to
steer the car, additional effort may be needed to
operate the steering wheel.
•What To Do
Please contact an authorized dealer as soon as pos-
sible.
200 GETTING TO KNOW YOUR INSTRUMENT PANEL

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) / DRIVER INFORMATION DISPLAY (DID)
EVIC/DID Description
The vehicle can be equipped with multifunctional dis-
play (EVIC), or a reconfigurable multifunctional display
(DID), which offers useful information to the driver.
With the ignition in the STOP/OFF position (and the key
removed, for vehicles with mechanical key), opening/
closing of a door will activate the display for viewing,
and display the total miles or kilometers in the odometer.
Mapping And Reconfigurable Zone Display (EVIC)
— (If Equipped)
The display shows the following information, if
equipped:
•Zone (1)
– Date (Centered)
Mapping And Reconfigurable Zone Display
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 201

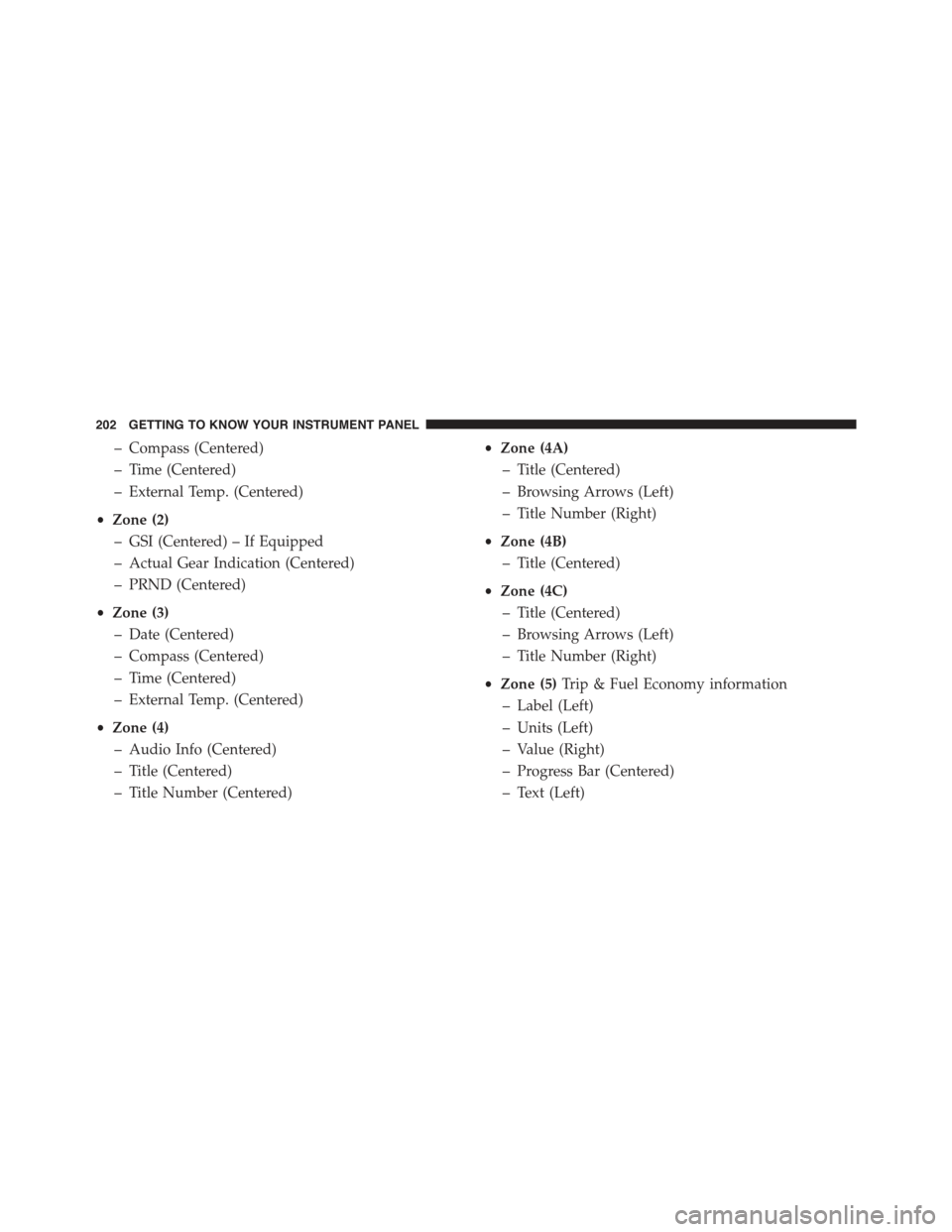

– Compass (Centered)
– Time (Centered)
– External Temp. (Centered)
•Zone (2)
– GSI (Centered) – If Equipped
– Actual Gear Indication (Centered)
– PRND (Centered)
•Zone (3)
– Date (Centered)
– Compass (Centered)
– Time (Centered)
– External Temp. (Centered)
•Zone (4)
– Audio Info (Centered)
– Title (Centered)
– Title Number (Centered)
•Zone (4A)
– Title (Centered)
– Browsing Arrows (Left)
– Title Number (Right)
•Zone (4B)
– Title (Centered)
•Zone (4C)
– Title (Centered)
– Browsing Arrows (Left)
– Title Number (Right)
•Zone (5)Trip & Fuel Economy information
– Label (Left)
– Units (Left)
– Value (Right)
– Progress Bar (Centered)
– Text (Left)
202 GETTING TO KNOW YOUR INSTRUMENT PANEL

•Zone (6)
– Odometer Digits (Left)
– Odometer Unit (Right)
– Speed Limiter (Left)
– Speed Limiter and Cruise Control Speed Set (Cen-
ter)
– Speed Buzzer (Right)
•Red Telltales(Left)
•Amber Telltales(Right)
Mapping And Reconfigurable Zone Display (DID)
— (If Equipped)
•Zone (1)– Includes 1A and 1B combined
– TRIP Info (Centered)
– Title (Centered)
– Audio Info (Centered)
Mapping And Reconfigurable Zone Display (DID)
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 203

•Zone (1A)
– Up and down arrow (Left)
– Title number
•Zone (1B)
– External Temp. (Centered)
– Title (Centered)
– Time (Centered)
•Zones (1, 2 & 3)
– Date
– Compass
– Time
– External Temp.
•Zone (2)
– Double scale (Centered)
•Zone (2 & 3)
– Ignition Button Info (Centered)
•Zone (4)
– Speed Warning Title
•Zone (5)
– Text (Centered)
– Side Distance Warning
– Park Sense: Front & Rear
•Zone (6)
– Odometer Digits (Left)
– Odometer Unit (Right)
– Side Distance Warning
– Park Sense: Front & Rear
•Zone (7)
– Red Telltales (Centered)
•Zone (8)
– Amber Telltales (Centered)
204 GETTING TO KNOW YOUR INSTRUMENT PANEL

•Zone (9)
– GSI – If Equipped (Centered)
– PRND (Centered)
– Soft Telltale (Centered)
•Zone (10)
– Hill Decent Control Telltale (Centered)
•Zone (11–12)
– Telltales (Centered)
•Zone (13)
– Forward Collision Telltale (Centered)
•Zone (14)
– Soft Telltale (Centered)
– Cruise Control ICON (Centered)
– Speed Limiter ICON (Centered)
•Zone (15)
– Speed Limiter Value (Centered)
– Cruise Control Value (Centered)
•Zone (16)
– Soft Telltale (Centered)
– Speed Buzzer (Right)
•Zone (17)
– Active Park Sense
•Zone (18)
– Active Park Sense
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 205

EVIC/DID Control Buttons
The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:
EVIC/DID Control Buttons1—ArrowUp/DownScrollThroughMenusAndSubmenus2 — Arrow Right/Left Access Information/Submenu Screens3 — OK Button For Selecting And Resetting Information
