2015 JEEP RENEGADE Owners Manual

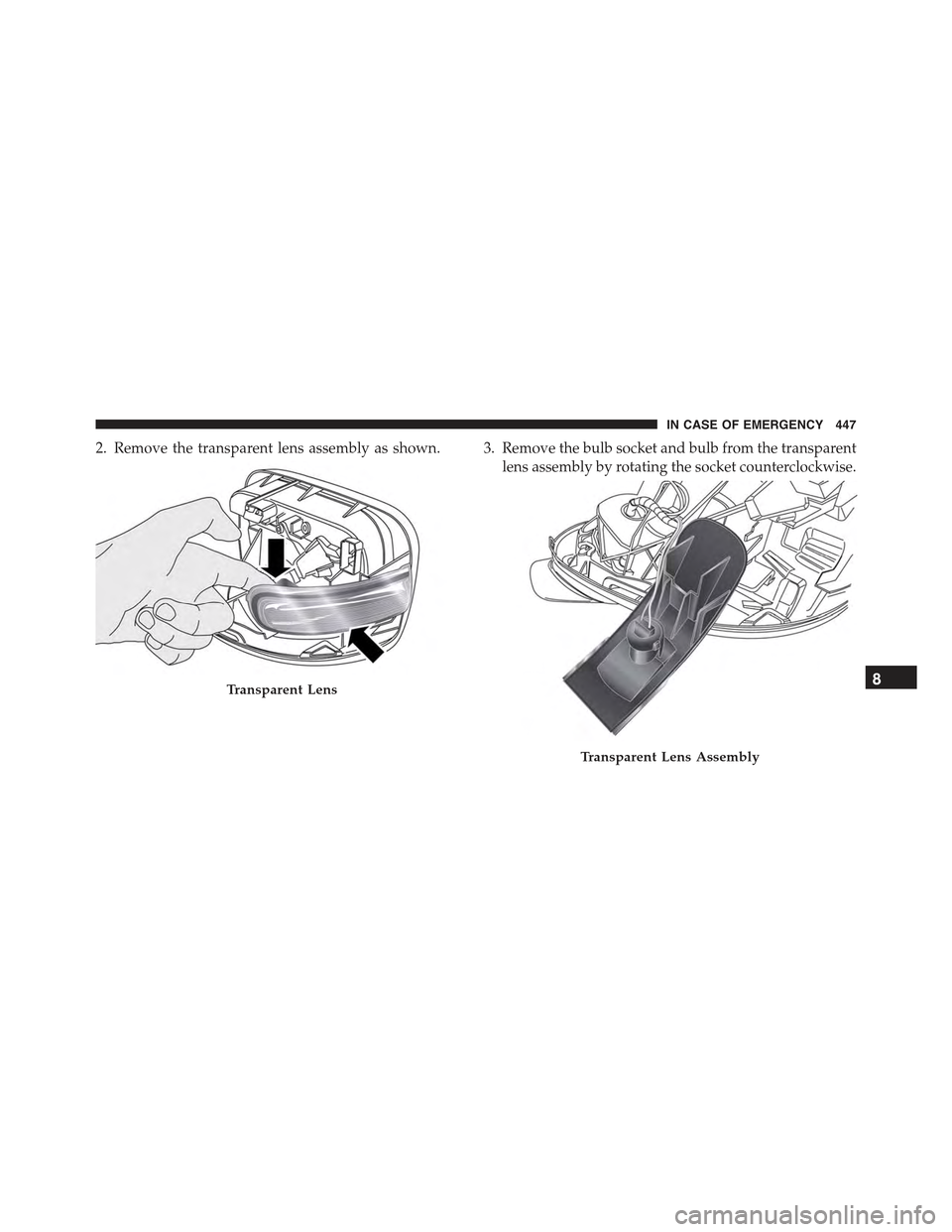

2. Remove the transparent lens assembly as shown. 3. Remove the bulb socket and bulb from the transparent
lens assembly by rotating the socket counterclockwise.
Transparent Lens
Transparent Lens Assembly
8
IN CASE OF EMERGENCY 447

4. Remove the bulb from the bulb socket by pulling the
bulb straight out.
5. Insert the new bulb, making sure that it is locked into
place
6. Reinstall the socket in to the transparent lens assembly.
7. Reinstall the cover on the outside rear view mirror,
making sure it is locked into place.
Rear Tail Lamps
Contain the following:
•Position lights
•Stop lights
•Direction indicator
•REVERSE lightsBulb And Socket Assembly
1—Bulb2—BulbSocket
448 IN CASE OF EMERGENCY

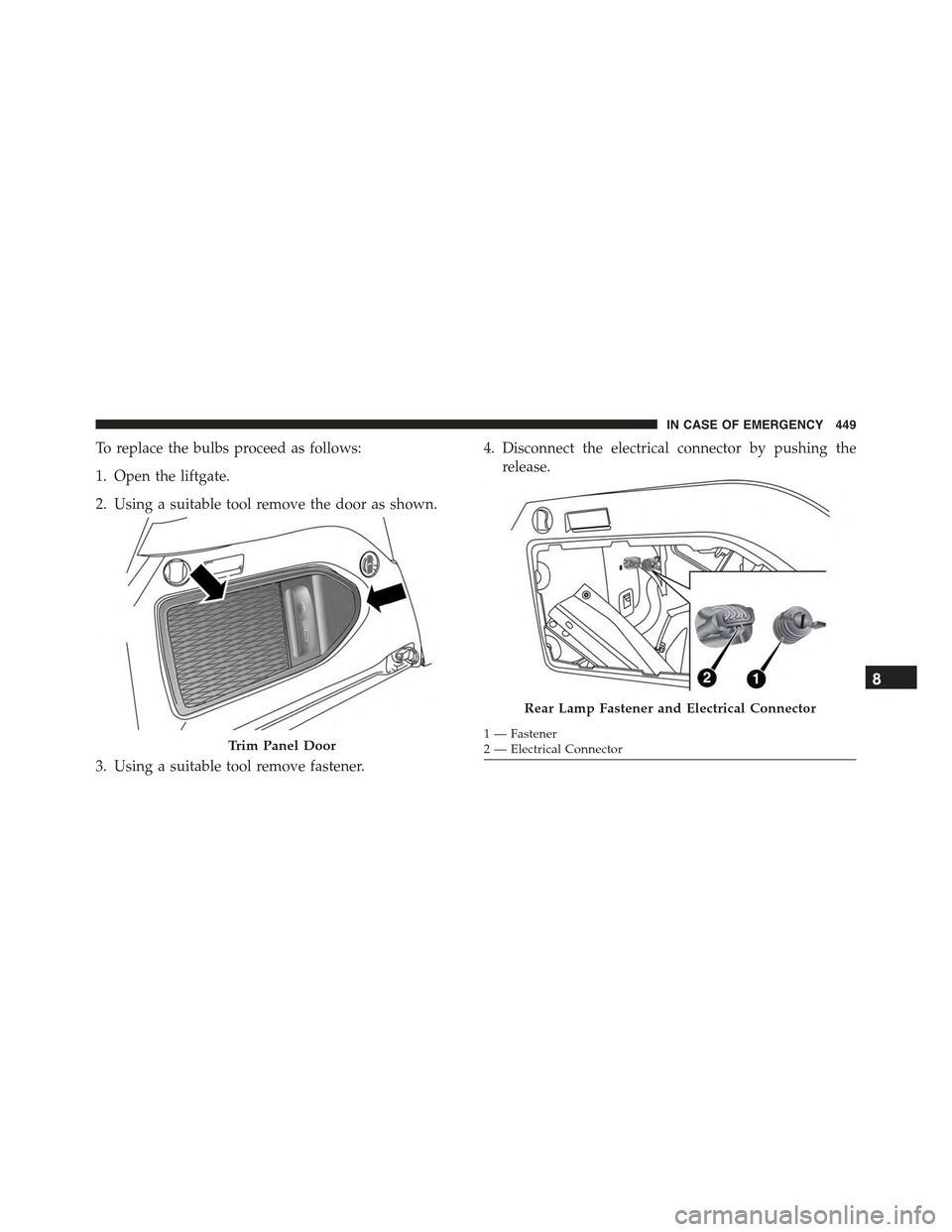

To replace the bulbs proceed as follows:
1. Open the liftgate.
2. Using a suitable tool remove the door as shown.
3. Using a suitable tool remove fastener.
4. Disconnect the electrical connector by pushing the
release.
Trim Panel Door
Rear Lamp Fastener and Electrical Connector
1 — Fastener2 — Electrical Connector
8
IN CASE OF EMERGENCY 449

5. Remove the rear tail lamp, sliding it toward the
outside as shown.
6. Unscrew the screws and remove the rear tail lamp
holder.
Tail Lamp Removal
Rear Lamp Assembly
1—MountingScrews
450 IN CASE OF EMERGENCY

7. Replace the bulb as necessary.8. Insert the new bulb, making sure it is properly locked;
9. Reassemble the lamp assembly on the rear tail lamp
housing, tightening the screws.
10. Reposition the rear tail lamp on the car.
11. Secure the fastener of the rear tail lamp and reconnect
the electrical connector.
12. Reinstall the door making sure of its correct locked
13. Finally close the tailgate.
3th Stop Lamp
The CHMSL is LED. For their replacement see your
authorized dealer.Rear Tail Lamp Holder
1—TailLight2 — Reverse Bulb3—PositionLight/StopLight/TurnSignal
8
IN CASE OF EMERGENCY 451

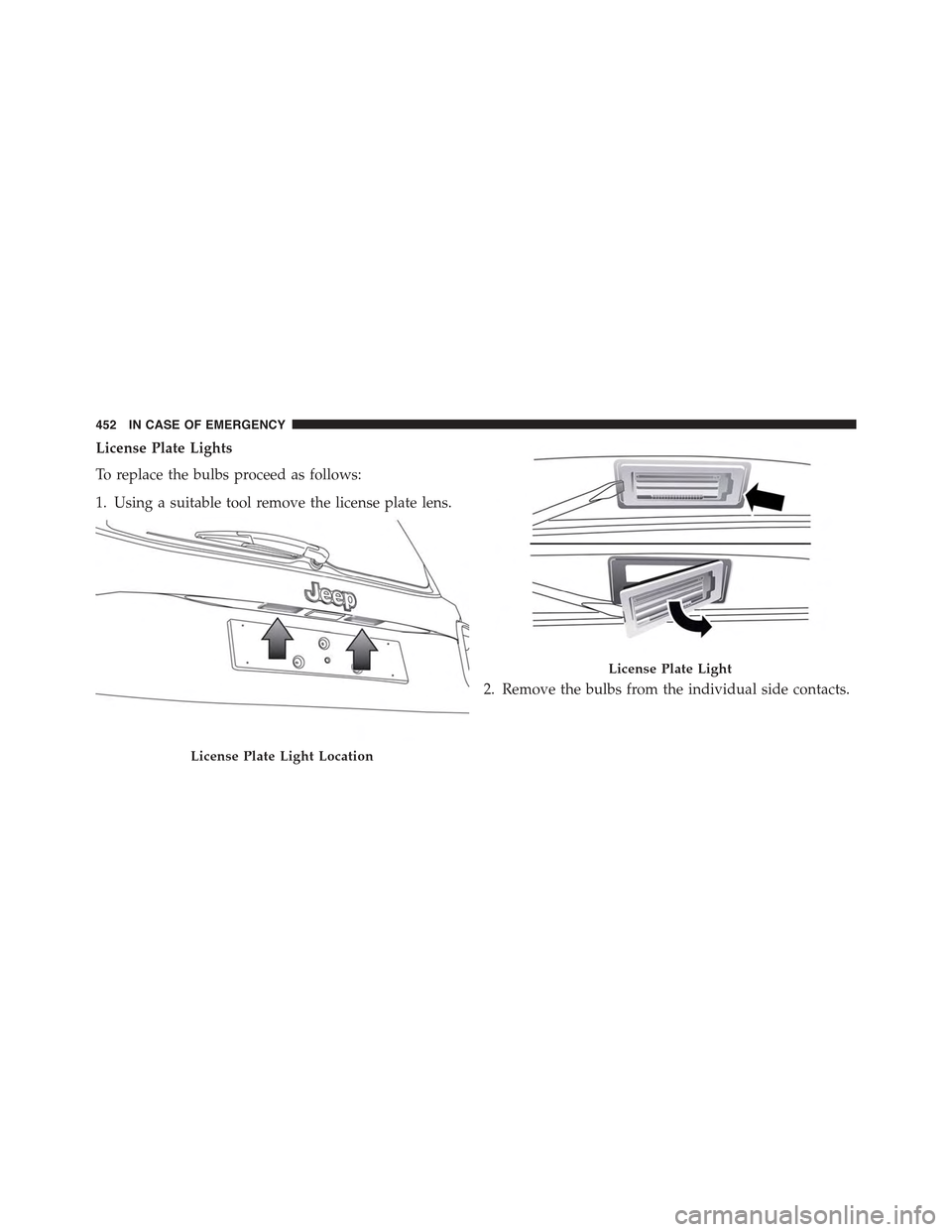

License Plate Lights
To replace the bulbs proceed as follows:
1. Using a suitable tool remove the license plate lens.
2. Remove the bulbs from the individual side contacts.
License Plate Light Location
License Plate Light
452 IN CASE OF EMERGENCY

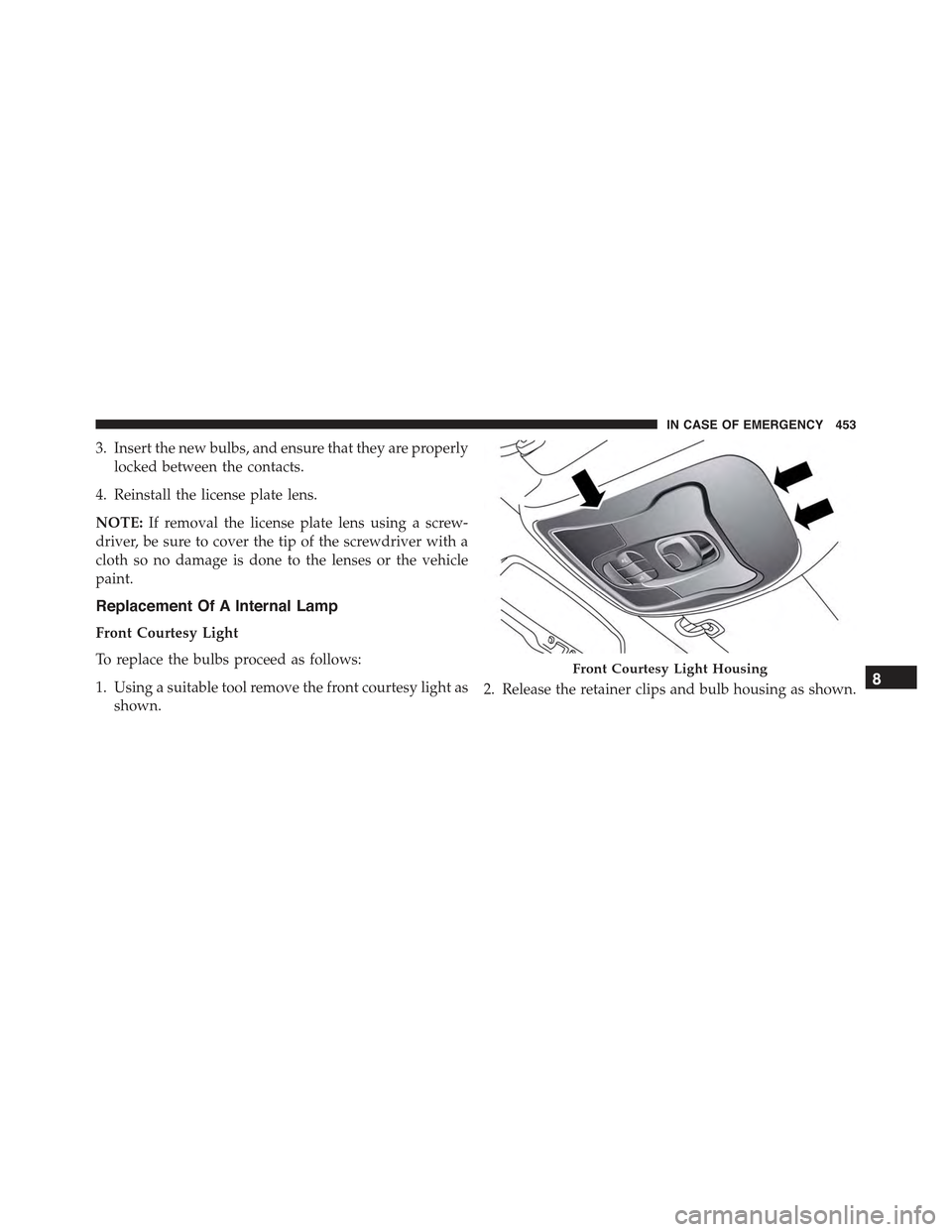

3. Insert the new bulbs, and ensure that they are properly
locked between the contacts.
4. Reinstall the license plate lens.
NOTE:If removal the license plate lens using a screw-
driver, be sure to cover the tip of the screwdriver with a
cloth so no damage is done to the lenses or the vehicle
paint.
Replacement Of A Internal Lamp
Front Courtesy Light
To replace the bulbs proceed as follows:
1. Using a suitable tool remove the front courtesy light as
shown.
2. Release the retainer clips and bulb housing as shown.
Front Courtesy Light Housing8
IN CASE OF EMERGENCY 453

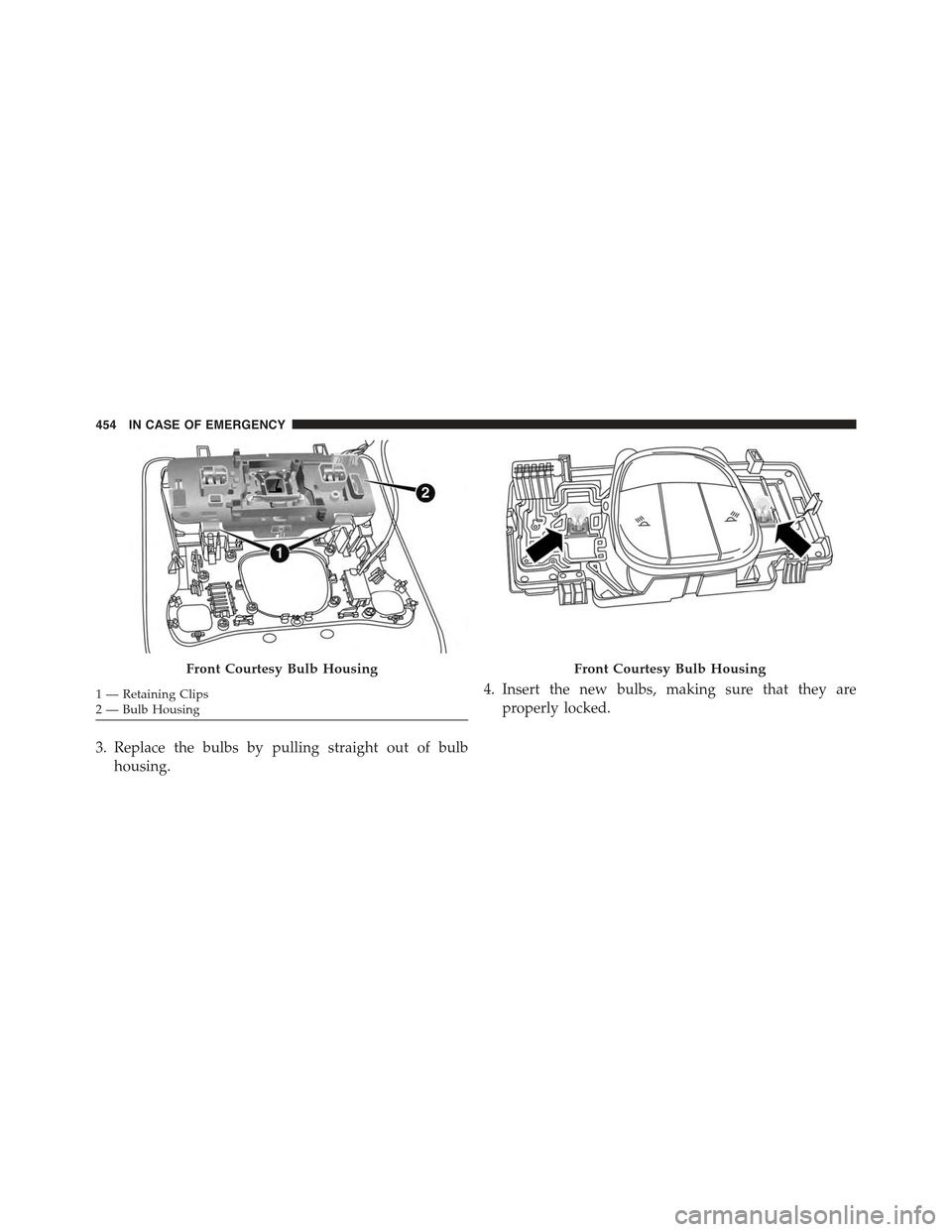

3. Replace the bulbs by pulling straight out of bulb
housing.
4. Insert the new bulbs, making sure that they are
properly locked.
Front Courtesy Bulb Housing
1 — Retaining Clips2—BulbHousing
Front Courtesy Bulb Housing
454 IN CASE OF EMERGENCY
