2015 JEEP RENEGADE fold seats

Rear Seats
The split rear seat increases the storage of the rear cargo
area.
NOTE:
•Prior to folding the rear seat down, it may be necessary
to position the front seat to its mid-track position. Be
sure that the front seats are fully upright and posi-
tioned forward, this will allow the rear seat to fold
down easily.
•Prior to folding the rear seat, you must secure the rear
armrest in up position.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
4
GETTING TO KNOW YOUR VEHICLE 71

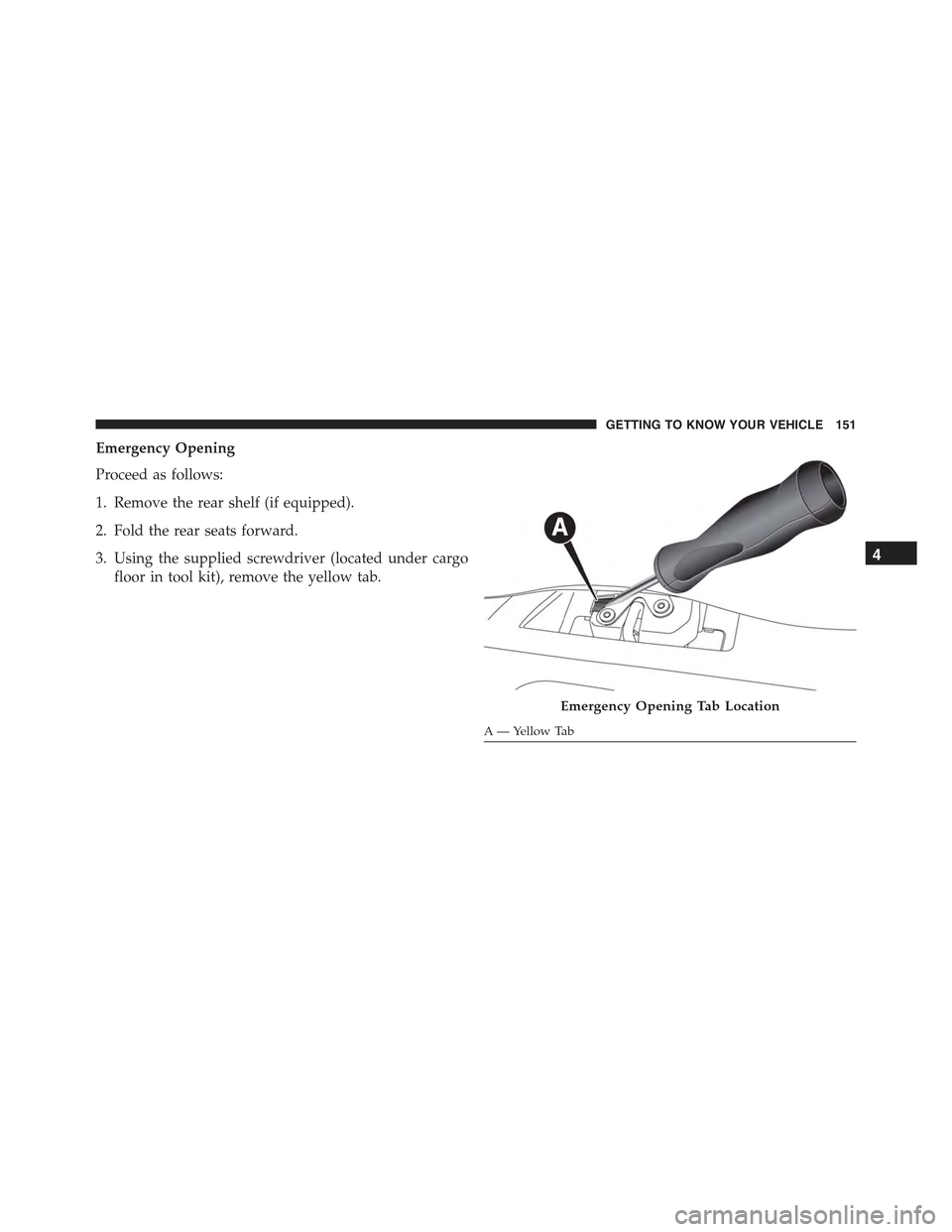

Emergency Opening
Proceed as follows:
1. Remove the rear shelf (if equipped).
2. Fold the rear seats forward.
3. Using the supplied screwdriver (located under cargo
floor in tool kit), remove the yellow tab.
Emergency Opening Tab Location
A — Yellow Tab
4
GETTING TO KNOW YOUR VEHICLE 151

CavityMini FuseDescription
F317.5 Amp BrownFlashes/Electrical Movement Front Seats/
Fan Air Conditioning
F3325 Amp ClearPower Window Front (driver side)
F3425 Amp ClearPower Window Front (passenger side)
F3620 Amp YellowSupply Uconnect® System, Air Condition-
ing, Alarm, Power Folding Outside Mir-
rors, USB Port
F3710 Amp RedSystem Power Forward Collision Warning
Plus, All Wheel Drive (AWD), IPC
F3820 Amp YellowCentral Locking
F427.5 Amp BrownPower Under Lock and Key
F4320 Amp YellowBi-directional Pump Washer
F4725 Amp ClearPower Rear Window (driver side)
F4825 Amp ClearPower Rear Window (passenger side)
F497.5 Amp BrownSupply ParkSense, Spot Lights Front
470 IN CASE OF EMERGENCY
