2015 FIAT DUCATO BASE CAMPER Owner handbook (in English)

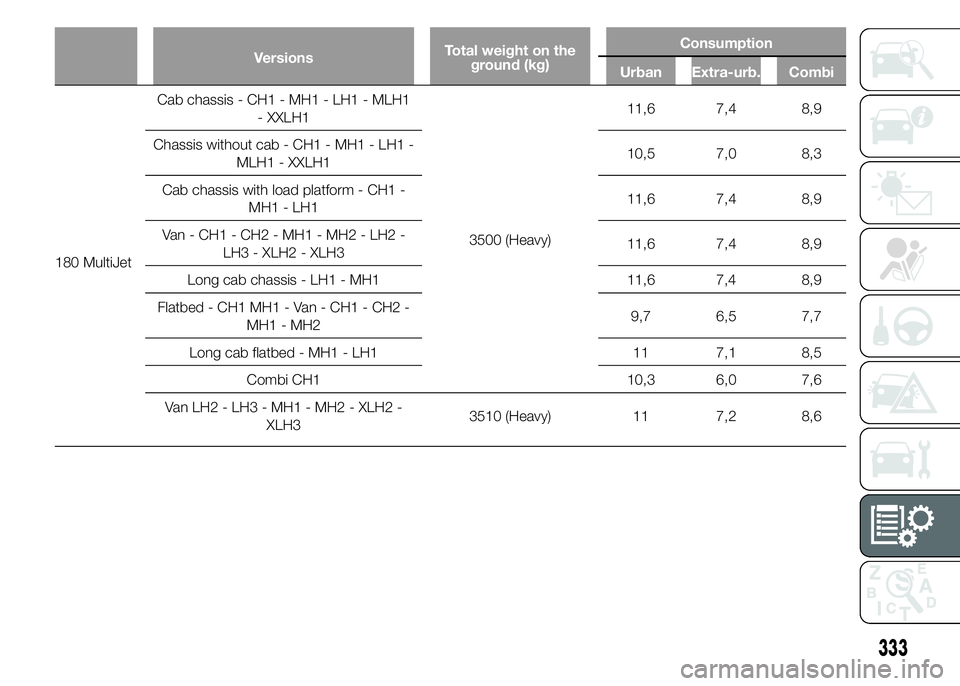

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
3500 (Heavy)11,6 7,4 8,9
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH110,5 7,0 8,3
Cab chassis with load platform - CH1 -
MH1 - LH111,6 7,4 8,9
Van - CH1 - CH2 - MH1 - MH2 - LH2 -
LH3 - XLH2 - XLH311,6 7,4 8,9
Long cab chassis - LH1 - MH1 11,6 7,4 8,9
Flatbed - CH1 MH1 - Van - CH1 - CH2 -
MH1 - MH29,7 6,5 7,7
Long cab flatbed - MH1 - LH1 11 7,1 8,5
Combi CH1 10,3 6,0 7,6
Van LH2 - LH3 - MH1 - MH2 - XLH2 -
XLH33510 (Heavy) 11 7,2 8,6
333

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
3995 - 4005 - 4250
(Heavy)11 7,2 8,6 Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH1
Cab chassis with load platform - CH1 -
MH1 - LH1
Van - CH1 - CH2 - MH1 - MH2 - LH2 -
LH3 - XLH2 - XLH3
Long cab chassis - LH1 - MH1
Flatbed - CH1 MH1 10,5 7,0 8,3
Van CH1 - CH2 - MH1 - MH2 11 7,2 8,6
Long cab flatbed - MH1 - LH1 11,6 7,4 8,9
Minibus 11,6 7,4 8,9
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH13650 10,1 6,7 8,0
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH14400 (Heavy) 10,1 6,7 8,0
334
TECHNICAL SPECIFICATIONS

CO2EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
These emission values refer to basic vehicles without optionals.
CO
2emissions (according to the current European Directive litres/100 km)
VersionsTotal weight on the
ground (kg)CO2emissions
Combined
110 (°)/130/
150 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Cab chassis with load platform - CH1 - MH1 - LH1
3000186
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1153
Van - CH1 - CH2 - MH1 - MH2 - Combi - MH1 - MH2 192
Flatbed CH1 - MH1 - MDH1 170
Panorama - CH1 183
(°)Version for specific markets
335

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
110 (°)/130/
150 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Long cab flatbed - MH1 - LH1
3300186
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1153
Cab chassis with load platform - CH1 - MH1 - LH1 - -
Long cab chassis - LH1 - MH1 - Panorama - MH1 -
MH2192
Flatbed CH1 - MH1 - MDH1 - LH1 - Van - CH1 - CH2
- MH1 - MH2 - LH2 - LH3170
Combi CH1 - MH1 - MH2 170
(°)Version for specific markets
336
TECHNICAL SPECIFICATIONS

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
110 (°)/130/
150 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Cab chassis with load platform - CH1 - MH1 - LH1 - -
Long cab chassis - LH1 - MH1
3500192
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1153
Flatbed CH1 - MH1 - MDH1 - LH1 - XLH1 - Van - CH1
- CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 - XLH3170
Long cab flatbed MH1 - LH1 - XLH1 186
Combi MH1 - MH2 - LH2 177
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1 - Cab chassis with load platform - CH1 - MH1 -
LH1 - Long cab chassis - LH1 - MH1 - Long cab
flatbed - MH1 - LH1 - XLH1
3995 - 4005 - 4250186
Van - CH1 - MH2 - LH2 - LH3 -XLH2 - XLH3 - Flatbed
- LH1 MDH1 - MH1 -XLH1183
Minibus LH2 183
(°)Version for specific markets
337

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
110 (°)/130/
150 MultiJetVan - CH1 2800 170
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH13650 186
Van - MH2 - LH2 -XLH2 - XLH3
3510183
Van CH1 - MH1 - LH3 170
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 186
(°)Version for specific markets
338
TECHNICAL SPECIFICATIONS

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
115 MultiJetVan - CH1 2800 190
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3000179
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1148
Cab chassis with load platform - CH1 - MH1 - LH1 185
Van - CH1 - CH2 - MH1 - MH2 190
Flatbed - CH1 - MH1 - MDH1 165
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3300185
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1160
Cab chassis with load platform - CH1 - MH1 - LH1 -
Van - CH1 - CH2 - MH1 - MH2 - LH2 -LH3190
Long cab chassis - LH1 - MH1 190
Flatbed - CH1 - MH1 - LH1 - MDH1 165
Long cab flatbed - MH1 - LH1 179
339

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
115 MultiJetPanorama - Combi - CH1 3000 - 3300 166
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3500190
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1160
Cab chassis with load platform - CH1 - MH1 - LH1 -
Van - CH1 - CH2 - MH1 - MH2 - Long cab chassis -
LH1 - MH1190
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3650 190
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1
340
TECHNICAL SPECIFICATIONS
