2015 FIAT DUCATO BASE CAMPER Owner handbook (in English)

COMBI - PANORAMA
CH1 MH2 LH2
A948 948 948
B3000 3450 4035
C1015 1015 1015 - 1380 (*)
D4963 5413 5998 - 6363(*)
E2254 2524 2524
F1810 1810 1810
G2050 2050 2050
I1790 1790 1790
(*) MINIBUS version, 16 + 1 seats
The sizes vary according to the various versions within the limits indicated above
269

VAN VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
256F1A0328
270

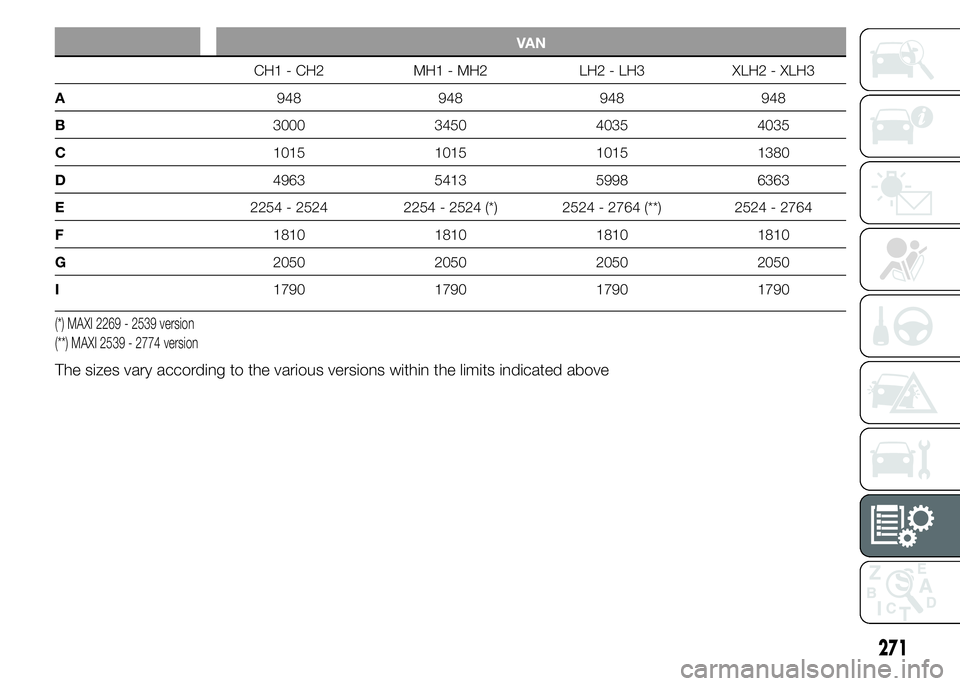

TECHNICAL SPECIFICATIONS

VAN
CH1 - CH2 MH1 - MH2 LH2 - LH3 XLH2 - XLH3
A948 948 948 948
B3000 3450 4035 4035
C1015 1015 1015 1380
D4963 5413 5998 6363
E2254 - 2524 2254 - 2524 (*) 2524 - 2764 (**) 2524 - 2764
F1810 1810 1810 1810
G2050 2050 2050 2050
I1790 1790 1790 1790
(*) MAXI 2269 - 2539 version
(**) MAXI 2539 - 2774 version
The sizes vary according to the various versions within the limits indicated above
271

TRUCK VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
257F1A0329
272
TECHNICAL SPECIFICATIONS

BOX CHASSIS CAB
CH1 MH1 LH1 XLH1 CH1MH1-
MLH1LH1 XLH1 XXLH1
A948 948 948 948 948 948 948 948 948
B3000 3450 4035 4035 30003450 -
38004035 4035 4300
C1345 1345 1345 1710 960 960 960 1325 1590
D5293 5743 6328 6693 49085358 -
57085943 6308 6573
E2798 3248 3833 4198-----
F2424 2424 2424 2424 2254 2254 2254 2254 2519
G1810 1810 1810 1810 1810 1810 1810 1810 1810
H1790 1790 1790 17901790 -
19801790 -
19801790 -
19801790 -
19801790 -
1980
L2100 2100 2100 2100 2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
273

CHASSIS COWL SPECIAL CAB VAN
CH1MH1-
MLH1LH1 XLH1 XXLH1 CH1MH1-
MLH1LH1 XLH1 XXLH1
A925 925 925 925 925 948 948 948 948 948
B30003450 -
38004035 4035 4300 30003450 -
38004035 4035 4300
C860 860 860 1225 1490 880 880 880 1245 1510
D47855235 -
55855820 6125 6390 48285278 -
56285863 6228 6493
E----------
F-----2254 2254 2254 2254 2254
G1810 1810 1810 1810 1810 1810 1810 1810 1810 1810
H1790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
1980
L2050 2050 2050 2050 2050 2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
274
TECHNICAL SPECIFICATIONS

SPECIAL CHASSIS COWL
CH1 MH1 - MH2 LH1 XLH1 XXLH1
A925 925 925 925 925
B3000 3450 - 3800 4035 4035 4300
C880 880 880 1245 1510
D4805 5255 - 5605 5840 6205 6470
G1810 1810 1810 1810 1810
H1790 - 1980 1790 - 1980 1790 - 1980 1790 - 1980 1790 - 1980
L2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
275

CREW CAB VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
258F1A0368
276
TECHNICAL SPECIFICATIONS
