TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle
is made and works is contained in
this chapter and illustrated with
data, tables and graphics. For the
enthusiasts and the technician, but
also just for those who want to
know every detail of their vehicle.IDENTIFICATION DATA....................254
ENGINE CODES - BODYWORK
VERSION ........................................256
ENGINE ..........................................258
POWER SUPPLY ............................259
TRANSMISSION .............................260
SUSPENSION .................................261
BRAKES .........................................262
STEERING ......................................263
WHEELS .........................................264
DIMENSIONS ..................................268
PERFORMANCE .............................278
WEIGHTS........................................280
SUPPLIES .......................................319
FLUIDS AND LUBRICANTS ............321
FUEL CONSUMPTION ....................324
CO2 EMISSIONS ............................335
OFFICIAL TYPE APPROVALS .........345
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................349
253

IDENTIFICATION
DATA
It is advisable to take note of the
identification codes. Identification
codes are printed and shown
on the plates as indicated below,
together with the positions:
❒VIN plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
V.I.N. PLATEThis plate is fitted to the engine
compartment front crossmember
and contains the following data fig.
249:
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle
fully laden.
FMaximum authorised weight of
vehicle fully laden plus trailer.
GMaximum permitted weight on first
(front) axle.
HMaximum authorised weight on
second axle (rear).
IEngine type.
LBodywork version code.
MSpare parts number.
NCorrect value of smoke coefficient
(for diesel engines)
CHASSIS MARKING
They are located respectively: one
on the passenger side interior
wheel arch, A fig. 250, and the
other on the low part of the
windscreen fig. 251.
The marking includes:
❒type of vehicle;
❒chassis serial number.
249F1A0243
250F1A0244
251F1A0365
254
TECHNICAL SPECIFICATIONS

DRespray and touch up colour
code.ENGINE MARKING
Engine marking is stamped on the
cylinder block and includes the
model and the chassis serial
number.
252F1A0369
255

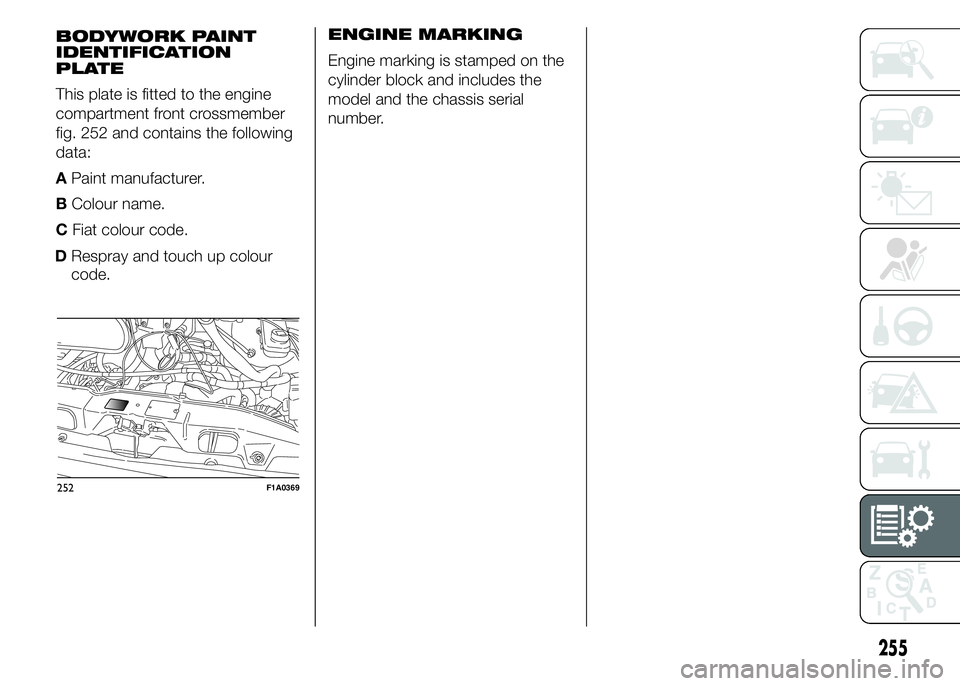

BODYWORK PAINT
IDENTIFICATION
PLATE
This plate is fitted to the engine
compartment front crossmember
fig. 252 and contains the following
data:
APaint manufacturer.
BColour name.
CFiat colour code.

ENGINE CODES - BODYWORK VERSION.
VersionEngine code
110 MultiJet(*) F1AE3481G
115 MultiJet(*)250A1000
130 MultiJetF1AE3481D
150 MultiJetF1AE3481E
180 MultiJet PowerF1CE3481E
(*)Version for specific markets
256
TECHNICAL SPECIFICATIONS

FVa n
GLong cab trailer
HLong cab chassis
MMinibus
PPanorama
R6/9 seater crew cab
257
There is an example of a bodywork
version code below by way of
explanation with a key which is
valid for all bodywork version
codes.
Example:
250AMMFADX
250MODEL
AGVW
MENGINE
MENGINE TRANSMISSION/AXLES
FBODYWORK
AWHEELBASE
RHVERSION
GVW
A3000 kg
B3300 kg
C3500 kg
D3500 kg HEAVY
E3995/4005/4250 kg HEAVY
F2800 kg
G3650 kg
H3510 kg HEAVY
L3510 kg
M4400 kg HEAVY
ENGINE
M130 MultiJet
N150 MultiJet
P180 MultiJet Power
R115 MultiJet
V110 MultiJet
TRANSMISSION
MManual gearbox
AAutomatic transmission
WHEELBASE
AShort wheelbase
BMedium wheelbase
CLong wheelbase
DMedium-long wheelbase
UAll wheelbases (incomplete vehicles)
BODYWORK
ACab chassis
BChassis without cab
CPlatform chassis cab
DBox truck
EPrimary school bus

ENGINE
General information
110 MultiJet (*) 115 MultiJet (*)130 MultiJet 150 MultiJet180 MultiJet
Power
Type code F1AE3481G 250A1000 F1AE3481D F1AE3481E F1CE3481E
Cycle Diesel Diesel Diesel Diesel Diesel
Number and layout of
cylinders4 in line 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 88 x 94 83 x 90.4 88 x 94 88 x 94 95.8 x 104
Total displacement (cm³) 2287 1956 2287 2287 2999
Compression ratio 16,2 : 1 16,5 : 1 16,2 : 1 16,2 : 1 17,5 : 1
Maximum power (EC) (kW) 82,5 84,6 96 109 130
Maximum power (EC) (HP) 110 115 130 148 177
Corresponding engine speed
(rpm)3600 3750 3600 3600 3500
Maximum torque (EC) (Nm) 300 280 320 350 400
Corresponding engine speed
(rpm)1800 1500 1800 1500 1400
Fuel Diesel for motor vehicles (EN590 specification)
(*)Version for specific markets
258
TECHNICAL SPECIFICATIONS

POWER SUPPLY
Versions Power supply
All Common Rail direct injection
200)
WARNING
200) Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s
technical specifications into account may cause malfunctions leading to a risk of fire.
259

TRANSMISSION
Versions Gearbox Clutch Drive
115 MultiJet(*)Five forward gears and
reverse with synchronizers
for forward gear
engagement
Self-adjusting pedal without
idle strokeFront 110 MultiJet(*)
Six forward gears plus
reverse with synchronisers
for forward gear
engagement 130 MultiJet
150 MultiJet
180 MultiJet Power
(*)Version for specific markets
260
