2015 FIAT 500L Owners Manual

Power Mirrors
The power mirror controls are located on the driver ’s
door trim panel. To adjust a mirror, turn the control knob
toward the left or right mirror positions indicated. Tilt the
control wand in the direction you want the mirror to
move. When you are finished adjusting the mirror, turn
the control to the center position to prevent accidentally
moving a mirror.
Power Mirror Controls
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

Folding Mirrors
The exterior mirrors are hinged to allow the mirror to
pivot forward or rearward to help avoid damage. The
mirror has three detent positions: full forward, normal
and full rearward.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature can be activated whenever you turn on the
rear window defroster.
Sun Visors
The driver and passenger sun visors are located on the
headliner, near the front windshield. The sun visor can be
rotated downward or up against the door glass. Both sun
visors are equipped with illuminated courtesy mirrors.
Sun Visor “Slide-On-Rod” Feature
The sun visor “Slide-On-Rod” feature allows for addi-
tional flexibility in positioning the visor to block out the
sun.

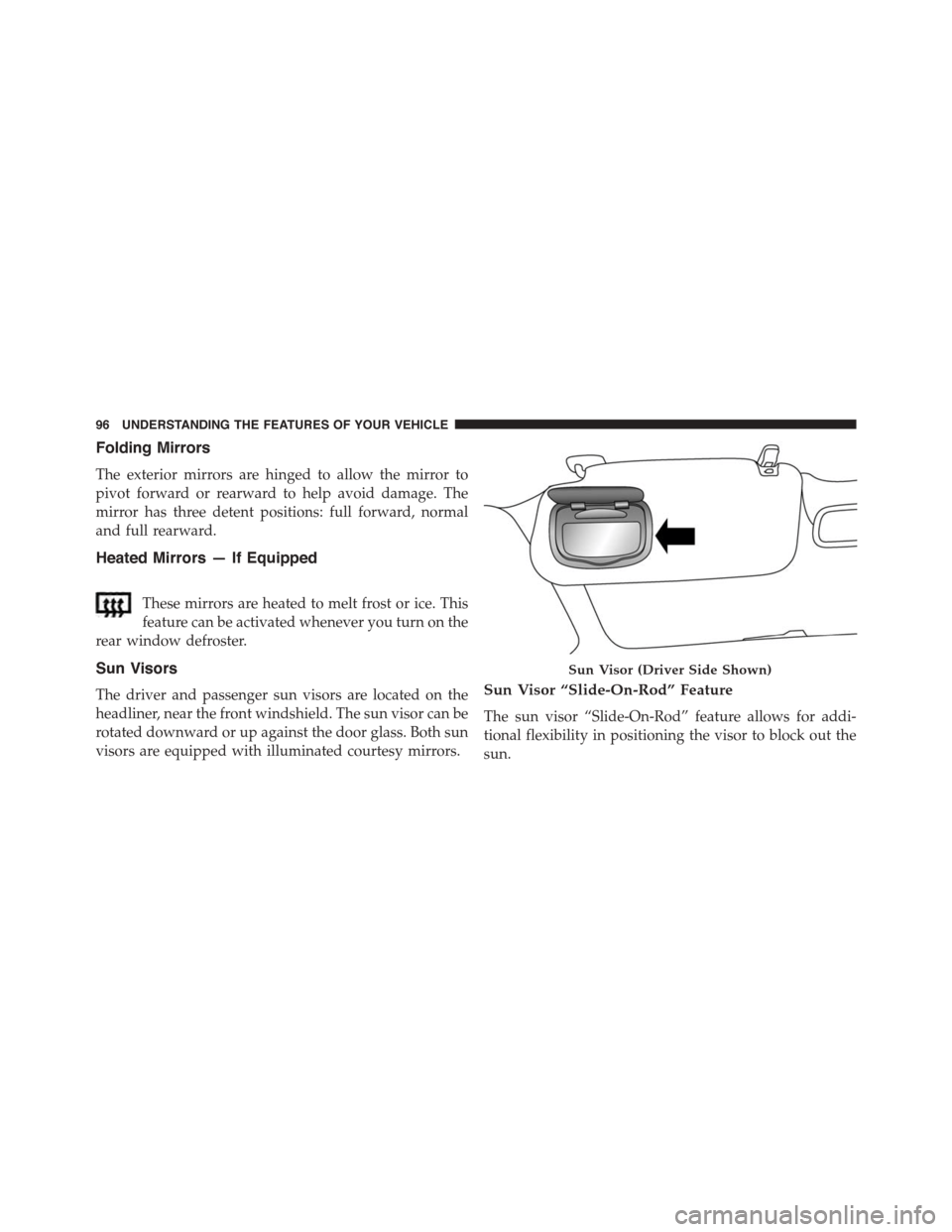

Sun Visor (Driver Side Shown)
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To use the “Slide-On-Rod” feature, rotate the sun visor
downward and unclip it. Pull the sun visor along the
“Slide-On-Rod” until the sun visor is in the desired
position.
SEATS
Front Seats
Forward/Rearward Adjustment
The adjusting bar is located at the front of the seats, near
the floor.
While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once the
desired position is reached. Then, using body pressure,
move forward and rearward on the seat to be sure that
the seat adjusters have latched.

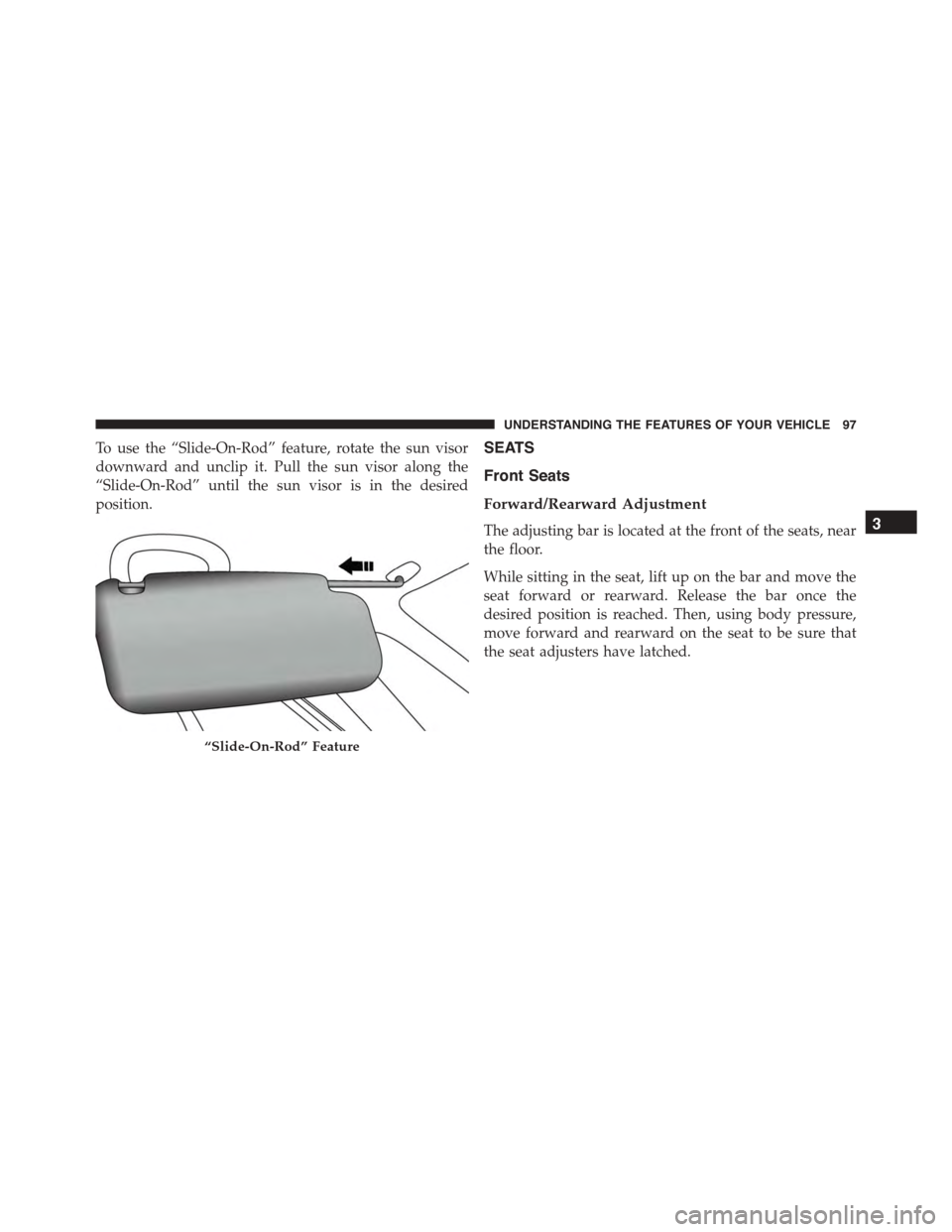

“Slide-On-Rod” Feature
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
Seat Height Adjustment
The seat height adjustment lever is located on the out-
board side of the seat. Pull upward on the lever to raise
the seat height or push downward on the lever to lower
the seat height.
Adjusting Bar
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Recliner Adjustment
The recline lever is located on the outboard side of the
seat. To recline the seat, lean forward slightly, lift the
lever, lean back to the desired position and release the
lever. To return the seatback to its normal upright posi-
tion, lean forward and lift the lever. Release the lever
once the seatback is in the upright position.
Height Adjustment Lever
Recline Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Power Lumbar — If Equipped
Press the power lumbar switch to adjust the lumbar
support. Release the switch when you reach the desired
position.

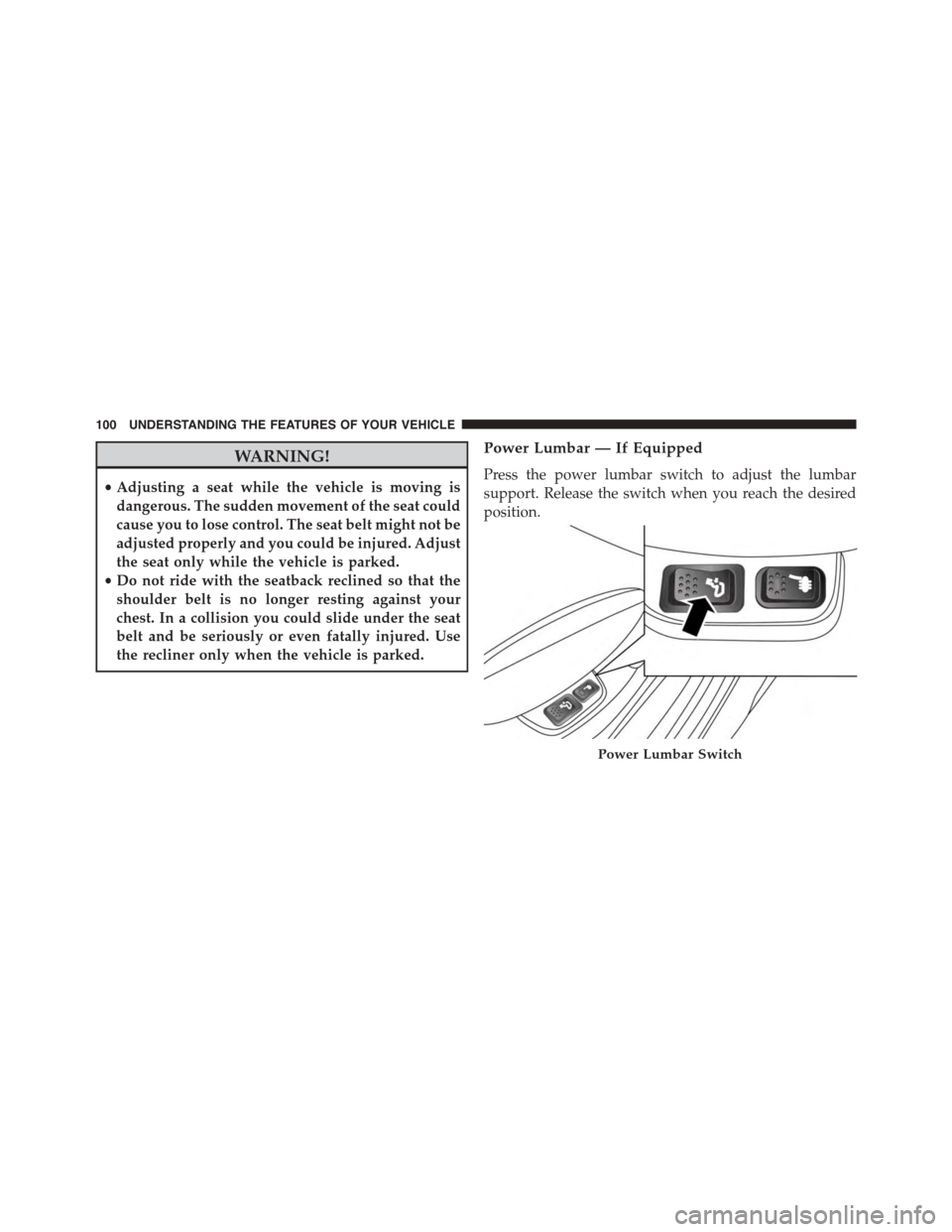

Power Lumbar Switch
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Heated Seats — If Equipped
On some models, the front driver and passenger seats
may be equipped with heaters in both the seat cushions
and seatbacks. The controls for the front heated seats are
located on the outer side of the seat.
NOTE:Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting
in a seat that has been overheated could cause
serious burns due to the increased surface tempera-
ture of the seat.Heated Seat Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

Rear Seats
Rear Seats Forward/Rearward Adjustment
The adjusting bar is located at the front of the seats, near
the floor.
While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once the
desired position is reached. Then, using body pressure,
move forward and rearward on the seat to be sure that
the seat adjusters have latched.
WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
Adjusting Bar
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
