2015 FIAT 500L Owners Manual

Instrument Panel Bezels
CAUTION!
When installing hanging air fresheners in your ve-
hicle, read the installation instructions carefully.
Some air fresheners will damage the finish of
painted or decorated parts if allowed to directly
contact any surface.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them. Dry with a soft cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
(Continued)
7
MAINTAINING YOUR VEHICLE 383

WARNING!(Continued)
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).
FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
(Continued)
WARNING!(Continued)
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
•If the replaced fuse blows again, contact an autho-
rized dealer.
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
384 MAINTAINING YOUR VEHICLE

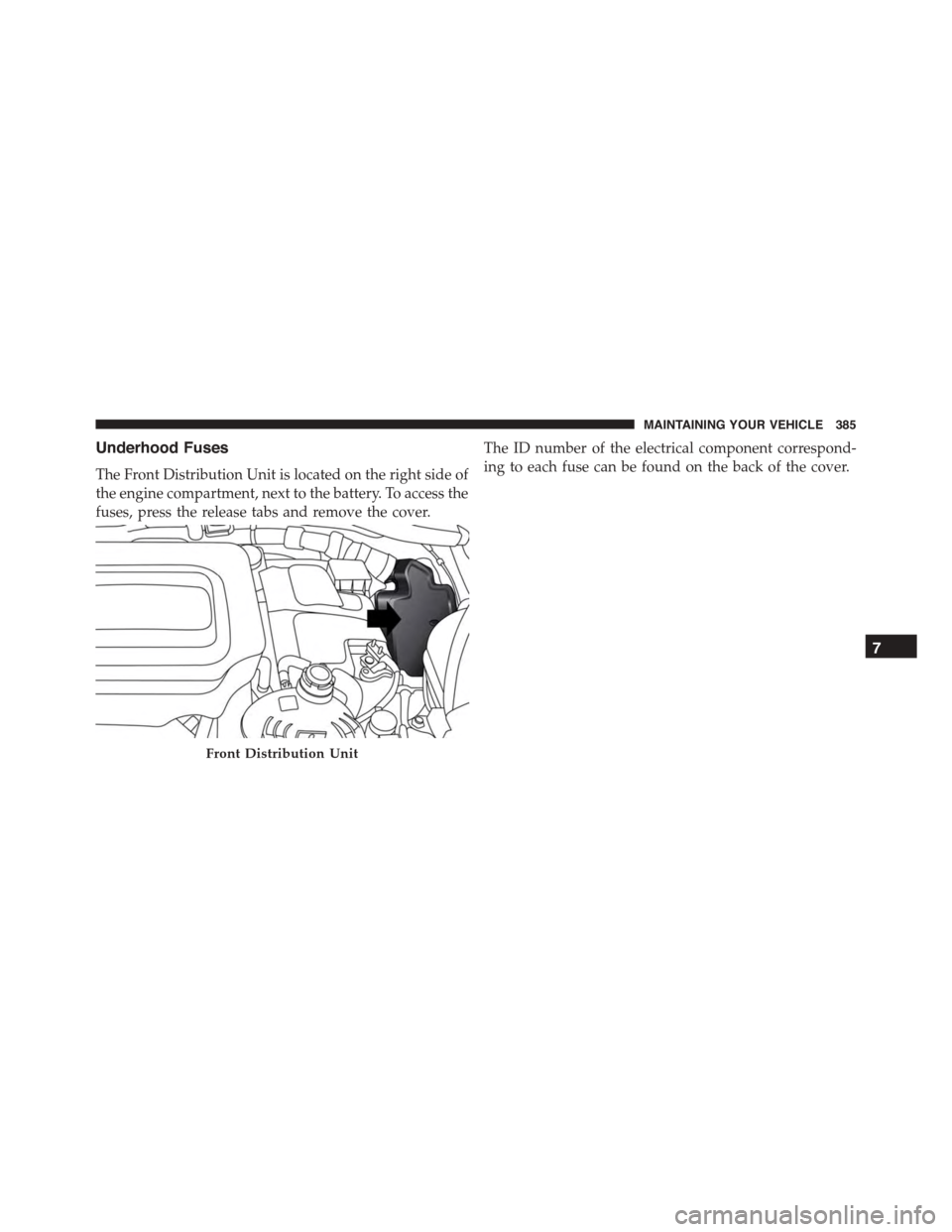

Underhood Fuses
The Front Distribution Unit is located on the right side of
the engine compartment, next to the battery. To access the
fuses, press the release tabs and remove the cover.
The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.
Front Distribution Unit
7
MAINTAINING YOUR VEHICLE 385

CavityMaxi FuseMini FuseDescription
F0160 Amp Blue–Body Controller
F0260 Amp Blue–Body Controller Rear Distribution Unit
F0320 Amp Yellow–Ignition Switch
F0440 Amp Orange–Anti-Lock Brake Pump
F0570 Amp Tan–Electric Power Steering
F0630 Amp Green–Radiator Fan - Low Speed
F0750 Amp Red–Radiator Fan - High Speed
F0840 Amp Orange–Blower Motor
F09–7.5 Amp Brown Transmission
F10–15 Amp Blue Horn
F11–10 Amp Red Powertrain
F14–20 Amp Yellow Power Outlet 115V
F15–15 Amp Blue Transmission
F16–7.5 Amp Brown Transmission Powertrain
F17–10 Amp Red Powertrain
386 MAINTAINING YOUR VEHICLE

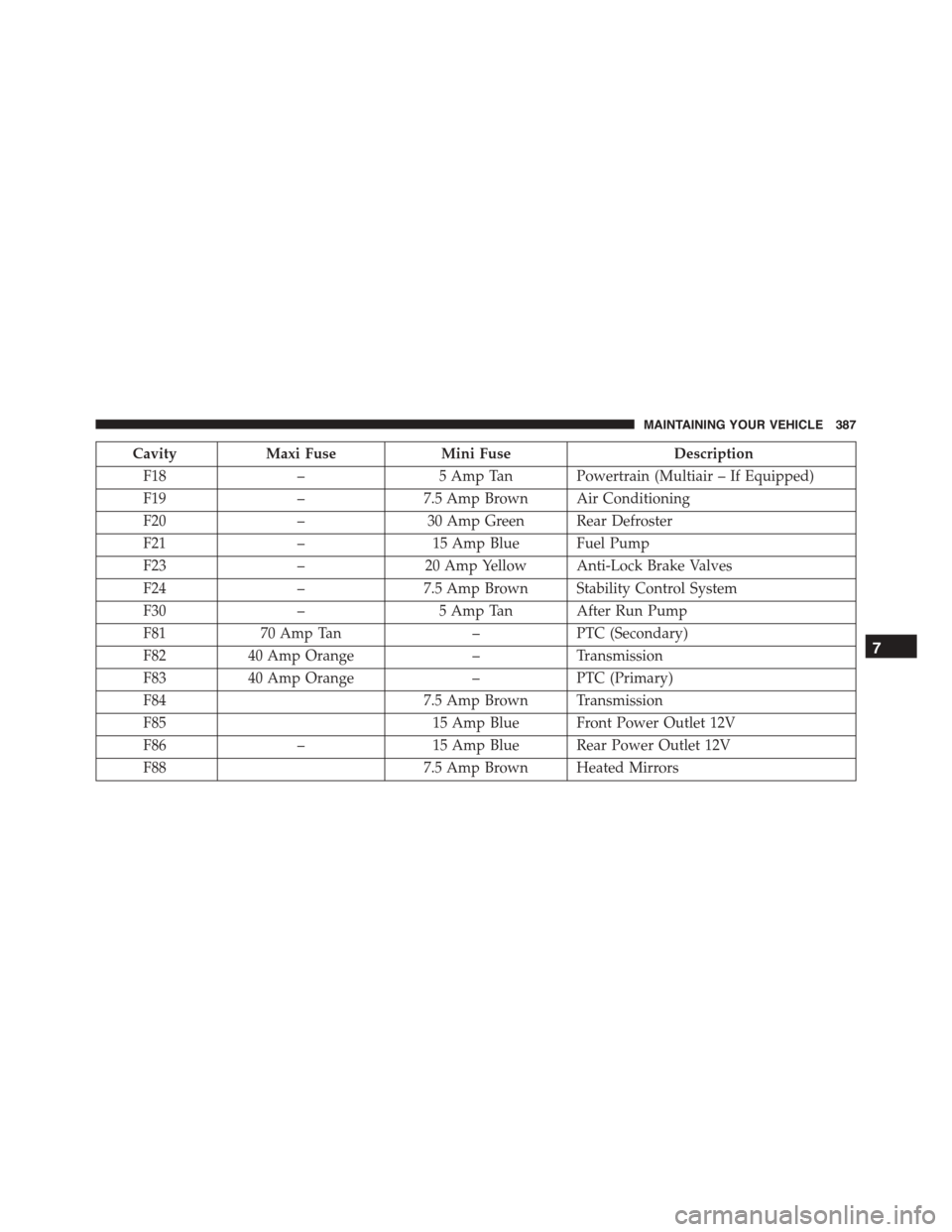

CavityMaxi FuseMini FuseDescription
F18–5 Amp Tan Powertrain (Multiair – If Equipped)
F19–7.5 Amp Brown Air Conditioning
F20–30 Amp Green Rear Defroster
F21–15 Amp Blue Fuel Pump
F23–20 Amp Yellow Anti-Lock Brake Valves
F24–7.5 Amp Brown Stability Control System
F30–5 Amp Tan After Run Pump
F8170 Amp Tan–PTC (Secondary)
F8240 Amp Orange–Transmission
F8340 Amp Orange–PTC (Primary)
F847.5 Amp Brown Transmission
F8515 Amp Blue Front Power Outlet 12V
F86–15 Amp Blue Rear Power Outlet 12V
F887.5 Amp Brown Heated Mirrors
7
MAINTAINING YOUR VEHICLE 387

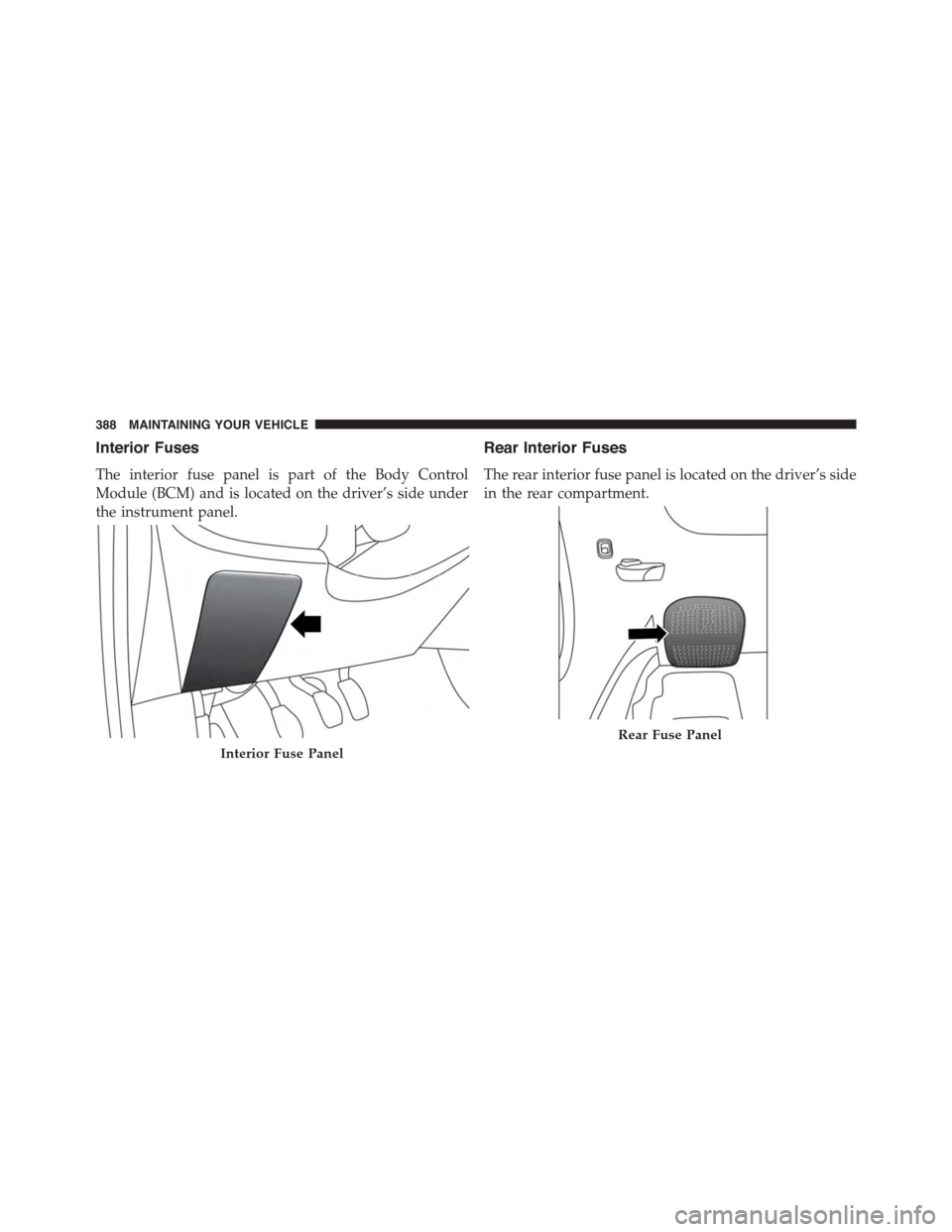

Interior Fuses
The interior fuse panel is part of the Body Control
Module (BCM) and is located on the driver’s side under
the instrument panel.
Rear Interior Fuses
The rear interior fuse panel is located on the driver’s side
in the rear compartment.
Interior Fuse Panel
Rear Fuse Panel
388 MAINTAINING YOUR VEHICLE

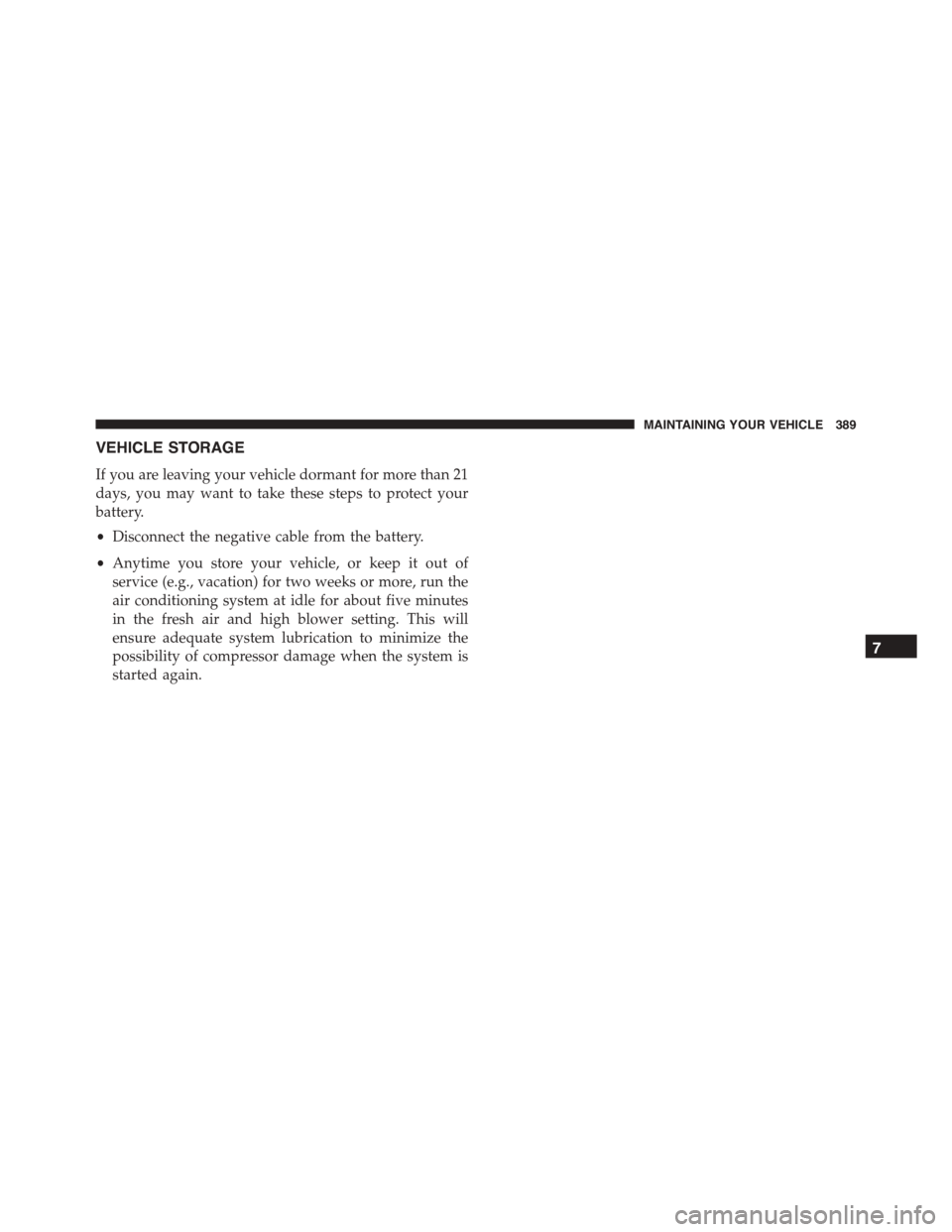

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
7
MAINTAINING YOUR VEHICLE 389

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead LampC5W
Sun VisorsC5W
Courtesy LampW5W
Glove CompartmentC5W
Rear Courtesy LampC5W
Exterior Bulbs
Bulb Number
Front Low and High Beam HeadlampHIR2LL
Front Turn Signal LampsWY21W
Front Parking/Daytime Running LampsW21/5W
Front Side Marker LampsLED (See Authorized dealer)
390 MAINTAINING YOUR VEHICLE
