2015 FIAT 500L Owners Manual

WARNINGS AND CAUTIONS
This Owners Manual containsWARNINGSagainst op-
erating procedures that could result in a collision or
bodily injury. It also containsCAUTIONSagainst proce-
dures that could result in damage to your vehicle. If you
do not read this entire Owners Manual, you may miss
important information. Observe all Warnings and Cau-
tions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears engraved on
the right front floor pan under the passenger seat, on an
adhesive label applied to the right door opening on the
B-Pillar, on the vehicle registration and title.
Vehicle Identification Number
1
INTRODUCTION 7

NOTE:It is illegal to remove or alter the VIN.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a collision resulting in serious injury or
death.
Stamped VIN Location
8INTRODUCTION

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
!A WORD ABOUT YOUR KEYS.............11
▫Ignition Switch........................11
▫Locking Doors With A Key................13
▫Key-In-Ignition Reminder................14
!SENTRY KEY®.........................14
▫Replacement Keys.....................15
▫General Information....................15
!VEHICLE SECURITY ALARM..............15
▫To Arm The System....................15
▫To Disarm The System...................16
▫Central Lock/Unlock (Switch Safe Lock Device) —
If Equipped..........................17
!REMOTE KEYLESS ENTRY (RKE)............18
▫To Unlock The Doors And Liftgate..........19
▫To Lock The Doors And Liftgate............19
▫Programming Additional Transmitters........20
▫Request For Additional Remote Controls......20
▫Replacing The Battery In The Key With Remote
Control..............................20
▫General Information....................21
2

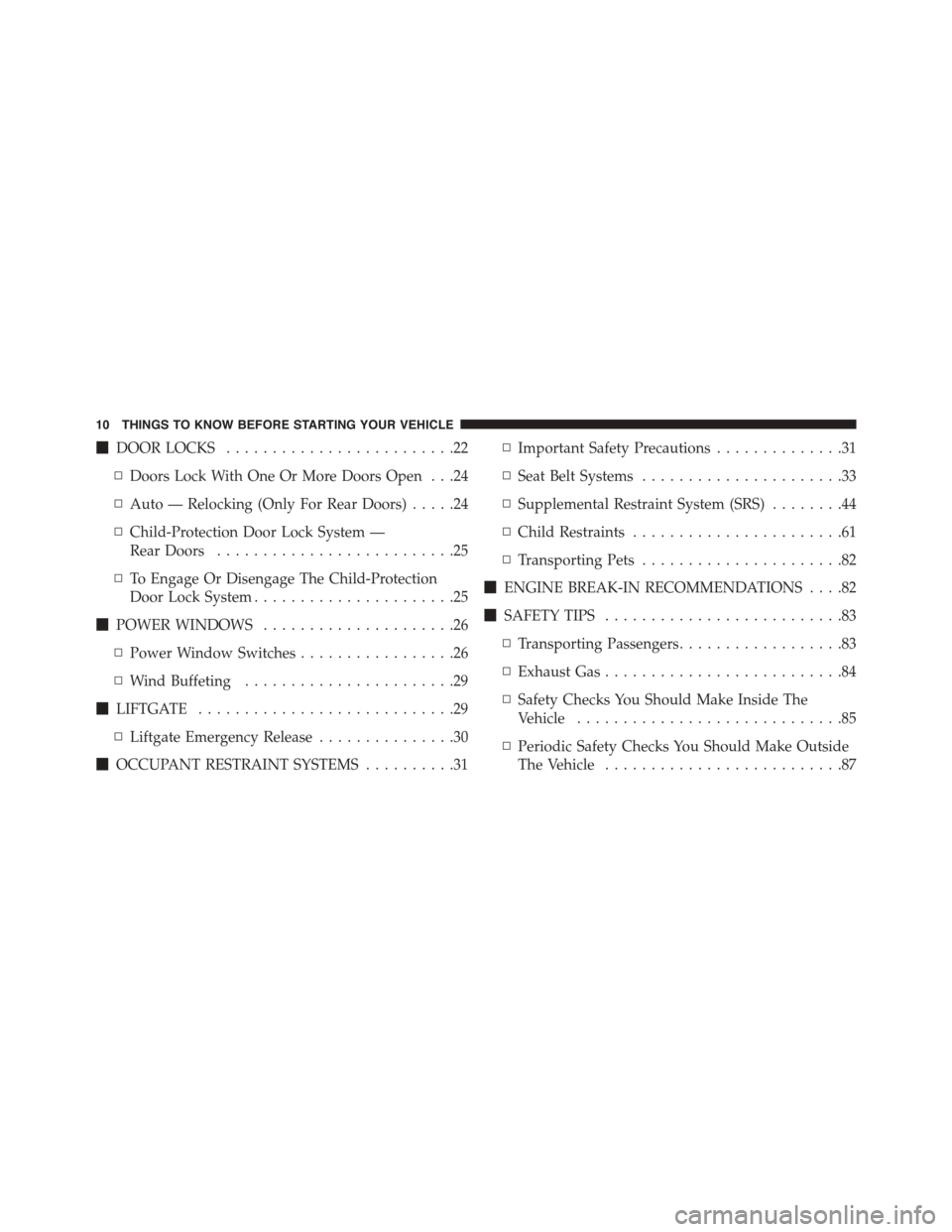

!DOOR LOCKS.........................22
▫Doors Lock With One Or More Doors Open . . .24
▫Auto — Relocking (Only For Rear Doors).....24
▫Child-Protection Door Lock System —
Rear Doors..........................25
▫To Engage Or Disengage The Child-Protection
Door Lock System......................25
!POWER WINDOWS.....................26
▫Power Window Switches.................26
▫Wind Buffeting.......................29
!LIFTGATE............................29
▫Liftgate Emergency Release...............30
!OCCUPANT RESTRAINT SYSTEMS..........31
▫Important Safety Precautions..............31
▫Seat Belt Systems......................33
▫Supplemental Restraint System (SRS)........44
▫Child Restraints.......................61
▫Transporting Pets......................82
!ENGINE BREAK-IN RECOMMENDATIONS....82
!SAFETY TIPS..........................83
▫Transporting Passengers..................83
▫Exhaust Gas..........................84
▫Safety Checks You Should Make Inside The
Vehicle.............................85
▫Periodic Safety Checks You Should Make Outside
The Vehicle..........................87
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A WORD ABOUT YOUR KEYS
The Key Fob contains the Remote Keyless Entry (RKE)
transmitter with an integrated key. To use the mechanical
key simply push the mechanical key release button.
NOTE:The authorized dealer that sold you your vehicle
has the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer.
Ignition Switch
The ignition switch can be turned to three different
positions:
•STOP: engine off, key can be removed. Some electrical
devices (e.g. sound system, central door locking sys-
tem, etc.) can operate;
NOTE:In vehicles equipped with automatic transmis-
sions, the transmission must be in PARK before the key
can be removed.
Mechanical Key Release Button
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

•AVV: engine start-up;
•MAR: driving position. All electrical devices are en-
abled.
The ignition switch is fitted with a safety system that
requires the ignition key to be turned back to STOP if the
engine does not start, before the starting operation can be
repeated.
1—STOP(OFF/LOCK) 3—AVV(START)2—MAR(ACC/ON/RUN)
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK and re-
move the Key Fob from the vehicle. When leaving
the vehicle, always lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
•Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
(Continued)
WARNING!(Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all the
doors when leaving the vehicle unattended.
Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key to the left. To unlock the door, turn the
key to the right. Refer to “Body Lubrication” in “Main-
taining Your Vehicle” for maintenance procedures.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition switch position is OFF/LOCK sounds a
signal to remove the key.
SENTRY KEY®
The Sentry Key® Immobilizer System prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle.
NOTE:A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
If the Vehicle Security Light is on after the key is turned
to the ON/RUN position, it indicates that there is a
problem with the electronics.
CAUTION!
•Always remove the Sentry Key® from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
•The Sentry Key® Immobilizer system is not com-
patible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
