2015 FIAT 500L Owners Manual

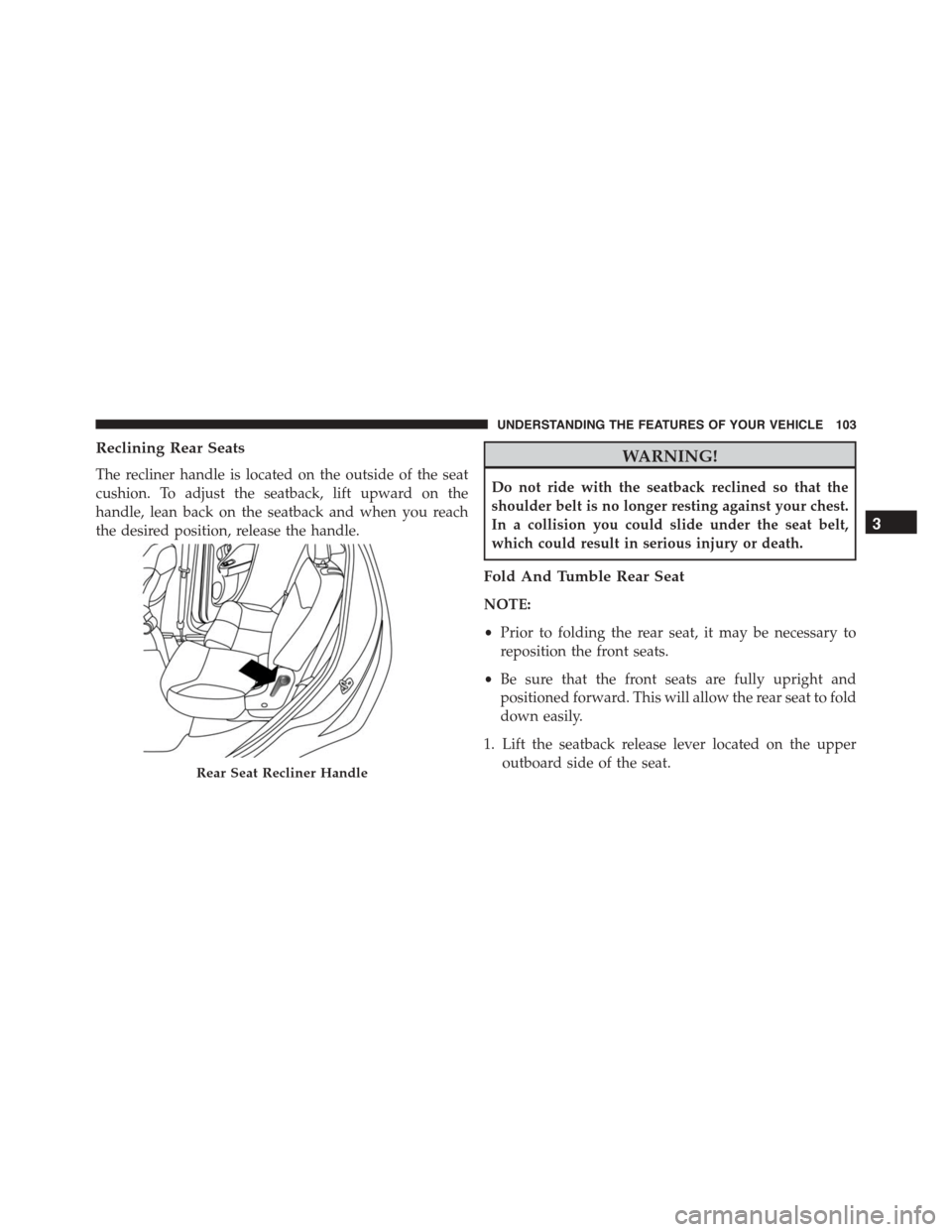

Reclining Rear Seats
The recliner handle is located on the outside of the seat
cushion. To adjust the seatback, lift upward on the
handle, lean back on the seatback and when you reach
the desired position, release the handle.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.
Fold And Tumble Rear Seat
NOTE:
•Prior to folding the rear seat, it may be necessary to
reposition the front seats.
•Be sure that the front seats are fully upright and
positioned forward. This will allow the rear seat to fold
down easily.
1. Lift the seatback release lever located on the upper
outboard side of the seat.Rear Seat Recliner Handle
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

2. Fold the seatback forward.3. Locate the seatback recline lever on the outboard side
of the seat and lift upward on the lever.
Seatback Release LeverSeatback Folded
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4. Slowly flip the entire seat forward.5. Slowly flip the entire seat rearward and firmly lock the
seat into position.
6. Raise the rear seatback and firmly lock the seatback
into position.
Seatback Recline LeverFolding Rear Seat
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

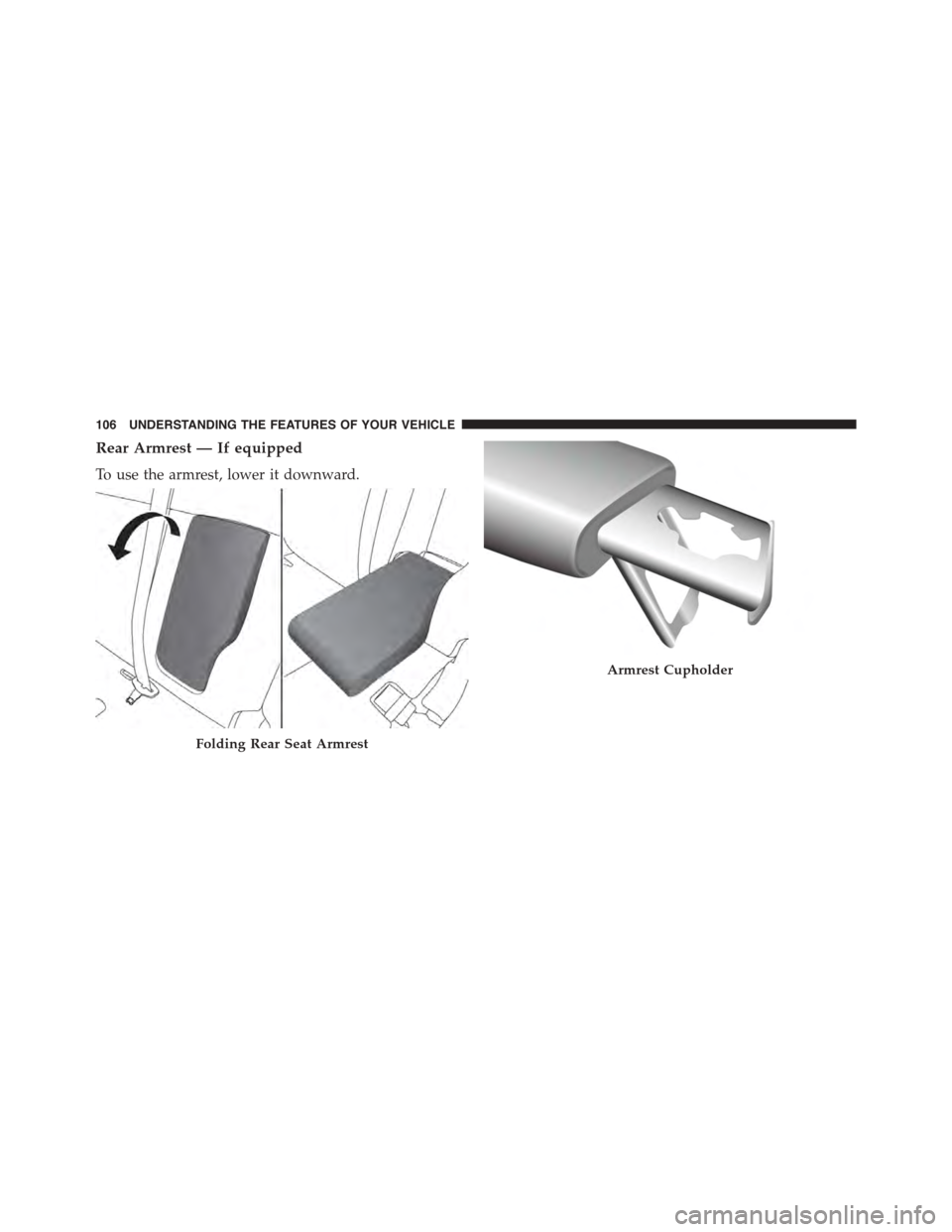

Rear Armrest — If equipped
To use the armrest, lower it downward.
Folding Rear Seat Armrest
Armrest Cupholder
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

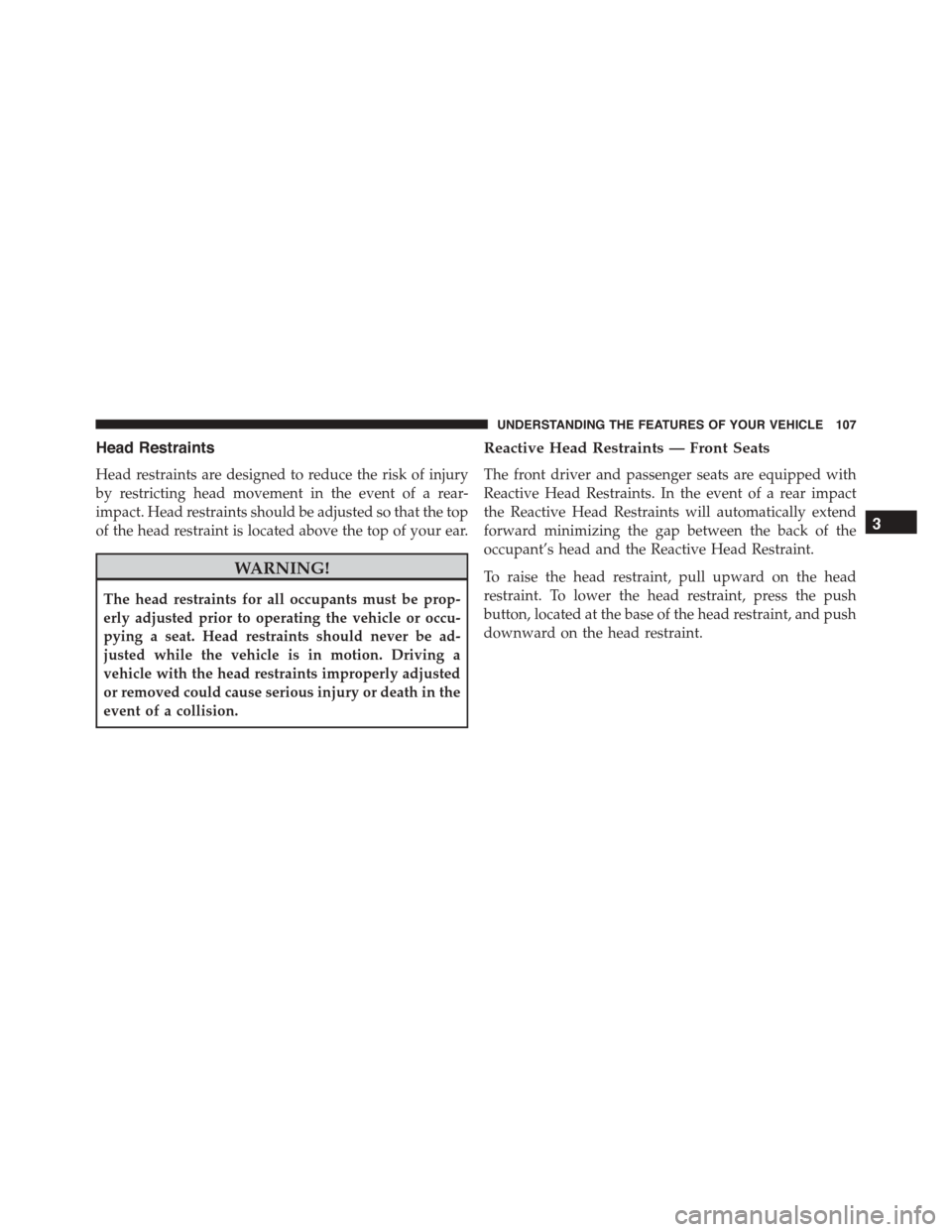

Head Restraints
Head restraints are designed to reduce the risk of injury
by restricting head movement in the event of a rear-
impact. Head restraints should be adjusted so that the top
of the head restraint is located above the top of your ear.
WARNING!
The head restraints for all occupants must be prop-
erly adjusted prior to operating the vehicle or occu-
pying a seat. Head restraints should never be ad-
justed while the vehicle is in motion. Driving a
vehicle with the head restraints improperly adjusted
or removed could cause serious injury or death in the
event of a collision.
Reactive Head Restraints — Front Seats
The front driver and passenger seats are equipped with
Reactive Head Restraints. In the event of a rear impact
the Reactive Head Restraints will automatically extend
forward minimizing the gap between the back of the
occupant’s head and the Reactive Head Restraint.
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the push
button, located at the base of the head restraint, and push
downward on the head restraint.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

The Reactive Head Restraints will automatically return to
their normal position following a rear impact. If the
Reactive Head Restraints do not return to their normal
position, see your authorized dealership immediately.
NOTE:The head restraints should only be removed by
qualified technicians, for service purposes only. If either
of the head restraints require removal, see your autho-
rized dealership.
WARNING!
Do not place items over the top of the Reactive Head
Restraint, such as coats, seat covers or portable DVD
players. These items may interfere with the operation
of the Reactive Head Restraint in the event of a
collision and could result in serious injury or death.
Adjustment Button
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

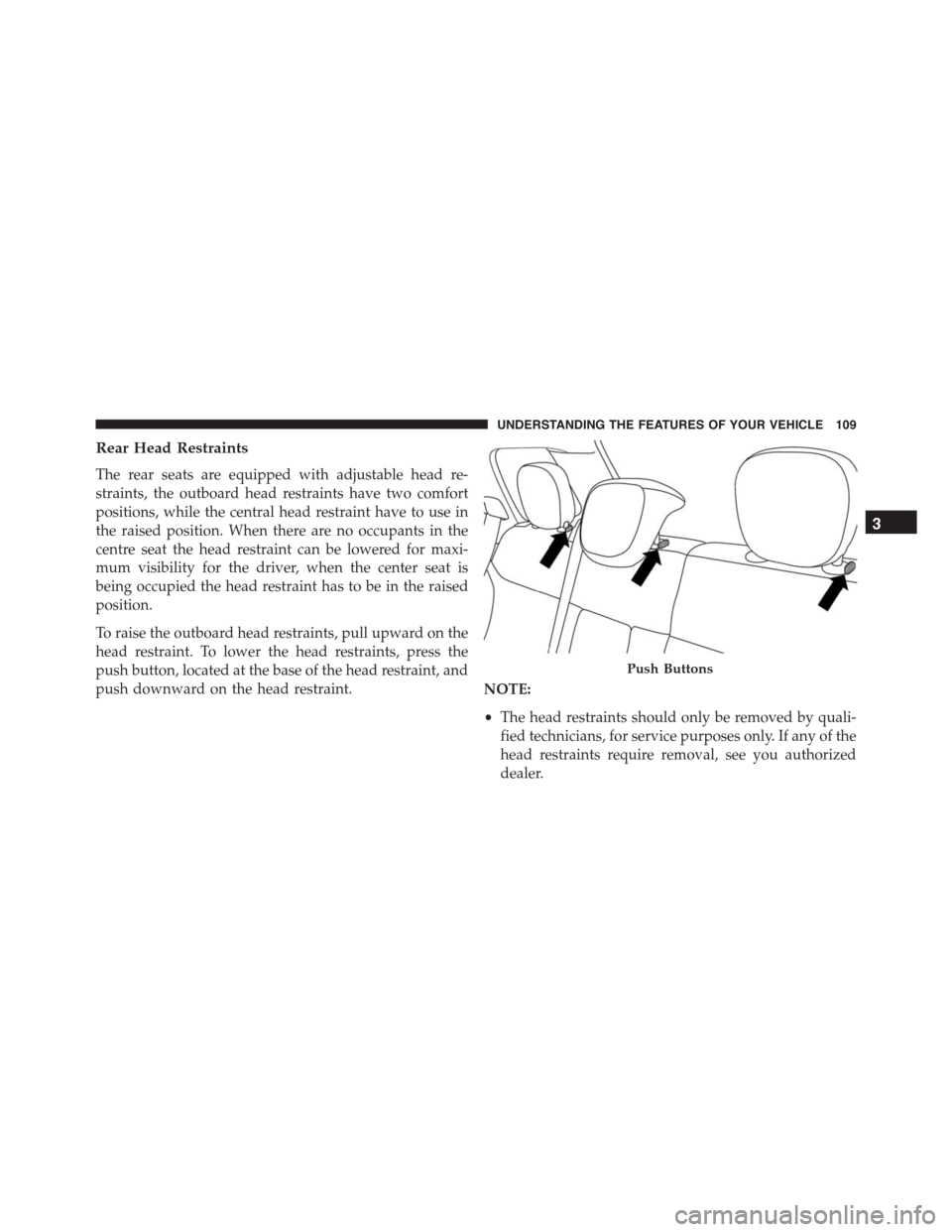

Rear Head Restraints
The rear seats are equipped with adjustable head re-
straints, the outboard head restraints have two comfort
positions, while the central head restraint have to use in
the raised position. When there are no occupants in the
centre seat the head restraint can be lowered for maxi-
mum visibility for the driver, when the center seat is
being occupied the head restraint has to be in the raised
position.
To raise the outboard head restraints, pull upward on the
head restraint. To lower the head restraints, press the
push button, located at the base of the head restraint, and
push downward on the head restraint.NOTE:
•The head restraints should only be removed by quali-
fied technicians, for service purposes only. If any of the
head restraints require removal, see you authorized
dealer.
Push Buttons
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

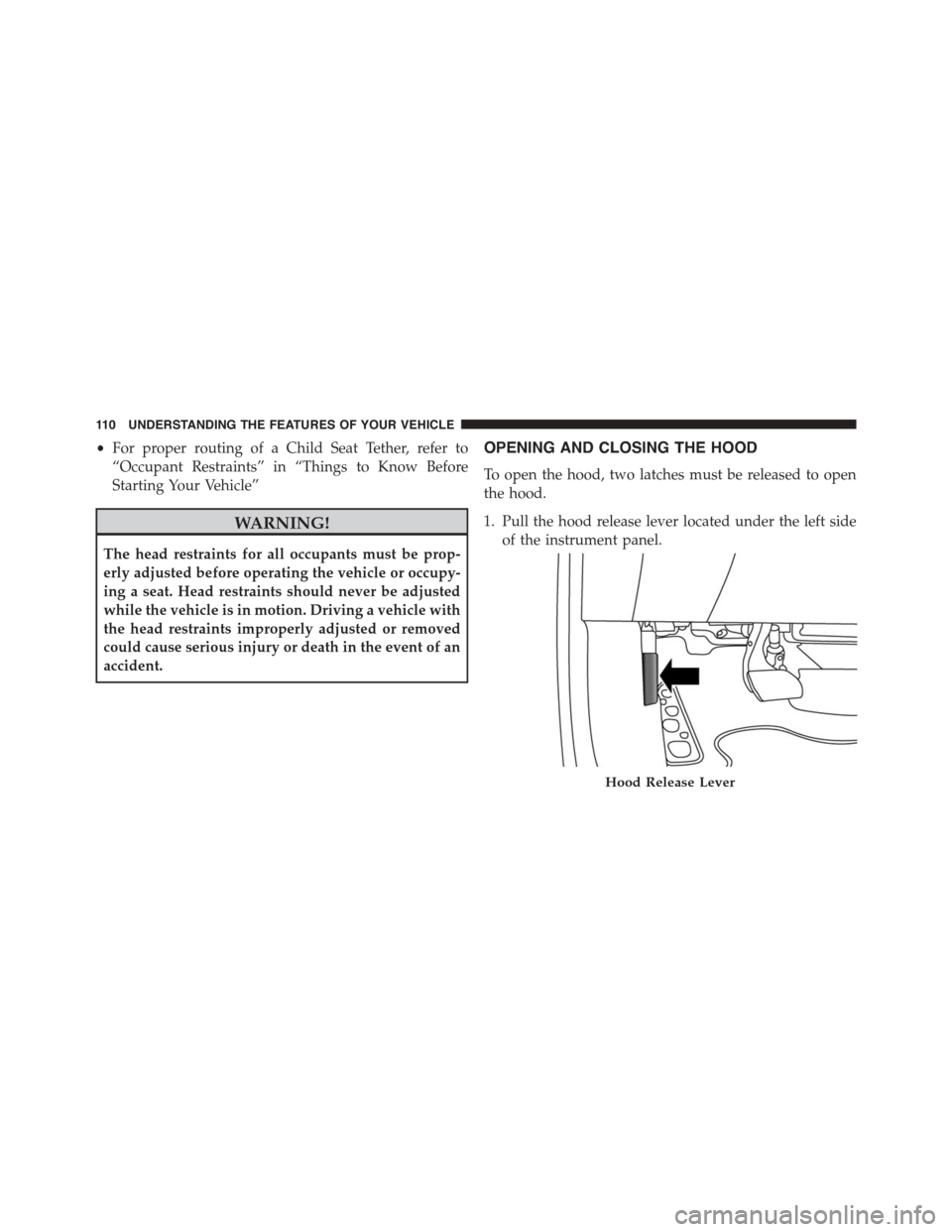

•For proper routing of a Child Seat Tether, refer to
“Occupant Restraints” in “Things to Know Before
Starting Your Vehicle”
WARNING!
The head restraints for all occupants must be prop-
erly adjusted before operating the vehicle or occupy-
ing a seat. Head restraints should never be adjusted
while the vehicle is in motion. Driving a vehicle with
the head restraints improperly adjusted or removed
could cause serious injury or death in the event of an
accident.
OPENING AND CLOSING THE HOOD
To open the hood, two latches must be released to open
the hood.
1. Pull the hood release lever located under the left side
of the instrument panel.
Hood Release Lever
11 0 U N D E R S TA N D I N G T H E F E AT U R E S O F Y O U R V E H I C L E
