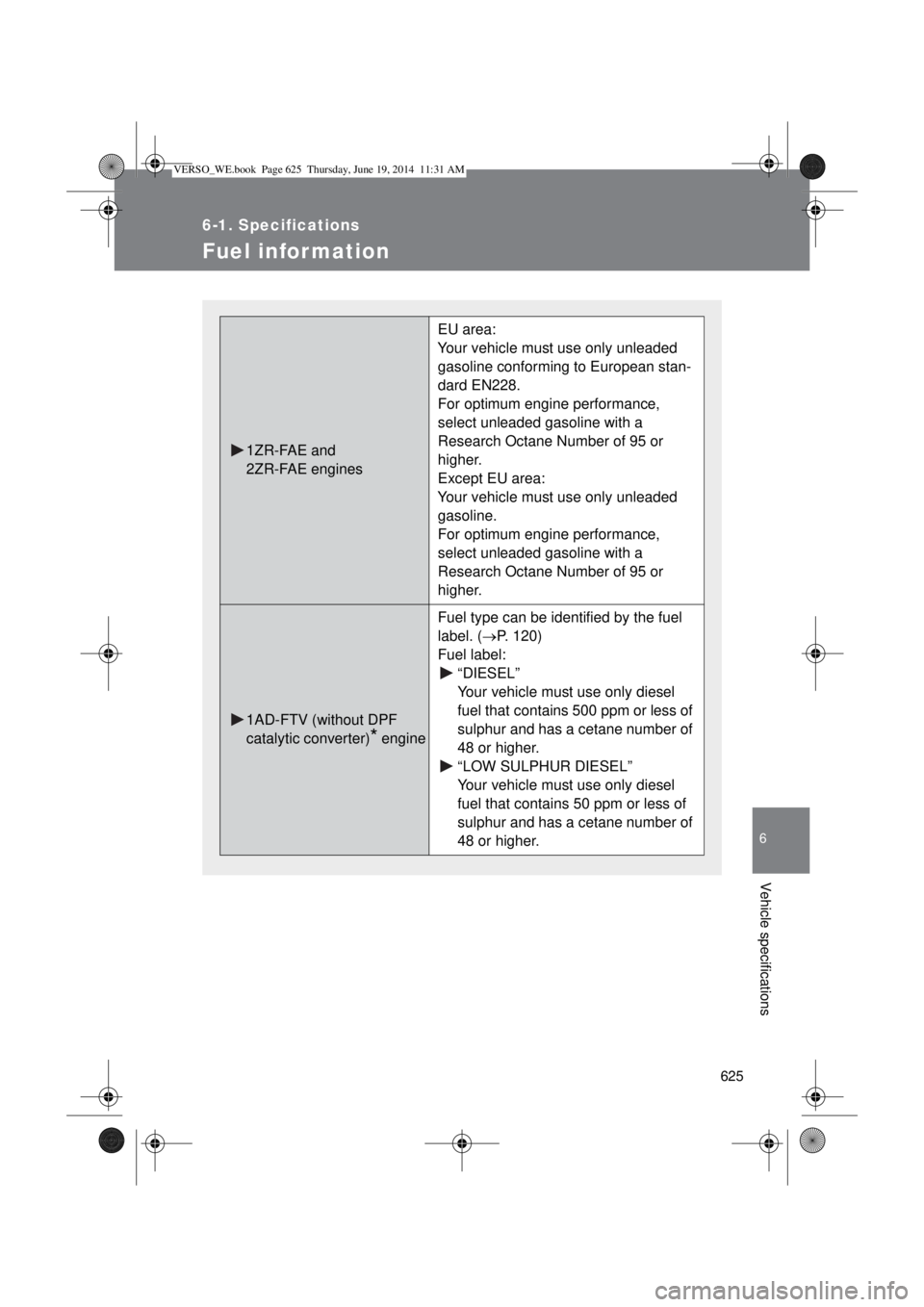

2014 TOYOTA VERSO Owners Manual

625
6-1. Specifications
6
Vehicle specifications
Fuel information
1ZR-FAE and
2ZR-FAE engines
EU area:
Your vehicle must use only unleaded
gasoline conforming to European stan-
dard EN228.
For optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95 or
higher.
Except EU area:
Your vehicle must use only unleaded
gasoline.
For optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95 or
higher.
1AD-FTV (without DPF
catalytic converter)
* engine
Fuel type can be identified by the fuel
label. (P. 120)
Fuel label:
“DIESEL”
Your vehicle must use only diesel
fuel that contains 500 ppm or less of
sulphur and has a cetane number of
48 or higher.
“LOW SULPHUR DIESEL”
Your vehicle must use only diesel
fuel that contains 50 ppm or less of
sulphur and has a cetane number of
48 or higher.
VERSO_WE.book Page 625 Thursday, June 19, 2014 11:31 AM

626 6-1. Specifications
Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries (diesel engine)
Low sulphur diesel fuel may not be available, so please check the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
*: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
1AD-FTV (with DPF
catalytic converter)
*,
2AD-FHV and 1WW-FHV
engines
EU area:
Your vehicle must use only diesel fuel
conforming to European standard
EN590.
Except EU area:
Your vehicle must use only diesel fuel
that contains 50 ppm or less of sulphur
and has a cetane number of 48 or
higher.
VERSO_WE.book Page 626 Thursday, June 19, 2014 11:31 AM

627 6-1. Specifications
6
Vehicle specifications
NOTICE
Notice on fuel quality (gasoline engine)
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Notice on fuel quality (diesel engine)
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Fuel label
*
“DIESEL”
Do not use a fuel that contains more than 500 ppm of sulphur.
“LOW SULPHUR DIESEL”
Do not use a fuel that contains more than 50 ppm of sulphur.
Use of such a high sulphur fuel may damage the engine.
*: Fuel type can be identified by the fuel label. (P. 120)
VERSO_WE.book Page 627 Thursday, June 19, 2014 11:31 AM

628 6-1. Specifications
NOTICE
EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as
“B30” or “B100” and fuel containing a large amount of FAME should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Except EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names
such as “B30” or “B100” and fuel containing a large amount of FAME
should not be used. Your vehicle can use diesel mixed with 5% max bio-
diesel FAME (B5). The use of fuel with more than 5% FAME content (B5)
will damage the vehicle’s fuel system. You must ensure that refueling is
carried out only from a source where fuel specification and quality can be
guaranteed. In case of any doubt, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
VERSO_WE.book Page 628 Thursday, June 19, 2014 11:31 AM

629
6
Vehicle specifications
6-2. Customization
Customizable features
Customizable Features
Vehicles with Navigation/Multimedia system: Settings that can be
changed using the Navigation/Multimedia system
(For further information on customizing settings using the Naviga-
tion/Multimedia system, refer to the “Navigation and multimedia
system Owner’s Manual”.)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for
further details
Definition of symbols: O = Available, — = Not available
ItemFunctionDefault
settingCustomized
setting
Smart entry
& start
system
(P. 42)Smart entry & start
systemON OFFOO
Open door warning
function (when lock-
ing the vehicle)ON OFF — O
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
VERSO_WE.book Page 629 Thursday, June 19, 2014 11:31 AM

630 6-2. Customization
Smart entry
& start
system
(P. 42)/
Wireless
remote
control
(P. 64)Wireless remote
controlON OFF—O
Operation signal
(Emergency flashers)ON OFF—O
Time elapsed before
automatic door lock
function is activated
if door is not opened
after being unlocked30 seconds60 seconds
—O
120 seconds
Door lock
(P. 73)Shifting the shift
lever to position
other than “P” locks
all doors
*1
OFF ONOO
Shifting the shift
lever to “P” unlocks
all doors
*1OFF ONOO
Speed-detecting
automatic door lock
functionON OFFOO
Opening driver’s
door unlocks all
doors
*2ON OFF—O
Opening driver’s
door unlocks all
doors
*3OFF ON—O
Automatic
light control
system
(P. 251)Light sensor
sensitivityLevel 3 Level 1 to 5OO
ItemFunctionDefault
settingCustomized
setting
VERSO_WE.book Page 630 Thursday, June 19, 2014 11:31 AM

631 6-2. Customization
6
Vehicle specifications
Illumination
(P. 365)Time elapsed before
lights turn off15 seconds7.5 seconds
—O
30 seconds
Operation after the
engine switch
(vehicles without
smart entry & start
system) or “ENGINE
START STOP”
switch (vehicles with
smart entry & start
system) turned offON OFF—O
Operation when the
doors are unlockedON OFF—O
Operation when you
approach the
vehicle with the
electronic key on
your person
*4
(When the interior
light switch is in the
door position)ON OFF—O
Foot lights ON OFF—O
Lounge illumination ON OFF—O
Lights
(P. 251)Time that the low
beam headlights are
on when the vehicle
is parked30 seconds60 seconds
—O 90 seconds
120 seconds
Toyota
parking
assist-sensor
(P. 272)Buzzer volume 3 1 to 5—O
ItemFunctionDefault
settingCustomized
setting
VERSO_WE.book Page 631 Thursday, June 19, 2014 11:31 AM

632 6-2. Customization
*1: Vehicles with a Multidrive or an automatic transmission
*2: Except for vehicles sold in South Africa
*3: Vehicles sold in South Africa
*4: Vehicles with smart entry & start system
Multi-information display (P. 239)
Available languagesEnglish, French, German, Italian, Spanish,
Russian, and Turkish
VERSO_WE.book Page 632 Thursday, June 19, 2014 11:31 AM
