When replacing the following bulbs:
Headlight (halogen headlights)
Front position light (halogen headlights without daytime running light sys-
tem)
Front position light/daytime running light (halogen headlights with day-
time running light system)
Front turn signal light
Replacing the air cleaner duct and/or washer fluid filler opening.
Left side
Right side
Replacing the engine compartment cover. (P. 423)
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations:
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.

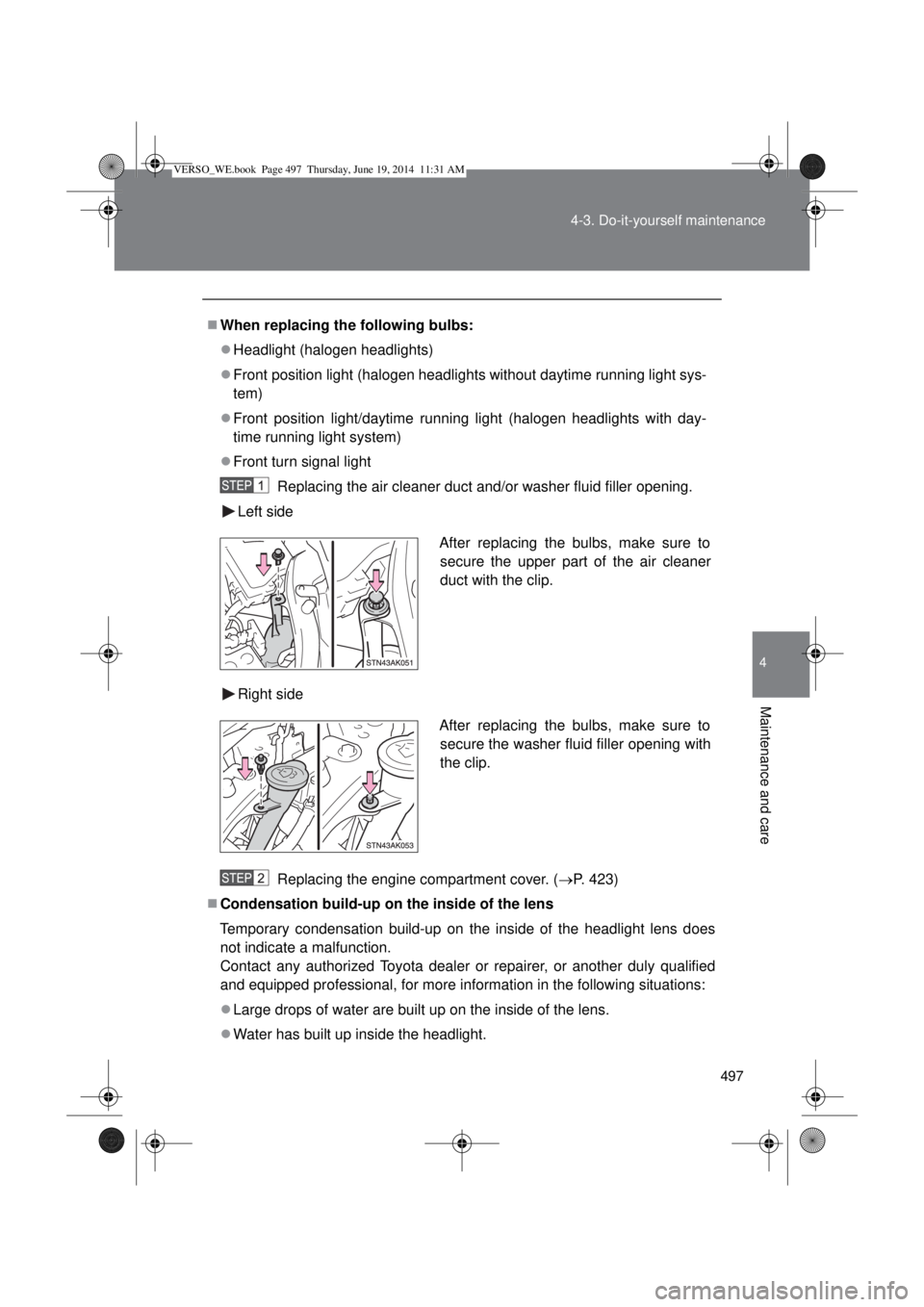

After replacing the bulbs, make sure to
secure the upper part of the air cleaner
duct with the clip.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with
the clip.
VERSO_WE.book Page 497 Thursday, June 19, 2014 11:31 AM

498 4-3. Do-it-yourself maintenance
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED light bulbs
The front position lights/daytime running lights (discharge headlights), stop
lights and high mounted stoplight consist of a number of LEDs. If any of the
LEDs burn out, take your vehicle to any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional to have the light
replaced.
If two or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
When replacing light bulbs
P. 482
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands.
When it is unavoidable to hold the glass portion, use and hold with a clean
dry cloth to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
VERSO_WE.book Page 498 Thursday, June 19, 2014 11:31 AM

499 4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
Replacing light bulbs
Discharge headlights (if equipped)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing the discharge headlights
(including light bulbs).
Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in serious injury or death by electric shock.
Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
Vehicles with discharge headlights:
While the headlights are turned on, and
for a short time after they have been
turned off, metal components at the
rear of the headlight assembly will be
extremely hot. To prevent burns, do not
touch these metal components until you
are certain they have cooled down.
Metal
components
VERSO_WE.book Page 499 Thursday, June 19, 2014 11:31 AM

500 4-3. Do-it-yourself maintenance
VERSO_WE.book Page 500 Thursday, June 19, 2014 11:31 AM

5When trouble arises
501
5-1. Essential information
Emergency flashers .......... 502
If your vehicle needs to
be towed ......................... 503
If you think something is
wrong .............................. 512
Fuel pump shut off system
(gasoline engine) ............ 513
5-2. Steps to take in
an emergency
If a warning light turns on
or a warning buzzer
sounds... ........................ 514
If a warning message is
displayed ........................ 523
If you have a flat tire
(vehicles with spare
tire) ................................. 536
If you have a flat tire
(vehicles with emergency
tire puncture repair kit).... 552
If the engine will not
start................................. 576
If the shift lever cannot be
shifted from “P” (vehicles
with a Multidrive or
an automatic
transmission) .................. 579
If you lose your keys ......... 580
If you cannot operate
the back door opener...... 581
If the electronic key does
not operate properly
(vehicles with smart
entry & start system)....... 582If the vehicle battery is
discharged ...................... 585
If your vehicle overheats ... 589
If you run out of fuel and
the engine stalls
(diesel engine) ................ 592
If the vehicle becomes
stuck ............................... 593
If your vehicle has to
be stopped in
an emergency ................. 595
VERSO_WE.book Page 501 Thursday, June 19, 2014 11:31 AM

502
5-1. Essential information
Emergency flashers
Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash.
To turn them off, press the
switch once again.
VERSO_WE.book Page 502 Thursday, June 19, 2014 11:31 AM

5
503
5-1. Essential information
When trouble arises
If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before towing.
The engine is running, but the vehicle will not move.
The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, such as or a commercial towing service,
using a lift-type truck or a flat bed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.
If towing from the front, the vehicle’s rear wheels and axles must be
in good condition. (P. 508)
If they are damaged, use a towing dolly or flat bed truck.
VERSO_WE.book Page 503 Thursday, June 19, 2014 11:31 AM

504 5-1. Essential information
Emergency towing
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only be attempted on hard, surfaced roads
for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing eyelet
Emergency towing procedure
Vehicles without smart entry & start system
Release the parking brake.
Put the shift lever in “N”.
Turn the engine switch in the “ACC” (engine off) or “ON” position
(engine running).
Vehicles with smart entry & start system
Release the parking brake.
Pull the shift lever in “N”.
The “ENGINE START STOP” switch must be in ACCESSORY
mode (engine off) or IGNITION ON mode (engine running).
VERSO_WE.book Page 504 Thursday, June 19, 2014 11:31 AM
