2014 TOYOTA VERSO Owners Manual

489 4-3. Do-it-yourself maintenance
4
Maintenance and care

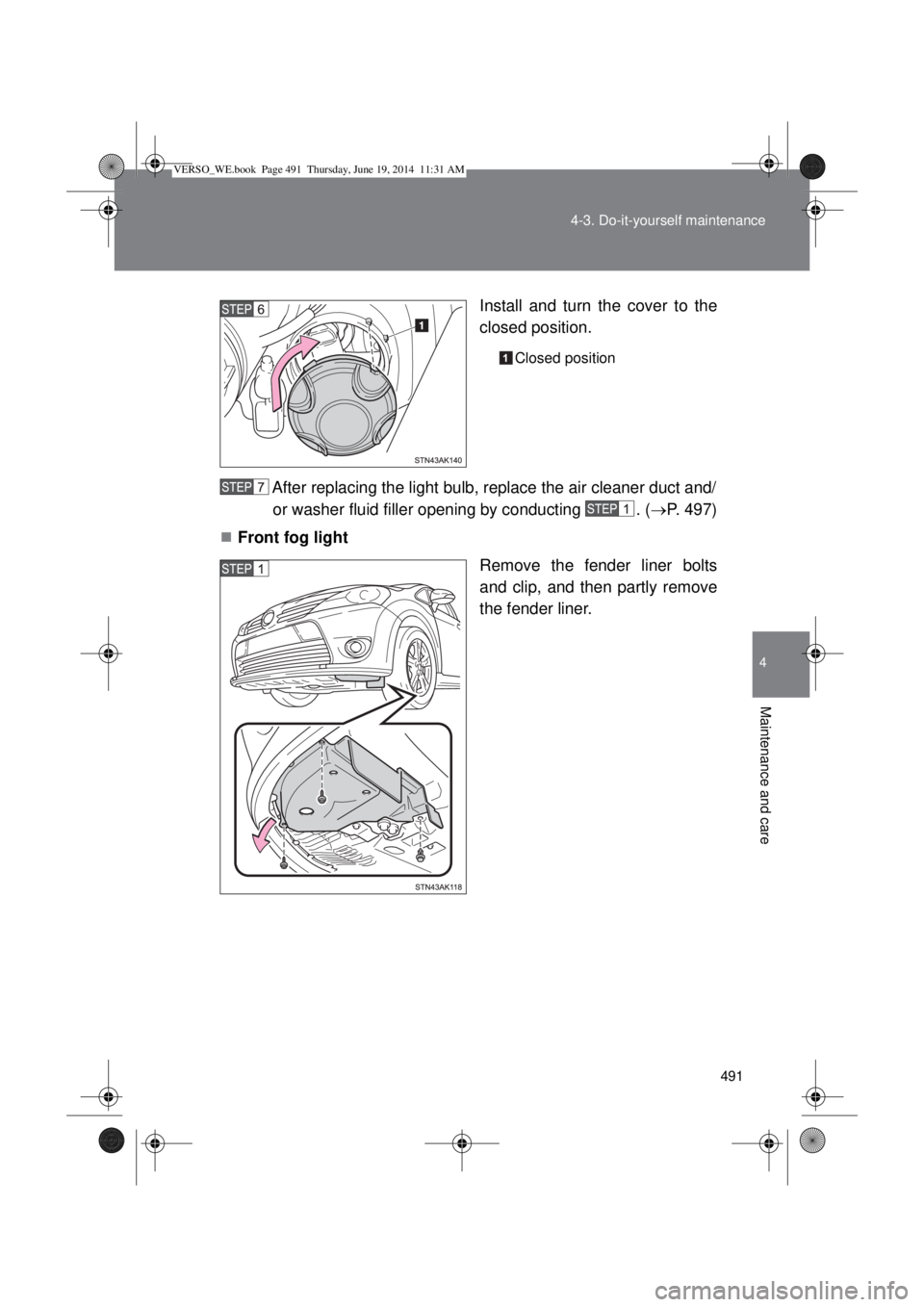

Install and turn the cover to the
closed position.
Closed position
After replacing the light bulb, replace the air cleaner duct and/
or washer fluid filler opening by conducting . (P. 497)
Headlight high beam (halogen headlights)
Turn the cover to the open posi-
tion and remove it.
Open position
VERSO_WE.book Page 489 Thursday, June 19, 2014 11:31 AM

490 4-3. Do-it-yourself maintenance
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beam on once and
visually confirm that no light is
leaking through the mounting.
VERSO_WE.book Page 490 Thursday, June 19, 2014 11:31 AM

491 4-3. Do-it-yourself maintenance
4
Maintenance and care
Install and turn the cover to the
closed position.
Closed position
After replacing the light bulb, replace the air cleaner duct and/
or washer fluid filler opening by conducting . (P. 497)
Front fog light
Remove the fender liner bolts
and clip, and then partly remove
the fender liner.
VERSO_WE.book Page 491 Thursday, June 19, 2014 11:31 AM

492 4-3. Do-it-yourself maintenance

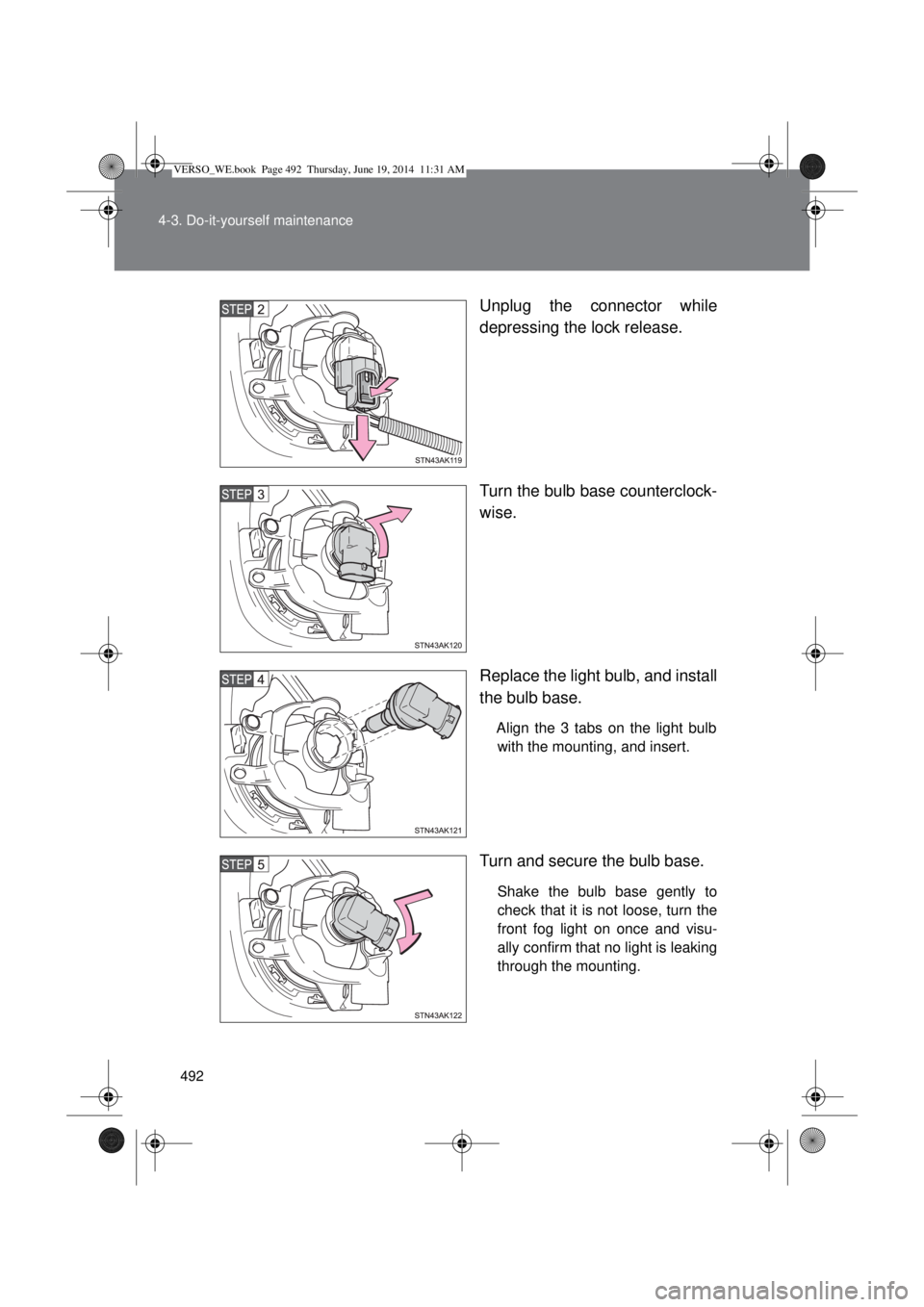

Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light on once and visu-
ally confirm that no light is leaking
through the mounting.
VERSO_WE.book Page 492 Thursday, June 19, 2014 11:31 AM

493 4-3. Do-it-yourself maintenance
4
Maintenance and care
When installing the fender liner, install by conducting
with the directions reversed.
Front position light (halogen headlights without daytime run-
ning light system), front position light/daytime running light
(halogen headlights with daytime running light system)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
VERSO_WE.book Page 493 Thursday, June 19, 2014 11:31 AM

494 4-3. Do-it-yourself maintenance

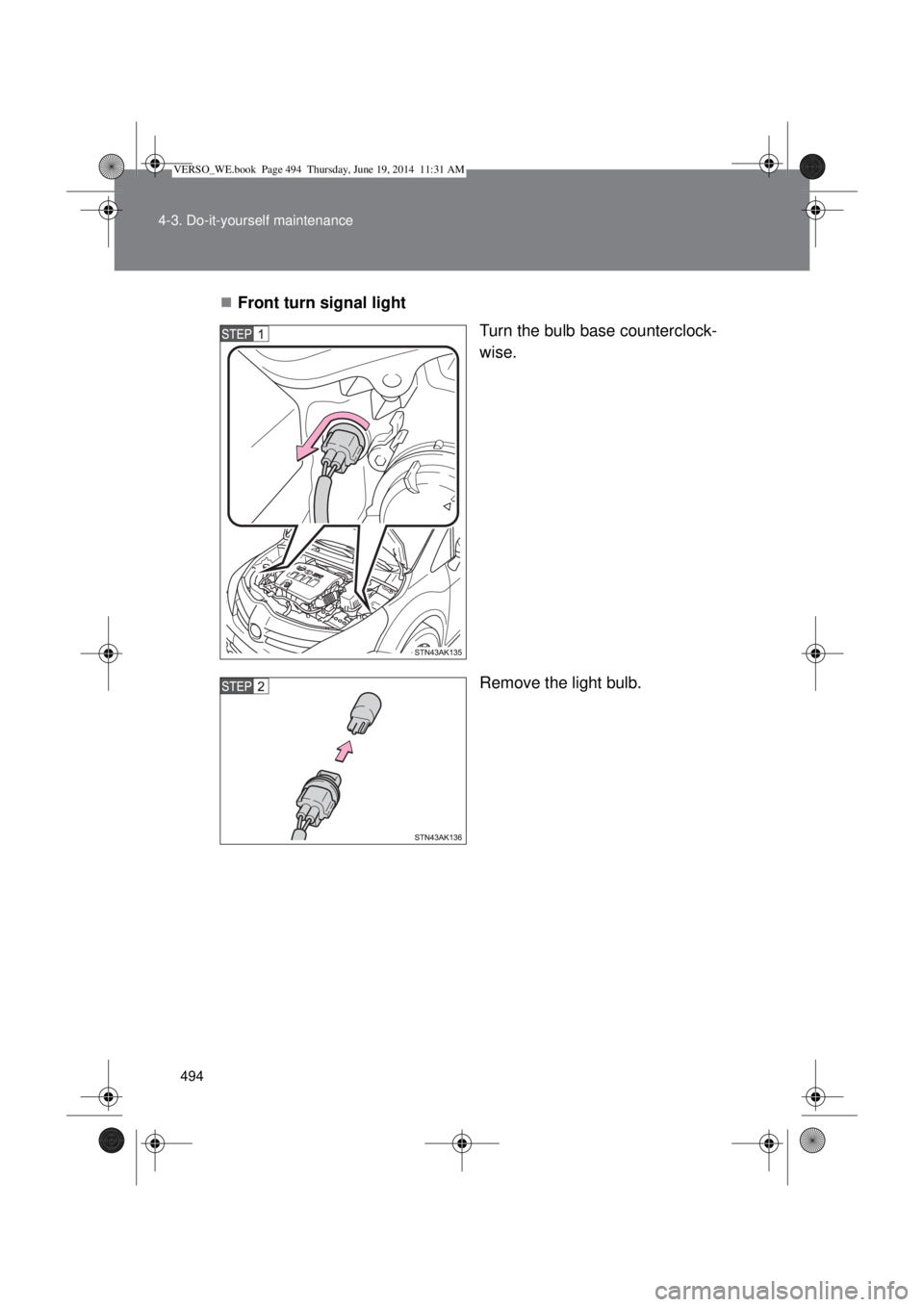

Front turn signal light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
VERSO_WE.book Page 494 Thursday, June 19, 2014 11:31 AM

495 4-3. Do-it-yourself maintenance
4
Maintenance and care

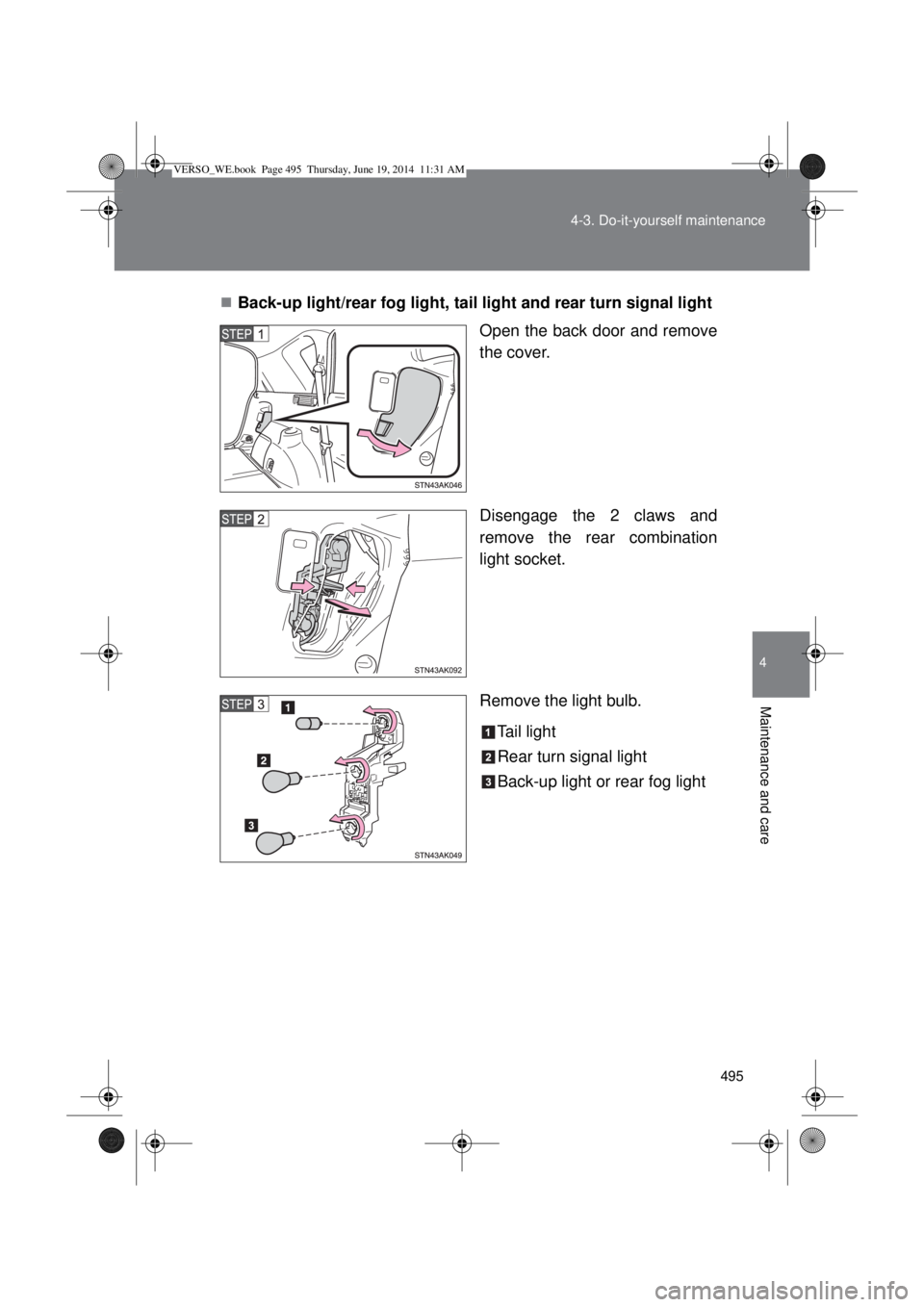

Back-up light/rear fog light, tail light and rear turn signal light
Open the back door and remove
the cover.
Disengage the 2 claws and
remove the rear combination
light socket.
Remove the light bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light
VERSO_WE.book Page 495 Thursday, June 19, 2014 11:31 AM

496 4-3. Do-it-yourself maintenance
License plate light
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlights (discharge headlights)
Front position lights/daytime running lights (discharge head-
lights)
Side turn signal lights
High mounted stoplight
Stop lights
VERSO_WE.book Page 496 Thursday, June 19, 2014 11:31 AM
