2014 TOYOTA VERSO Owners Manual

601 6-1. Specifications
6
Vehicle specifications
Vehicle identification

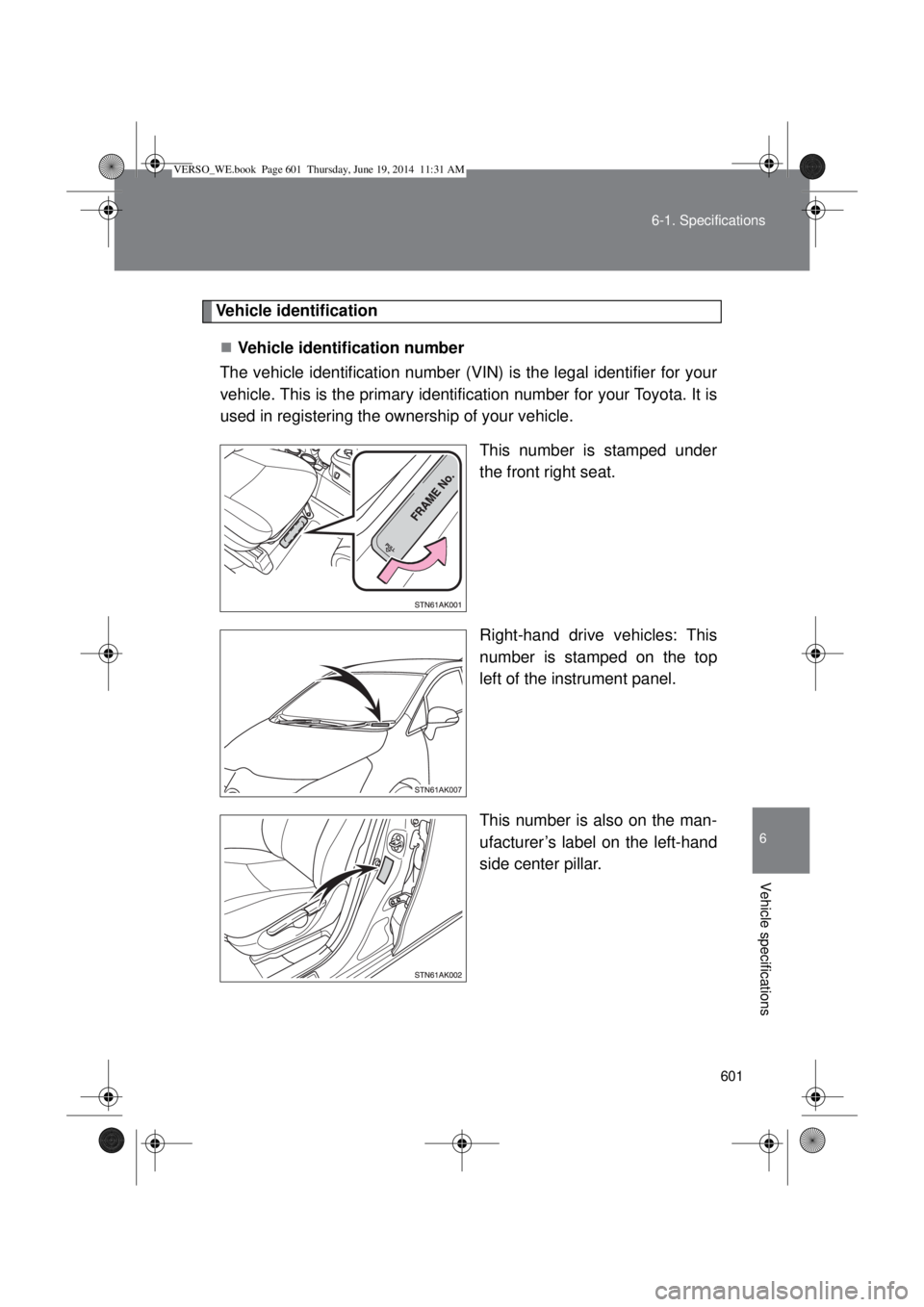

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under
the front right seat.
Right-hand drive vehicles: This
number is stamped on the top
left of the instrument panel.
This number is also on the man-
ufacturer’s label on the left-hand
side center pillar.
VERSO_WE.book Page 601 Thursday, June 19, 2014 11:31 AM

602 6-1. Specifications

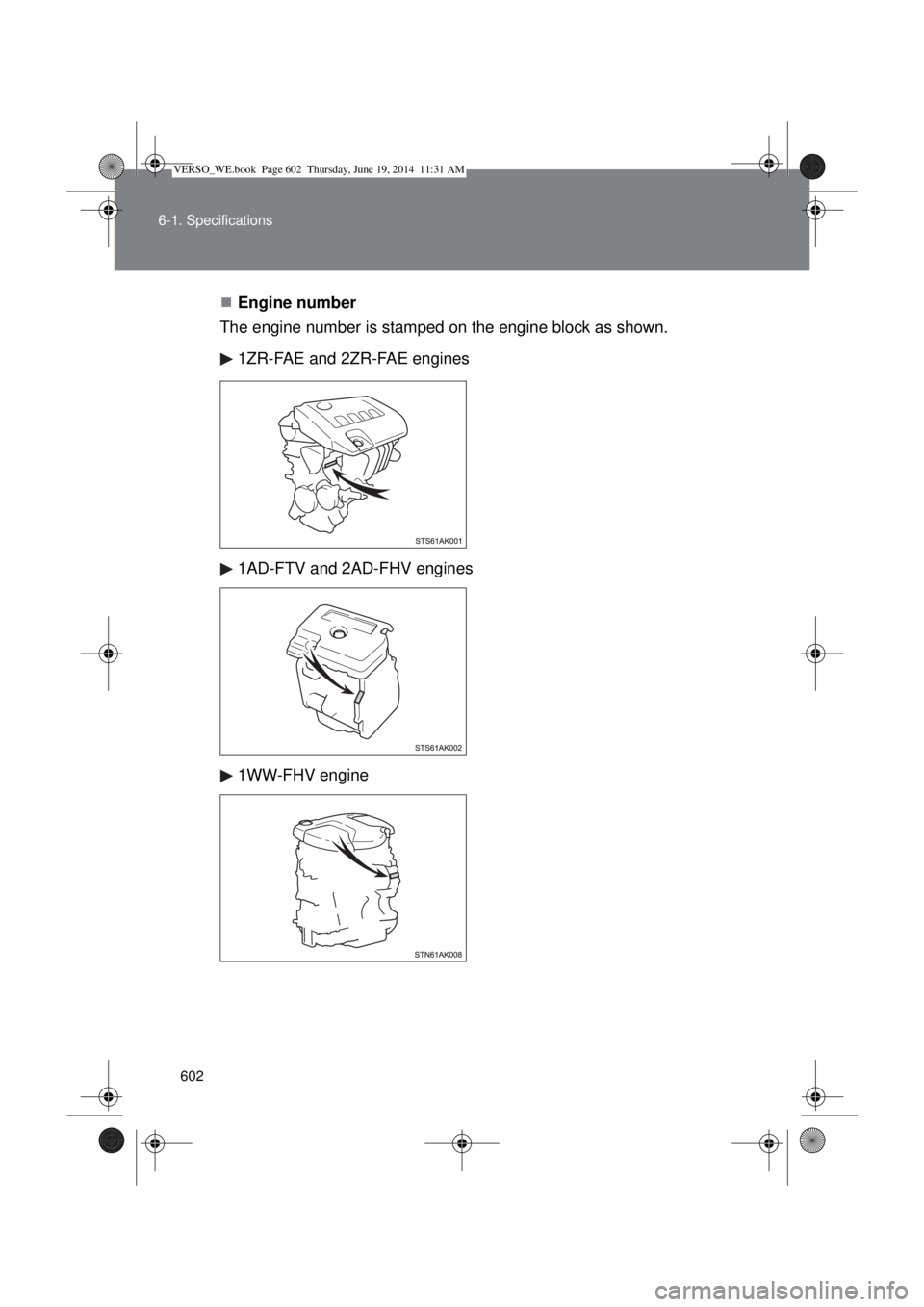

Engine number
The engine number is stamped on the engine block as shown.
1ZR-FAE and 2ZR-FAE engines
1AD-FTV and 2AD-FHV engines
1WW-FHV engine
VERSO_WE.book Page 602 Thursday, June 19, 2014 11:31 AM

603 6-1. Specifications
6
Vehicle specifications
Engine
Gasoline engine
Model 1ZR-FAE, 2ZR-FAE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
2ZR-FAE engine
80.5  88.3 mm (3.17  3.48 in.)
Displacement1ZR-FAE engine
1598 cm3 (97.5 cu. in.)
2ZR-FAE engine
1798 cm
3 (109.7 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension
Vehicles without air
conditioning system
Vehicles with air
conditioning system7.6  10.0 mm (0.30  0.39 in.)*
*: Drive belt deflection with 98 N (10 kgf, 22 lbf)
thumb force (used belt)
CrankshaftGenerator
Water pump
CrankshaftGenerator
Water pump
Air
conditioning
compressor
VERSO_WE.book Page 603 Thursday, June 19, 2014 11:31 AM

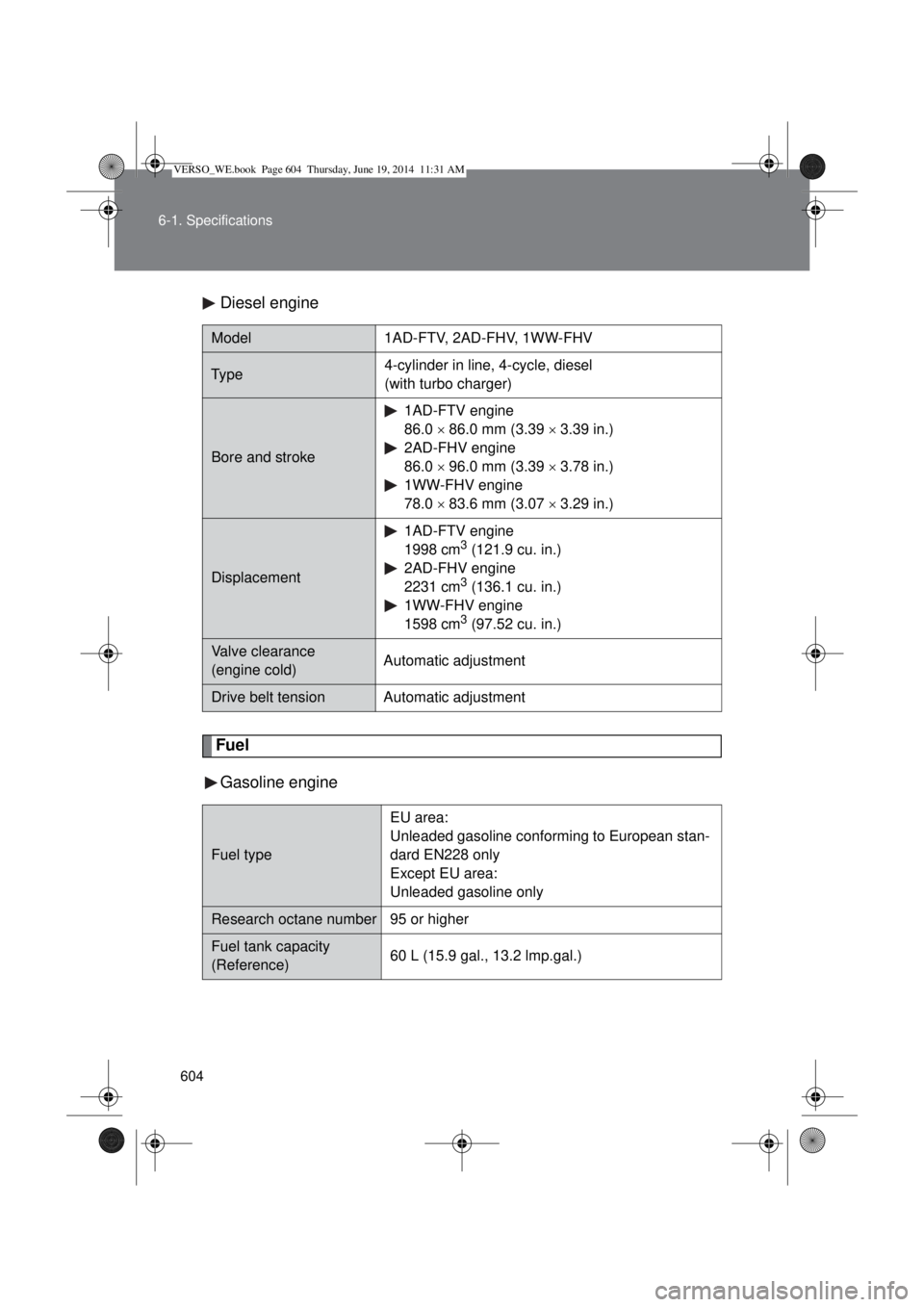

604 6-1. Specifications
Diesel engine
Fuel
Gasoline engine
Model 1AD-FTV, 2AD-FHV, 1WW-FHV
Type4-cylinder in line, 4-cycle, diesel
(with turbo charger)
Bore and stroke1AD-FTV engine
86.0  86.0 mm (3.39  3.39 in.)
2AD-FHV engine
86.0  96.0 mm (3.39  3.78 in.)
1WW-FHV engine
78.0  83.6 mm (3.07  3.29 in.)
Displacement1AD-FTV engine
1998 cm
3 (121.9 cu. in.)
2AD-FHV engine
2231 cm
3 (136.1 cu. in.)
1WW-FHV engine
1598 cm
3 (97.52 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment
Fuel typeEU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane number 95 or higher
Fuel tank capacity
(Reference)60 L (15.9 gal., 13.2 lmp.gal.)
VERSO_WE.book Page 604 Thursday, June 19, 2014 11:31 AM

605 6-1. Specifications
6
Vehicle specifications

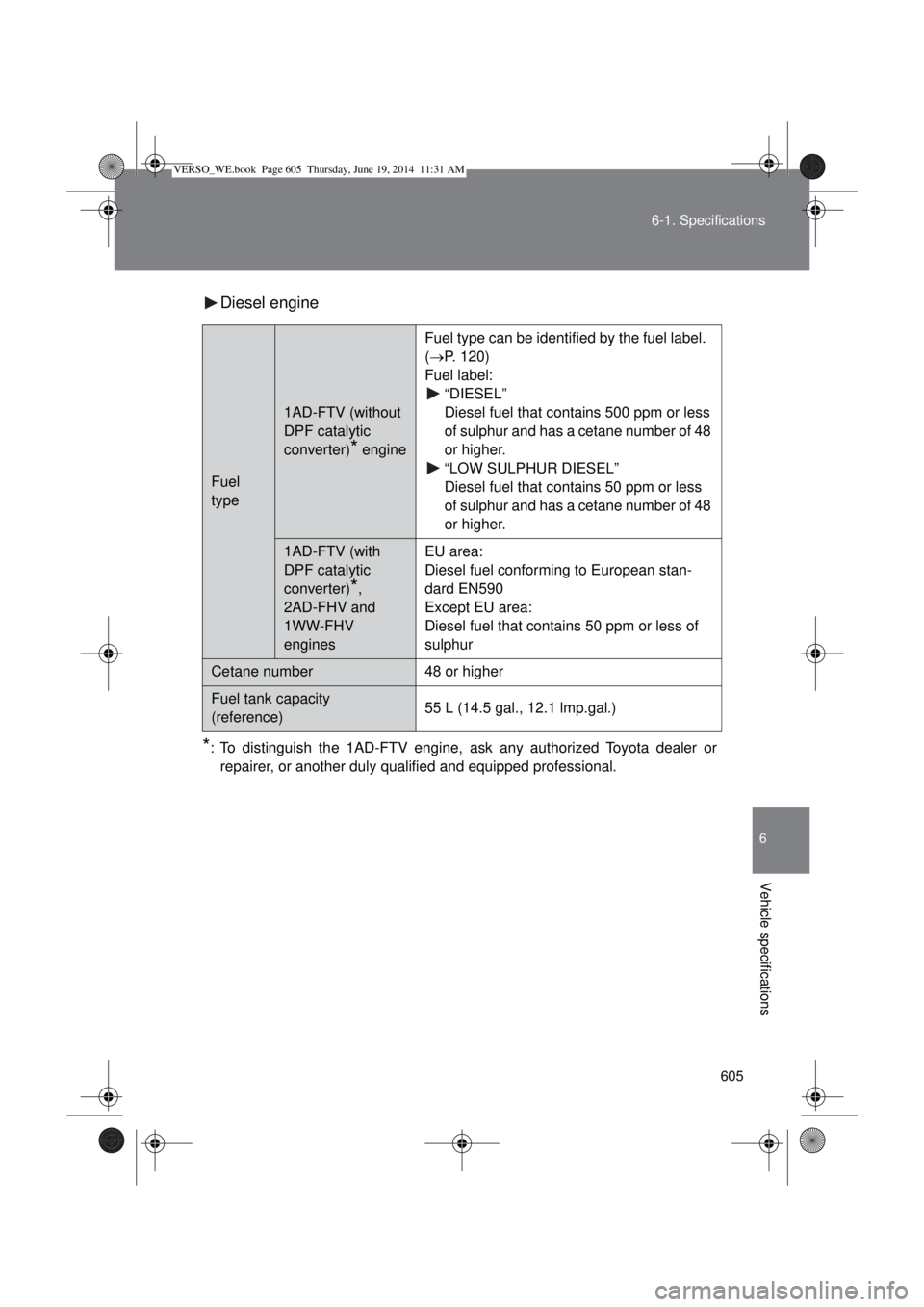

Diesel engine
*: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Fuel
type
1AD-FTV (without
DPF catalytic
converter)
* engineFuel type can be identified by the fuel label.
(P. 120)
Fuel label:
“DIESEL”
Diesel fuel that contains 500 ppm or less
of sulphur and has a cetane number of 48
or higher.
“LOW SULPHUR DIESEL”
Diesel fuel that contains 50 ppm or less
of sulphur and has a cetane number of 48
or higher.
1AD-FTV (with
DPF catalytic
converter)
*,
2AD-FHV and
1WW-FHV
enginesEU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of
sulphur
Cetane number 48 or higher
Fuel tank capacity
(reference)55 L (14.5 gal., 12.1 lmp.gal.)
VERSO_WE.book Page 605 Thursday, June 19, 2014 11:31 AM

606 6-1. Specifications

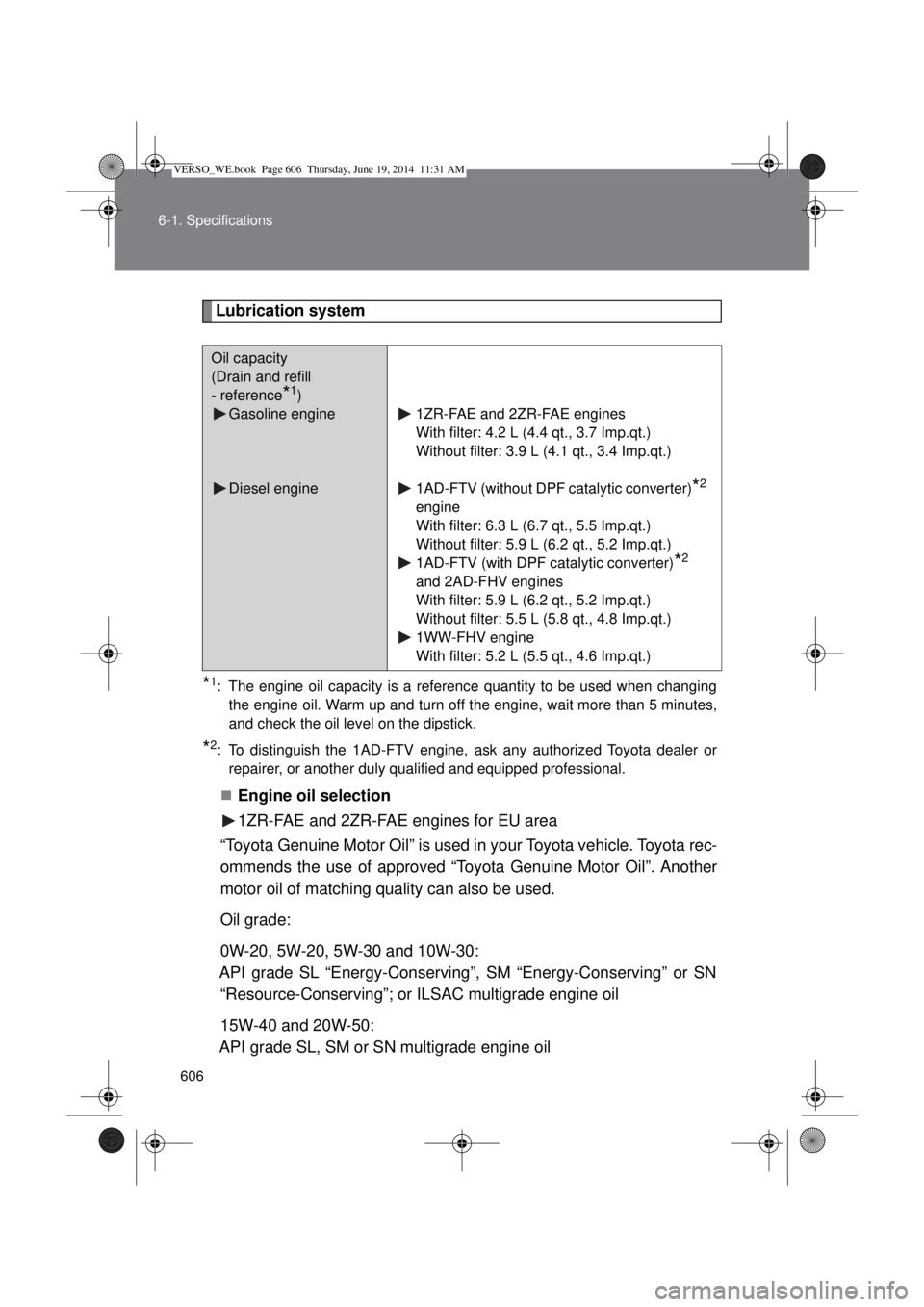

Lubrication system
*1: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
*2: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Engine oil selection
1ZR-FAE and 2ZR-FAE engines for EU area
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Oil capacity
(Drain and refill
- reference
*1)
Gasoline engine
Diesel engine1ZR-FAE and 2ZR-FAE engines
With filter: 4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter: 3.9 L (4.1 qt., 3.4 Imp.qt.)
1AD-FTV (without DPF catalytic converter)
*2
engine
With filter: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Without filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
1AD-FTV (with DPF catalytic converter)
*2
and 2AD-FHV engines
With filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
Without filter: 5.5 L (5.8 qt., 4.8 Imp.qt.)
1WW-FHV engine
With filter: 5.2 L (5.5 qt., 4.6 Imp.qt.)
VERSO_WE.book Page 606 Thursday, June 19, 2014 11:31 AM

607 6-1. Specifications
6
Vehicle specifications

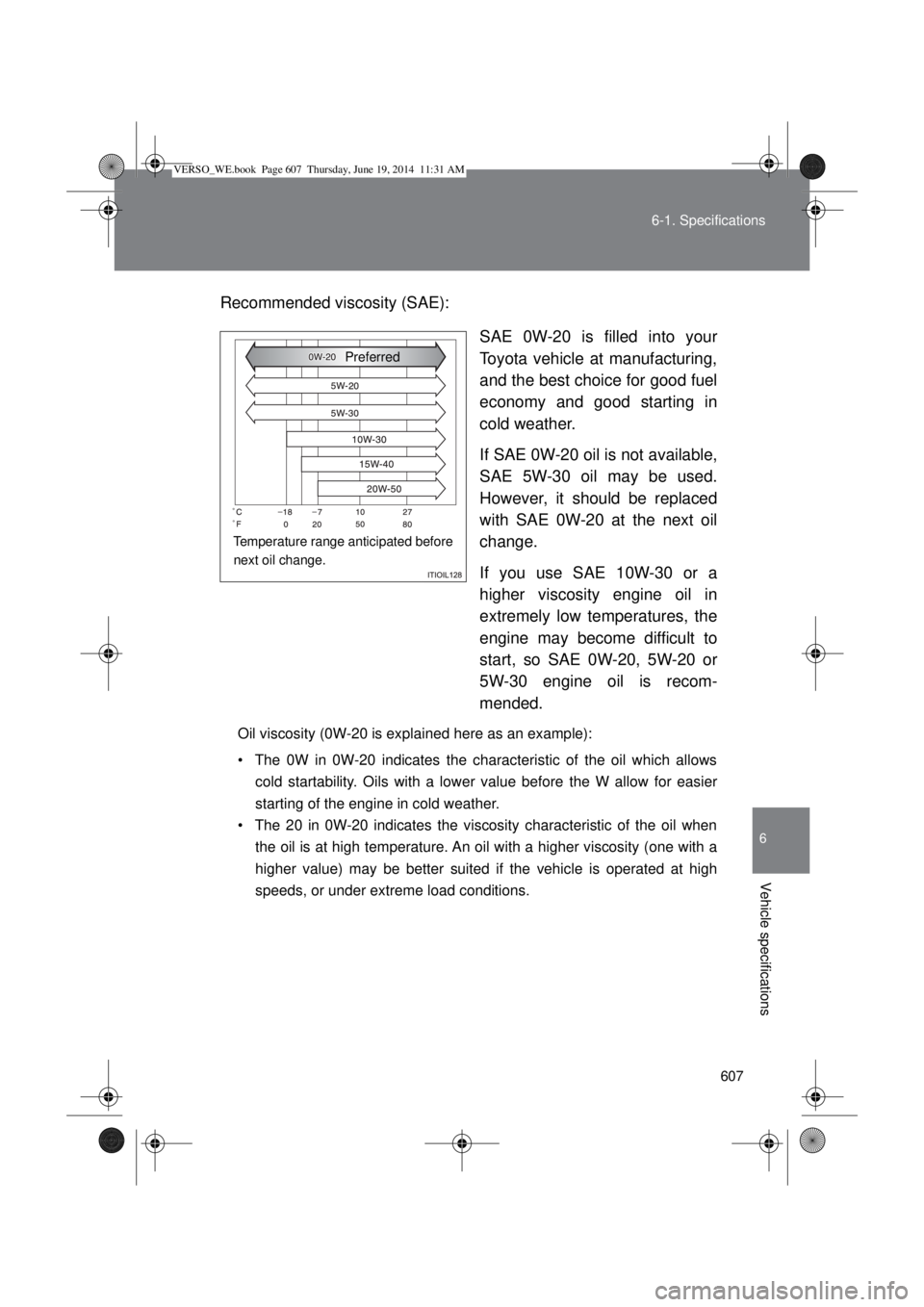

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.Preferred
VERSO_WE.book Page 607 Thursday, June 19, 2014 11:31 AM

608 6-1. Specifications

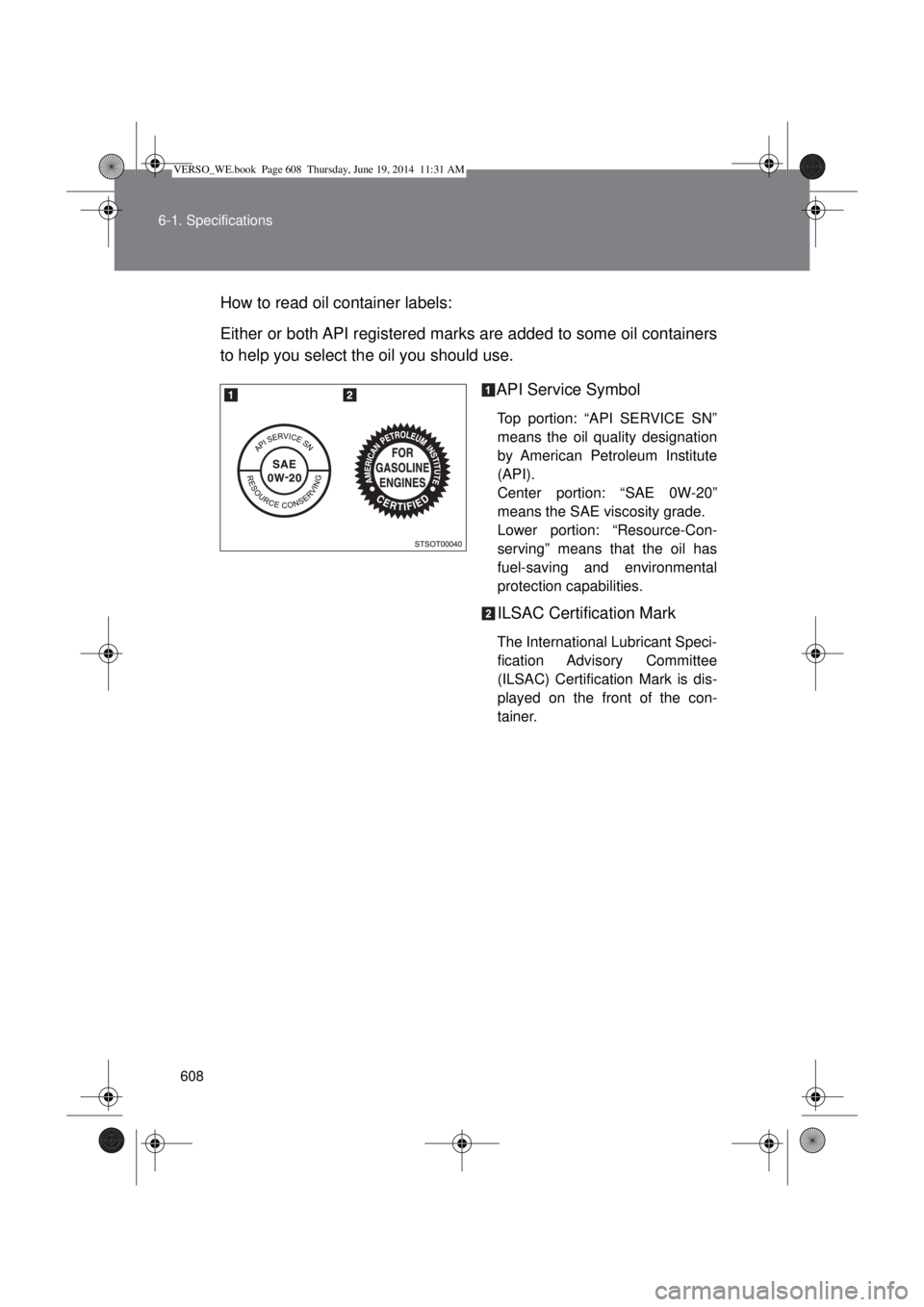

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Speci-
fication Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the con-
tainer.
VERSO_WE.book Page 608 Thursday, June 19, 2014 11:31 AM
