2014 TOYOTA VERSO Owners Manual

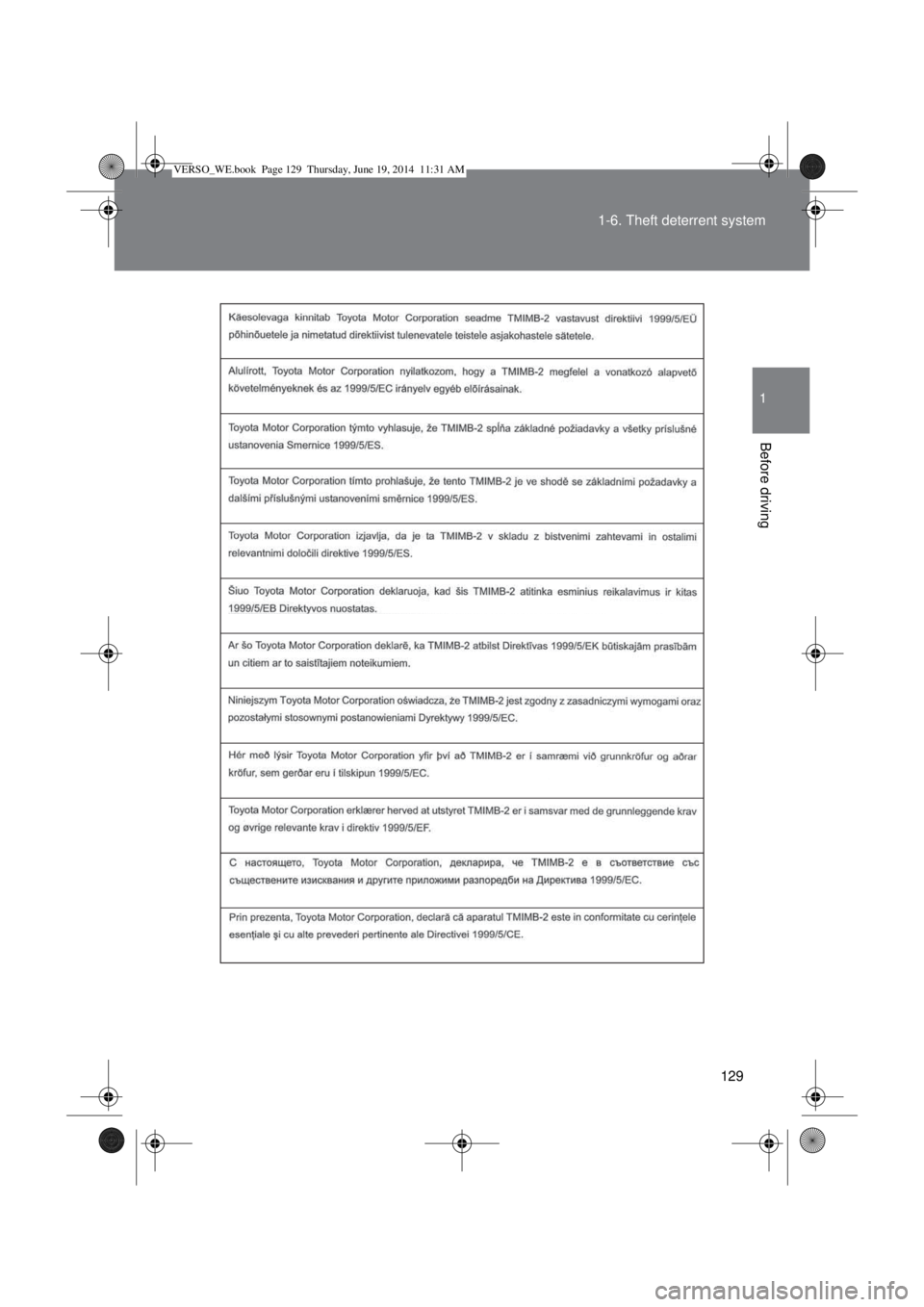

129 1-6. Theft deterrent system
1
Before driving
VERSO_WE.book Page 129 Thursday, June 19, 2014 11:31 AM

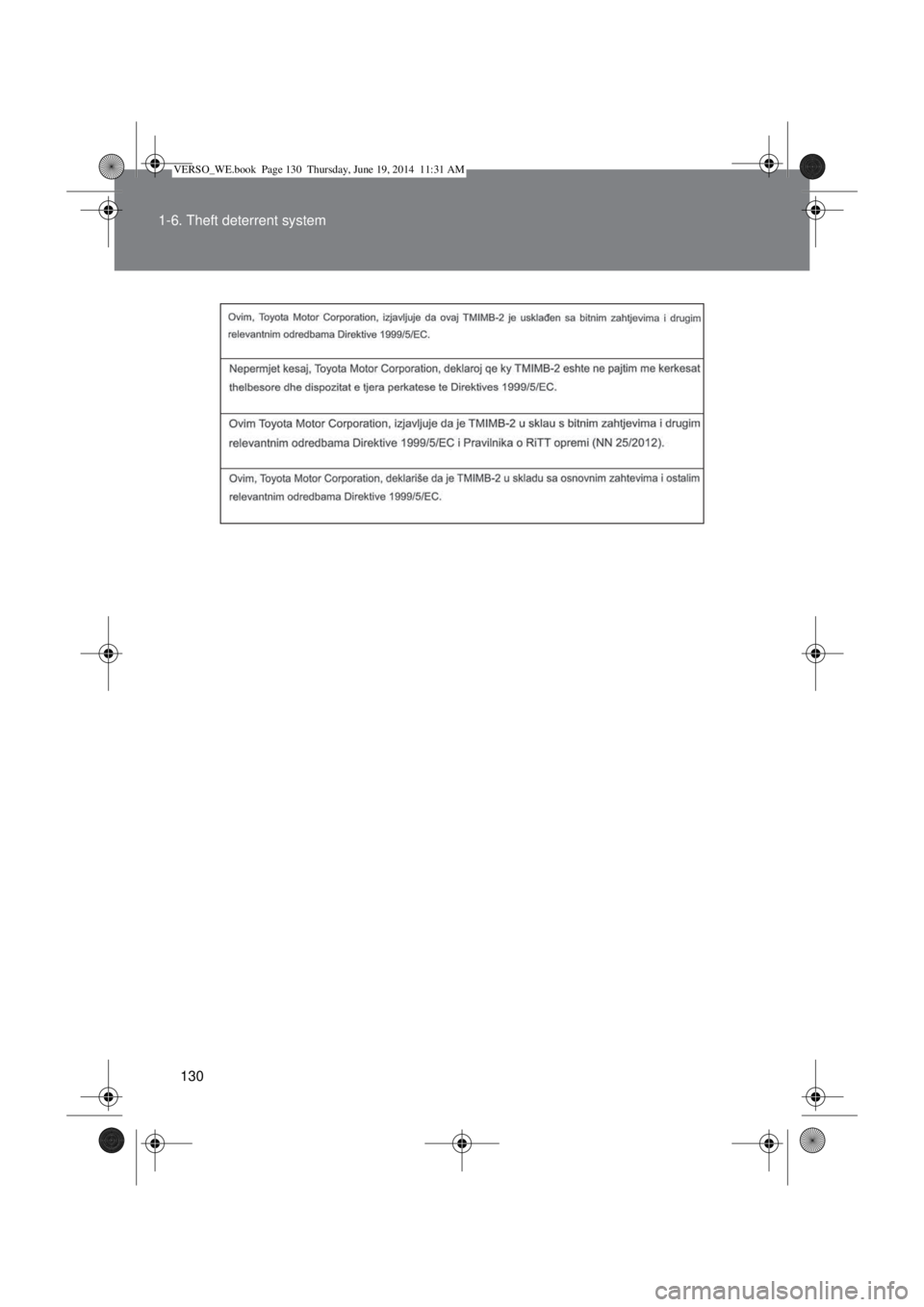

130 1-6. Theft deterrent system
VERSO_WE.book Page 130 Thursday, June 19, 2014 11:31 AM

131 1-6. Theft deterrent system
1
Before driving

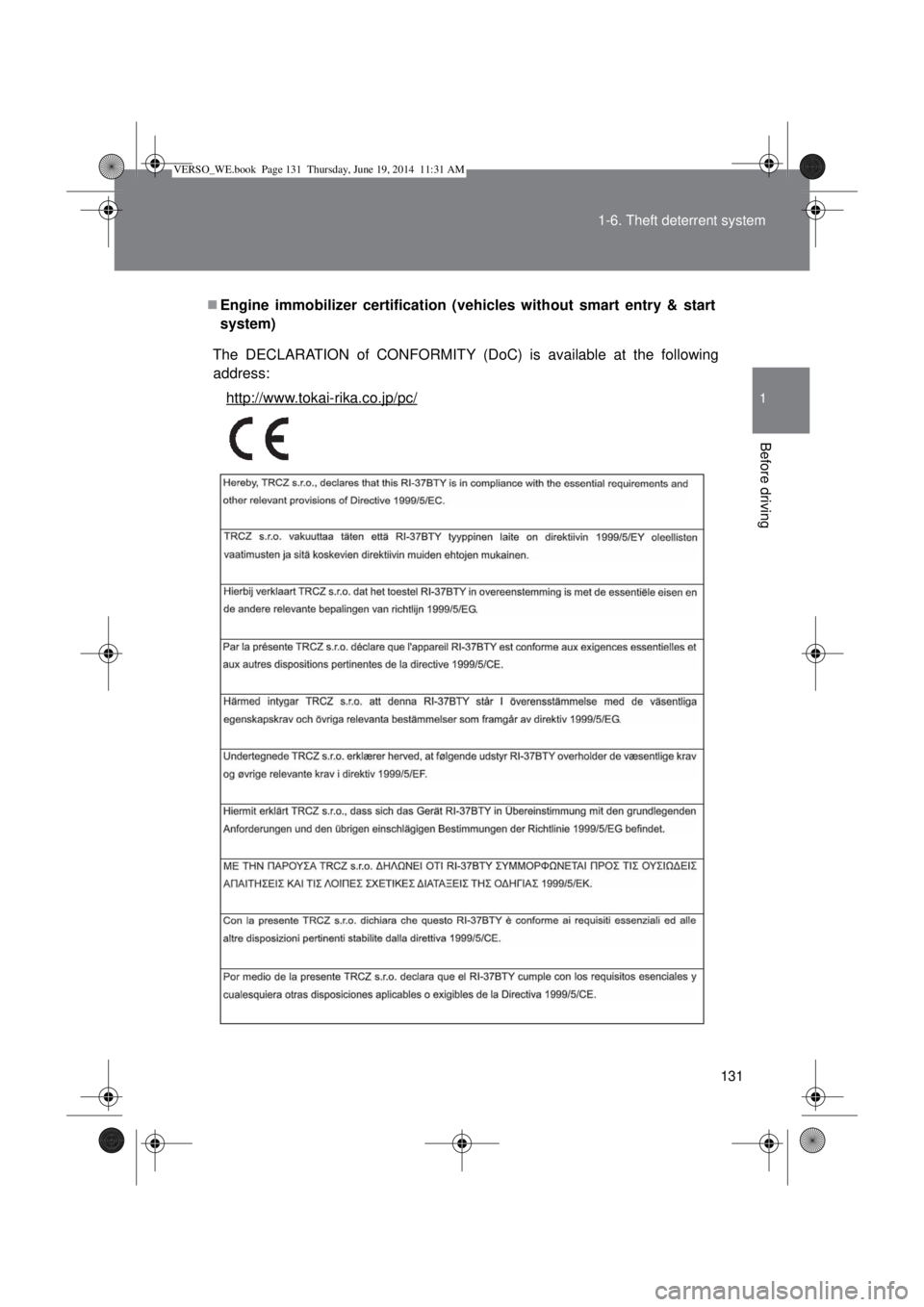

Engine immobilizer certification (vehicles without smart entry & start
system)
The DECLARATION of CONFORMITY (DoC) is available at the following
address:
http://www.tokai-rika.co.jp/pc/
VERSO_WE.book Page 131 Thursday, June 19, 2014 11:31 AM

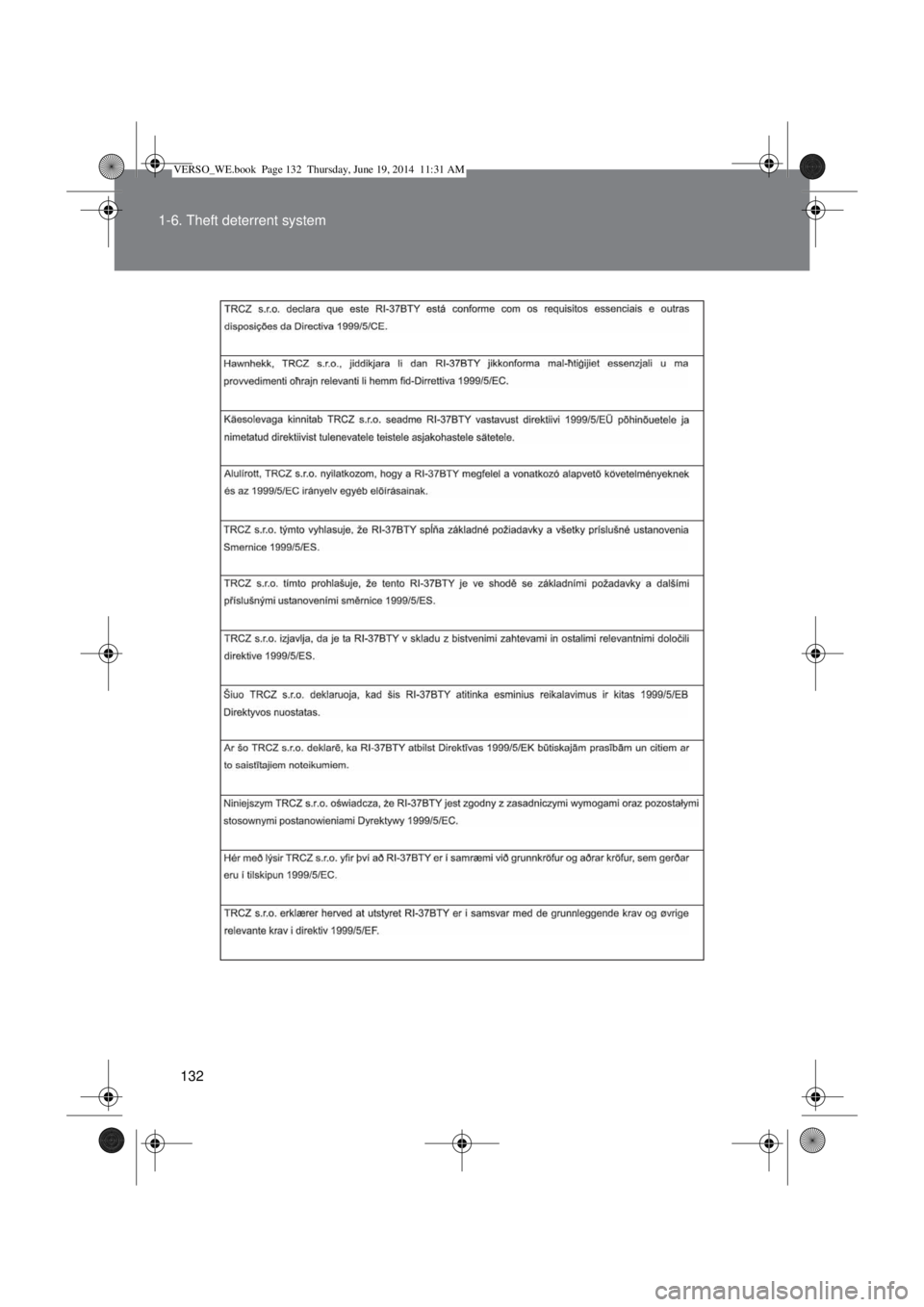

132 1-6. Theft deterrent system
VERSO_WE.book Page 132 Thursday, June 19, 2014 11:31 AM

133 1-6. Theft deterrent system
1
Before driving
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
VERSO_WE.book Page 133 Thursday, June 19, 2014 11:31 AM

134
1-6. Theft deterrent system
Double locking system
Setting the double locking system
Vehicles without smart entry & start system
Turn the engine switch to the “LOCK” position, have all the passen-
gers exit the vehicle and ensure that all the doors are closed.
Using the wireless remote control:
Press the button twice within 5 seconds.
Vehicles with smart entry & start system
Turn the “ENGINE START STOP” switch off, have all the passen-
gers exit the vehicle and ensure that all the doors are closed.
Using the smart entry & start system:
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press the
button twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of the
vehicle.
Vehicles employing this sys-
tem have labels on the win-
dow glass of both front doors.
VERSO_WE.book Page 134 Thursday, June 19, 2014 11:31 AM

135 1-6. Theft deterrent system
1
Before driving
Canceling the double locking system
Using the smart entry & start system (if equipped):
Hold the outside door handle on the driver’s side.
Using the wireless remote control:
Press the
button.
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.
VERSO_WE.book Page 135 Thursday, June 19, 2014 11:31 AM

136
1-6. Theft deterrent system
Alar m
: If equipped
The system sounds the alarm and flashes the lights when forcible
entry is detected.
Triggering of the alarm
The alarm is triggered in the following situations when the alarm
is set.
A locked door is unlocked or opened in any way other than
using the entry function (vehicles with smart entry & start sys-
tem) or wireless remote control. (The doors will lock again
automatically.)
The hood is opened.
Vehicles with the intrusion sensor: The intrusion sensor
detects something moving inside the vehicle. (An intruder gets
in the vehicle.)
Vehicles with the glass breakage sensor: The back door win-
dow is tapped or broken.
The battery is reconnected.
VERSO_WE.book Page 136 Thursday, June 19, 2014 11:31 AM
