2014 TOYOTA VERSO Owners Manual

609 6-1. Specifications
6
Vehicle specifications
1ZR-FAE and 2ZR-FAE engines except for EU area
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.Preferred
VERSO_WE.book Page 609 Thursday, June 19, 2014 11:31 AM

610 6-1. Specifications
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Speci-
fication Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the con-
tainer.
VERSO_WE.book Page 610 Thursday, June 19, 2014 11:31 AM

611 6-1. Specifications
6
Vehicle specifications
1AD-FTV (without DPF catalytic converter)* engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Diesel fuel that contains 500 ppm or less of sulphur (P. 120)
Oil grade: API CF-4, CF or ACEA B1
(You may also use API CE or CD.)
Recommended viscosity (SAE):
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 engine oil is
recommended.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
NOTICE
Do not use ACEA C2 as it will degrade the oil when used.
Temperature range anticipated before
next oil change.Preferred
VERSO_WE.book Page 611 Thursday, June 19, 2014 11:31 AM

612 6-1. Specifications
Diesel fuel that contains 50 ppm or less of sulphur (P. 120)
Oil grade: API CF-4, CF, ACEA C2 or B1
(You may also use API CE or CD.)
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or 0W-30
engine oil is recommended.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
*: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Temperature range anticipated before
next oil change.
VERSO_WE.book Page 612 Thursday, June 19, 2014 11:31 AM

613 6-1. Specifications
6
Vehicle specifications
1AD-FTV (with DPF catalytic converter)* and 2AD-FHV engines
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
*: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated before
next oil change.Preferred
VERSO_WE.book Page 613 Thursday, June 19, 2014 11:31 AM

614 6-1. Specifications
1WW-FHV engine
Toyota recommends the use of approved “Toyota Genuine Motor Oil
5W-30 Premium Fuel Economy for 1WW/2WW engines”.
VERSO_WE.book Page 614 Thursday, June 19, 2014 11:31 AM

615 6-1. Specifications
6
Vehicle specifications

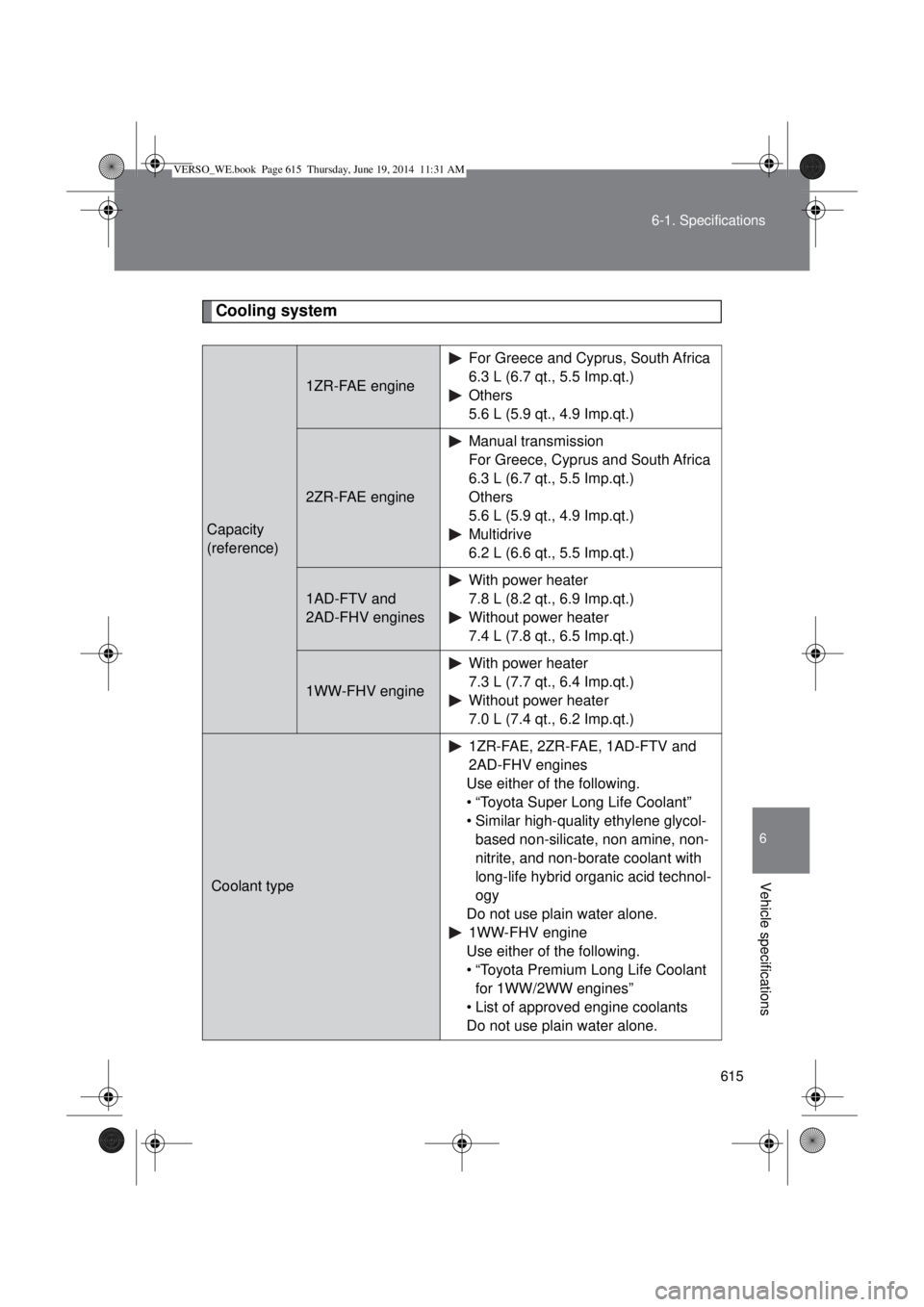

Cooling system
Capacity
(reference)
1ZR-FAE engine
For Greece and Cyprus, South Africa
6.3 L (6.7 qt., 5.5 Imp.qt.)
Others
5.6 L (5.9 qt., 4.9 Imp.qt.)
2ZR-FAE engine
Manual transmission
For Greece, Cyprus and South Africa
6.3 L (6.7 qt., 5.5 Imp.qt.)
Others
5.6 L (5.9 qt., 4.9 Imp.qt.)
Multidrive
6.2 L (6.6 qt., 5.5 Imp.qt.)
1AD-FTV and
2AD-FHV engines
With power heater
7.8 L (8.2 qt., 6.9 Imp.qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp.qt.)
1WW-FHV engine
With power heater
7.3 L (7.7 qt., 6.4 Imp.qt.)
Without power heater
7.0 L (7.4 qt., 6.2 Imp.qt.)
Coolant type1ZR-FAE, 2ZR-FAE, 1AD-FTV and
2AD-FHV engines
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
1WW-FHV engine
Use either of the following.
• “Toyota Premium Long Life Coolant
for 1WW/2WW engines”
• List of approved engine coolants
Do not use plain water alone.
VERSO_WE.book Page 615 Thursday, June 19, 2014 11:31 AM

616 6-1. Specifications
List of approved engine coolants
Ignition system (gasoline engine only)
Trade nameManufacturer
Aral Antifreeze Extra Aral AG
AVIA Antifreeze APN AVIA Mineralöl AG
Castrol ANTI-FREEZE NF Castrol International
EVOX Extra G48 Antifreeze concentrate MOL-LUB Ltd.
Fuchs MAINTAIN FRICOFIN Fuchs Europe Schmierstoffe GmbH
GlycoShell Shell International
Glysantin G48-24 Engine Coolant UNICO Ltd.
Glysantin Protect Plus / G48 BASF
OMV Kühlerfrostschutz OMV AG
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
