Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit, short to ground or short to power in harness or connectors.
3.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Check engine coolant temperature sensor. Refer to EC-743, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace engine coolant temperature sensor. Refer to CO-51, "Removal and Installation"
.
Component InspectionINFOID:0000000009462611
1.CHECK ENGINE COOLANT TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect engine coolant temperature sensor harness connector.
3. Remove engine coolant temperature sensor. Refer to CO-51, "Removal and Installation"
.
4. Check resistance between engine coolant temperature sensor terminals as per the following.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace engine coolant temperature sensor. Refer to CO-51, "Removal and Installation"
.

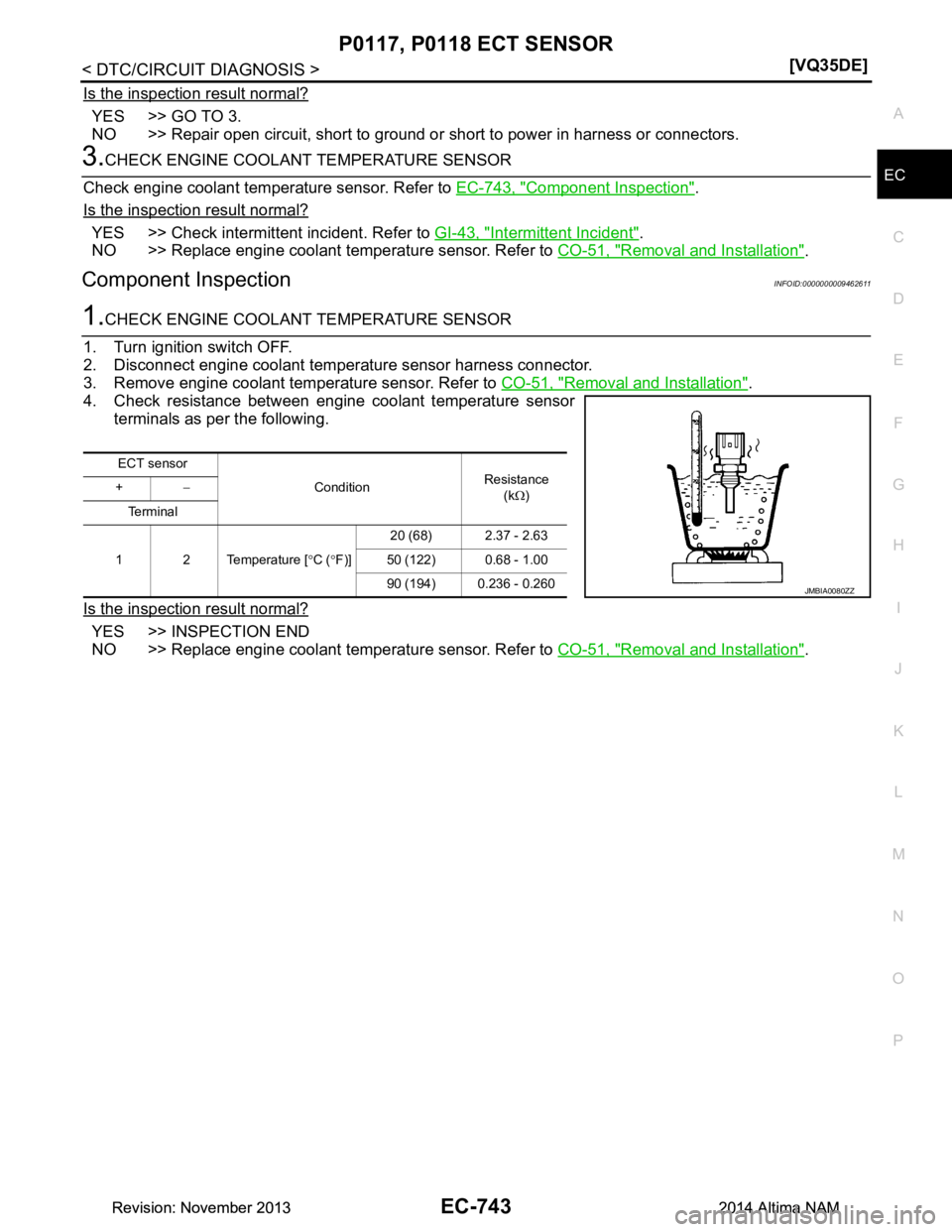

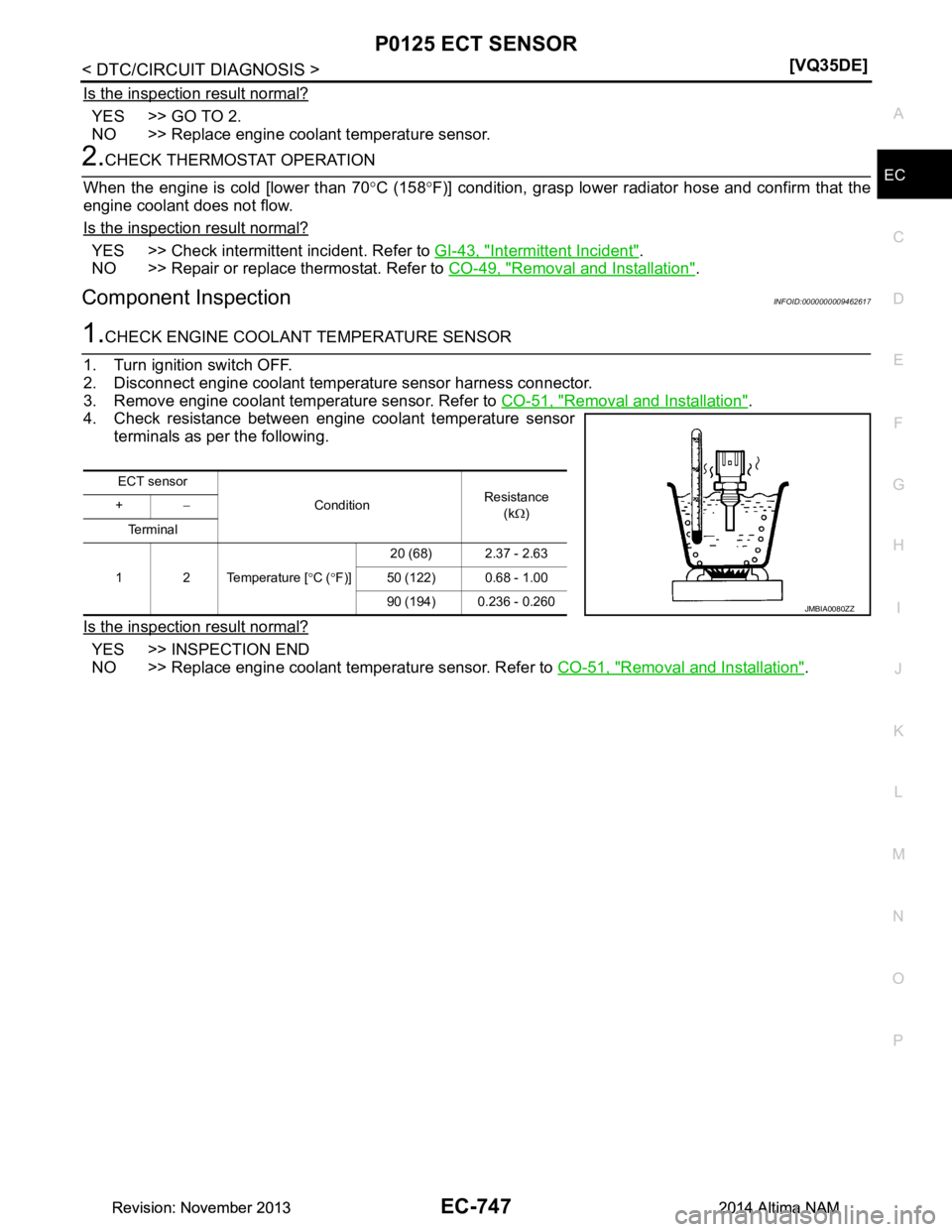

ECT sensor
ConditionResistance
(kΩ)
+
−
Te r m i n a l
1 2 Temperature [ °C ( °F)] 20 (68) 2.37 - 2.63
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
JMBIA0080ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-744
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
P0122, P0123 TP SENSOR
P0122, P0123 TP SENSOR
DTC LogicINFOID:0000000009462612
DTC DETECTION LOGIC
NOTE:
If DTC P0122 or P0123 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to EC-885, "DTC Logic"
.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Proceed to EC-744, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462613
1.CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. Check the voltage between electric throttle control actuator harness connector and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair open circuit, short to ground or short to power in harness or connectors.
2.CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-
nector.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0122 Throttle position sensor
2 circuit low input An excessively low voltage from the TP sensor
2 is sent to ECM. • Harness or connectors
(TP sensor 2 circuit is open or shorted.)
• Electric throttle control actuator
(TP sensor 2)
P0123 Throttle position sensor
2 circuit high input An excessively high voltage from the TP sensor
2 is sent to ECM.
Electric throttle control actuator Ground Voltage
Connector Terminal
F57 1 Ground Approx. 5 V
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0122, P0123 TP SENSOREC-745
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit, short to ground or short to power in harness or connectors.
3.CHECK THROTTLE POSITION SEN SOR 2 INPUT SIGNAL CIRCUIT
1. Check the continuity between electric throttle control actuator harness connector and ECM harness con-
nector.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit, short to ground or short to power in harness or connectors.
4.CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-745, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace electric throttle control actuator. Refer to EM-146, "Removal and Installation"
.
Component InspectionINFOID:0000000009462614
1.CHECK THROTTLE POSITION SENSOR
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Perform EC-682, "Work Procedure"
.
4. Turn ignition switch ON.
5. Set selector lever to D position.
6. Check the voltage between ECM harness connector terminals under the following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace electric throttle control actuator. Refer to EM-146, "Removal and Installation"
.
Electric throttle control actuator ECM
Continuity
Connector Terminal Connector Terminal
F57 4 F78 19 Existed
Electric throttle control actuator ECM Continuity
Connector Terminal Connector Terminal
F57 3 F78 23 Existed
ECM Condition Voltage
Connector +–
Terminal Terminal
F78 22
19 Accelerator pedal Fully released More than 0.36 V
Fully depressed Less than 4.75 V
23 Fully released Less than 4.75 V
Fully depressed More than 0.36 V
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-746
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
P0125 ECT SENSOR
P0125 ECT SENSOR
DTC LogicINFOID:0000000009462615
DTC DETECTION LOGIC
NOTE:
• If DTC P0125 is displayed with P0116, first perfo rm the trouble diagnosis for DTC P0116. Refer to EC-
740, "DTC Logic".
• If DTC P0125 is displayed with P0117 or P0118, first perform the trouble diagnosis for DTC P0117,
P0118. Refer to EC-742, "DTC Logic"
.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
>> GO TO 2.
2.CHECK ENGINE COOLANT TEMPERATURE SENSOR FUNCTION
With CONSULT
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT.
3. Check that “COOLAN TEMP/S” is above 10 °C (50 °F).
With GST
Follow the procedure “With CONSULT” above.
Is the temperature above 10
°C (50°F)?
YES >> INSPECTION END
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT
1. Start engine and run it for 65 minutes at idle speed.
If “COOLAN TEMP/S” increases to more than 10 °C (50 °F) within 65 minutes, stop engine because
the test result will be OK.
CAUTION:
Never overheat engine.
2. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?
YES >> EC-746, "Diagnosis Procedure"
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462616
1.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Check engine coolant temperature sensor. Refer to EC-747, "Component Inspection"
.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0125 Insufficient engine cool-
ant temperature for
closed loop fuel control • Voltage sent to ECM from the sensor is not
practical, even when some time has passed
after starting the engine.
• Engine coolant temperature is insufficient for closed loop fuel control. • Harness or connectors
(High resistance in the circuit)
• Engine coolant temperature sensor
•Thermostat
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0125 ECT SENSOREC-747
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace engine coolant temperature sensor.
2.CHECK THERMOSTAT OPERATION
When the engine is cold [lower than 70 °C (158 °F)] condition, grasp lower radiator hose and confirm that the
engine coolant does not flow.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Repair or replace thermostat. Refer to CO-49, "Removal and Installation"
.
Component InspectionINFOID:0000000009462617
1.CHECK ENGINE COOLANT TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect engine coolant temperature sensor harness connector.
3. Remove engine coolant temperature sensor. Refer to CO-51, "Removal and Installation"
.
4. Check resistance between engine coolant temperature sensor terminals as per the following.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace engine coolant temperature sensor. Refer to CO-51, "Removal and Installation"
.
ECT sensor
ConditionResistance
(kΩ)
+
−
Te r m i n a l
1 2 Temperature [ °C ( °F)] 20 (68) 2.37 - 2.63
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
JMBIA0080ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-748
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
P0127 IAT SENSOR
P0127 IAT SENSOR
DTC LogicINFOID:0000000009462618
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
This test may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road
test is expected to be easier, it is unnecessary to lift the vehicle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT
1. Wait until engine coolant temperature is less than 96 °C (205 °F)
- Turn ignition switch ON.
- Select “DATA MONITOR” mode with CONSULT.
- Check the engine coolant temperature.
- If the engine coolant temperature is not less than 96 °C (205 °F), turn ignition switch OFF and cool down
engine.
NOTE:
Perform the following steps before engine coolant temperature is above 96 °C (205 °F).
2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT.
4. Start engine.
5. Hold vehicle speed at more than 70 km/h (43 MPH) for 100 consecutive seconds. CAUTION:
Always drive vehicle at a safe speed.
6. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?
YES >> Proceed to EC-748, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462619
1.CHECK INTAKE AIR TEMPERATURE SENSOR
Check intake air temperature sensor. Refer to EC-749, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace mass air flow sensor (with intake air temperature sensor).
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0127 Intake air temperature
too high Rationally incorrect voltage from the sensor is
sent to ECM, compared with the voltage signal
from engine coolant temperature sensor. • Harness or connectors
(The sensor circuit is open or shorted)
• Intake air temperature sensor
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0127 IAT SENSOREC-749
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Component InspectionINFOID:0000000009956578
1.CHECK INTAKE AIR TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect mass air flow sensor harness connector.
3. Check resistance between mass air flow s ensor terminals as per the following.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace mass air flow sensor. Refer to EM-144, "Removal and Installation"
.
Mass air flow sensor
Condition Resistance (k Ω)
+ −
Te r m i n a l s
5 6 Temperature [ °C ( °F)] 25 (77) 1.800 - 2.200
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-750
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
P0128 THERMOSTAT FUNCTION
P0128 THERMOSTAT FUNCTION
DTC LogicINFOID:0000000009462621
DTC DETECTION LOGIC
NOTE:
If DTC P0128 is displayed with DTC P0300, P0301, P0302, P0303, P0304, P0305 or P0306, first perform
the trouble diagnosis for P0300, P0301, P0302, P0303, P 0304, P0305, P0306. Refer to EC-809, "DTC
Logic".
Engine coolant temperature has not risen enough to open the thermostat even though the engine has run long
enough.
This is due to a leak in the seal or the thermostat being stuck open.
DTC CONFIRMATION PROCEDURE
NOTE:
Never refuel before and during the following procedure.
1.PRECONDITIONING-I
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
>> GO TO 2.
2.PRECONDITIONING-II
With CONSULT
1. Turn ignition switch ON.
2. Check the following conditions:
3. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
4. Check the following conditions:
Is the condition satisfied?
YES >> GO TO 3.
NO >> 1. Satisfy the condition.
2. GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE-I
With CONSULT
1. Start engine.
2. Drive the vehicle until the following condition is satisfied.
CAUTION:
Always drive vehicle at safe speed.
- STEP 1
DTC No. Trouble diagnosis
(Trouble diagnosis content) DTC detecting condition Possible cause
P0128 THERMSTAT FNCTN
[Coolant thermostat (coolant
temperature below thermostat
regulating temperature)] The engine coolant temperature does not
reach to specified temperature even though
the engine has run long enough. •Thermostat
• Leakage from sealing portion of ther-
mostat
• Engine coolant temperature sensor
Ambient temperature −10 °C (14 °F) or more
A/C switch OFF
Blower fan switch OFF
COOLAN TEMP/S −10 °C – 46 °C (14 – 115 °F)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
