2014 NISSAN TEANA sensor

P0182, P0183 FTT SENSOREC-307

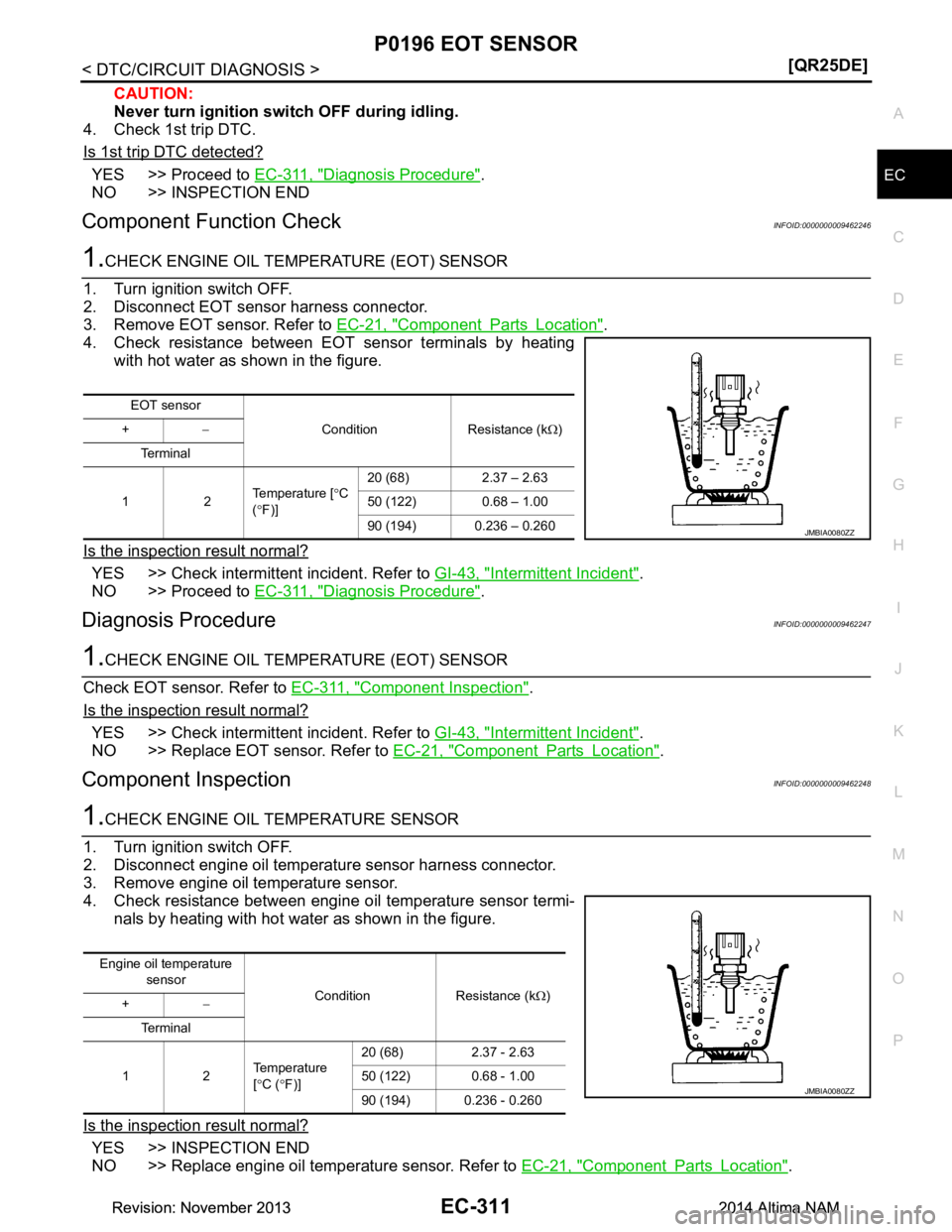

< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
3.CHECK FUEL TANK TEMPERATURE (F
TT) SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between fuel level sens or unit and fuel pump harness connector and ECM harness
connector.
*1: Except for California
*2: For California
4. Also check harness for short to ground and to power.
Is the inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts.
4.CHECK FUEL TANK TEMPERATURE (FTT) SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM connector.
3. Check the continuity between fuel level sens or unit and fuel pump harness connector and ECM harness
connector.
*1: Except for California
*2: For California
4. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace error-detected parts.
5.CHECK FUEL TANK TEM PERATURE (FTT) SENSOR
Check the FTT sensor. Refer to EC-307, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace “fuel level sensor unit and fuel pump”. Refer to FL-6, "Removal and Installation"
.
Component InspectionINFOID:0000000009462244
1.CHECK FUEL TANK TEMPERATURE (FTT) SENSOR
1. Turn ignition switch OFF.
2. Disconnect fuel level sensor unit and fuel pump harness connector.
3. Remove fuel level sensor unit. Refer to FL-6, "Removal and Installation"
.
+−
Continuity
Fuel level sensor unit and
fuel pump ECM
Connector Terminal Connector Terminal
B42 3 E10
*1
E31*2125 Existed
+
−
Continuity
Fuel level sensor unit and
fuel pump ECM
Connector Terminal Connector Terminal
B42 1 E10
*1
E31*2124 Existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-308
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0182, P0183
FTT SENSOR
4. Check resistance between fuel level sensor unit and fuel pump
terminals by heating with hot water as shown in the figure.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace fuel level sensor unit and fuel pump. Refer to FL-6, "Removal and Installation"
.
Fuel level sensor unit
and fuel pump Condition Resistance (k Ω)
+ −
Te r m i n a l
31 Temperature
[ ° C ( °F)] 20 (68) 2.3 – 2.7
50 (122) 0.79 – 0.90
JMBIA0167ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0196 EOT SENSOREC-309
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
P0196 EOT SENSOR
DTC LogicINFOID:0000000009462245
DTC DETECTION LOGIC
NOTE:
If DTC P0196 is displayed with DTC P0197 or P0198, first perform the trouble diagnosis for DTC P0197 or
P0198. Refer to EC-312, "DTC Logic"
.
DTC CONFIRMATION PROCEDURE
1.INSPECTION START
Is it necessary to erase permanent DTC?
YES >> GO TO 6.
NO >> GO TO 2.
2.PRECONDITIONING
If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce-
dure before conducti ng the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.
>> GO TO 3.
3.PERFORM DTC CONFIRMATION PR OCEDURE FOR MALFUNCTION A-1
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Start engine and let it idle for 5 minutes and 10 seconds.
6. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-311, "Diagnosis Procedure".
NO >> GO TO 4.
4.PERFORM DTC CONFIRMATION PR OCEDURE FOR MALFUNCTION A-2
With CONSULT
1. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
2. Check that “COOLAN TEMP/S” indicates above 80 °C (176 °F).
If it is above 80 °C (176 °F), go to the following steps.
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition Possible cause
P0196 EOT SENSOR
(Engine oil temperature sensor
range/performance) A)
Rationally incorrect voltage from the
sensor is sent to ECM, compared with
the voltage signals from EOT sensor
and intake air temperature sensor. • Harness or connectors
(EOT sensor circuit is open or short-
ed)
• EOT sensor
B) The comparison result of signals trans-
mitted to ECM from each temperature
sensor (IAT sensor, ECT sensor, FTT
sensor, and EOT sensor) shows that the
signal voltage of the EOT sensor is high-
er/lower than that of other temperature
sensors when the engine is started with
its cold state. • Harness or connectors
(High or low resistance in the EOT
sensor circuit)
• EOT sensor
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-310
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0196 EOT SENSOR
If it is below 80
°C (176 °F), warm engine up until “COOLAN TEMP/S” indicates more than 80 °C (176 °F).
Then perform the following steps.
3. Turn ignition switch OFF and soak the vehicle in a cool place.
4. Turn ignition switch ON.
NOTE:
Do not turn ignition sw itch OFF until step 8.
5. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
6. Check the following.
If they are within the specified range, perform the following steps.
If they are out of the specified range, soak the v ehicle to meet the above conditions. Then perform the fol-
lowing steps.
NOTE:
• Do not turn ignition switch OFF.
• If it is supposed to need a long period of time, do not deplete the battery.
7. Start engine and let it idle for 5 minutes.
8. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?
YES >> Proceed to EC-311, "Diagnosis Procedure".
NO >> GO TO 5.
5.PERFORM COMPONENT FUNCTION CHECK (FOR MALFUNCTION B)
Perform component function check. Refer to EC-311, "Component Function Check"
.
NOTE:
Use the component function check to check the overall func tion of the EOT sensor circuit. During this check, a
1st trip DTC might not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Proceed to EC-311, "Diagnosis Procedure"
.
6.PRECONDITIONING
If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce-
dure before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
• Before performing the following procedure, do not add fuel.
• Before performing the followin g procedure, check that fuel level is between 1/4 and 4/4.
• Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.
>> GO TO 7.
7.PERFORM DTC CONFIRMATION PROCEDURE B
1. Move the vehicle to a cool place. NOTE:
Cool the vehicle in an environment of ambient air temperature between −10 °C (14 °F) and 35 °C (95 °F).
2. Turn ignition switch OFF and leave the vehicle for 12 hours. CAUTION:
Never turn ignition switch ON during this procedure.
NOTE:
The vehicle must be cooled with the food open.
3. Start engine and let it idle for 5 minutes or more.
COOLAN TEMP/S Below 40 °C (104 °F)
INT/A TEMP SE Below 40 °C (104 °F)
Difference between “COOLAN TEMP/S ” and “INT/A TEMP SE” Within 6°C (11 °F)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0196 EOT SENSOREC-311
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
CAUTION:
Never turn ignition swit ch OFF during idling.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-311, "Diagnosis Procedure".
NO >> INSPECTION END
Component Function CheckINFOID:0000000009462246
1.CHECK ENGINE OIL TEMPERATURE (EOT) SENSOR
1. Turn ignition switch OFF.
2. Disconnect EOT sensor harness connector.
3. Remove EOT sensor. Refer to EC-21, "Component Parts Location"
.
4. Check resistance between EOT sensor terminals by heating with hot water as shown in the figure.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Proceed to EC-311, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000009462247
1.CHECK ENGINE OIL TEMPERATURE (EOT) SENSOR
Check EOT sensor. Refer to EC-311, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace EOT sensor. Refer to EC-21, "Component Parts Location"
.
Component InspectionINFOID:0000000009462248
1.CHECK ENGINE OIL TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect engine oil temperature sensor harness connector.
3. Remove engine oil temperature sensor.
4. Check resistance between engine oil temperature sensor termi- nals by heating with hot water as shown in the figure.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace engine oil temperature sensor. Refer to EC-21, "Component Parts Location"
.
EOT sensor
Condition Resistance (k Ω)
+ −
Te r m i n a l
1 2 Temperature [
°C
( ° F)] 20 (68) 2.37 – 2.63
50 (122) 0.68 – 1.00
90 (194) 0.236 – 0.260
JMBIA0080ZZ
Engine oil temperature sensor Condition Resistance (k Ω)
+ −
Te r m i n a l
12 Temperature
[ ° C ( °F)] 20 (68) 2.37 - 2.63
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
JMBIA0080ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-312
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0197, P0198 EOT SENSOR
P0197, P0198 EOT SENSOR
DTC LogicINFOID:0000000009462249
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and wait at least 5 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-312, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462250
1.CHECK ENGINE OIL TEMPERAT URE SENSOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect engine oil temperature (EOT) sensor harness connector.
3. Turn ignition switch ON.
4. Check the voltage between EOT sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK ENGINE OIL TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EOT sens or harness connector and ECM harness connector.
DTC No.CONSULT screen terms
(Trouble diagnosis content) DTC Detecting Condit
ion Possible Cause
P0197 EOT SEN/CIRC
(Engine oil temperature
sensor low) An excessively low voltage from the engine
oil temperature sensor is sent to ECM. • Harness or connectors
(EOT sensor circuit is open or shorted.)
• Engine oil temperature sensor
P0198 EOT SEN/CIRC
(Engine oil temperature
sensor high) An excessively high voltage from the engine
oil temperature sensor is sent to ECM.
+
−Vo l ta g e
(Approx.)
EOT sensor
Connector Terminal F68 1 Ground 5 V
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0197, P0198 EOT SENSOREC-313
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
*1: Except for California
*2: For California
4. Also check harness for short to ground.
Is the inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts.
3.CHECK EOT SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EOT sensor harness connector and ECM harness connector.
*1: Except for California
*2: For California
4. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace error-detected parts.
4.CHECK ENGINE OIL TEMPERATURE SENSOR
Check the engine oil temperature sensor. Refer to EC-311, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace engine oil temperature sensor. Refer to EC-21, "Component Parts Location"
.
Component InspectionINFOID:0000000009462251
1.CHECK ENGINE OIL TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect engine oil temperature sensor harness connector.
3. Remove engine oil temperature sensor.
4. Check resistance between engine oil temperature sensor termi-
nals by heating with hot water as shown in the figure.
+ −
Continuity
EOT sensor ECM
Connector Terminal Connector Terminal
F68 1 F14
*1
F91*225 Existed
+
−
Continuity
EOT sensor ECM
Connector Terminal Connector Terminal
F68 2 F14
*1
F91*226 Existed
Engine oil temperature
sensor Condition Resistance (k Ω)
+ −
Te r m i n a l
12 Temperature
[ ° C ( °F)] 20 (68) 2.37 - 2.63
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
JMBIA0080ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-314
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0197, P0198 EOT SENSOR
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace engine oil temperature sensor. Refer to EC-21, "Component Parts Location"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
