2014 MITSUBISHI OUTLANDER Owners Manual

Important facts to know
in case of an accident
Customer assistance/Reporting Safety Defects 10-5
10
As a consumer requesting repair on your vehicle, you have cons
umer rights. Across the
country, State Insuranc
e Commissioners have
begun considering rules on the use of non- OEM parts. This could
mean that repair shops
will have to disclose to the consumer, when they intend to use non-OEM parts. Since reg- ulations are not cons
istent on this point,
remember you have a choice. So, if you want genuine Mitsubishi Mo
tors parts, you may
have to specifically re
quest them. Make cer-
tain your insurance company understands imitations are not to be
used in the repair of
your vehicle. You deserve the best genuine Mitsubishi Motors parts. Genuine Mitsubishi Motors parts are built with the high quality and durability standardsyou expect. Genuine Mitsubishi Motors replacements parts are your guarantee that your vehicle will have
all the technological
advantages and maintain the style and protec- tion of a brand new Mitsubishi Motors.
Remember to ask for genuine Mitsubishi Motors parts.
Consumer rights (For vehicles sold in U.S.A.) Genuine Mitsubishi Motors parts
BK0200500US.book 5 ページ ２０１３年２月１２日　火曜日　午前９時４６分

BK0200500US.book 6 ページ ２０１３年２月１２日　火曜日　午前９時４６分

11
SpecificationsVehicle labeling .............................................................................. 11-2 Vehicle dimensions ......................................................................... 11-4 Vehicle weights ............................................................................... 11-5Engine specifications ...................................................................... 11-6 Battery............................................................................................. 11-6 Tires and wheels ............................................................................. 11-7Capacity .......................................................................................... 11-7
BK0200500US.book 1 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Vehicle labeling 11-2 Specifications
11
N01147401749
Keep a record of the chassis number and vehicle identification
number. Such informa-
tion will assist police if
your vehicle is stolen.
1 - Vehicle emission control information labelThe vehicle emission control information label is affixed on the underside of the engine hood. 2 - Vehicle identification number plate The vehicle identification number is stamped on the plate riveted to the left front corner of the dashboard. It is visible from outside of thevehicle through the windshield. 3 - Air conditioning label
The air conditioning label is affixed on the inside panel of the engine hood. 4 - Vehicle information code plate The vehicle information code plate is locatedon the front passenger door sill.
The chassis number is stamped on the bulk- head as shown in the illustration.
Vehicle labeling
Chassis number
BK0200500US.book 2 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Vehicle labeling
Specifications 11-3
11

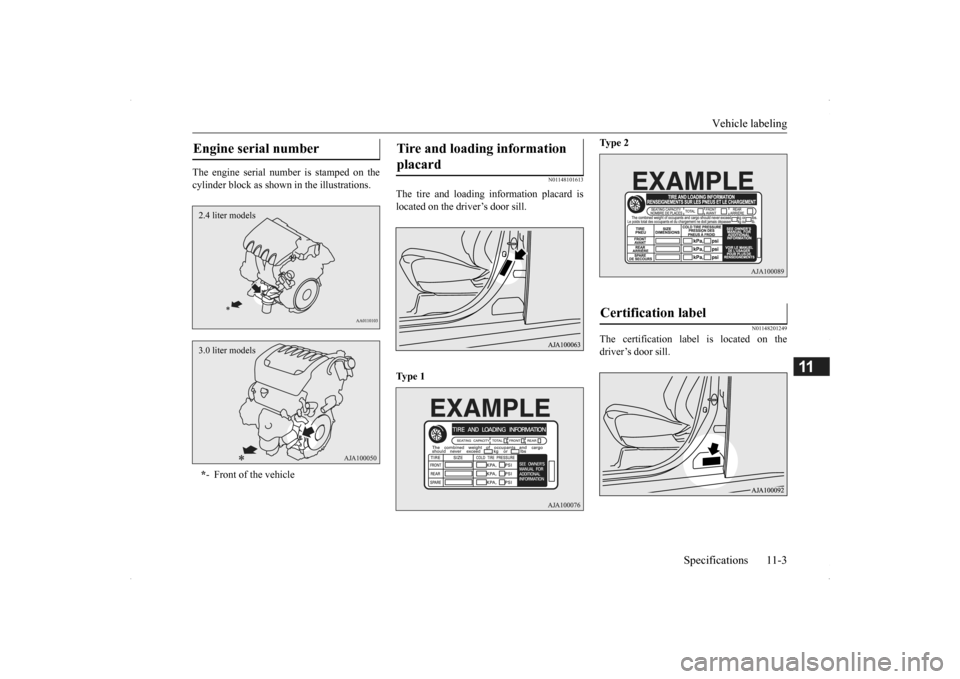

The engine serial num
ber is stamped on the
cylinder block as shown
in the illustrations.
N01148101613
The tire and loading information placard is located on the driver’s door sill. Ty p e 1
Ty p e 2
N01148201249
The certification label is located on the driver’s door sill.
Engine serial number * - Front of the vehicle2.4 liter models3.0 liter models
Tire and loading information placard
Certification label
BK0200500US.book 3 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Vehicle dimensions 11-4 Specifications
11
N01147501548
Vehicle dimensions Overall length
183.3 in (4,655 mm)
Overall width
70.9 in (1,800 mm)
Overall height
Without roof rails
66.1 in (1,680 mm)
With roof rails
Wheel base
105.1 in (2,670 mm)
BK0200500US.book 4 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Vehicle weights
Specifications 11-5
11
N01147601914
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit specified for the front or rear axle Seating capacity: the maxi
mum number of occupants
Vehicle weights
Item
2.4 liter models
3.0 liter models
Seating capacity
5 persons
7 persons
7 persons
Gross vehicle weight
rating 4,795 lb (2,175 kg) 5,005 lb (2,270 kg)
Gross axle weight rating
Front 2,535 lb (1,150 kg)Rear 2,756 lb (1,250 kg)
Total trailer weight
With brake 1,500 lb (680 kg) 3,500 lb (1,588 kg)Without brake 1,250 lb (567 kg) 1,400 lb (635 kg)
Vehicle capacity weight 827 lb (375 kg) 1,157 lb (525 kg)Maximum roof load 110 lb (50 kg)
NOTE
Roof load is important becaus
e it affects the vehicle capacity weight. Refe
r to “Loading cargo on the roof” on page 6-10.
BK0200500US.book 5 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Engine specifications 11-6 Specifications
11
N01147701511 N01147801293
Battery is a 12 volt type.Engine specifications
Item
2.4 liter models
3.0 liter models
Engine model 4J12 6B31Engine displacement 144.0 CID (2
,360 cm³) 182.9 CID (2,998 cm³)
No. of cylinders and cylinder arrangement Inline-4 60° V-6Bore 3.46 in (88.0 mm) 3.45 in (87.6 mm)Stroke 3.82 in (97.0 mm) 3.26 in (82.9 mm)Compression ratio 10.5Thermostat valve opening temperature 188.6 °F (87.0 °C) 179.6 °F (82.0 °C)Spark plugs
NGK DILKR6D11G DILKR7C11
Spark plug gap .040 to .043 in (1.0 to 1.1 mm) .040 to .043 in (1.0 to 1.1 mm)Firing order 1-3-4-2 1-2-3-4-5-6Battery
2.4 litter models 75D23L3.0 litter models 80D26L
