Replacement of light bulbs
Vehicle care and maintenance 9-33
9
N00901801131
1. When replacing the bulb on the left side of the vehicle, remo
ve the bolt (A) hold-
ing down the relay box and move the relay box toward the rear of the vehicle. (if so equipped)
2. Turn the cap (B) counterclockwise to remove it. 3. Turn the socket (C) counterclockwise to remove it, and then pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
N00900301139
Do not attempt to disass
emble or repair head-
lights, and do not attempt to replace their bulbs.
Headlights (low beam, except for vehicles equipped with high intensity discharge head- lights)/Daytime running lights

(if so equipped) * - Front of the vehicle
*- Front of the vehicle
Headlights (low beam, for vehi- cles equipped with high inten-sity discharge headlights)
WA R N I N G A high voltage is present in the power cir- cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con-tact an authorized
Mitsubishi Motors
dealer whenever repair or replacement is necessary.
BK0200500US.book 33 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Replacement of light bulbs 9-34 Vehicle care and maintenance
9
N00901901099
1. Turn the cap (A) counterclockwise to remove it. 2. Turn the bulb (B) counterclockwise to remove it and then while holding downthe tab (C), pull out the connector (D).
3. To install the bulb, perform the removal steps in reverse.
N00943201359
The alignment of the headlights should bechecked by an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice.
N00915501171
1. When replacing the bulb on the left side of the vehicle, move
the relay box toward
the rear of the vehicle. (if so equipped)(Refer to “Headlight (low beam, except for vehicles equipped
with high intensity
discharge headlight
s)/Daytime running
light): Step 1” on page 9-33.
2. Turn the socket (A) counterclockwise to remove it, and then pull the bulb out ofthe socket. 3. To install the bulb, perform the removal steps in reverse.
Headlights (high beam) * - Front of the vehicle * - Front of the vehicle
Headlight aim adjustment Front side-marker lights
* - Front of the vehicle
BK0200500US.book 34 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
N00917301577
When replacing the bulb on the left side of the vehicle, move the relay box toward the rear of the vehicle. (if so equipped)(Refer to “Headlight
(low beam, except for
vehicles equipped with
high intensity dis-
charge headlights)/Daytime running light):Step 1” on page 9-33.) 1. Turn the cap (A) counterclockwise to remove it.
2. Pull out the socket (B), and then pull the bulb out of the socket. 3. To install the bulb, perform the removal steps in reverse.
1. Turn the socket (A
) counterclockwise to
remove it, and then pull the bulb out ofthe socket. 2. To install the bulb, perform the removal steps in reverse.
Parking lights Except for vehicles equipped with high intensity discharge headlights *: Front of the vehicle
Vehicles equipped with high inten-sity discharge headlights *: Front of the vehicle
BK0200500US.book 35 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Replacement of light bulbs 9-36 Vehicle care and maintenance
9
N00943401380
1. Turn the socket (A) counterclockwise to remove it, then remove the bulb from the socket by turning it counterclockwisewhile pressing in. 2. To install the bulb, perform the removal steps in reverse.
N00943501147 N00943601773
1. Insert a straight blade (or minus) screw- driver with a cloth over its tip at the edge of the cover (A) and pry gently to removethe cover.
2. Remove the 3 screws (B) and remove the light unit.
Front turn signal lights * : Front of the vehicle
Side turn signal lights
(if so
equipped)
NOTE
 The side turn signal lights uses an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choicewhen the light needs to be repaired or replaced.
Front fog lights (if so equipped)/Daytime running lights (if so equipped)
NOTE
 When unfastening the screws or the fog light, be careful not to
move the beam posi-
tion adjustment screw (C).
BK0200500US.book 36 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Replacement of light bulbs
Vehicle care and maintenance 9-37
9
3. Turn the socket counterclockwise to remove it.
4. While holding down the tab (F), pull out the bulb (G). 5. To install the bulb, perform the removal steps in reverse.
N00943701501
1. Open the liftgate.2. Remove the screws (A), and then move the light unit toward the rear of the vehi-cle to unfix the notch (B) and pins (C).
3. Turn the socket counterclockwise and remove it, and then remove the bulb fromthe socket by turning it counterclockwise while pressing in. 4. To install the bulb, perform the removal steps in reverse.
D- Front fog light E- Daytime running lightType 1 Type 2 Type 3
Rear combination lights Front fog light Daytime running light
D- Tail and stop light E- Rear turn signal light
NOTE
 The rear side-marker light uses an LED instead of the bulb. Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired or replaced.
BK0200500US.book 37 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Replacement of light bulbs 9-38 Vehicle care and maintenance
9
N00929101064
1. Push the light unit toward the center of the vehicle body to remove it.
2. Turn the socket (A
) counterclockwise to
remove it, and then pull the bulb out of the socket. 3. To install the bulb, perform the removal steps in reverse.
N00944000360
1. When removing the light unit (A), push ittoward the left side of the vehicle body.
NOTE
 When mounting the light unit, align the notch (F) and pin (G)
on the light unit with
the clip (H) and hole (I) in the body.
Back-up lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.NOTE
 When installing the light unit, first insert the notch (B) into the hole on the body, and then push on the light unit to fit it into place.
License plate lights
BK0200500US.book 38 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Vehicle care precautions
Vehicle care and maintenance 9-39
9

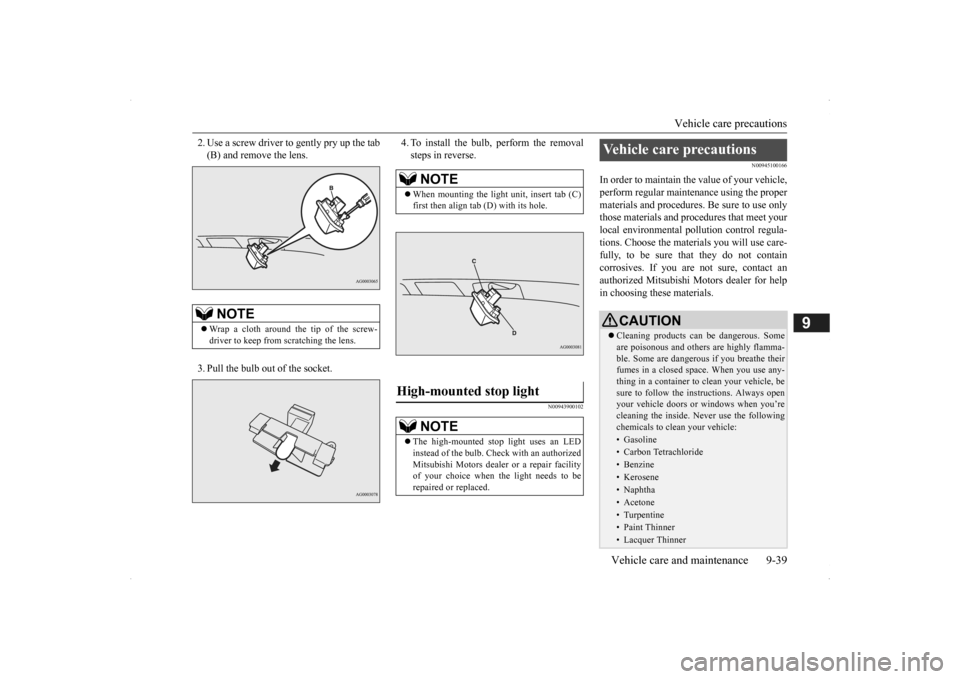

2. Use a screw driver to gently pry up the tab (B) and remove the lens. 3. Pull the bulb out of the socket.
4. To install the bulb, perform the removal steps in reverse.
N00943900102
N00945100166
In order to maintain the value of your vehicle, perform regular mainte
nance using the proper
materials and procedures
. Be sure to use only
those materials and proc
edures that meet your
local environmental pollution control regula- tions. Choose the materials you will use care-fully, to be sure that they do not contain corrosives. If you are
not sure, contact an
authorized Mitsubishi Motors dealer for help in choosing these materials.
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.
NOTE
 When mounting the light unit, insert tab (C) first then align tab (D) with its hole.
High-mounted stop light
NOTE
 The high-mounted stop light uses an LED instead of the bulb. Check with an authorizedMitsubishi Motors dealer
or a repair facility
of your choice when the light needs to be repaired or replaced.
Vehicle care precautions
CAUTION Cleaning products ca
n be dangerous. Some
are poisonous and others are highly flamma-ble. Some are dangerous if you breathe their fumes in a closed space. When you use any- thing in a container to clean your vehicle, besure to follow the instructions. Always open your vehicle doors or windows when you’re cleaning the inside. Ne
ver use the following
chemicals to clean your vehicle:• Gasoline• Carbon Tetrachloride• Benzine• Kerosene• Naphtha• Acetone• Turpentine• Paint Thinner• Lacquer Thinner
BK0200500US.book 39 ページ ２０１３年２月１２日　火曜日　午前９時４６分

Cleaning the inside of your vehicle 9-40 Vehicle care and maintenance
9
These can all be dangerous, and they all can damage your vehicle.
N00945200095
After washing the inside of your vehicle withany cleaner, wipe it dry in a shady, well venti- lated area.
N00945300155
1. Lightly wipe these off with a soft clothsoaked in a 3% solution of gentle soapand water. 2. To rinse, dip the cloth in fresh water, wring it out well, and wipe off all thesoap.
N00945500128
1. To maintain the value of your new vehi- cle, maintain the upholstery carefully and keep the interior clean.Use a vacuum cleaner
and brush to clean
the seats. If stained,
vinyl and synthetic
leather should be cleaned with an appro-priate cleaner. Cloth fabrics can be cleaned with either upholstery cleaner or a 3% solution of gentle soap in lukewarm water. 2. Clean the carpeting with a vacuumcleaner and remove any stains with carpet cleaner. Oil and grea
se can be removed by
lightly dabbing with
a clean white cloth
and spot remover.
N00945600187
1. To clean, lightly wipe the leather with asoft cloth soaked in a 5% solution of gen- tle soap and water.
• Nail Polish Remover
Cleaning the inside of your vehicle
CAUTION Do not use organic substances (solvents, benzine, kerosene, alc
ohol, gasoline, etc.) or
alkaline or acidic solutions.These chemicals can cause discoloring, staining or cracking of the surface. If you use cleaners or polishing agents, makesure their ingredients do not include the sub- stances mentioned above.NOTE
 Always read the instru
ctions on the cleaner
label.CAUTION
Plastic, vinyl leat
her, fabric and
flocked parts
NOTE
 Do not use cleaners, conditioners, and pro- tectants containing
silicones or wax.
Such products, when applied to the instru- ment panels or other pa
rts, may cause reflec-
tions on the windshield and obscure vision.Also, if such products
get on the switches of
the electrical accessories, it may lead to fail- ure of these accessories.
Upholstery
NOTE
 If fuzzing is difficult to remove from the seat upholstery, draw a suit
able defuzzing brush
over the surface in one direction.
Genuine leather (if so equipped)
BK0200500US.book 40 ページ ２０１３年２月１２日　火曜日　午前９時４６分
