2014 MERCEDES-BENZ M-Class Owner's Manual

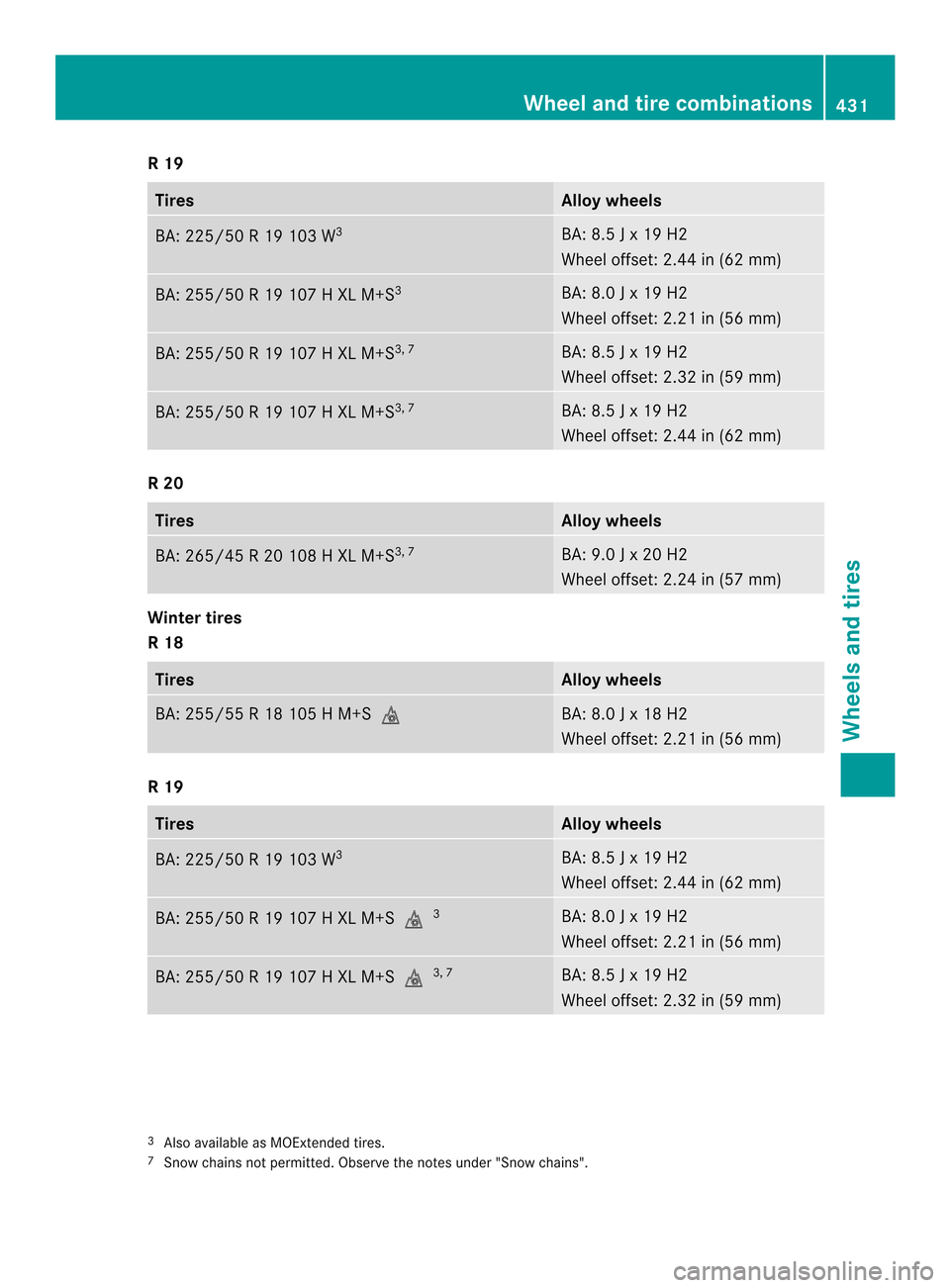

R 19
Tires Allo
ywheels BA: 225/50 R 19 103 W
3 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
3 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
3, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL M+S
3, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R 20
Tires Alloy wheels
BA: 265/45 R 20 108 H XL M+S
3, 7 BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires
R 18
Tires Alloy wheels
BA: 255/55 R 18 105 H M+S
0002 BA: 8.0 J x 18 H2
Wheel offset: 2.21 in (56 mm)
R 19
Tires Alloy wheels
BA: 225/50 R 19 103 W
3 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
00023 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
00023, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
3
Also available as MOExtended tires.
7 Snow chains not permitted. Observe the notes under "Snow chains". Wheel and tire combinations
431Wheels and tires Z

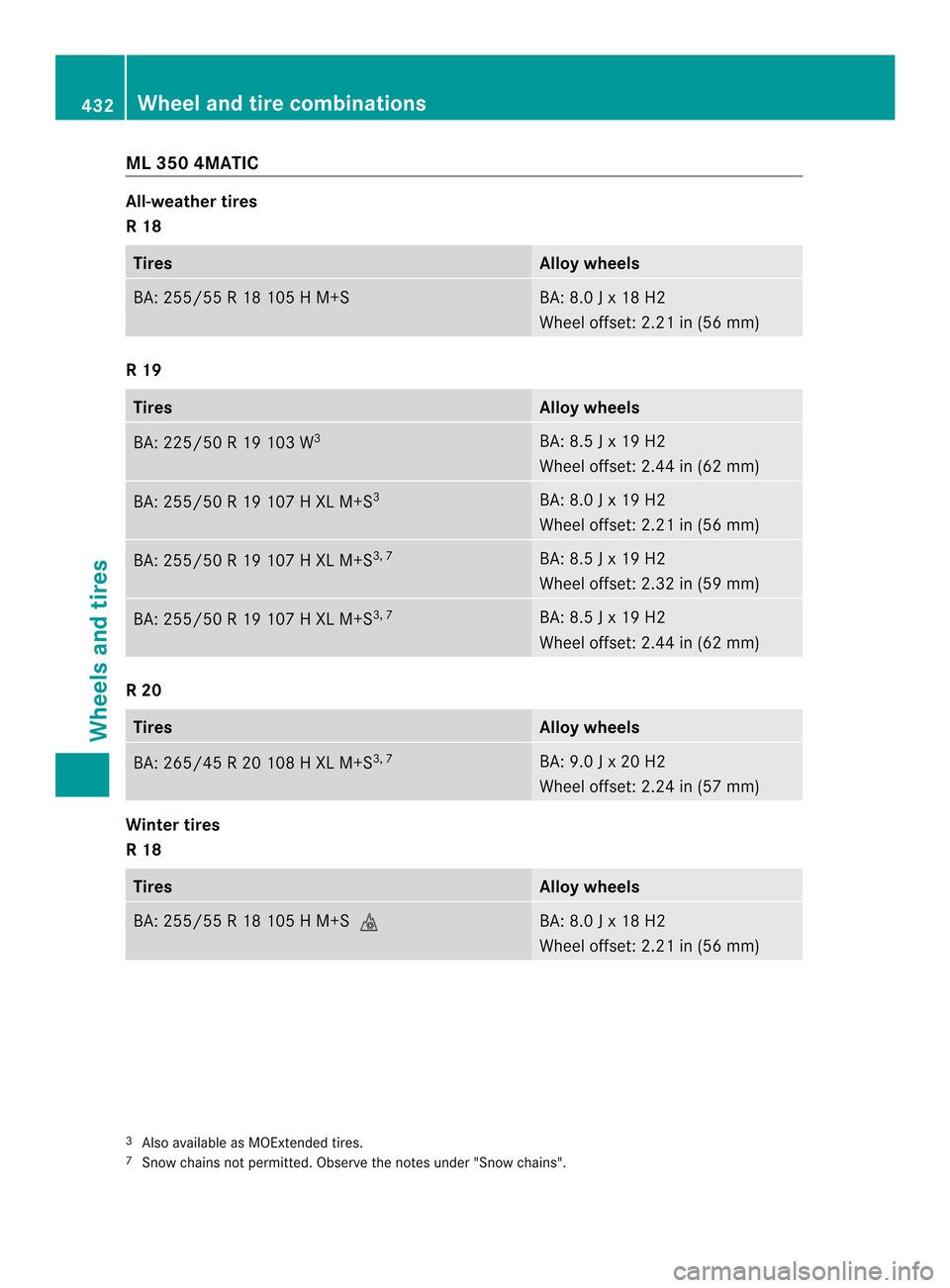

ML 350 4MATIC
All-weather tires
R 18
Tires Alloy wheels
BA: 255/55 R 18 105 H M+S BA: 8.0 J x 18 H2
Wheel offset: 2.21 in (56 mm)
R 19
Tires Alloy wheels
BA: 225/50 R 19 103 W
3 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
3 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
3, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL M+S
3, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R 20
Tires Alloy wheels
BA: 265/45 R 20 108 H XL M+S
3, 7 BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires
R 18
Tires Alloy wheels
BA: 255/55 R 18 105 H M+S
0002 BA: 8.0 J x 18 H2
Wheel offset: 2.21 in (56 mm)
3
Also available as MOExtended tires.
7 Snow chains not permitted. Observe the notes under "Snow chains". 432
Wheel and tire combinationsWheels and tires

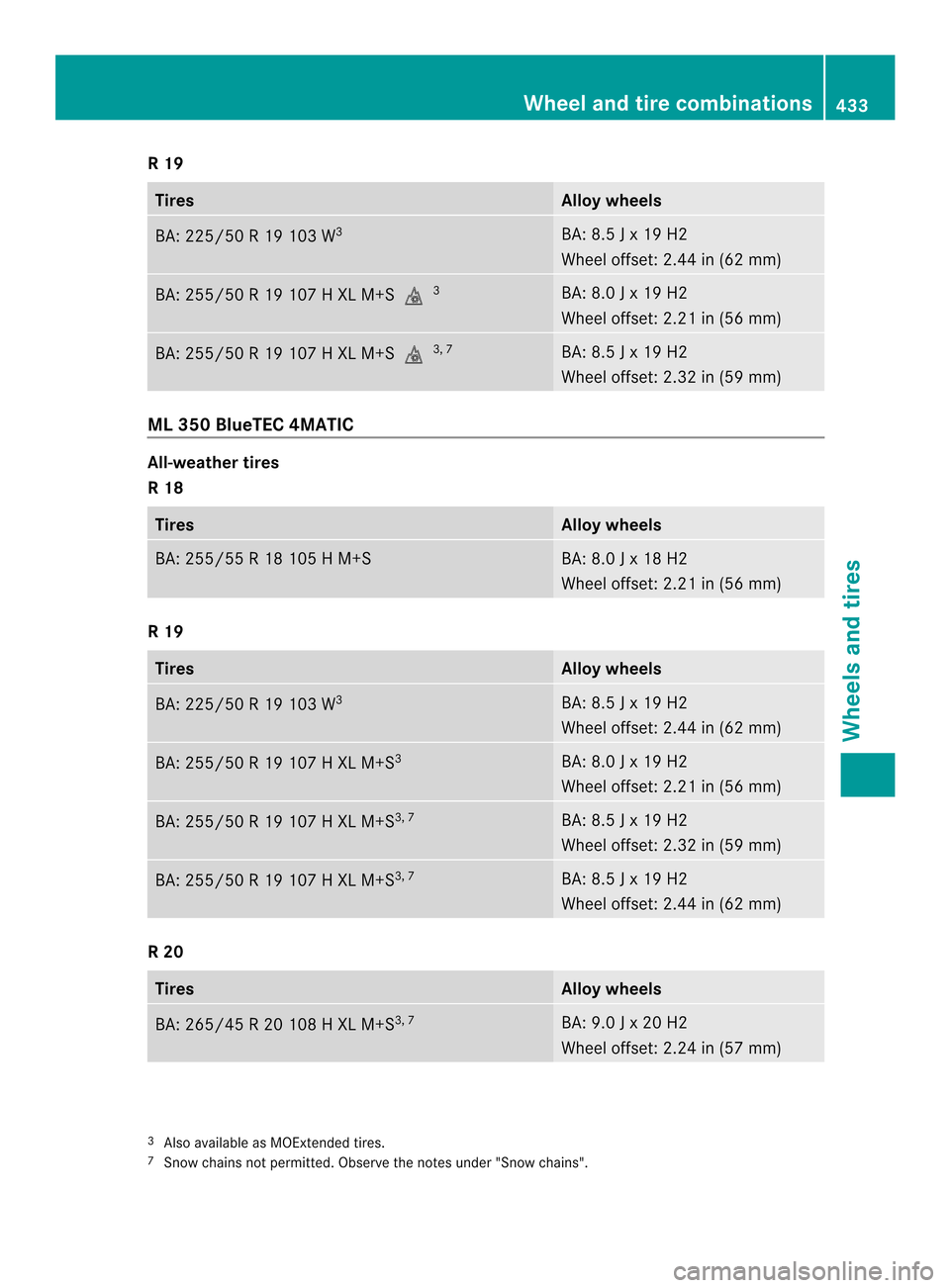

R 19
Tires Allo
ywheels BA: 225/50 R 19 103 W
3 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
00023 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
00023, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
ML 350 BlueTEC 4MATIC
All-weather tires
R 18
Tires Alloy wheels
BA: 255/55 R 18 105 H M+S BA: 8.0 J x 18 H2
Wheel offset: 2.21 in (56 mm)
R 19
Tires Alloy wheels
BA: 225/50 R 19 103 W
3 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
3 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
3, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL M+S
3, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R 20
Tires Alloy wheels
BA: 265/45 R 20 108 H XL M+S
3, 7 BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
3
Also available as MOExtended tires.
7 Snow chains not permitted. Observe the notes under "Snow chains". Wheel and tire combinations
433Wheels and tires Z

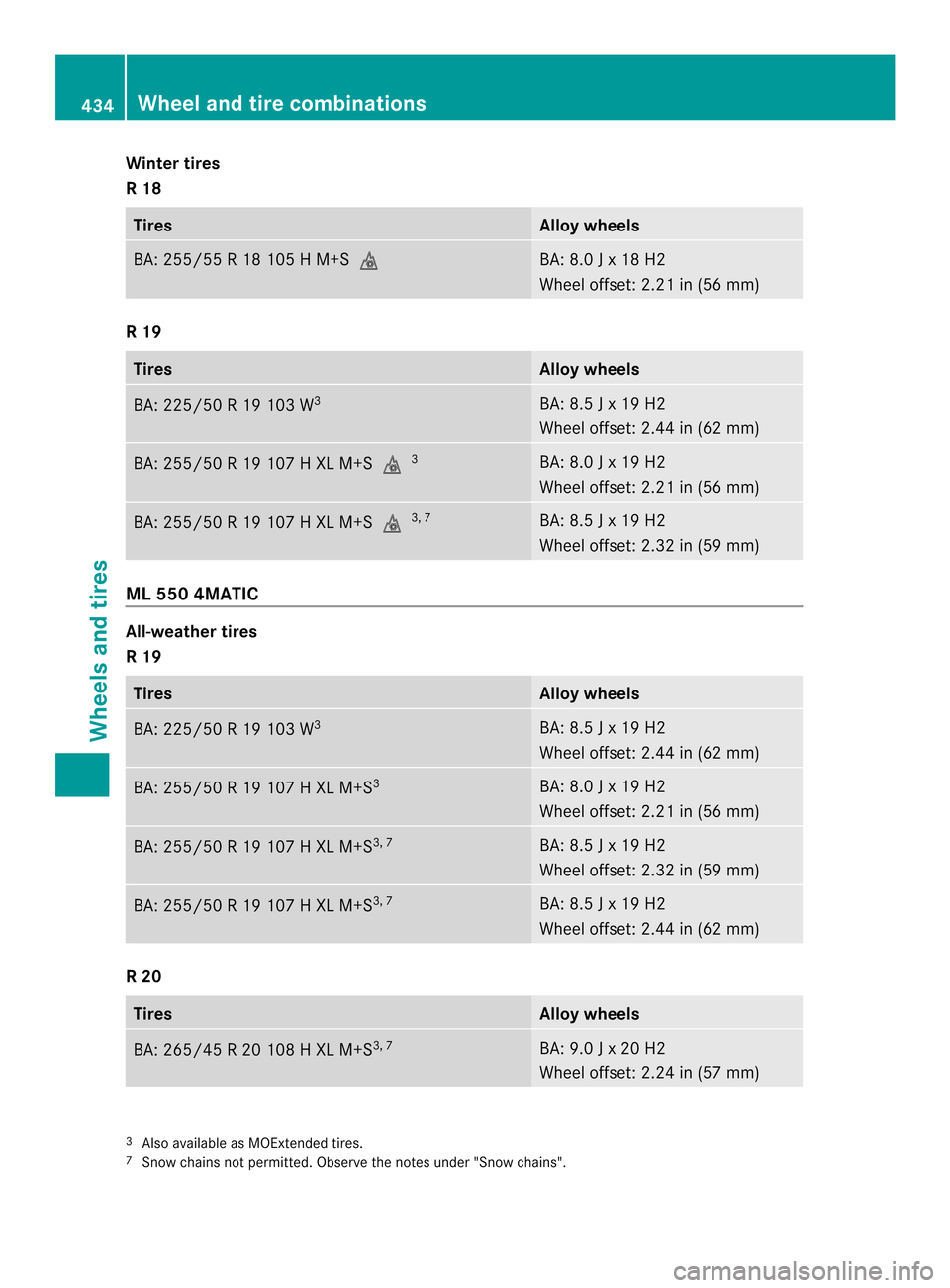

Winter tires
R 18
Tires Alloy wheels
BA: 255/55 R 18 105 H M+S
0002 BA: 8.0 J x 18 H2
Wheel offset: 2.21 in (56 mm)
R 19
Tires Alloy wheels
BA: 225/50 R 19 103 W
3 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
00023 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
00023, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
ML 550 4MATIC
All-weather tires
R 19
Tires Alloy wheels
BA: 225/50 R 19 103 W
3 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
3 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
3, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL M+S
3, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R 20
Tires Alloy wheels
BA: 265/45 R 20 108 H XL M+S
3, 7 BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
3
Also available as MOExtended tires.
7 Snow chains not permitted. Observe the notes under "Snow chains". 434
Wheel and tire combinationsWheels and tires

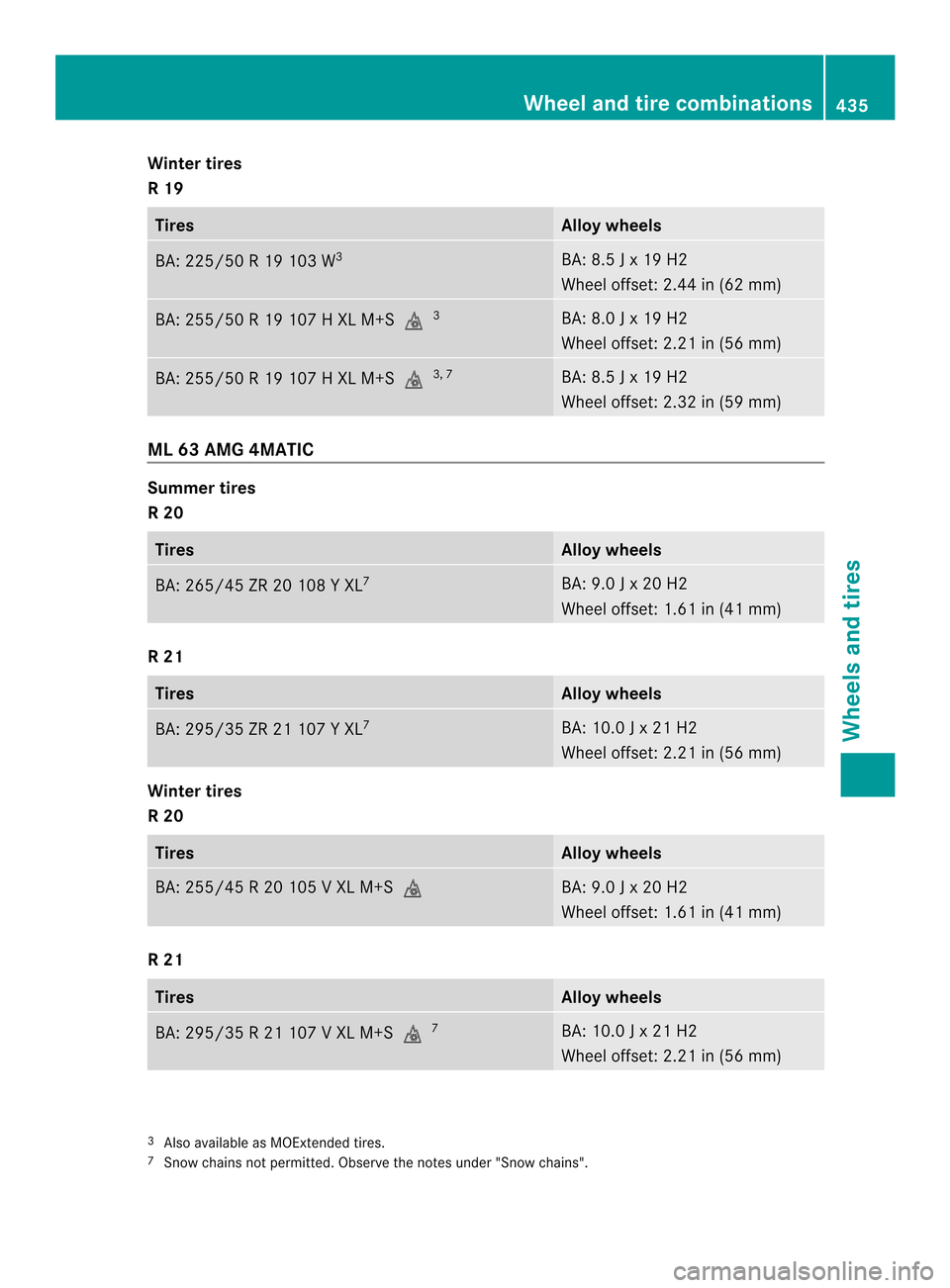

Winter tires
R 19
Tires Alloy wheels
BA: 225/50 R 19 103 W
3 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
00023 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
00023, 7 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
ML 63 AMG 4MATIC
Summer tires
R 20
Tires Alloy wheels
BA: 265/45 ZR 20 108 Y XL
7 BA: 9.0 J x 20 H2
Wheel offset: 1.61 in (41 mm)
R 21
Tires Alloy wheels
BA: 295/35 ZR 21 107 Y XL
7 BA: 10.0 J x 21 H2
Wheel offset: 2.21 in (56 mm)
Winter tires
R 20
Tires Alloy wheels
BA: 255/45 R 20 105 V XL M+S
0002 BA: 9.0 J x 20 H2
Wheel offset: 1.61 in (41 mm)
R 21
Tires Alloy wheels
BA: 295/35 R 21 107 V XL M+S
00027 BA: 10.0 J x 21 H2
Wheel offset: 2.21 in (56 mm)
3
Also available as MOExtended tires.
7 Snow chains not permitted. Observe the notes under "Snow chains". Wheel and tire combinations
435Wheels and tires Z

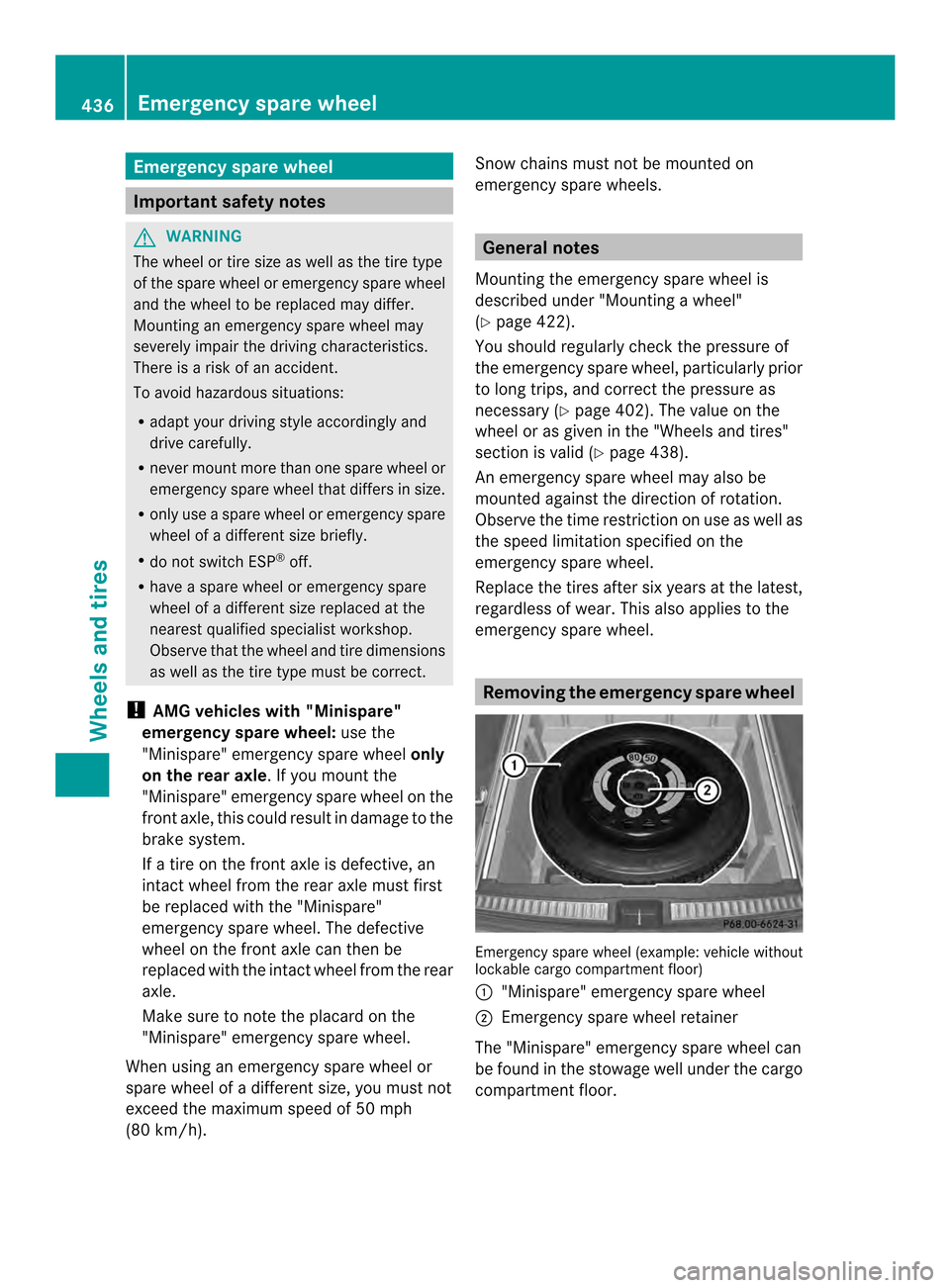

Emergency spare wheel
Important safety notes
G
WARNING
The wheel or tire size as well as the tire type
of the spare wheel or emergency spare wheel
and the wheel to be replaced may differ.
Mounting an emergency spar ewheel may
severely impair the driving characteristics.
There is a risk of an accident.
To avoid hazardous situations:
R adapt your driving style accordingly and
drive carefully.
R never mount more than one spare wheel or
emergency spare wheel that differs in size.
R only use a spare wheel or emergency spare
wheel of a different size briefly.
R do not switch ESP ®
off.
R have a spare wheel or emergency spare
wheel of a different size replaced at the
nearest qualified specialist workshop.
Observe that the wheel and tire dimensions
as well as the tire type must be correct.
! AMG vehicles with "Minispare"
emergency spare wheel: use the
"Minispare" emergency spare wheel only
on the rear axle. If you mount the
"Minispare" emergency spare wheel on the
front axle, this could result in damage to the
brake system.
If a tire on the front axle is defective, an
intact wheel from the rear axle must first
be replaced with the "Minispare"
emergency spare wheel. The defective
wheel on the front axle can then be
replaced with the intact wheel from the rear
axle.
Make sure to note the placard on the
"Minispare" emergency spare wheel.
When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 50 mph
(80 km/h). Snow chains must not be mounted on
emergency spare wheels. General notes
Mounting the emergency spare wheel is
described under "Mounting a wheel"
(Y page 422).
You should regularly check the pressure of
the emergency spare wheel, particularly prior
to long trips, and correct the pressure as
necessary (Y page 402). The value on the
wheel or as given in the "Wheels and tires"
section is valid (Y page 438).
An emergency spare wheel may also be
mounted against the direction of rotation.
Observe the time restriction on use as well as
the speed limitation specified on the
emergency spare wheel.
Replace the tires after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel. Removing the emergency spare wheel
Emergency spare wheel (example: vehicle without
lockable cargo compartmen
tfloor)
0002 "Minispare" emergency spare wheel
0003 Emergency spare wheel retainer
The "Minispare" emergency spare wheel can
be found in the stowage well under the cargo
compartment floor. 436
Emergency spare wheelWheels and tires

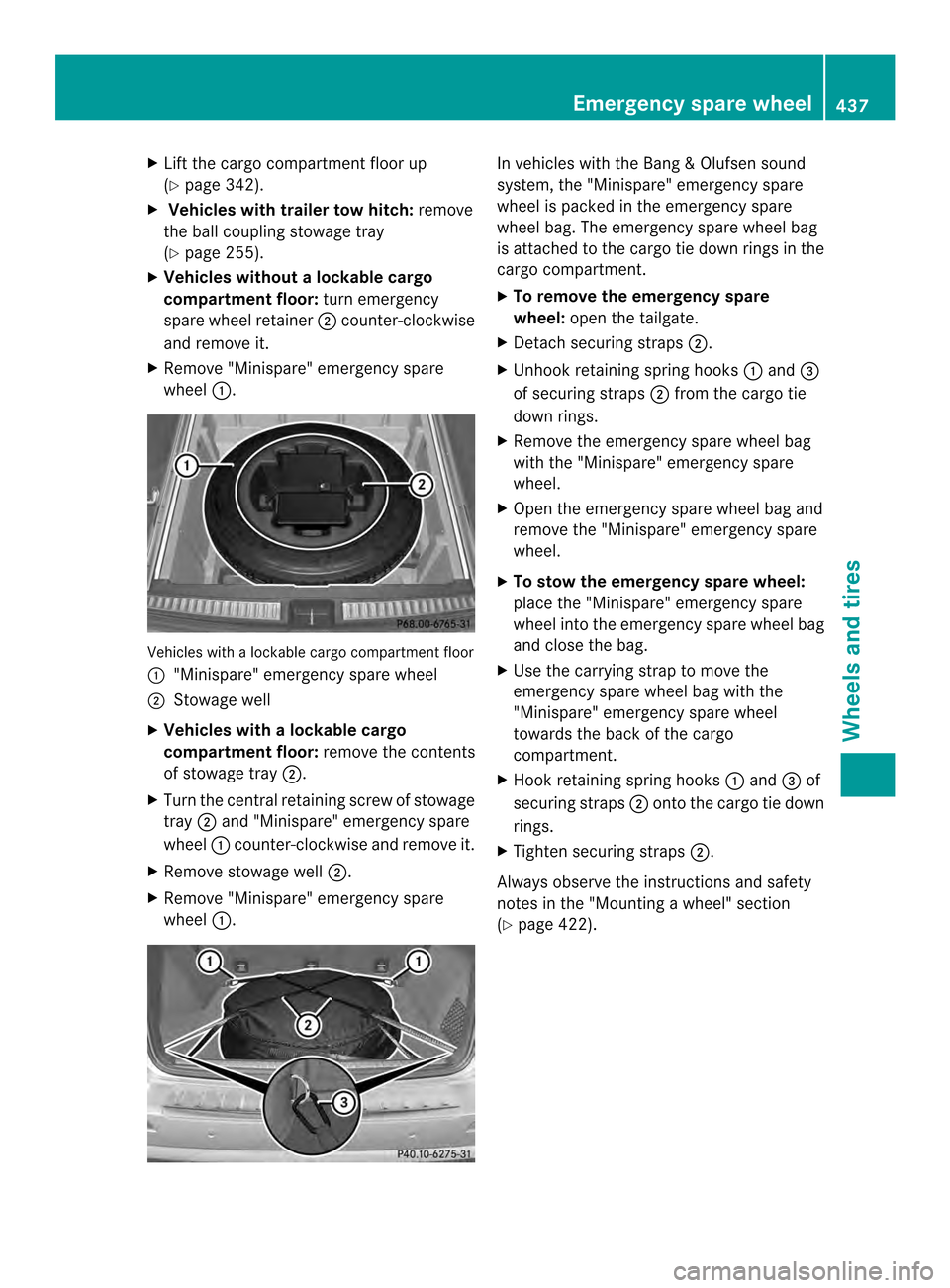

X
Lift the cargo compartment floor up
(Y page 342).
X Vehicles with trailer tow hitch: remove
the ball coupling stowage tray
(Y page 255).
X Vehicles without alockable cargo
compartment floor: turn emergency
spare wheel retainer 0003counter-clockwise
and remove it.
X Remove "Minispare" emergency spare
wheel 0002. Vehicles with a lockable cargo compartmen
tfloor
0002 "Minispare" emergency spare wheel
0003 Stowage well
X Vehicles with alockable cargo
compartment floor: remove the contents
of stowage tray 0003.
X Turn the central retaining screw of stowage
tray 0003and "Minispare" emergency spare
wheel 0002counter-clockwise and remove it.
X Remove stowage well 0003.
X Remove "Minispare" emergency spare
wheel 0002. In vehicles with the Ban
g&Olufsen sound
system, the "Minispare" emergency spare
wheel is packed in the emergency spare
wheel bag. The emergency spare wheel bag
is attached to the carg otie down rings in the
cargo compartment.
X To remove the emergency spare
wheel: open the tailgate.
X Detach securing straps 0003.
X Unhook retaining spring hooks 0002and 0023
of securing straps 0003from the cargo tie
down rings.
X Remove the emergency spare wheel bag
with the "Minispare" emergency spare
wheel.
X Open the emergency spare wheel bag and
remove the "Minispare" emergency spare
wheel.
X To stow the emergency spare wheel:
place the "Minispare" emergency spare
wheel into the emergency spare wheel bag
and close the bag.
X Use the carrying strap to move the
emergency spare wheel bag with the
"Minispare" emergency spare wheel
towards the back of the cargo
compartment.
X Hook retaining spring hooks 0002and 0023of
securing straps 0003onto the cargo tie down
rings.
X Tighten securing straps 0003.
Always observe the instructions and safety
notes in the "Mounting awheel" section
(Y page 422). Emergency spare wheel
437Wheels and tires Z

Technical data
ML 250 BlueTEC 4MATIC "Minispare
"emergency spare wheel Tires Allo
ywheels T 155/90 R18 113 M
Tire pressure: 420 kPa (4.2 bar/61 psi) 4.0 B x 18 H2
Wheel offset: 1.58 in (40 mm)
ML 350
"Minispare" emergency spare wheel
Tires Alloy wheels
T 155/90 R18 113 M
Tire pressure: 420 kPa (4.2 bar/61 psi) 4.0 B x 18 H2
Wheel offset: 1.58 in (40 mm)
ML 350 4MATIC
"Minispare" emergency spare wheel
Tires Alloy wheels
T 155/90 R18 113 M
Tire pressure: 420 kPa (4.2 bar/61 psi) 4.0 B x 18 H2
Wheel offset: 1.58 in (40 mm)
ML 350 BlueTEC 4MATIC
"Minispare" emergency spare wheel
Tires Alloy wheels
T 155/90 R18 113 M
Tire pressure: 420 kPa (4.2 bar/61 psi) 4.0 B x 18 H2
Wheel offset: 1.58 in (40 mm)
ML 550 4MATIC
"Minispare" emergency spare wheel
Tires Alloy wheels
T 155/80 R19 114 M
Tire pressure: 420 kPa (4.2 bar/61 psi) 4.5 B x 19 H2
Wheel offset: 1.58 in (40 mm)438
