2014 MERCEDES-BENZ M-Class Owner's Manual

i
Depending on the vehicle's equipment,
there may be open stowage spaces above
and below the stowage compartment. Stowage net
G
WARNING
Vehicles with the Occupant Classification
Syste m(OCS):
If the gross weight of the objects in the
stowage net on the back of the front-
passenger seat is greater than 4.4 lb (2 kg),
OCS cannot correctly assess the occupant's
weight category. The front-passenger front air
bag could deploy without cause, or may fail to
deploy in the event of an accident. This poses
an increased risk of injury or even fatal injury.
Never exceed the permissibleg ross weight of
4.4 lb (2 kg). Stow and secure heavy objects
in the cargo compartment.
Stowage nets are located in the front-
passenger footwell and on the back of the
driver's and the front-passenge rseat.
Observe the loading guidelines (Y page 332)
and the safety notes regarding stowage
spaces (Y page 333). Through-loading facility in the rear
If objects or loads are not secured when being
transported in the through-loading facility,
they could slip or be thrown around and
thereby hit vehicle occupants.
Observe the loading guidelines (Y page 332)
and the safety notes regarding stowage
spaces (Y page 333). The through-loading facility is opened from
the cargo compartment.
X
Release the seat backrests in the second
row of seats and tilt them in the cargo/load
position (Y page 108).
X Fold down the rear seat armrest.
X Pull the center head restraint on the rear
bench seat into the uppermost position
(Y page 106).
X Slide release catch 0002to the left and swing
flap 0003to the left until it is lying on the rear
side of the rear bench seat. X
Push cover 0023forward until it is lying on the
rear seat armrest. Cargo compartment enlargement
Important safety notes G
WARNING
If the rear bench seat/rear seat and seat
backrest are not engaged they could fold Stowage areas
335Stowage and features
Z

forwards, e.g. when braking suddenly or in the
event of an accident.
R
The vehicle occupant would thereby be
pushed into the sea tbelt by the rear bench
seat/rear seat or by the seat backrest. The
seat belt can no longer offer the intended
level of protection and could even cause
injuries.
R Objects or loads in the trunk/cargo
compartment cannot be restrained by the
seat backrest.
There is an increased risk of injury.
Before every trip, make sure that the seat
backrests and the rear bench seat/rear seat
are engaged.
! Fold the seat cushion upwards before
folding the rear bench seat forward.
Otherwise, the backrests may be damaged.
When the backrest is folded forwards, the
fron tseats should not be moved to their
rearmost position .Otherwise, the front
seats and the rea rbench seat could be
damaged.
Observe the loading guidelines (Y page 332).
The left-hand and right-hand rear seat
backrests can be folded forwards separately
to increase the cargo compartment capacity.
Folding the rear bench seat forwards !
The backrest is heavy. Therefore, take
care when folding it down. Make sure that
the head restraints are pushed all the way
in so that the backrests and seat cushions
are not damaged. i
If the driver's or front-passenger seat is
set for a larger person, it may not be
possible to fold the rear bench seat
forwards. In this case, move the fron tseats
as far forward as possible.
X Move the head restraints to the lowest
position (Y page 108).
X Fold seat cushion 0002upwards. X
Pull release handle 0003upwards in the
direction of the arrow until the backrest is
fully released.
X Fold the backrest forwards until it reaches
the cargo compartment position. X
Guide seat belts 0003under respective
clips 0002. 336
Stowage areasStowage and features

Folding the rea
rbench seat back X
Fold seat backrest 0003back until it engages.
Make sure no tto trap the seat belt while
doing so.
X Swing seat cushion 0002back.
X Pull up and adjust the head restraints if
necessary (Y page 108). Securing cargo
Cargo tie-down rings General notes
G
WARNING
The Top Tether anchorages cannot secure a
load. If you secure a load with the Top Tether
anchorages, the Top Tether anchorages could
be pulled out during braking, abrupt changes
in direction or in the event of an accident .The
load could slip, tip over or be flung around and
thereby hit vehicle occupants. There is a risk
of injury.
Only use the cargo tie down rings when
securing a load.
Observe the following notes on securing
loads:
R Secure the load using the cargo tie-down
rings.
R Distribute the load on the cargo tie down
rings evenly.
R Do not use elastic straps or nets to secure
a load, as these are only intended as an
anti-slip protection for light loads. R
Do not route tie-downs across sharp edges
or corners.
R Pad sharp edges for protection.
Cargo compartment There are four cargo tie-down rings
0002in the
cargo compartment.
Before using the cargo tie-down rings on the
front right-hand side of the cargo
compartment, the stowage net must be
pushed down.
Bag hook G
WARNING
The bag hooks cannot restrain heavy objects
or items of luggage. Objects or items of
luggage could be flung around and thereby hit
vehicle occupants when braking or abruptly
changing directions. There is a risk of injury.
Only hang light objects on the bag hooks.
Never hang hard, sharp-edged or fragile
objects on the bag hooks.
! The bag hook can bear a maximum load
of 6.6lbs (3kg) and should not be used to
secure a load. Stowage areas
337Stowage and features Z

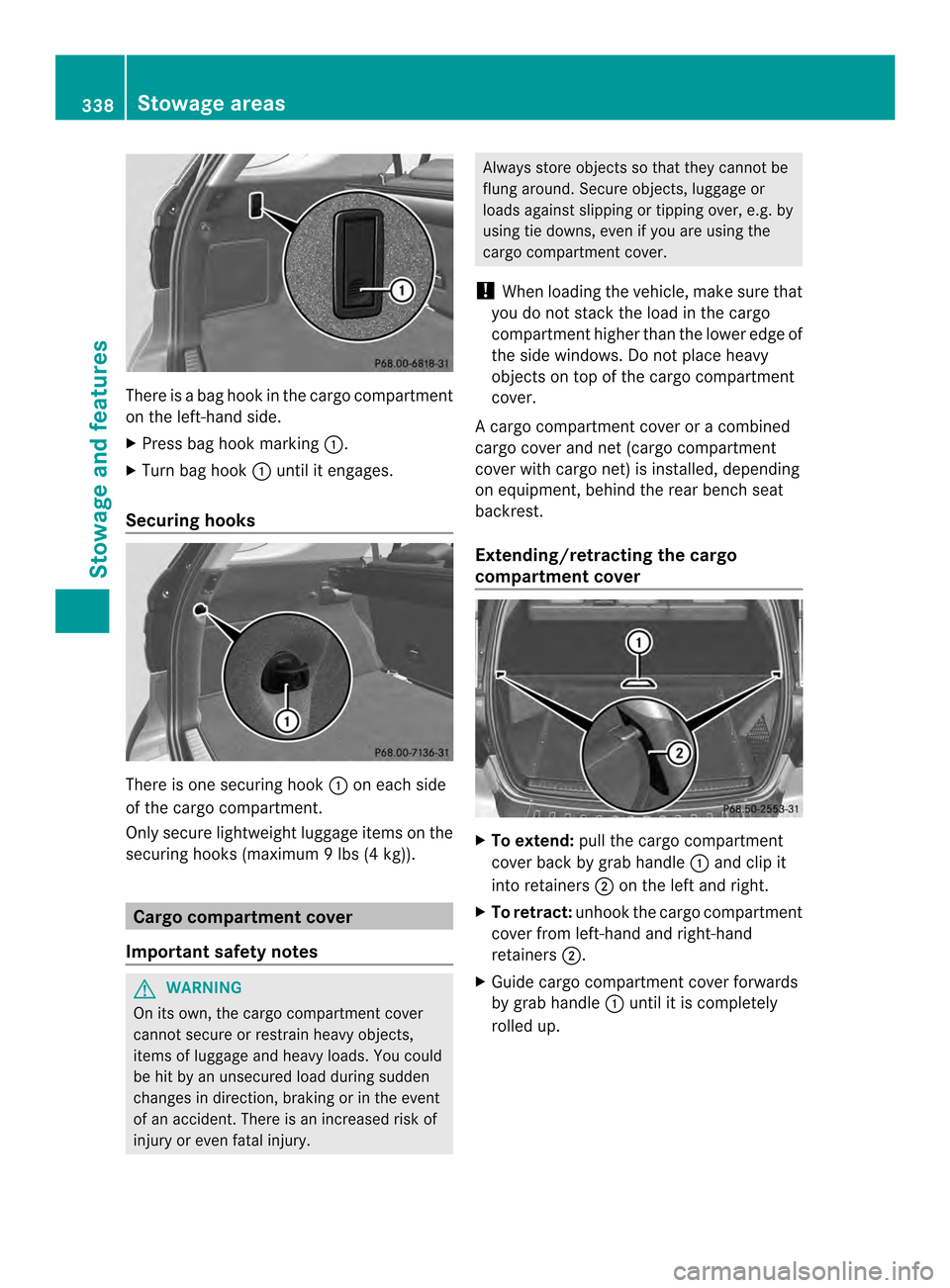

There is a bag hook in the cargo compartment
on the left-hand side.
X
Press bag hook marking 0002.
X Turn bag hook 0002until it engages.
Securing hooks There is one securing hook
0002on each side
of the cargo compartment.
Only secure lightweight luggage items on the
securing hooks (maximum 9lbs (4 kg)). Cargo compartment cover
Important safety notes G
WARNING
On its own, the cargo compartment cover
cannot secure or restrain heavy objects,
items of luggage and heavy loads. You could
be hit by an unsecured load during sudden
changes in direction, braking or in the event
of an accident. There is an increased risk of
injury or even fatal injury. Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping over, e.g. by
using tie downs, even if you are using the
cargo compartment cover.
! When loading the vehicle, make sure that
you do not stac kthe load in the cargo
compartmenth igher than the lower edge of
the side windows .Do not place heavy
objects on top of the cargo compartment
cover.
A cargo compartment cover or a combined
cargo cover and net (cargo compartment
cover with cargo net) is installed, depending
on equipment, behind the rear bench seat
backrest.
Extending/retracting the cargo
compartment cover X
To extend: pull the cargo compartment
cover back by grab handle 0002and clip it
into retainers 0003on the left and right.
X To retract: unhook the cargo compartment
cover from left-hand and right-hand
retainers 0003.
X Guide cargo compartment cover forwards
by grab handle 0002until it is completely
rolled up. 338
Stowage areasStowage and features

Removing/installing the cargo
compartment cove
r(withou tintegrated
cargo net) X
To remove: make sure that cargo
compartment cover 0002is rolled up.
X Push end cap 0023of cargo compartment
cover 0002in the direction of the arrow on
the right or left-hand side.
X Push cargo compartment cover 0002into
opposite anchorage 0003.
X Remove cargo compartment cover 0002.
X To install: if installed, remove the
protective caps from the side panels of the
seat row in which the cargo compartment
cover is to be installed. Use a suitable
objec there, e.g. a coin.
X Install the protective caps to the side
panels of the other seat row.
X Place cargo compartment cover 0002into
anchorage 0003on the right or left-hand side.
X Push in opposite end cap 0023of cargo
compartment cover 0002in the direction of
the arrow and insert cargo compartment
cover 0002into opposite anchorage 0003.Removing/installing the combined
cargo cover and net (cargo
compartment cover with integrated
cargo net) You can install and remove the combined
cargo cover and net from the cargo
compartment.
X
Make sure that the cargo net and the cargo
compartment cover are rolled up.
X To remove: press button 0003.
X Swing the combined cargo cover and net in
the direction of the arrow.
X First, detach the combined cargo cover and
net from left-hand catch 0002and then
remove it from right-hand fixture 0023.
X To install: push the combined cargo cover
and net up to the stop into right-hand
fixture 0023.
X Place the combined cargo cover and net
into the left-hand fixture and push it into
catch 0002until the combined cargo cover
and net engages audibly. Stowage areas
339Stowage and features Z

X

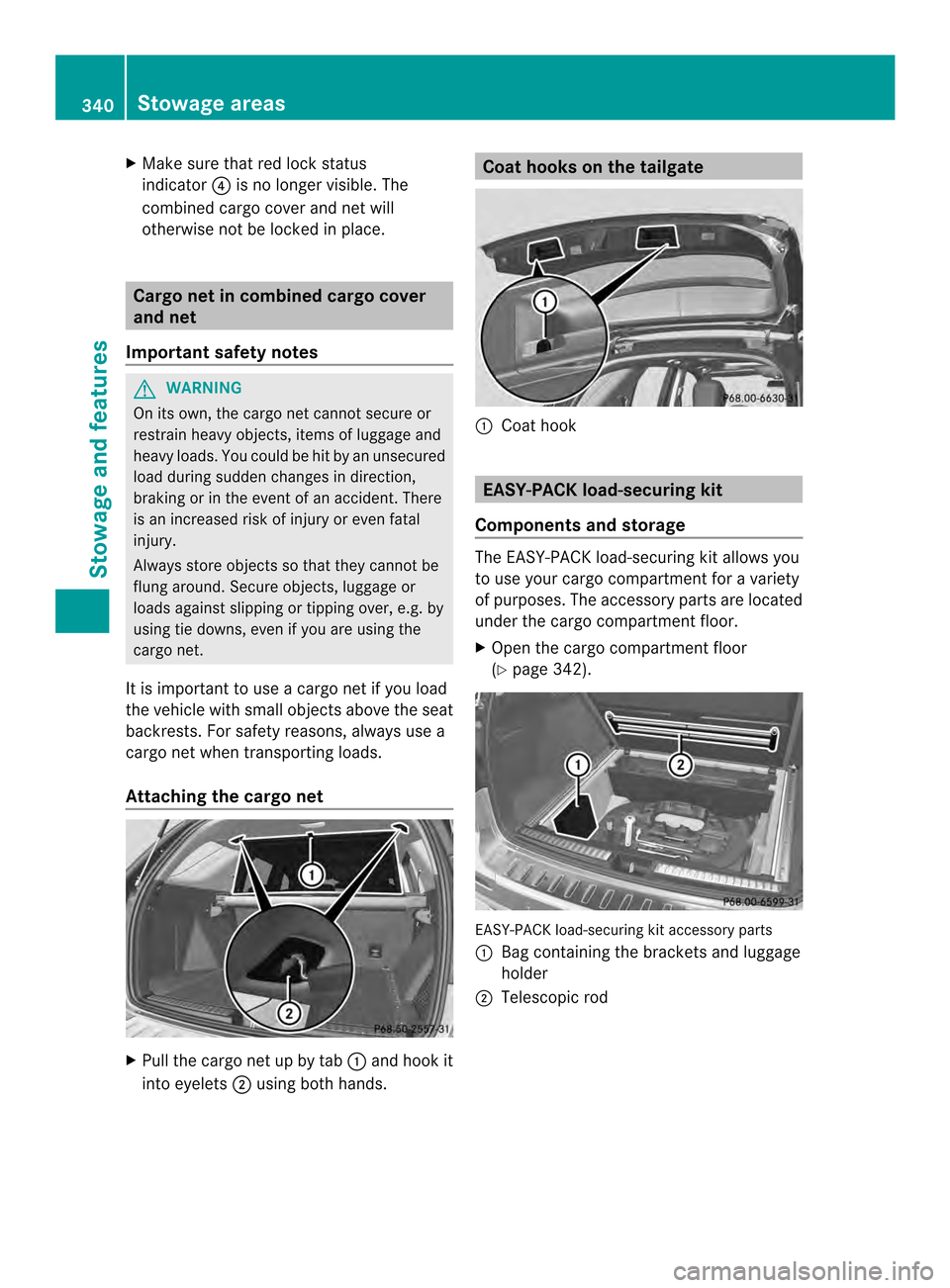

Make sure that red lock status
indicator 0022is no longer visible. The
combined cargo cover and net will
otherwise not be locked in place. Cargo net in combined cargo cover
and net
Important safety notes G
WARNING
On its own, the cargo net cannot secure or
restrain heavy objects, items of luggage and
heavy loads. You could be hit by an unsecured
load during sudden changes in direction,
braking or in the event of an accident. There
is an increased risk of injury or even fatal
injury.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping over, e.g. by
using tie downs, even if you are using the
cargo net.
It is important to use a cargo net if you load
the vehicle with small objects above the seat
backrests.F or safety reasons, always use a
cargo net when transporting loads.
Attaching the cargo net X
Pull the cargo net up by tab 0002and hook it
into eyelets 0003using both hands. Coat hooks on the tailgate
0002
Coat hook EASY-PACK load-securing kit
Components and storage The EASY-PACK load-securing kit allows you
to use your cargo compartment for a variety
of purposes. The accessory parts are located
under the cargo compartment floor.
X
Open the cargo compartment floor
(Y page 342). EASY-PACK load-securing kit accessory parts
0002
Bag containing the brackets and luggage
holder
0003 Telescopic rod 340
Stowage areasStowage and features

Inserting the brackets int
othe loading
rail X
Insert bracket 0002into the center of loading
rail 0022.
X Press release button 0003and push
bracket 0002into the desired position in
loading rail 0022.
X Let go of release button 0003.
X Press locking button 0023.
Bracket 0002is locked in loading rail 0022.
X If necessary, fold cargo tie-dow nring 0020
upwards.
Luggage holder !
Only use the luggage holder to secure
cargo with a maximum weight of 15.4 lbs
(7 kg) and with dimensions that the luggage
holder can safely and securely contain. The luggage holder can be used to secure
light loads against the side wall of the cargo
compartment to prevent them from moving
around. X
To install: insert two brackets 0020into the
left or right loading rail (Y page 340).
X Press release button 0002of the luggage
holder and pull the strap out slightly.
X Insert luggage holder 0003into brackets 0020
and, while doing so, press release button
0023 and push the luggage holder downwards
until it engages.
X Press release button 0002of the luggage
holder and pull the strap out in the direction
of the arrow.
X Place the load between the strap and the
cargo compartmen tside wall.
X Using one hand, press locking button 0002of
the luggage holder.
X With your other hand, let the strap go slowly
until the load is secured.
X Make sure that locking button 0022on
brackets 0020is pressed.
This keeps brackets 0020in place on the
loading rail.
X To remove: press release button 0023on
respective bracket 0020and remove luggage
holder 0003by pulling upwards and out.
Telescopic rod The telescopic rod can be used to secure the
load against the rear seats to prevent it from
moving around. Stowage areas
341Stowage and features Z

X
To install: insert one bracket 0003into both
the left and the right loading rails and slide
it to the desired positio n(Ypage 340).
X Insert telescopic rod 0002into brackets 0003
and, while doing so, press release
button 0022and push the rod downwards
until it engages.
X Make sure that locking button 0023on
brackets 0003is pressed.
This keeps brackets 0003in place on the
loading rail.
X To remove: press release button 0022on
respective bracket 0003and remove
telescopic rod 0002by pulling it upwards and
out. Stowage well under the cargo
compartment floor
G
WARNING
If you drive when the cargo compartment floor
is open, objects could be flung around, thus
striking vehicle occupants. There is a risk of
injury, particularly in the event of sudden
braking or a sudden change in direction.
Always close the cargo compartment floor
before a journey. A removable insert under the cargo
compartment floor contains the parts of the
EASY-PACK load-securing kit. The tire-
change tool kit is stored beneath this insert. X
To open: holding the ribbing, press
handle 0002downwards 0003.
Handle 0002folds up.
X Swing the cargo compartment floor
upwards using handle 0002until it rests
against the cargo compartment cover. X
Fold out hook 0023on the underside of the
cargo compartment floor in the direction of
the arrow. X
Attach hook 0023to the cargo
compartment's upper seal 0022.
X To close: detach hook 0023from the cargo
compartment's upper seal 0022.
X Fasten hook 0023to the bracket on the
underside of the cargo compartment floor.
X Fold the trunk floor down.
X Press the cargo compartment floor
down 0003until it engages.
i To remove the cargo compartment floor,
undo the press studs below the cargo
compartment floor. When you re-install the 342
Stowage areasStowage and features
