2014 JEEP GRAND CHEROKEE SRT Owners Manual

Cavity Cartridge Fuse Micro FuseDescription
F40 10 Amp Red Daytime Running Lights
F42 20 Amp Yellow Horn
F44 10 Amp RedDiagnostic Port
F46 10 Amp RedTire Pressure Monitor - If Equipped
F49 10 Amp Red Integrated Central Stack / Climate Control
F50 20 Amp Yellow Air Suspension Control Module - If Equipped
F51 10 Amp Red Ignition Node Module / Keyless Ignition /
Steering Column Lock
F52 5 Amp TanBattery Sensor
F53 20 Amp Yellow Trailer Tow – Left Turn/Stop Lights - If Equipped
F56 15 Amp BlueAdditional Content (Diesel engine only)
F57 15 Amp Blue Transmission
F59 10 Amp RedPurging Pump (Diesel engine only)
F60 15 Amp BlueTransmission Control Module
F62 10 Amp RedAir Conditioning Clutch
7
MAINTAINING YOUR VEHICLE 551

Cavity Cartridge Fuse Micro FuseDescription
F63 20 Amp Yellow Ignition Coils (Gas), Urea Heater (Diesel)
F64 25 Amp NaturalFuel Injectors / Powertrain
F66 10 Amp RedSunroof / Passenger Window Switches /
Rain Sensor
F67 15 Amp Blue CD / DVD / Bluetooth Hands-free Module -
If Equipped
F68 20 Amp YellowRear Wiper Motor
F70 20 Amp Yellow Fuel Pump Motor
F71 30 Amp GreenAudio Amplifier
F73 15 Amp BlueHID Headlamps Right
F74 20 Amp YellowBrake Vacuum Pump - If Equipped
F76 10 Amp Red Antilock Brakes/Electronic Stability Control
F77 10 Amp RedDrivetrain Control Module/Front Axle
Disconnect Module
552 MAINTAINING YOUR VEHICLE

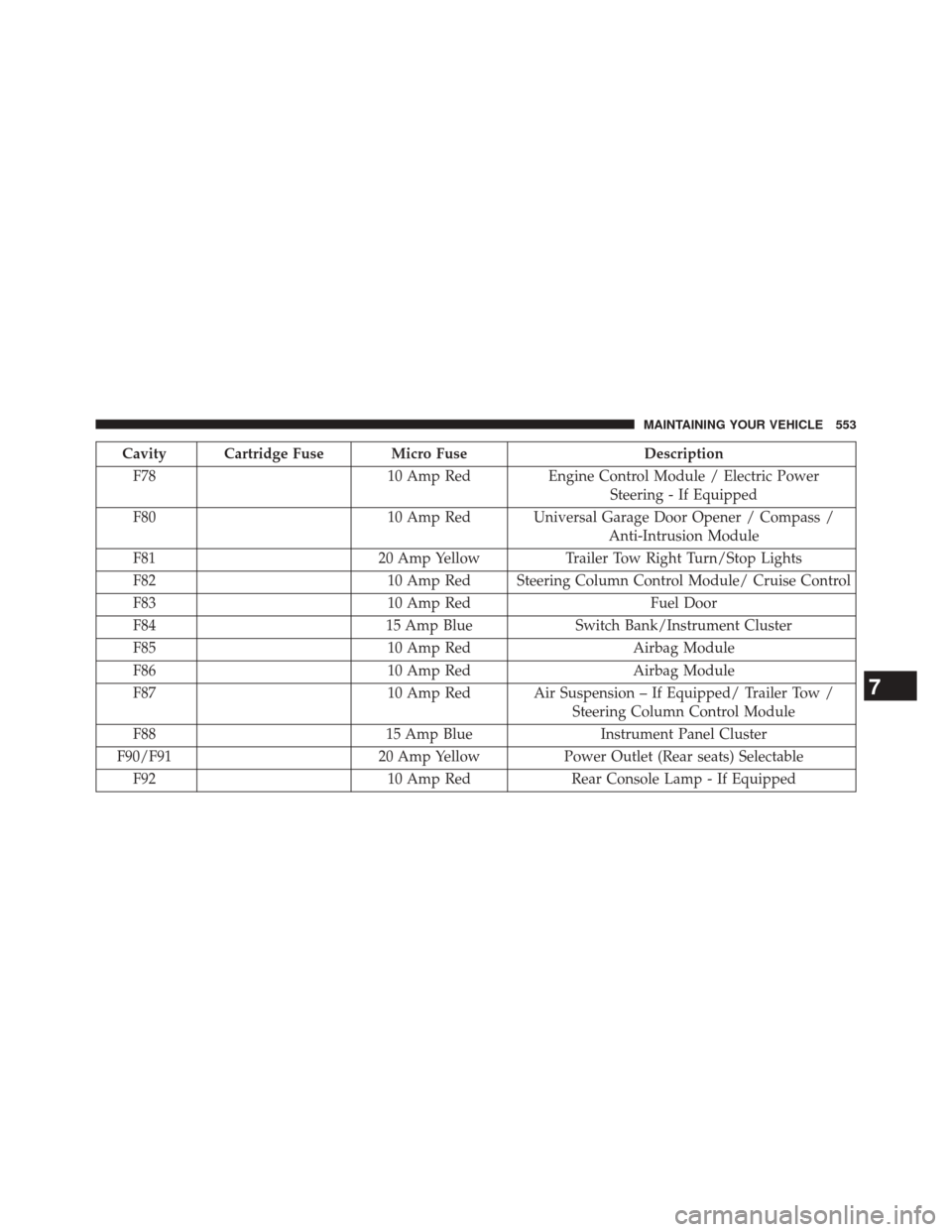

Cavity Cartridge Fuse Micro FuseDescription
F78 10 Amp RedEngine Control Module / Electric Power
Steering - If Equipped
F80 10 Amp Red Universal Garage Door Opener / Compass /
Anti-Intrusion Module
F81 20 Amp YellowTrailer Tow Right Turn/Stop Lights
F82 10 Amp Red Steering Column Control Module/ Cruise Control
F83 10 Amp Red Fuel Door
F84 15 Amp BlueSwitch Bank/Instrument Cluster
F85 10 Amp RedAirbag Module
F86 10 Amp RedAirbag Module
F87 10 Amp Red Air Suspension – If Equipped/ Trailer Tow /
Steering Column Control Module
F88 15 Amp BlueInstrument Panel Cluster
F90/F91 20 Amp YellowPower Outlet (Rear seats) Selectable
F92 10 Amp RedRear Console Lamp - If Equipped
7
MAINTAINING YOUR VEHICLE 553

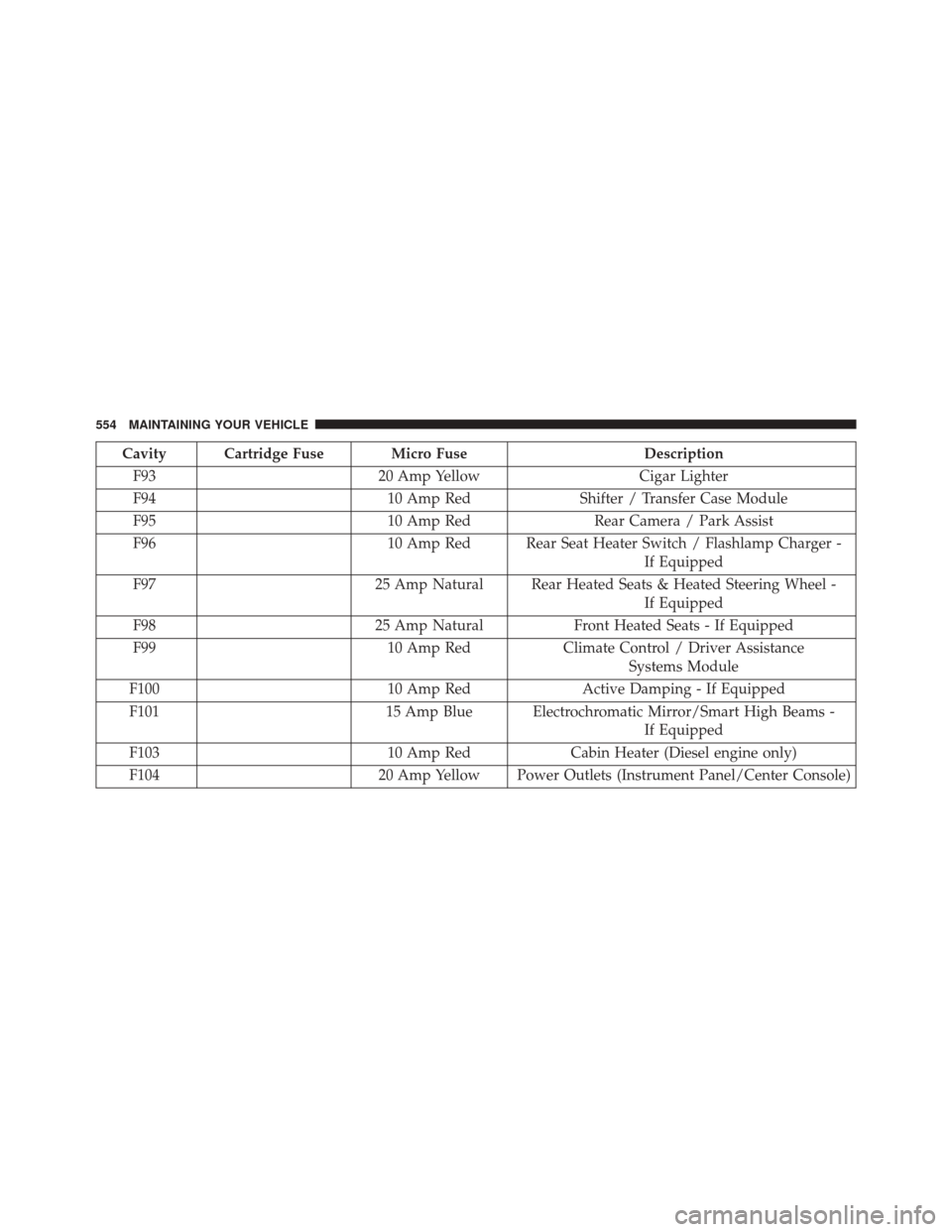

Cavity Cartridge Fuse Micro FuseDescription
F93 20 Amp Yellow Cigar Lighter
F94 10 Amp RedShifter / Transfer Case Module
F95 10 Amp RedRear Camera / Park Assist
F96 10 Amp Red Rear Seat Heater Switch / Flashlamp Charger -
If Equipped
F97 25 Amp Natural Rear Heated Seats & Heated Steering Wheel -
If Equipped
F98 25 Amp NaturalFront Heated Seats - If Equipped
F99 10 Amp RedClimate Control / Driver Assistance
Systems Module
F100 10 Amp RedActive Damping - If Equipped
F101 15 Amp Blue Electrochromatic Mirror/Smart High Beams -
If Equipped
F103 10 Amp RedCabin Heater (Diesel engine only)
F104 20 Amp Yellow Power Outlets (Instrument Panel/Center Console)
554 MAINTAINING YOUR VEHICLE

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days you may want to take steps to protect your
battery. You may:
• Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
7
MAINTAINING YOUR VEHICLE 555

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Glove Box Lamp 194
Grab Handle Lamp L002825W5W
Overhead Console
Reading Lamps VT4976
Rear Cargo Lamp 214–2
Visor Vanity Lamp V26377
Underpanel Courtesy
Lamps 906
Instrument Cluster
(General Illumination) 103
Telltale/Hazard Lamp 74
Exterior Bulbs
Bulb Number
Headlamps (Low Beam) H11
Premium Headlamps
(Low/High Beam) D3S (Serviced at
Authorized Dealer)
Headlamps (High Beam) 9005
Premium Park/Turn
Signal Lamp LED - (Service at
Authorized Dealer)
Daytime Running Lamp
(DRL) 3157K
Premium Daytime
Running Lamp (DRL) LED - (Service at
Authorized Dealer)
Front Fog Lamps H11
Front Side Marker W5W
556 MAINTAINING YOUR VEHICLE

Bulb Number
Premium Front Side
Marker - If Equipped LED - (Service at
Authorized Dealer)
Front Park/Turn Lamp T20
Rear Body Side Turn
Signal Lamps 7440NA (WY21W)
Auxiliary Liftgate Tail
Lamps LED - (Service at
Authorized Dealer)
Liftgate Backup Lamps 921 (W16W)
Rear License Lamps LED - (Service at
Authorized Dealer)
Rear Body Side Stop
Lamps P27/7W
Rear Body Side Tail
Lamps LED - (Service at
Authorized Dealer)Bulb Number
CHMSL - Center High
Mounted Stop Lamp LED - (Service at
Authorized Dealer)
NOTE:
Numbers refer to commercial bulb types that can be
purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE: Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
7
MAINTAINING YOUR VEHICLE 557

High Intensity Discharge Headlamps (HID) —
If Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.
NOTE: On vehicles equipped with High Intensity Dis-
charge (HID) headlamps, when the headlamps are turned on, there is a blue hue to the lamps. This dimin-
ishes and becomes more white after approximately
10 seconds, as the system charges.
Halogen Headlamps — If Equipped
1. Open the hood.
2. Turn the low or high beam bulb one–quarter turn
counterclockwise to remove from housing.
3.
Disconnect the electrical connector and replace the bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
