2014 FIAT DUCATO BASE CAMPER Owner handbook (in English)

TRAILER TRUCK WEIGHTS (MAXI versions)
3500 kg GVW versions3995 kg - 4005 kg - 4250 kg GVW
versions
110 (*)/130/150
MultiJet
180 MultiJet
Power110 (*)
/130/150
MultiJet
180 MultiJet
Power
Unladen weight (with all fluids, fuel tank
filled to 90% and without optional
equipment)1895 ÷ 1985 1975 ÷ 2065 1895 ÷ 1985 1975 ÷ 2065
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500
– total: 3500 3500 3920 ÷ 4005 3970 ÷ 4150
Towable loads
– braked trailer: 3000 3000 2500 2000 ÷ 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 120 120 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
285

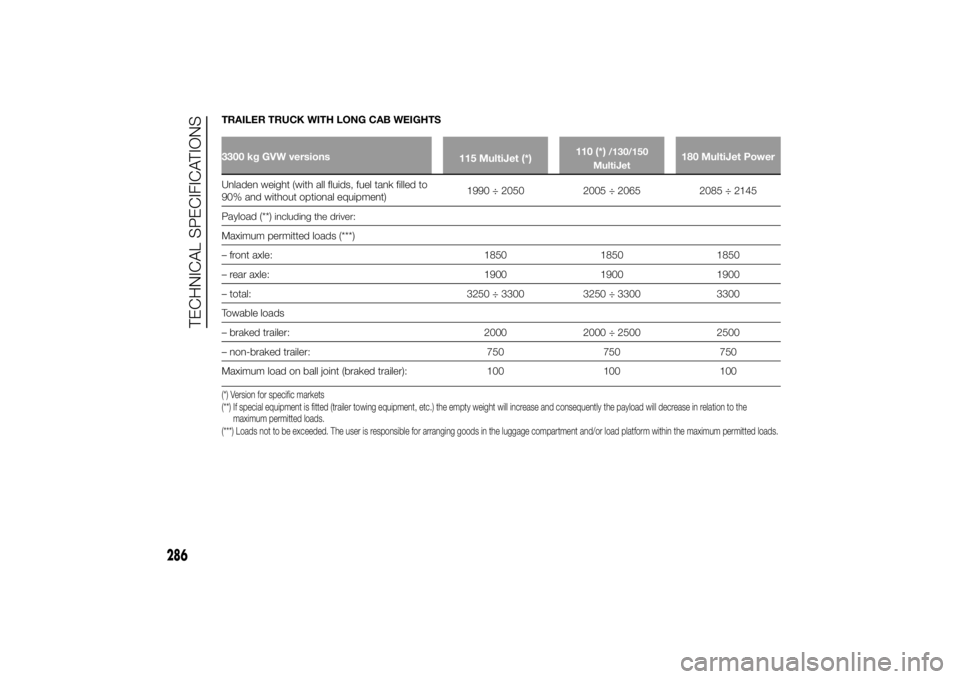

TRAILER TRUCK WITH LONG CAB WEIGHTS3300 kg GVW versions
115 MultiJet (*)110 (*)
/130/150
MultiJet
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1990 ÷ 2050 2005 ÷ 2065 2085 ÷ 2145
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 1900 1900 1900
– total: 3250 ÷ 3300 3250 ÷ 3300 3300
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
286
TECHNICAL SPECIFICATIONS

TRAILER TRUCK WITH LONG CAB WEIGHTS3500 kg GVW versions
115 MultiJet (*)110 (*)
/130/150
MultiJet
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1990 ÷ 2050 2005 ÷ 2065 2085
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3320 ÷ 3500 3320 ÷ 3500 3430
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
287

TRAILER TRUCK WITH LONG CAB WEIGHTS (MAXI versions)
3500 kg GVW versions3995 kg - 4005 kg - 4250 kg GVW
versions
110 (*)/130/150
MultiJet
180 MultiJet
Power110 (*)
/130/150
MultiJet
180 MultiJet
Power
Unladen weight (with all fluids, fuel tank
filled to 90% and without optional
equipment)2045 ÷ 2145 2125 ÷ 2225 2045 ÷ 2145 2125 ÷ 2225
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500
– total: 3500 3500 3760 ÷ 4005 3840 ÷ 4100
Towable loads
– braked trailer: 3000 3000 2500 2000 ÷ 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 120 120 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
288
TECHNICAL SPECIFICATIONS

COMBI WEIGHTS3000 kg GVW versions
115 MultiJet (*)110 (*)
/130/150
MultiJet
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1935 1950 2030
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 3000 3000 3000
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
289

COMBI WEIGHTS
3300 kg GVW versions 3500 kg GVW versions
115 MultiJet
(*)110 (*)
/130/
150 MultiJet
180 MultiJet
Power110 (*)
/130/
150 MultiJet
180 MultiJet
Power
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1935 ÷ 2045 1950 ÷ 2060 2030 ÷ 2140 2450 2035 ÷ 2465
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 1750 1750 1750 1850 1850
– rear axle: 1900 1900 1900 1900 1900 ÷ 2000
– total: 3300 3300 3300 3500 3500
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500 2000 2000 ÷ 2500
– non-braked trailer: 750 750 750 750 750
Maximum load on ball joint (braked
trailer):100 100 100 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
290
TECHNICAL SPECIFICATIONS

COMBI WEIGHTS (MAXI versions)3500 kg GVW versions
110 (*)
/130/150 MultiJet
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)2100 2180
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 2100 2100
– rear axle: 2400 2400
– total: 3500 3500
Towable loads
– braked trailer: 3000 3000
– non-braked trailer: 750 750
Maximum load on ball joint (braked trailer): 120 120(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
291

PANORAMA WEIGHTS3000 kg GVW versions
115 MultiJet (*)110 (*)
/130/150
MultiJet
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)2200 2215 2295
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 1750 1750 1750
– rear axle: 1650 1650 1650
– total: 3150 3150 3150
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
292
