2014 FIAT DUCATO BASE CAMPER Owner handbook (in English)

Warning lights on
displayWhat it means What to do
redLOW ENGINE OIL PRESSURE
When the key is turned to MAR-ON, the digital warning light switches on,
but it should switch off as soon as the engine is started.
The warning light switches on constantly together with the message in
the display when the system detects that the engine oil pressure is
insufficient.
21)
ENGINE OIL DETERIORATED
(MultiJet versions with DPF only)
The warning light starts to flash together with a message on the display
(for versions/markets, where provided) when the system detects that the
engine oil has deteriorated.
If the warning light flashes, this does not mean that the vehicle is faulty,
but simply informs the driver that it is now necessary to change the
engine oil as a result of regular vehicle use. If the oil is not changed, when
a second deterioration threshold is reached, the warning light
also
switches on in the instrument panel and the engine operation is limited to
3000 rpm.
If the oil is still not changed, when a third deterioration threshold is
reached, the engine is limited to 1500 rpm to avoid damage.Contact a Fiat Dealership
as soon as possible.
92) 93)
Remember that the
deterioration of the engine
oil is accelerated by:
– mainly town use of the
vehicle which makes the
DPF regeneration process
more frequent
– use of the vehicle for
short trips, preventing the
engine from reaching
operating temperature
– repeated interruption of
the regeneration process,
signalled by the DPF
warning light coming on.
125

Warning lights on
displayWhat it means What to do
redINCOMPLETE DOOR/LOAD COMPARTMENT CLOSURE
On certain versions the warning light switches on when one or more
doors or the load compartment are not completely shut.
On some versions, the display shows a dedicated message that indicates
left/right front door or rear/load compartment door opening.
A buzzer will sound when doors/tailgate are open and the vehicle is
moving.
Warning lights on
panelWhat it means What to do
redPOWER STEERING FAILURE
When the ignition key is turned to MAR-ON the
warning light on the dial turns on, but it should
turn off after a few seconds.
If the warning light stays on together with the
message shown on the display and a buzzer, the
power steering is ineffective and the effort on the
steering wheel increases significantly even though
the vehicle can be steered.Contact a Fiat Dealership.redSELF-LEVELLING SUSPENSION FAILURE
(for versions/markets, where provided)
The warning light comes on when the ignition key
is turned to MAR-ON, but it should switch off
after a few seconds.
The warning light switches on when a fault is
present in the self-levelling suspension system.
126
KNOWING THE INSTRUMENT PANEL

WARNING
90) If the
warning light does not switch on when the key is turned to MAR-ON or if it stays on when driving (together
with the message on the display), there may be a fault in the restraint systems; in this case, the airbags or
pretensioners may not deploy in the event of an accident or, in a lower number of cases, they could deploy
erroneously. Before continuing, contact a Fiat Dealership immediately to have the system checked.
91) The failure of the
warning light is indicated by the
warning light flashing or, depending on the version, by the
symbol constantly on in the display. In this case, the
warning light may not indicate a fault in the restraint
systems. Before continuing, contact a Fiat Dealership immediately to have the system checked.
92) Deteriorated engine oil must be replaced as soon as possible after the
warning light comes on, and never
more than 500 km after it first switches on. Failure to observe the above indications may result in severe damage
to the engine and invalidate the warranty. Remember that when the warning light comes on, it does not mean that
the level of engine oil is low, so if it flashes you do not need to top up the engine oil.
93) If the
warning light flashes when driving, contact a Fiat Dealership.
127

IMPORTANT
21) If the
warning light switches on when driving, stop the engine immediately and contact an Fiat Dealership.
Warning lights on
panelWhat it means What to do
amberINJECTION/EOBD SYSTEM FAILURE
In normal conditions, when the ignition key is turned to
MAR-ON the warning light switches on, but it should
switch off as soon as the engine is started.
The operation of warning light
may be checked by
the traffic police using specific devices. Comply with the
laws and regulations of the country where you are
driving.
22)
If the warning light stays on or switches on when driving,
it means that the injection system is not working
properly; in particular, if the warning light comes on
constantly, this indicates a malfunction in the supply/
ignition system that could cause excessive exhaust
emissions, a possible loss of performance, poor
driveability and high fuel consumption.
On some versions, the display shows the dedicated
message.
The warning light switches off if the malfunction
disappears, but it is still stored by the system.Under these conditions, you may continue
travelling at a moderate speed without
demanding excessive effort from the
engine. Prolonged use of the car with the
warning light on constantly may cause
damage.
Contact a Fiat Dealership as soon as
possible.
128
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do

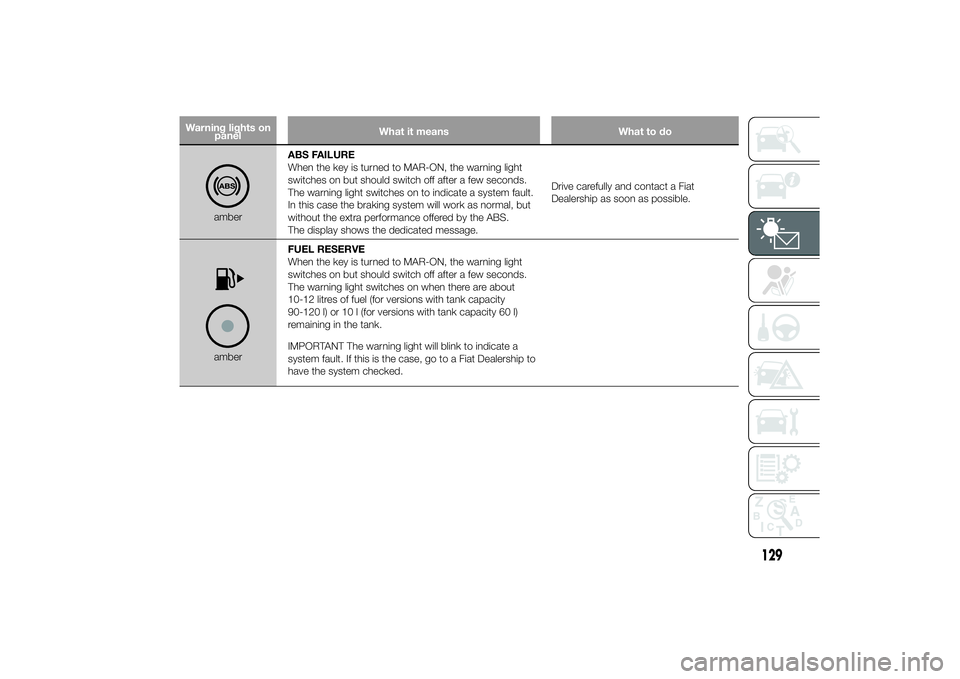

amberABS FAILURE
When the key is turned to MAR-ON, the warning light
switches on but should switch off after a few seconds.
The warning light switches on to indicate a system fault.
In this case the braking system will work as normal, but
without the extra performance offered by the ABS.
The display shows the dedicated message.Drive carefully and contact a Fiat
Dealership as soon as possible.amberFUEL RESERVE
When the key is turned to MAR-ON, the warning light
switches on but should switch off after a few seconds.
The warning light switches on when there are about
10-12 litres of fuel (for versions with tank capacity
90-120 l) or 10 l (for versions with tank capacity 60 l)
remaining in the tank.
IMPORTANT The warning light will blink to indicate a
system fault. If this is the case, go to a Fiat Dealership to
have the system checked.
129

Warning lights on
panelWhat it means What to do
amberGLOW PLUG HEATING/GLOW PLUG HEATING
FAILURE
Glow plug preheating
This warning light switches on when the key is
turned to MAR-ON. It will switch off as soon as the
glow plugs have reached a preset temperature.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely short
time.Start the engine as soon as the warning light
switches off.
Glow plug preheating failure
The warning light flashes if there is a fault in the
preheating system.
On some versions, the display shows the
dedicated message.Contact a Fiat Dealership as soon as possible.
Warning lights on
panelWhat it means What to do
amberWATER IN DIESEL FILTER
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light
switches on when there is
water in the diesel filter.
On some versions, the display shows the
dedicated message.
23)
130
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
amberVEHICLE PROTECTION SYSTEM FAILURE -
FIAT CODE
When the key is turned to MAR-ON the warning
light will flash only once and then switch off.
When the warning light comes on constantly, with
key at MAR-ON, this indicates:
❒a potential failure (refer to "The Fiat CODE
system" in the chapter "Knowing your vehicle").
❒a possible break-in attempt with an alarm; in this
case the warning light switches off after
approximately 10 seconds.
If, with the engine running, the
warning light
flashes, it means that the vehicle is not protected
by the engine immobiliser device.Contact a Fiat Dealership to have all the keys
stored in the memory.
amberREAR FOG LIGHTS
The warning light comes on when the rear fog
lights are turned on.
Warning lights on
panelWhat it means What to do
amberGENERIC FAILURE INDICATION
(Versions with multifunction display)
The warning light turns on in the following
circumstances:
❒If the fuel inertia cut-off switch is activated
131

Warning lights on
panelWhat it means What to do
❒Light failure (rear fog lamps, direction indicators,
brake lights, number plate lights, side lights,
daytime lights, main beam automatism, trailer
direction indicators, trailer side lights)The failure relating to these lights could be: one
or more blown bulbs, a blown protection fuse or
a break in the electrical connection.
❒Airbag warning light failure (generic failure
warning light flashing)In this case, the warning light may not indicate
any faults with the restraint systems. Before
continuing, contact a Fiat Dealership
immediately to have the system checked.
❒Rain sensor failure
❒Diesel filter sensor failure
❒Trailer connection failure
❒Audio system failure
❒Engine oil pressure sensor failure
❒Parking sensor failure.Contact a Fiat Dealership as soon as possible to
have the fault fixed.
132
