2014 FIAT DUCATO BASE CAMPER Owner handbook (in English)

VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3995 - 4005 - 4250 (Heavy)226 Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1
Cab chassis with load platform - CH1 - MH1 - LH1
Van - CH1 - CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 -
XLH3
Long cab chassis - LH1 - MH1
Flatbed - CH1 MH1 219
Van CH1 - CH2 - MH1 - MH2 226
Long cab flatbed - MH1 - LH1 236
Minibus 236
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH13650 209
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH14400 (Heavy) 209
341

OFFICIAL TYPE APPROVALS
342
TECHNICAL SPECIFICATIONS

343

344
TECHNICAL SPECIFICATIONS

345

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFEFiat has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To assure customers of the best possible
service in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the
end of their life, Fiat is offering their customers the opportunity of handing over their vehicle(*) at the end of its life without
incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses
as a result of it having a zero or negative market value. In particular, in almost all European Union countries, until 1st January
2007, vehicles registered after 1st July 2002 will be collected free of charge, whilst from 2007 collection will be free of charge
irrespective of the year of registration as long as the vehicle contains its basic components (in particular, the engine and
bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or Fiat-authorised collection and
scrapping centres. These centres have been carefully chosen to offer high quality service for the collection, treatment and
recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat and Fiat Commercial Vehicle
Dealership or by calling the toll-free number 00800 3428 0000 or on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
346
TECHNICAL SPECIFICATIONS

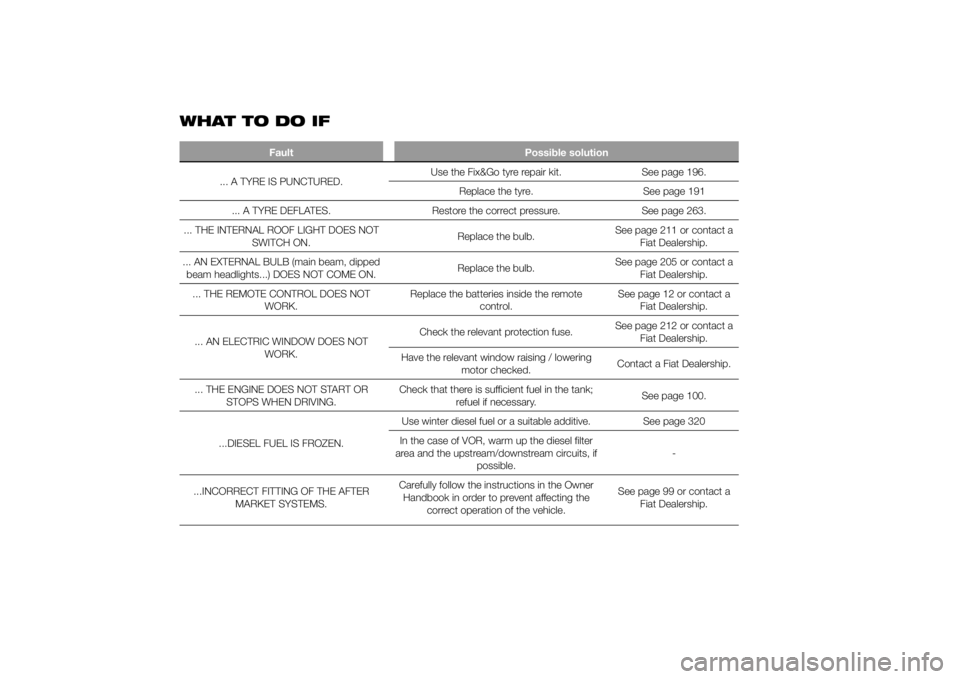

WHATTODOIF
Fault Possible solution
... A TYRE IS PUNCTURED.Use the Fix&Go tyre repair kit. See page 196.
Replace the tyre. See page 191
... A TYRE DEFLATES. Restore the correct pressure. See page 263.
... THE INTERNAL ROOF LIGHT DOES NOT
SWITCH ON.Replace the bulb.See page 211 or contact a
Fiat Dealership.
... AN EXTERNAL BULB (main beam, dipped
beam headlights...) DOES NOT COME ON.Replace the bulb.See page 205 or contact a
Fiat Dealership.
... THE REMOTE CONTROL DOES NOT
WORK.Replace the batteries inside the remote
control.See page 12 or contact a
Fiat Dealership.
... AN ELECTRIC WINDOW DOES NOT
WORK.Check the relevant protection fuse.See page 212 or contact a
Fiat Dealership.
Have the relevant window raising / lowering
motor checked.Contact a Fiat Dealership.
... THE ENGINE DOES NOT START OR
STOPS WHEN DRIVING.Check that there is sufficient fuel in the tank;
refuel if necessary.See page 100.
...DIESEL FUEL IS FROZEN.Use winter diesel fuel or a suitable additive. See page 320
In the case of VOR, warm up the diesel filter
area and the upstream/downstream circuits, if
possible.-
...INCORRECT FITTING OF THE AFTER
MARKET SYSTEMS.Carefully follow the instructions in the Owner
Handbook in order to prevent affecting the
correct operation of the vehicle.See page 99 or contact a
Fiat Dealership.

Fault Possible solution
...STEERING STUCK WITH VOR AND
STEERING LOCK ENGAGED.If the vehicle is parked with the wheels
completely steered, the steering wheel must
be turned in the direction opposite to the end
of travel position, while taking the key to
MAR-ON.-
... THE ENGINE DOES NOT START, THE
STARTER DOES NOT TURN.The battery might be empty, check its charge
status. If necessary carry out an emergency
starting.See page 190.
The battery quick-release terminal might have
disconnected, check the correct connection
on the battery negative pole.-
The battery protection fuse might be broken.
Do not force starting by keeping on taking the
key to AVV. Do not connect any external
device to the battery.See page 212 or contact a
Fiat Dealership.
... THE ENGINE DOES NOT START
FOLLOWING AN IMPACT.Fuel supply might be interrupted following
activation of the fuel cut off inertia switch.
Check the system re-activation procedure.See page 57.
