Fo r exa mple, the airbag may depl oy if:
- a small child that is heavier than a typical 1
year-o ld child is on the front passenger seat
(regardless of whether the child is in one of
the chi ld safety seats listed
¢ page 163),
-a ch ild who has outgrown child rest raints is
on the front passenger seat.
I f the front passenger airbag is turned off , the
PA SSENGER AIR B AG OFF light in the center
of the inst rument panel w il l come on and stay
on.
The front a irbag on the passenger side may
not deploy (the PASSENGER AIR BAG OFF
light does not illuminate and stay lit) if:
- a small adult or teenager is on the front pas­
senger seat
- a passenger who is not sitt ing upr ight w ith
their back against a non-reclined backrest
with their feet on the veh icle floo r in front
of the sea t is on the front passenge r seat.
If the front passenger airbag deploys, the
Federal Standard requires the airbag to meet
the " low risk " deployment criteria to help re­
duce the risk of inj ury through in teraction
with the airbag . "Low risk" deployment occurs
in those crashes that take place at lower de ­
celerations as defined in the electronic control unit.
¢ page 147
Alway s remember : Even though you r vehicle
is equipped with Advanced Airbags, the safest
p lace for children is properly restrained on the
back seat . Please be sure to read the impor­
tant information in the sect ions that follow
and be sure to heed all of the WARNINGS.
_&. WARNING
To reduce the risk of injury when an airbag
inflates, always wear safety belts properly .
- If you are unrestrained, lean ing forward,
sitting sideways or out of position in any
way, your risk of injury is much highe r.
- You w ill also receive serious injuries and
could even be killed if you are up against
the a irbag or too close to it when it in-
A irbag system 143
flates - even with an Advanced Ai rbag
¢page 137.
_&. WARNING
A child in a rearward-fac ing ch ild safety
seat installed on the front passenger seat
will be ser ious ly injured and can be killed if
the front airbag inflates - even with an Ad­
vanced A irbag System .
-Although the Advanced Airbag System in your veh icle is designed to turn off the
front airbag when a rearward-facing child restraint has been instal led on the
front passenge r seat, nobody can abso­
lutely guaran tee that dep loymen t is im ­
possible in all conceivable situations that
may happen during the usefu l life of your
veh icle.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door, or roof .
-Always install rearward -facing chi ld re ­
straints in the back seat.
- If you must install a rearward fac ing
child safety seat on the front passenger
seat because of exceptional c ircumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately insta ll the rear-fa cing ch ild
safety seat in a rear seating position and
have the airbag system inspected by your
author ized Audi dealer .
A WARNING
-=
If, in exceptiona l circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make s ure the forward-facing
seat has been designed and certified by its manufacturer for use on a front seat
with a passenger front and s ide a irbag.
- Never put the forward-facing child re­
straint up against or very near the instru-
ment panel.
~
•
•

144 Airbag sys tem
-Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before insta lling
the forward-facing child restraint. The backrest must be adjusted to an upr ight
posit io n.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
t ime w henever the ignition is switched
on.

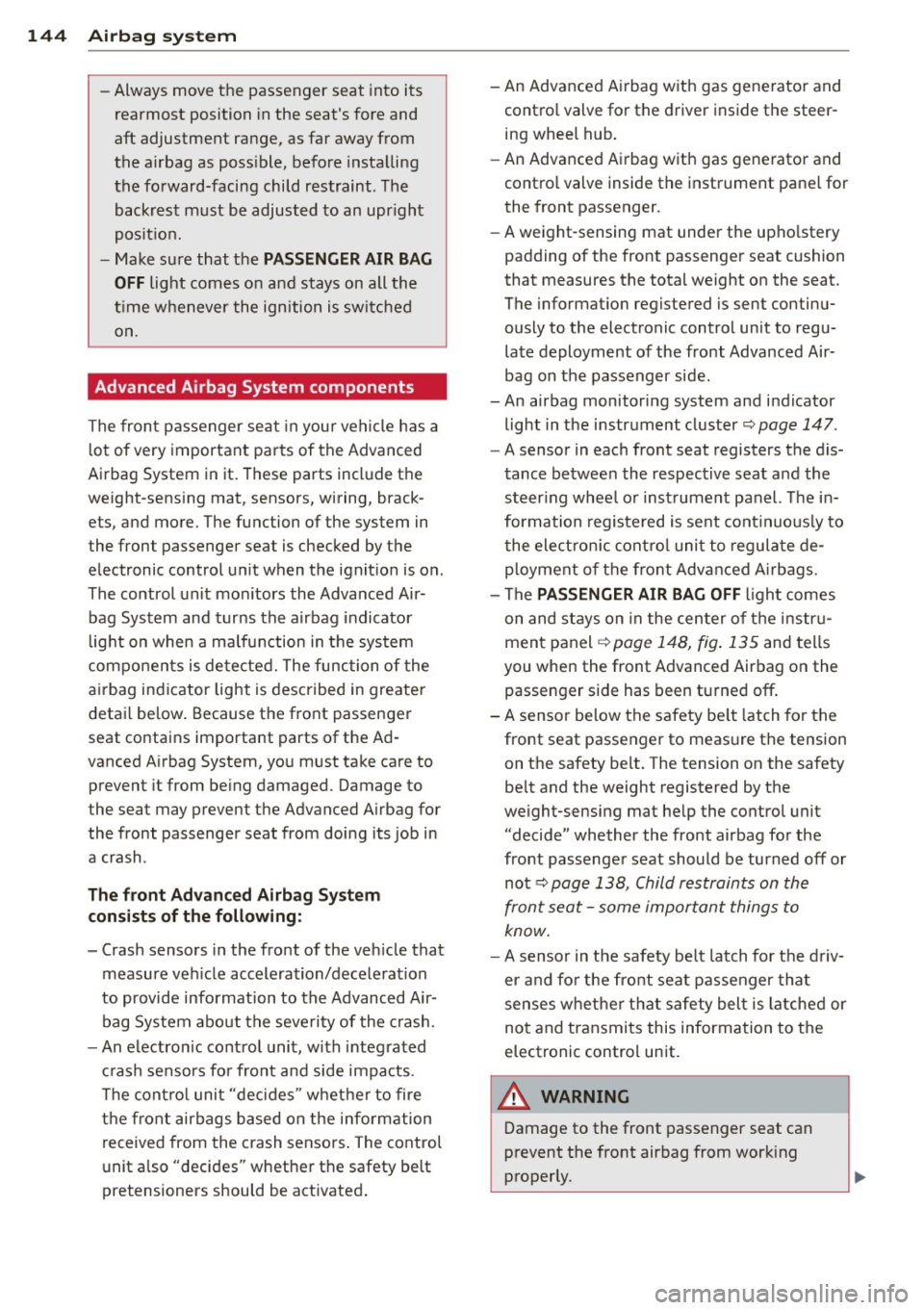

Advanced Airbag System components
The fron t passenger sea t in your vehicle h as a
lot of very important par ts of the Advanced
Airbag System in it. These parts include t he
weight -sensing mat, sensors, wiring, brack­
ets, and more. The function of the system in
the front passenger seat is checked by the
e lectronic control u nit when the ignit ion is on.
The control unit mo nitors the Advanced Air­
bag System and turns the airbag indicator
l ight on when a ma lfunction in t he system
components is detected. The func tion of the
a ir bag ind icator light is described in greater
detai l be low . Because the front passenger
seat contains important parts of the Ad­
vanced A irbag System, you m ust take care to
prevent it from be ing damaged. Damage to
the seat may prevent the Advanced Airbag for
the front passenger seat from doing its job in
a crash .
The front Advanced Airb ag Sy stem
consists of the following:
- Crash sensors in the front of the veh icle that
measure veh icle acceleration/deceleration
to provide information to the Advanced Air­
bag System abou t the seve rity of the crash.
- An electron ic co ntrol unit, with integ rated
crash sensors for front and side impacts .
T he cont ro l unit "dec ides " w het her to fire
the front airbags based on the information
received from the crash senso rs . The contro l
unit a lso "decides" whethe r the safety be lt
pretensioners should be activated . -
An Advanced A irbag w ith gas generator and
cont ro l valve for the d river inside the steer­
ing wheel h ub.
- An Advanced A irbag with gas ge nerator and
contro l valve inside the instrument pane l for
the front passenger.
- A weight-sensing mat under the up ho lstery
pad ding of the front passenger seat cushion
that measures the total weight on the seat.
The informat ion registered is sent continu­
ously to the electronic contro l unit to regu­
late deployment of the front Advanced Air­ bag on the passenger side .
- An airbag monitor ing system and i ndicator
light in the i nstr ument cluster ~
page 147 .
-A sensor in each front seat registers the dis­
tance between the respective seat a nd the
steer ing whee l o r i ns trument panel. The i n­
formation registered is sent cont inuo usly to
t he ele ctr onic cont ro l uni t to regula te de­
p loyment o f the front Advance d Airbags .
- The
PASSENGER AIR BAG OFF ligh t comes
on and st ays on in the cen ter o f the instr u­
ment panel~
page 148, fig . 135 and tells
you whe n the front Advanced Airbag on the
passenger side has been tu rned off .
- A sensor below the safety be lt latch for the
front seat passenger to measure the tension on the safety be lt . The tension on the safety
be lt and the weight registered by the
weight-sensing mat he lp the control unit
"decide" whether the front airbag for the
front passenger seat should be turned off or
not
~ pag e 138, Child restraints on the
front seat -some important things to
know.
- A senso r in the safety belt latch fo r th e d riv­
er and fo r the front sea t passenger tha t
senses w het he r th at safety bel t is latched or
not and transmi ts this information to the
electronic control unit.
A WARNING
Damage to the front passenger seat can
p revent the front airbag from work ing
properly.
-

-Improper repair or disassembly of the
front passenger and driver seat will pre­
vent the Advanced Airbag System from
functioning properly.
- Repairs to the front passenger seat must
be performed by qualified and properly
trained workshop personnel.
- Never remove the front passenger or
dr iver seat from the veh icle.
- Never remove the upholstery from the
front passenger seat.
- Never disassemble or remove parts from
the seat or disconnect wires from it.
- Never carry sharp objects in your pockets
or place them on the seat. If the weight­
sensing mat in the passenger seat is
punctured it cannot work properly.
- Never carry things on your lap or carry
objects on the passenger seat. Such
items can increase the weight registered
by the weight-sens ing mat and send the
wrong info rmation to the airbag control
unit.
- Never store items under the front pas­
senger seat. Parts of the Advanced Ai r­
bag System under the passenger seat
cou ld be damaged, preventing them and
the airbag system from working proper ­
ly .
- Never place seat covers or replacement
upholstery that have not been specifical­
ly approved by Audi on the front seats.
- Seat covers can prevent the Advanced
Airbag System from recognizing child re­
straints or occupants on the front pas­
senger seat and prevent the side airbag
in the seat backrest from deploy ing prop­
erly.
- Never use cush ions, pillows, blankets or
similar items on the front passenger
seat. The add itional padd ing will prevent
the weight-sens ing mat in the seat from
accu rately reg iste ring the ch ild restra int
or person on the seat and prevent the
Advanced Airbag System from function­ ing properly .
-If you must use a child restra int on the
front passenger seat and the chi ld re-
A irbag system 145
straint manufacturer's instructions re­
quire the use of a towel, foam cushion or
something e lse to properly position the
child restraint, make certain that the
PASSENGER AIR BAG OF F light comes
on and stays on whenever the ch ild re­
straint is installed on the front passen­
ger seat.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immed i­
ately insta ll child rest raint in a rear seat­
ing position and have the airbag system
inspected by your authorized Audi dealer.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the
s ide airbags supplement the protection of­
fered by the front three-point safety belts
with pretensioners and load limiters and the
adjustable head rest raints to help reduce the
risk of inj ury in a wide range of accident and
c rash situations. Be s ure to read the impor­
tant information about safety and heed the
WARNINGS in this chapter.
Deployment of the Adv a need A irbag System
and the activation of the safety belt preten­
sioners depend on the deceleration measured
by the crash sensors and registered by the
electronic control unit. Crash severity depends
on speed and deceleration as we ll as the mass
and stiffness of the vehicle or object involved
in the crash .
On the passenger side, regardless of safety
belt use, the airbag will be turned off if the
weight on the passenger seat is less than the
amount programmed in the electronic control
unit. The front airbag on the passenger side
will a lso be turned off if one of the child safe­
ty seats that has been ce rtified under Fede ral
Motor Vehicle Safety S tanda rd 208 has been
recognized on the seat. The
PAS SEN GER AIR
BAG OFF
light comes on and stays on to tell
you when the front Advanced Airbag on the
passenger side has been turned off
¢ page 138, Child restraints on the front seat
- some important things to know. .,,.
•
•

146 Airbag system
A WARNING
To reduce the risk of injury when an airbag
inflates, always wear safety belts properly.
- If you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, your risk of injury is much higher .
- You will also receive serious injuries and
could even be killed if you are up against
the airbag or too close to it when it in­
flates -even with an Advanced Airbag
~ page 137.
More important things to know about
front airbags
Fig. 134 Inflated front airbags
Safety belts are important to help keep front
seat occupants in the proper seated pos ition
so that airbags can unfold properly and pro­
vide supplemental protection in a frontal col­ lision.
The front airbags are designed to provide ad­ ditional protection for the chest and face of
the driver and the front seat passenger when:
- safety belts are worn properly,
- the seats have been positioned so that the
occupant is properly seated as far as possi­
ble from the airbag,
- and the head restraints have been properly adjusted .
Because airbags inflate in the blink of an eye
with great force, things you have on your lap
or have placed on the seat could become dan ­
gerous projectiles, and be pushed into you if
the airbag inflates.
When an airbag deploys, fine dust is released.
This is normal and is not caused by a fire in the vehicle.
This dust is made up mostly of a
powder used to lubricate the airbags as they
deploy.
It could irritate skin.
It is important to remember that while the
supplemental airbag system is designed to re­
duce the likelihood of serious injuries, other
injuries, for example swelling, bruising and
minor abrasions, can also happen when air­
bags inflate. Airbags do not protect the arms
or the lower parts of the body . Front airbags
only supplement the three point safety belts
in some frontal collisions in which the vehicle
deceleration is high enough to deploy the air­
bags.
Front airbags will not deploy:
- if the ignition is switched off when a crash
occurs,
- in side collisions,
- in rear-end collisions,
- in rollovers,
- when the crash deceleration measured by
the airbag system is less than the minimum
threshold needed for airbag deployment as
registered by the electronic control unit .
The front passenger airbag will also not
deploy:
- when the front passenger seat is not occu­
pied,
- when the weight on the front passenger
seat as sensed by the Advanced Airbag Sys­
tem indicates that the front airbag on the passenger side has to be turned off by the
electronic control un it (the
PASSENGER AIR
BAG OFF
light comes on and stays on) .
A WARNING
-
Sitting in the wrong position can increase
the risk of serious injury in crashes.
- To reduce the risk of injury when the air­
bags inflate, the driver and passengers
must always sit in an upr ight position,
must not lean against or place any part
of their body too close to the area where
the airbags are located.
II>

-Occ upan ts who are unbelte d, ou t of p osi­
t ion or too close to the airbag can be
seriously injured by an airbag as it un­
folds with great force in the blink of an
eye
¢ page 138 .
A WARNING
-
A child in a rearward-facing child safety
seat insta lled on the front passenger seat
w ill be seriously injured and can be k illed if
the front a irbag inflates - even with an Ad­
vanced Airbag System .
- The inflating a irbag w il l hit the child
sa fety sea t or infant carrier w ith g reat
f orce and w ill smash the ch ild safety seat
and child against the backrest , cente r
armrest, door or roof .
- Always install rear -facing child sa fety
seats on the rear seat .
- If you mus t install a rearward facing
child safety seat on the front passenger
seat because of exceptional circ umstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im ­
med iately install the rear-facing child
safety seat in a rear seating position a nd
have the a irbag system inspected by you r
authori zed Au di dealer .
A WARNING
Objects betwee n you and t he a irbag will
increase the risk of in jury in a crash by in­
t erfering wi th the way the air bag un folds
or by being pushed into you as the a irbag
inflates.
- Never hold th ings in your hands or on
yo ur lap when the vehicle is in use.
- Never transport i tems on or in the area
of the front passenge r seat . Objects
cou ld move into the area of the front air­
bags dur ing braking or other s udden ma­
neuver and become dangerous projec­
t il es that can cause serious personal in­
jury if the airbags inflate .
- Never place or attach accessories or oth­
er objects (such as cupholders, te le­
phone brackets, large, heavy or b ulky ob -
-
Airbag system 147
jects) on the doors, ove r o r near the area
marked "AIRBAG" on the steering wheel,
instrument panel, seat backrests or be­
tween those areas and yourself . These
objects could cause in ju ry in a c rash , es ­
pecia lly when the airbags infla te .
- Never recline the front passenger 's sea t
to transport objects. Items can a lso
move into the area of the s ide a irbag or
the front a irbag du ring bra king or in a
sudden maneuve r. O bje cts ne ar the air­
bags can become projec tiles and cause
in jur y, partic ula rly when the seat is re ­
clined .
A WARNING
The fine dust create d when air bags deploy
can cause breathing prob lems for people
with a history of asthma or other breath­ ing cond itions .
- To reduce the risk of breath ing problems,
those with asthma or other respiratory conditions shou ld get fresh air r ight
away by getting o ut o f the veh icle or
open ing windows or doors.
- If you are in a collision in which airbags
deploy, was h your hands and face with
mild soap and wate r before ea ting.
- Be ca reful not to get the dust into your
eyes, o r into any c uts or sc ratches .
- If the resid ue should get into your eyes,
f lush them w ith wate r.
Monitoring the
Advanced Airbag
System
Airbag monitoring indicator light
T wo separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator light and the
PASSEN·
GER AIR BAG OFF
light.
T he Advanced A irbag System ( incl uding the
electron ic co ntro l unit , se nsor circu its and sys­
tem wir ing) is mo nitore d continuously to
m ake su re that it i s fu nc tioni ng properly •
•

148 Airbag system
wheneve r the i gnition is on . Each t ime yo u
turn on the ignition, the
II airbag mo nitoring
indicator light w ill come on for a few seconds
(self diagnostics) .
The sy stem must be inspected when the
fl indicator light:
- does not come on when the ignit ion is
switched on,
- does not go out a few seconds after you
have switched on the ignition, or
- comes on w hile d riving .
If an airbag system ma lf u nct ion is de te cted,
the ind ica tor light will fi rs t start fl ash ing to
catch the driver's attention and then stay on
continuously to serve as a constant reminder
to have the system inspected immediately.
If a mal func tion oc curs that turns the fron t
ai rbag on the passenger side off, the
PASSEN­
GER AIR BAG OFF
li ght will come on and stay
on whenever the ign ition is on.
.&_ WARNING
An airbag system that is not funct ion ing
properly ca nnot provide supplemental p ro­
tect io n in a frontal crash.
- If the airbag indicator light
c:> page 20
comes whe n the vehicle is be ing used,
have t he system inspected immed iate ly
by yo ur aut ho rize d Aud i dea le r. It is pos­
sibl e that t he airbag will inf late when it
is no t su ppo sed to, or w ill not inflate
w he n i t sho uld.
PASSENGER AIR BAG OFF light
Fig . 13 5 Sect ion from th e in str umen t pa nel: PASSEN­
GER AIR BAG O FF ligh t
-
The PASSENGER AIR BAG OFF light is located
in the center of the instrument pane l
c:> fig. 135.
T he
PASSENGER AIR BAG OFF lig ht wi ll come
on and stay on to tell you w hen the front Ad ­
vanced Airbag on the passenge r si de has been
turned off by the electron ic contro l unit. Each
t ime you turn on the ignition , the
PASSEN ­
GER AIR BAG OFF
light will flash for a few
seconds a nd:
- will stay on i f the front passenger seat is not
occ upied,
- will stay on if t he re is a small c hild or child
restraint on the front passenger seat,
- wi ll go out if the front passenge r seat is oc­
cupied by an adult as registered by the
weight-sensing mat.
T he
PASSENGER AIR BAG OFF light must
come on and stay on
if the ignition is on and
- a car bed h as been ins talled o n the fron t
sea t, o r
- a rearwa rd- fa cing child rest rain t has bee n
installed o n the front pa ssenger seat, or
- a forwa rd-fac ing c hild restra int has been in­
stalled on the front p assenger sea t, o r
- t he weight reg iste red o n the fron t passen­
ge r seat i s equal to or less t han t he com­
bined weight o f a typic al 1 year -ol d restr ain­
ed in one of the rea r-facing or forw ard-fac­
ing infant restraints listed i n Fed eral Motor
Ve hicle Safety Standard 208 with which the
Advanced A irbag System in your vehicle was
certified .
If the front passenger seat is not occupie d,
t h e front airbag will not deploy, and the
PAS·
SENGER AIR BAG O FF
light will stay on. Nev­
er install a rearward-facing child restraint on
t h e fro nt passenger seat, the safest p lace for
a ch ild in any k ind of ch ild restrai nt is at one
of the seating posit ions on the rear sea t
c:> page 138, Child restraints on the front seat
- some important things to know and
c:> page 161, Child Safety.
If
the PASSENGER AIR BAG OFF light comes
on
w hen o ne of the cond itions listed above is
met, be su re to check t he lig ht regu larly to
II>-

make certain that the PASSENGER AIR BAG
OFF
light stays on continuous ly whenever the
i gnit ion is on. If the
PASSENGER AIR BAG
OF F
light does not appear and not stay on all
the t ime, stop as soon as it is safe to do so
and
- react ivate the system by turning the ignition
off and then turning it on again;
- remove and reinstall the child restraint .
Make sure that the child restraint is properly
installed and that the safety belt for the
front passenger seat has been correct ly
routed around the child restraint as descr i­
bed in the child restraint manufacturer's in­
structions;
- make sure that the convertible locking fea­
ture on the safety be lt for the front passen­
ger seat has been activated and that the
safety belt has been pulled tight. The belt
must not be loose o r have loops of slack so
that the sensor below the safety belt latch on the seat can do its job ¢
page 171.
-make sure that things that may increase the
weight of the chi ld and child safety seat are
not being transported on the front passen ­
ger seat;
- make sure that the safety belt tension sen­
sor is not b locked. Shake the safety belt
latch on the front passenger seat back and
forth;
- If a strap or tether is being used to tie the child safety seat to the front passenger
seat, make sure that it is not so tight that it
causes the we ight-sensing mat to measure
more we ight than is actually on the seat.
If the PA SSEN GER A IR B AG OFF light st ill
do es not come o n
and does not stay on con­
tinuously (when the ignition is switched on),
- take the chi ld restraint off the front passen-
ger seat and install it properly at one of the
rear seat pos itions . Have the a irbag system
inspected by your author ized Audi dealer
i mmediately .
- move the ch ild to a rear seat posit io n and
make sure that the child is properly restrain­
ed in a child restraint that is appropriate for
its size and age.
A irbag system 149
The PAS SENGER AIR BAG OFF light should
NOT come on when the ignitio n is on and an
adult is s itting in a proper seating position on
the front passenger seat. If the
PAS SENGER
AIR B AG OFF
light comes on and stays on or
flashes for about 5 seconds wh ile driving, un­
der these c ircumstances, make sure that:
- the adult on the front passenger seat is properly seated on the center of the seat
cushion with his or her back up aga inst the
backrest and the backrest is not recl ined
¢ page 120, Proper occupant seating posi­
tions,
- the adult is not tak ing weight off the seat by
holding on to the passenger assist handle
above the front passenger door or support­
ing their weight on the armrest,
- the safety belt is being properly wo rn and
tha t the re is not a lot of s lack in the safety
be lt webbing,
- accessory sea t covers or cushions o r other
things that may cause an incorrect reading
or impression on the weight-sensing mat
under the upho lstery of the seat have been
removed from the front passenger seat,
- a safety belt extender has not been left in the safety be lt latch for the front passenger
seat.
In add ition to the
PA SSENGER AIR BAG O FF
light in the center of the instrument panel,
the message
PASSENGER A IR BAG OFF or
PASSENGER AIR BAG ON will briefly appear
in the instrument cluster disp lay. This is to in­
form the dr iver of the current front passenger
airbag status.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not functioning
properly cannot provide supplemental pro­
tection in a frontal crash.
- If the airbag ind icator light
¢ page 20
comes when the veh icle is being used,
have the system inspected immediately
by your authorized Audi dealer.
It i s
-
•
•

150 Airbag system
possible that the airbag will inflate when
it is not supposed to, or will not inflate
when it should.
A WARNING
If the front airbag inflates, a child without
a child restraint, in a rearward-facing child
safety seat or in a forward-facing child re­
straint that has not been properly installed
will be seriously injured and can be killed.
- Even though your vehicle is equipped
with an Advanced Airbag System, make certain that all children, especially 12
years and younger, always ride on the back seat properly restrained for their
age and size.
- Always install forward or rear-facing
child safety seats on the rear seat -even
with an Advanced Airbag System.
- If you must install a rearward-facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not appear and stay on, imme­
diately install the rear-facing child safety
seat in a rear seating position and have
the airbag system inspected by your au­
thorized Audi dealer.
- A tight tether or other strap on a rear­
ward-facing child restraint attached to
the front passenger seat can put too
much pressure on the weight-sensing
mat in the seat and register more weight
than is actually on the seat. The heavier
weight registered can make the system
work as though an adult were on the seat
and deploy the Advanced Airbag when it
must be suppressed causing serious or
even fatal injury to the child.
- If, in exceptional circumstances, you
must install a forward-facing child re­
straint on the front passenger seat, al­
ways move the seat into its rearmost po­
sition in the seat's fore and aft adjust­
ment range, as far away from the airbag
as possible. The backrest must be adjust­
ed to an upright position. Make sure that the
PASSENGER AIR BAG OFF light
comes on and stays on all the time when­
ever the ignition is switched on.
A WARNING
-
- If the PASSENGER AIR BAG OFF light
does not go out when an adult is sitting
on the front passenger seat after taking
the steps described above, make sure the
adult is properly seated and restrained at
one of the rear seating positions.
- Have the airbag system inspected by
your authorized Audi dealer before trans­
porting anyone on the front passenger
seat.
(D Tips
If the weight-sensing mat in the front pas­
senger seat detects an empty seat, the
front airbag on the passenger side will be
turned off, and
PASSENGER AIR BAG OFF
will stay on.
Repair, care and disposal of the airbags
Parts of the airbag system are installed at
many different places on your Audi. Installing,
removing, servicing or repairing a part in an
area of the vehicle can damage a part of an
airbag system and prevent that system from
working properly in a collision.
There are some important things you have to know to make sure that the effectiveness of
the system will not be impaired and that dis­ carded components do not cause injury or pol­
lute the environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing an airbag
from deploying when needed or deploying an airbag unexpectedly:
- Never cover, obstruct, or change the
steering wheel horn pad or airbag cover
or the instrument panel or modify them
in any way.
