2014 AUDI A5 CABRIOLET Owners Manual

Instruments and warning/indicator lights 23
There is a malfunction in the electronic igni­
tion lock. Please go to an authorized Audi
dea ler or other qualified workshop to have the
malfunction repaired.
¢¢ Turn signals
Whenever you use the left B or the right B
turn signal, the ind icator light blinks . When
you use the emergency flashers, both indica­
tor lights flas h.
If one of the turn s ignal light bulbs burn out,
the turn signal w ill blink tw ice as fast as nor ­
mal. Carefully drive to your authorized Audi
dealer immediately to have the malfunct io n
corrected.

24 Driver information d isplay
Driver information
display
Introduction
The Driver information display inside the in­
strument cluster provides you, the driver,
with important information.
Fig. 7 Instrument cluster: ce nter display
Fig. 8 Wiper lever: controls for the menu display
Center display
With the ignition on, the display in the Dr iver
I nformation System shows the following in­
formation:
- CD* inserted or Radio* station set
- Outside temperature*: At temperatures be-
low 41 °F (+S °C), a snowflake symbol ap­
pears in front of the temperature display
c::> .&_.
-Warning if one of the doors, front lid or en-
gine compartment lid is not closed.
Additional functions
You can open the following functions in the
Driver Information System display by pressing
the
! RESET I button c::> fig. 8 one or more times:
Digital speedometer*
Tire pressure monitoring*
<::>page240
Trip computer <::>page25
Efficiency program* <::> page 27
Service interval display <::> page 28
Speed warning <::> page 81
Gearshift selector positions <::> page 85
Automatic transmission
Adaptive cr uise control*
<::> page 93
Auto Check Control
Some functions and vehicle components are
scanned for their operating status when you
switch the ignition on and whi le you are driv­
ing . Malfunctions or required service proce­
dures are signaled audibly and indicated by
red and yellow illuminated symbols and re­
minders in the d isplay.
A WARNING
--- Never rely exclusively on the outside
temperature display to determine if a
road surface is icy or not . Keep in mind
that road surfaces , espec ially br idges
and overpasses, could be ice covered and
slippery even at an outside temperature
above 41 °F (+S °C).
- Always remember,
even if the "snow­
flake" symbol (ice warning) does not ap­
pear in the disp lay, black ice cou ld be on
the road.
- Always reduce your speed and drive with
specia l care in cold weather conditions
when the chance of encountering icy
road surfaces increases.
¢j) Tips
If the vehicle is stationary, or if you are
driving at a very low speed, the tempera­
ture shown in the display might be slightly
higher than the actual outside tempera­
ture. This i.s caused by the heat being radi­
ated from the engine .

Trip computer
Introduction
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time .
Fig. 9 Trip computer display: Average fuel mileag e
The fo llowing information is continuously
eva luated by the trip computer and can be dis­
p layed sequentially in the instrument cluster
display:
Fuel range
The estimated cruising range in miles (km)
appears in the display. This tells you how far
your vehicle wi ll be able to travel on the cur­
rent tank of fue l and with the same driving
style. The display changes in increments of
5 miles (10 km).
The cruising range is calcu lated based on the
fuel cons umption for the last 18 mi les
(30 km) . If you drive conservatively, the cruis­
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
this display. You can use this disp lay to adjust
your driving technique to achieve a desired
mileage .
Current fuel mileage
The instantaneous fuel consumption in miles
per gallon (l/100 km) is shown in this display .
You can use this display to adj ust yo ur driving
technique to ach ieve a desired mileage.
Driver information display 25
Fuel consumption is recalcu lated at intervals
of 33 yards (30 meters). This display switches
to gallons/hour (liters/hour) when the veh icle
is not moving.
Average speed
The average speed in mph (km/h) s ince you
last reset the memory appears in the display.
Elapsed time
The length of time that yo u have been driving
s ince you last reset the memory appears in
th is disp lay.
Distance
The distance that has been covered since the
last time the memory was cleared appears in
the d isplay .
(0 Tips
- Fuel consumptions (average and cur­
rent), range and speed are displayed in
metric units on Canadian mode ls.
- All stored values will be lost if the vehi­
cle battery is disconnected.
Memories
The trip computer is equipped with two fully
automatic memories as well as an efficiency
program* .
Fig . 10 Tri p computer display: memory leve l 1
You can switch between the trip computer 1
and 2 and the efficiency program* by pressing
the
I RESET I button @r:::> page 26, fig. 11 .
You can tell which memory leve l is currently
active by the number o r the sign in the display
II--

26 Driver in formation d isplay
¢fig . 10 . The data from the single -trip mem ­
ory (memory leve l 1) is being displayed if a
D
appears in the display . If a II is shown, then
the data from the total -trip memory is being
d isplayed (memory leve l 2). The fuel pump
nozzle
iii indicates the efficiency program*
¢ page 27.
Single-tr ip m emory (Trip computer 1 )
The single-trip memory stores the trip infor­
mat ion from the time the ignition is turned o n
until it is turned off. If the trip is continued
w ithin 2 hours from the t ime the ignition was
turned off, the new data will be included in
the calcu lation of the current trip i nfo rma­
tion .
If the t rip is inte rrupted fo r more than 2
hours the memory is reset automati ca lly.
Total -trip memory (Trip computer 2)
Unlike the sing le-trip memory, the tota l- tr ip
memory is not reset automatically . Th is per­
mits you to evaluate your d riving data for the
enti re pe riod be tween manual rese ts.
Efficiency program*
The effic iency program can help you to use
less fuel ¢
page 2 7.
Operation
The trip compu ter is controlled by two
switches on the windshield wiper lever.
F ig . 11 W ind sh ie ld wipe r lever: co ntro ls fo r the tri p
co mp ute r
Operating
.. To disp lay the trip computer memory leve ls,
press the
I RESE T I button @¢ fig. 11 re­
peatedly unt il the desired memory leve l is
shown in the d isplay. ..
To display tr ip in format ion within a memory
level, press the top or bottom part of the
function se lection switch @.
T he trip computer will no t ope rate un less the
ignition is on. When you t urn on the ign it ion,
the function that was i n use when you last
turned the ignition off wi ll be displayed.
In add ition to info rmation abou t the trip com­
puter (trip computer 1, 2 and the efficiency
program *), information abo ut other systems
can a lso be shown in the disp lay . To switch the
display between the different information,
tap the
! RESET I button @briefly.
Resett ing values to ze ro
.. Select a val ue in the desired trip comp uter
or in the efficiency prog ram* .
.. Press and hold the
I RESE T I button @for at
least one second . A ll values in the selected
trip computer or in the efficiency program*
are reset to zero .
If the data in tr ip comp uter 1 are de leted,
then the values in the efficiency program* will
also be reset.
With some vehicle equipme nt levels, the val ­
u es for the sing le trip or total trip memory
can a lso be reset in the Infotainment system
¢ page 26.
(D Tips
All stored va lues w ill be lost if the veh icle
battery is disconnected.
Basic Settings for the trip computer
Applies to vehicles: with trip computer
T he radio or MMI * operating unit is used for
setting the trip computer 's basic se ttings .
.. Select: Function button !CAR !> In strument
cluster
> On -board computer 1 or On-board
computer
2 .
The values in the sing le -tr ip or the total-trip
memory can all be reset to zero at the same
t ime under
Reset in the menu. IJ,-

In addition , you can determine what informa­
tion from the trip computer should be shown in the instrument cluster display. If one of the
pieces of driver information is turned
O ff , that
driver information will not be shown in the
d isp lay. The information will continue to be
calculated by the trip computer and can be
turned back
On at any time .
(D Tips
-This function is not availab le on all
vehicles .
- The driving information in the efficiency
program is also reset to zero with t he
s ingle-trip memo ry.
Efficiency program
Description
Applies to vehicles: with trip computer w it h eff ic iency
program
F ig. 12 Disp lay : efficiency p rogram
.,. Press the I RES ET I but ton @ ¢ page 26,
fig. 11 repeatedly until the efficiency pro ­
gram appears in the display.
The efficiency program can help you to use less fuel. It evaluates driving information in
reference to fuel consumption and shows oth­
e r equipment influencing consumption as wel l
as shift recommendations. Fue l economy
messages ¢
page 2 7 prov ide tips for effi­
cient driv ing.
The eff ic iency p rogram uses distance and con­
sumpt ion data from tr ip compute r
1. If the
data are deleted in the eff iciency p rog ram,
those values are a lso reset in trip computer
1.
Dri ver inform ation di spl ay 2 7
Othe r equipment
Applies to vehicles: wit h trip computer with efficiency
program
Fig . 1 3 D isplay: other equ ipmen t
.,. In the efficiency program, p ress the function
selection switch ¢
page 26, fig. 11 @ re­
peated ly until the other equipment appears
in the display .
Other equipment t hat is currently affecting
fuel consumptio n is listed i n the effic iency
program. The display shows up to three othe r
items of equ ipment @. The equ ipment using
the mos t fuel is listed firs t. If more than three
items us ing fuel are switched on, the equip ­
ment that is currently us ing the most fuel is
displayed .
A scale @also shows the current total con­
sumption of all other equipment.
Fuel economy messages
App lies to vehicles: with trip computer with efficiency
program
F ig . 14 Display: fuel e cono my message
Fuel economy messages are d isplayed when
fuel consumpt ion is increased by certai n con­
ditions. If you follow these fuel economy mes­
sages, you can reduce your vehicle's consump-
tion of fuel. The messages appear .,..

28 Driver information d isplay
automatically and are only displayed in the ef­
ficiency program. The fu el economy messages
turn off automat ically after a certain period of
time.
• To turn a fue l economy message off immedi­
ately after it appears, press the
I RESET I but­
ton ¢
page 26, fig. 11 @, or
• Press the function selection switch
c::> page 26, fig. 11 @ .
{D) Tips
-Once you have turned a fuel economy
message off, it will only appear again af­
ter you turn the ignition on again .
- The fuel economy messages are not dis­
played in every instance, but rather in in­
tervals over a period of time .
Service interval display
The service interval display reminds you when
your next service is due.
Fig . 15 Dis play : S ervic e interva l di splay
The schedule for the next oil change or inspec­
tion is calculated automatically and displayed
according ly . The display works in two stages :
Service reminder
30 days before the next service is due, a serv­
ice reminder appears in the display when you
turn on the ignition
c::>fig. 15.
After about S seconds the display switches
back to normal. The d istance and time re­
maining are updated each time the ignition is
turned on until the date due for service is reached .
Service due
When the due date for service is reached, the
message
Service due! appears in the instru­
ment cluster immediate ly after yo u turn on
the ignition. Additionally, a warning tone
sounds. After about S seconds the display
switches back to normal.
Calling up the service schedules
If or when an oil change or inspection is due,
can be shown in the radio or MMI* d isp lay by
selecting the service interval display in the car
menu. Select !CAR ! function button >
Service
interval dis play
or! CAR ! function button> Car
systems*
control button > Servicing &
checks .
Resett ing the service interval display
Your authorized Audi dealer will reset the cor­
responding service schedule after performing
the appropriate service on your vehicle. You
also have the possibility to reset the oil
change schedule after having performed an
o il change according to Aud i specif ications .
Select
I CAR ! funct ion button > Service interval
display> Reset oil change interval
or ICARI
function button > Car systems* control but­
ton >
Servicing & checks > Reset oil change
interval.
(D Note
If you disconnect the battery terminals, no
ca lculations can be made for the service
interval display dur ing th is time and no
service reminder will appear. Remember
that observing the proper service intervals
i s vitally important to extending the life of
your vehicle, particularly the engine, and maintain ing its value. Even if the mileage
driven is low, the maximum period of one
year from one service to the next must not
be exceeded.
© Tips
-Do not reset the display between oil
changes, otherwise the disp lay w ill be in­
correct.
...

-The information in the Service Reminder
remains stored even when the vehicle
battery is disconnected .
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) ¢4 in
the instrument cluster is part of the On-Board Diagnostic (080 II) system.
The warning/indicator light illuminates when
the ignition is switched on and goes out after
the engine starts and the idle has stabilized.
This indicates that the MIL is working proper­
ly.
If the light does not go out after the engine
is started, or illuminates whi le you are driv­
ing, a malfunction may exist in the engine sys­
tem.
If the light illuminates, the catalytic con­
verter could be damaged.
Continue driving
with reduced power (avoid­
ing sustained high speeds and/or rapid accel­
erations) and have the condition corrected.
Contact your authorized Audi dealer .
If the light illuminates, the electronic speed
limiter may also be malfunctioning. For more
information ¢ page 29, Electronic speed
limiter .
An improperly closed fuel filler cap may also
cause the MIL light to illuminate
¢page 204.
On-Board Diagnostics
Fig . 16 Locat ion of Data Link Connector (DLC)
Driver information display 29
On-Board Diagnostics monitors the compo­
nents of your emission contro l system . Each
monitored component in your engine system
has been assigned a code. In case of a mal­
function, the component will be identified
and the fault stored as a code in the control
module memory .
The MIL light may also illuminate if there is a leak in the on-board fuel vapor recovery sys­
tem . If the light illuminates after a refueling,
stop the vehicle and make sure the fuel filler
cap is properly closed
~ page 204.
In order to make an accurate diagnosis, the
stored data can on ly be displayed using spe ­
c ial diagnostic equipment (generic scan tool
for 080).
In order to connect the special diagnostic
equipment, push the plug into the Data Link
Co nnector (DLC) . The DLC is located to the
right of the hood release ¢ fig . 16 .
Your authorized Audi dealer or qualified work­
shop can interpret the code and perform the necessary repair.
A WARNING u:;
Do not use the diagnostic connector for
personal use. Incorrect usage can cause
malfunctions, which can increase the risk
of a collision!
Electronic speed limiter
-
Your vehicle may be factory equipped with
tires that are rated for a maximum speed of
130 mph (210 km/h). This is may be less than
the maximum speed of your vehicle. To reduce
the risk of sudden tire failure and loss of con­
trol if the vehicle is operated at excessive
speeds, your vehicle has an electron ic speed
limiter . The electronic speed limiter prevents
your vehicle from go ing faster than the tire
speed rating. For more information
¢page 233.
If the engine control unit receives faulty veh i­
cl e roadspeed signals, the Malfunction Ind ica-
tor Light (MIU
¢4 will illuminate. If this Iii>

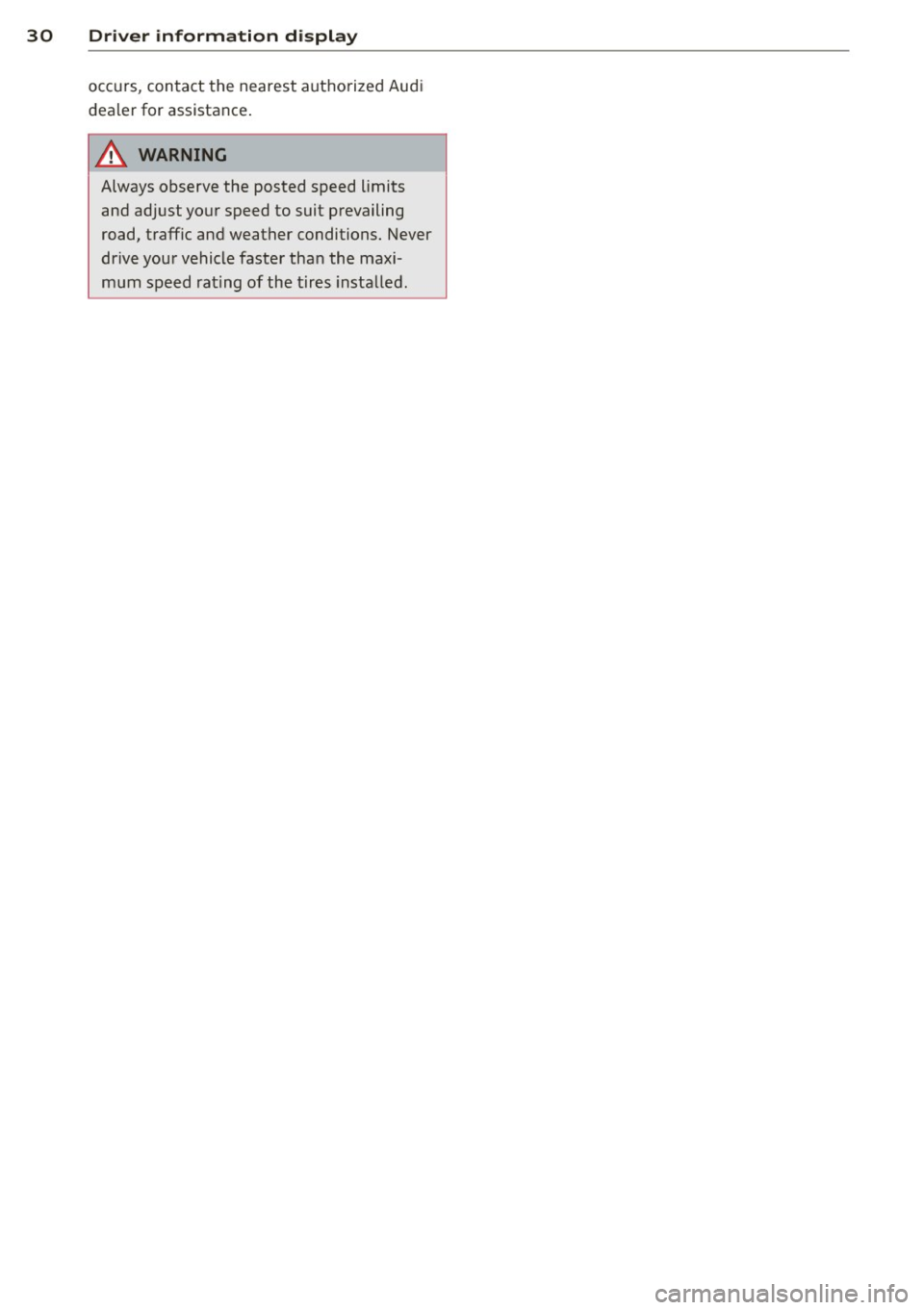

30 Driver in formation d isplay
occurs, contact the nearest authorized Audi
dea ler for assistance .
A WARNING
Always observe the posted speed limits
and adjust yo ur speed to suit prevailing
road, traffic and weather conditions. Never
drive your vehicle faster than the maxi­
mum speed rating of the tires insta lled.
