2014 AUDI A5 CABRIOLET Owners Manual

Programming the transmitter (version B)
A pplies to vehicles: with Horne link
Fig. 131 Distance between the radiato r grille and the
hand transmitte r
Programming: phase 1 on the control unit
1. Switch on the ig nit ion (do not start the
engine) .
2. Press and hold both of the outer Home­
Link buttons
r=>page 117, fig. 129 until
the LED @ turns off completely (about
20
seconds). This procedure clears the stand­
ard codes that were set at the factory and
does
not need to be repeated again to
program the other buttons.
3. Briefly press the Homelink button that
you would like to program .
4 . Wait until the LED@ beg ins to blink
quickly. The Home Link modu le wi ll now
remain in learning mode for
5 minutes .
5. Now stand in front of your vehicle with
the original hand transmitter for the ga­ rage door opener or for the device that
you would like to allocate to the Home­
Link button.
Programming: phase 2 on the radiator
grille
6. Hold the original hand transmitter some­
what towards the center of your vehicle's radiator griller=>
fig. 131.
7. Now activate (press) the hand transmit­
ter.
8 . Pay attention to the turn signals for your
vehicle when activating the hand trans­
mitter. If th e emergency flashers blink
three times, the programming was suc­
cessful. If the emergency flasher only
blinks one time, the 5 minute time limit
Homelink 119
for the adaptation has expired or the pro­
gram ming was unsuccessful. Repeat the
programming from step 3 on the controls
or se lect another distance from the radia­
tor grille.
9. If the garage door or other devices still
fail to be activated w ith the Homelink
control buttons after programming is
completed, it is possible that these sys­
tems might be working with a rolling code
instead of the normal fixed code.
A Roll­
ing code programming must be per­
formed
r=> page 120 .
Program the remaining two buttons acc ord ing
to the instructions mentioned above . Begin
similarly with the 3rd step if the program­
ming connection was successful for the first
button.
Remote control units for garage door openers
in Canada are set to stop transmitting radio
frequency signa ls after two seconds. This time
may not be suffic ient for the Homelink sys­
tem to learn the radio frequency signal. Per­
form all other steps as described above.
Erasing the buttons
.,. Switch on the ignition (do not start the en­
gine).
.,. Press and hold both of the outer buttons un­
til the LED@ turns off completely (about
20 seconds) to erase all of the buttons si­
multaneously .
.,. Programmed buttons cannot be erased indi­
vidua lly. Reprogram the buttons if necessa­
ry.
Reprogramming the buttons
.,. Switch on the ignition (do not start the en­
gine).
.,. To reprogram an individua l button, press
and hold the button until the LED @ starts
to fla sh quickly (after about ten seconds).
Release the button immedia tely. The Home­
L ink module will now remain in learning
mode for 5 minutes.
.,. Continue with step 5.

120 Homelink
-Programming using the Homelink but­
tons is not poss ible with all infotainment
systems. If this is the case, program Homelink as described in vers ion A
¢ page 118.
-The requ ired distance between the hand
transmitter and the Homelink module in
the radiator grille
¢ fig . 131 depends on
the system that you are programming.
- Depend ing on the model of the garage
door opener, you may need to release the
button o n the remote and press it again
when prog ramming . W hen p rogram­
ming a new dev ice, keep the button
pressed for a t le ast 15 se con ds before
trying again wi th the transmitte r in a dif ­
ferent posit ion . Watch out for the emer­
gency flasher during that time.
Programming the rolling code
App lies to vehicles: with Home link
Additionally, a rolling code programming for
the Homelink universal remote control is re­
quired for some systems.
Identifying the rolling code
"' Press the prev io usly progr amme d Homelink
bu tton aga in and ho ld it down .
"' Look at th e LED @¢
page 117, fig . 129 . If
the LED b links quickly, the features, s uch as
the garage door opene r, are equipped with
t he rolling code .
"' Program the rolling code as follows :
Activating the g arage door opene r motor
unit
"' Locate the setting button on the garage
door opener motor unit . The exact location
and co lor of t he button may vary depend ing
on the ga rage door opener ma nufactu rer .
"' Press the sett ing button on the ga rage door
opener motor unit (usually th is w ill act ivate
a "se tting ligh t disp lay" on the mo to r u nit).
Now you w ill have abo ut
30 second s time to
perform the HomeLink button programming
on the cont ro ls.
Programming on the controls
"' Press the Homelink bu tton tha t was a lready
programmed and hol d for two seconds .
"' To end ro llin g code programming , press and
hold t he Home link button for two seconds
aga in.
"' The Home link button may need to be press­
ed a t hird t ime to end the adjustment proce­
dure for some ga rage doo r openers .
After the controls have been programmed, the
garage door opener shou ld recognize the
Homelink signa l and operate when the Home ­
Lin k button is pressed . N ow you may prog ram
t h e other buttons as needed .
(D Tips
- Programming the rolling code can be
perfor med quicke r and more easily with
the help of a se cond person .
- If d iff iculties should ar ise when pro­
gramming the rolling code, consult the
operating instructions fo r th e garage
door opener or o ther dev ices for po ssible
so lutions.

Driving Safely
General notes
Safe driving habits
Please remember -safety first!
This chapter contains important information,
tips, instructions and warnings that you need
to read and observe for your own safety, the
safety of your passengers and others . We have
summarized here what you need to know
about safety belts, airbags, child restraints as
well as child safety. Your safety is for us
priori­
ty number 1.
Always observe the information
and warnings in this section - for your own
safety as well as that of your passengers.
The information in this section applies to all
model versions of your vehicle . Some of the
features described in this sections may be
standard equipment on some models, or may
be optional equipment on others. If you are
not sure, ask your authorized Audi dealer.
A WARNING
- Always make sure that you follow the in­
structions and heed the WARNINGS in
this Manual. It is in your interest and in
the interest of your passengers.
- Always keep the complete Owner's Liter­
ature in your Audi when you lend or sell
your vehicle so that this important infor­
mation will always be available to the
driver and passengers.
- Always keep the Owner's literature handy
so that you can find it easily if you have
questions.
Safety equipment
The safety features are part of the occupant
restraint system and work together to help
reduce the risk of injury in a wide variety of
accident situations .
Your safety and the safety of your passengers
should not be left to chance. Advances in
technology have made a variety of features
available to help reduce the risk of injury in an
Driving Safely 121
accident. The following is a list of just a few of
the safety features in your Audi :
- sophisticated safety belts for driver and all
passenger seating positions,
- belt force limiters for the front seats,
- belt pretensioners for the seats,
- head restraints for each seating position,
- front airbags,
- side airbags in the front seats,
- special LATCH anchorages for child re-
straints,
- adjustable steering column.
These individual safety features, can work to­
gether as a system to help protect you and
your passengers in a wide range of accidents.
These features cannot work as a system if
they are not always correctly adjusted and cor­
rectly used.
Safety is everybody's responsibility!
Important things to do before driving
Safety is everybody's job! Vehide and occv­
pant safety always depends on the informed
and careful driver.
For your safety and the safety of your passen­
gers,
before driving always:
"'Make sure that all lights and signals are op ­
erating correctly .
"'Make sure that the tire pressure is correct.
"'Make sure that all windows are clean and af­
ford good visibility to the outside.
"'Secure all luggage and other items carefully
c::>page 65.
"'Make sure that nothing can interfere with
the pedals.
"'Adjust front seat, head restraint and mirrors
correctly for your height .
"' Instruct passengers to adjust the head re­
straints according to their height .
"'Make sure to use the right child restraint
correctly to protect children
c::, page 161,
Child Safety.
"'Sit properly in your seat and make sure that
your passengers do the same
c::, page 60,
Seats and storage.
ll>
•
•

122 Driving Safel y
• Fasten your safety be lt and wear it properly .
Also instruct your passengers to fasten their
safety belts proper ly ¢
pag e 132.
What impairs driving safety?
Safe driving is directly related to the condi­
tion of the vehicle, the driver as well as the
driver 's ability to concentrate on the rood
without being distracted.
The driver is responsible for the safety of the
vehicle and all of its occupants. If your ability
to drive is impaired, safety risks for everybody
in the vehicle increase and you also become a
hazard to everyone else on the road ¢
.&,.
Therefore:
• Do not let yourself be distracted by passen­
gers or by using a cellular telephone.
• NEVER drive when your dr iving ability is im­
paired (by medicat ions, alcohol, drugs, etc.) .
• Observe all traffic laws, rules of the road
and speed limits and plain common sense.
• ALWAYS adjust your speed to road, traffic
and weather conditions.
• Take frequent breaks on long trips . Do not
drive for more than two hours at a stretch .
• Do NOT drive when you are tired , under
pressure or when you are stressed.
A WARNING , .
Impaired driving safety increases the risk
of serious personal injury and death when­
ever a vehicle is being used.
Proper occupant
seating positions
Proper seating position for the driver
The proper driver seating position is impor­
tant for safe, relaxed driving.
Fig. 132 Correc t seat ing posit ion
For your own safety and to reduce the risk of
injury in the event of an accident, we recom­
mend that you adjust the driver's seat to the
following position:
• Adjust the driver's seat so that you can easi­
ly push the pedals all the way to the floor
while keeping your knee(s) slightly bent
¢.&, .
• Adjust the angle of the seatback so that it is
in an upr ight position so that your back
comes in full contact with it when you drive.
• Adj ust the steering wheel so that there is a
distance of at least 10 inches (25 cm) be­
tween the steering wheel and your breast
bone ¢
fig. 132. If not possible, see your au­
thorized Audi dealer about adaptive equip­ ment.
• Adjust the steering wheel so that the steer­
ing wheel and airbag cover points at your
chest and not at your face .
• Grasp the top of the steer ing wheel with
your elbow(s) slightly bent.
• Applies to veh icles w ith adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head.
If that is not possible, try to
adjust the head restraint so that it is as
close to this posit ion as possible.
• Fasten and wear safety belts correctly
¢page 135.

~ Always keep both feet in the footwell so
that you are in control of the vehicle at all
times .
F or detai led information on how to adjust the
driver's seat, see
c:;, page 61.
A WARNING
Drivers who are unbelted, out of position
or too close to the airbag can be ser iously
injured by an airbag as it unfolds. To help
reduce the risk of serious personal injury :
- Always adjust the dr iver's seat and the
steering wheel so that there are at least
10 inches (25 cm) between your breast­
bone and the steering wheel.
- Always hold the steering wheel o n the
outside of the steering wheel rim with
your hands at the 9 o'clock and 3 o'clock posit ions to he lp red uce the risk of pe r­
sonal in jury if the drive r's airbag inflates.
- Never hold the steer ing whee l at the
1 2 o'clock posit ion or w it h your hands at
other pos it ions inside the steering wheel
rim or on the stee ring wheel h ub. Hold­
ing the steering wheel the wrong way
can cause serious injuries to the hands,
arms and head i f the driver 's airbag de­
ploys.
- Pointing the steering whee l toward your
face decreases the ab ility o f the supp le­
menta l dr iver's airbag to protect you in a
co llision.
- Always s it in an upright position and nev­
er lean against or place any part of your
body too close to the a rea where the air­
bags are located.
- Before driv ing, a lways ad just the front
seats and head restra ints prope rly and
make s ure that all passengers are prop­
er ly restrained.
- Never adjust the seats while the vehicle
is moving . Your seat may move unexpect­
edly and you could lose control of the ve­
hicle.
- Never drive with the backrest recl ined o r
t il ted far ba ck! T he farther the ba ck rests
are t ilted back, the greate r the ris k of in-
Dr iving S afel y 123
jury due to incorrect pos itioning of the
safety belt and improper seating posi ­
tion.
- Ch ildren must a lways ride in ch ild safety
seats
c:;, page 161. Special precaut ions
apply when installing a child safety seat
on the front passenger seat
c:;, page 140.
Proper seating position for the front
passenger
The proper front passenger seating position
is important for safe, relaxed driving.
For your own safety and to reduce the risk of
injury in the event of an accident, we recom ­
mend that you adjust the seat for the front
passenger to the following position:
~ Move the front passenger seat back as far as
possible . There must be a m inimum of
1 0 i nches (25 cm) between the breastbone
and the ins trument panel
c:;, &, .
~ Adjust t he a ngle of the seatbac k so that it is
in an upr igh t position and yo ur ba ck comes
in full contact wit h it whenever the vehicle is
moving.
~ Applies to vehicles with adjustab le head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible wit h the top
of your head. If that is not possib le, try to
adjust the head restraint so that it is as
close to this pos it ion as poss ible.
~ Keep both feet flat on the floor in front of
t he fron t passenger seat .
~ Fasten and we ar safe ty be lts cor re ctly
c:;, page 135.
For detailed information on how to adj ust the
fron t passenger's seat, see
c:;, page 60.
A WARNING
-
Front seat passengers w ho are un belted,
out of posi tion or too close to the airbag
can be ser iously injured or killed by the air­
bag as it unfolds. To help reduce the risk of
serious personal injury:
•
•

124 Driving Safely
-Passengers must always sit in an upright
position and never lean against or place
any part of their body too close to the
area where the airbags are located.
- Passengers who are unbelted, out of po­
sition or too close to the airbag can be
seriously injured by an airbag as it un­
folds with great force in the blink of an
eye.
- Always make sure that there are at least
10 inches (25 cm) between the front
passenger's breastbone and the instru­
ment panel.
- Each passenger must always sit on a seat
of their own and properly fasten and
wear the safety belt belonging to that
seat.
- Before driving, always adjust the front
passenger seat and head restraint prop­
erly.
- Always keep your feet on the floor in
front of the seat. Never rest them on the
seat, instrument panel, out of the win­
dow, etc. The airbag system and safety
belt will not be able to protect you prop­
erly and can even increase the risk of in­
jury in a crash.
- Never drive with the backrest reclined or
tilted far back! The farther the backrests
are tilted back, the greater the risk of in­
jury due to incorrect positioning of the
safety belt and improper seating posi­
tion.
- Children must always ride in child safety
seats
c::> page 161 . Special precautions
apply when installing a child safety seat
on the front passenger seat<=:>
page 140.
Proper seating positions for passengers
in rear seats
Rear seat passengers must sit upright with
both feet on the floor consistent with their
physical size and be properly restrained
whenever the vehicle is in use.
To reduce the risk of injury caused by an incor­
rect seating position in the event of a sudden
braking maneuver or an accident, your pas -sengers on the
rear bench seat must always
observe the following:
" Make sure that the seatback is securely
latched in the upright position <=:>
page 67.
"Keep both feet flat in the footwell in front of
the rear seat.
" Fasten and wear safety belts properly
<=:>
page 135 .
"Make sure that children are always properly
restrained in a child restraint that is appro ­
priate for their size and age ¢
page 161.
,&. WARNING
Passengers who are improperly seated on
the rear seat can be seriously injured in a
crash.
- Each passenger must always sit on a seat
of their own and properly fasten and
wear the safety belt belonging to that
seat .
- Safety belts only offer maximum protec­
tion when the seatback is securely latch­
ed in the upright position and the safety
belts are properly positioned on the body. By not sitting upright, a rear seat
passenger increases the risk of personal
injury from improperly positioned safety
belts!
Proper adjustment of head restraints
-
App lies to vehicles: with adjustable head restraints
Correctly adjusted head restrain ts are an im­
portant part of your vehicle 's occupant re­
straint system and can help to reduce the risk
of injuries in accident situations .
Fig. 133 Head restra int: v iewed from the front

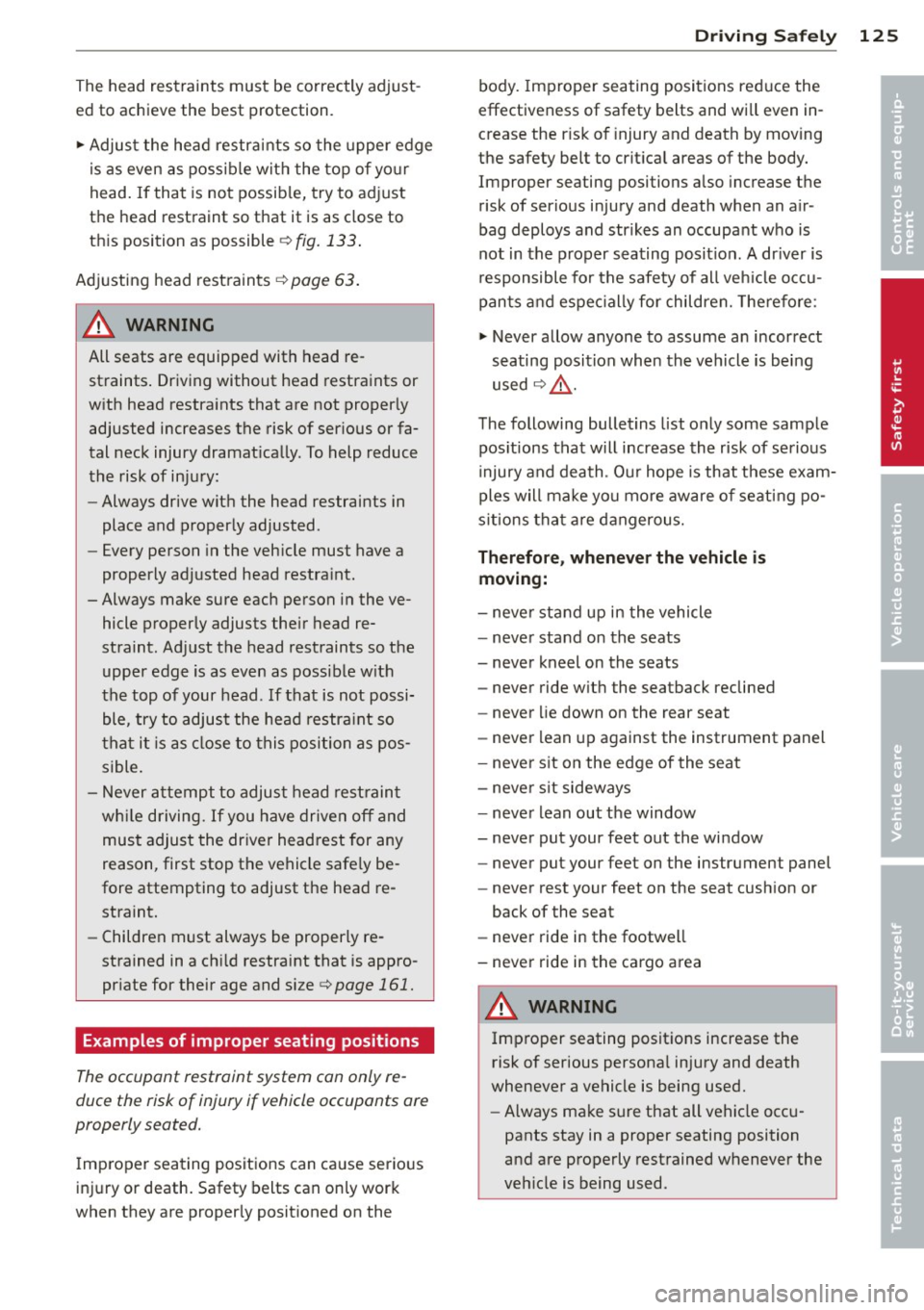

The head restraints must be correctly adjust­
ed to achieve the best protection.
... Adjus t the head restrai nts so the upper edge
is as even as possib le with the top of yo ur
head. If that is not possib le, try to ad just
the head restraint so that it is as close to
th is position as possible
c> fig. 133 .
Adjusting head rest raints c> page 63.
A WARNING
All seats are equipped with head re­
straints . Driving without head restraints or
w ith head restraints that are not properly
adjusted increases the risk of ser ious or fa­
tal neck injury dramat ically. To help reduce
the risk of in ju ry:
- Always drive with the head restraints in
place and proper ly adjusted.
- Every person in the veh icle must have a
properly adjusted head restra int.
-Always make sure each person in the ve­ hicle properly adjusts the ir head re­
straint. Adjust the head restraints so the
upper edge is as even as possible w ith
the top of your head .
If that is not possi­
ble, try to adjus t the head restra int so
that it is as close to this position as pos­
sible.
- Never a ttempt to adju st head re st rain t
wh ile driving. If you have driven off and
must adjust the dr iver head rest for any
reason, first stop the vehicle safe ly be­
fore attempting to adjust the head re­ straint.
- Children must always be properly re­
strained in a ch ild restraint that is appro­
pr iate for their age and size <=>
page 161.
Examples of improper seating positions
The occupant restraint system can only re­
duce the risk of injury if vehicle occupants are
properly seated.
I mp roper seating positions can ca use serio us
in ju ry or death. Safety belts can on ly work
when they are properly posit ioned on the
Dr iving S afel y 125
body. Improper seating positions re duce the
effectiveness of safety belts and wi ll even in­
crease the r is k of i njury and death by moving
the safety belt to crit ica l areas of the body.
Improper seating positions a lso increase the
risk of serious injury and death when an a ir­
bag deploys and str ikes an occupant w ho is
not in the p roper seating posit ion. A dr iver is
responsible fo r the safety of all veh icle occu ­
pan ts and espec ially for children. The refore :
... Never allow anyone to assume a n incor rect
seating position when the vehicle is being
used <=>,& .
The following bulletins list on ly some sample
pos itions that will increase the risk of serious
i njury and death. Ou r hope is that these e xam­
ples will ma ke yo u mo re aware o f seati ng po­
s itions tha t are d angerous.
Therefore , whenever the vehicle is
moving:
- neve r stand up in the vehicle
- neve r stand on the seats
- never kneel on the seats
- never ride w it h the seatback reclined
- never lie down on the rear seat
- never lean up against the instrument panel
- never s it on the edge of the seat
- neve r sit sideways
- neve r lean out the window
- never put your feet out the window
- never put your feet on the instrument panel
- never rest your feet on the seat cush ion or
back of the seat
- neve r ride in the footwell
- neve r ride in the cargo area
A WARNING
--=
Imp ro p er seating posit ions increase the
risk of serious persona l injury and death
whenever a vehicle is being used.
- Always make su re that all vehicle occu-
pants stay in a proper seating position
and are properly restrained whenever the
veh icle is being used.
-
•
•

126 Driving Saf ely
Driver and passenger
side footwell
Important safety instructions
Appl ies to vehicles: with knee airbags
A WARNING
Always make sure that the knee a irbag can
inflate without interference . Objects be ­
tween yourself and the airbag can increase
the risk of injury in an acc ident by inte rfer­
ing w ith the way the a irbag deploys or by
being p ushed into you as the airbag de­
ploys .
- No persons (ch ildren) or animals should
ride in the footwell in front of the pas­
senger seat. If the airbag deploys, this
can res ult in serious or fata l injuries .
- No objects of any k ind sho uld be carried
in the footwe ll area in front of the driv­
er's or passenger's seat . Bulky objects
(shopping bags, for example) can ham ­
per or prevent proper deployment of the
airbag . Small objects can be thrown
through the vehicle if the airbag deploys
and injure you o r your passengers .
Pedal area
Pedals
The pedals must always be free to move and
must never be interfered with by a floor mat
or any other object.
M ake sure tha t all pedals move freely witho ut
i nte rfe rence and that nothing prevents them
from retu rning to the ir origina l posi tions.
Only use floo r mats that leave the peda l area
free and can be secured wit h floor mat fasten­
e rs.
If a b rake circuit fails, increased b rake pedal
trave l is required to bring the vehicle to a full
stop.
A WARNING
Pedals that cannot move free ly can cause
l oss of veh icle control and increase the risk
of ser ious injury .
- Never p lace any objects in the drive r's
footwell . An object cou ld get into the
pedal area and inte rfe re with pedal func­
tion . In case of sudde n brak ing o r an ac­
cident, yo u wo uld not be a ble to brake or
acceler ate !
- Always ma ke s ure that no thing can fall
or move into the driver's footwel l.
Floor mats on the driver side
Always use floor mats that can be securely
attached to the floor mat fast eners and do
not interfere with the free movement of the
pedals.
.. Make s ure that the floor mats are prope rly
secured and canno t move and in terfere with
t he peda ls
£:=? &, .
Use on ly f loor mats that leave the pedal area
u nobst ructed and that are firmly secu red so
t h at t hey cannot slip o ut of position . You ca n
obta in suitab le floor mats from yo ur autho r­
ized Audi dea ler .
Floor mat fastene rs are insta lled in your Audi.
Floor mats used in your vehicle must be at­
tached to these fastene rs. Prope rly securing
the floor mats will prevent them from sliding
i nto posi tions that cou ld interfere with the
peda ls o r impa ir safe ope rat io n of yo ur vehicle
i n othe r ways.
A WARNING
Pedals that cannot move free ly can result
in a loss of vehicle control and inc rease the
risk of ser ious persona l injury .
- Always make sure that floor mats are properly secu red.
- Never p lace or ins tall floor mats o r othe r
floor coverings in the vehicle that cannot
be properly secured in p lace to prevent
them from slipping and interfer ing with
lill>
