2014.5 Citroen C4 DAG Owner's Manual

04
303
C4-2_en_Chap13c_RD5_ed01-2014
AUDIO
CD, USB
Information and adviceOn   a   single   disc,   the   CD   player   can   read   up   to   255   MP3   files   spread
over

  8   directory   levels.   However,   it   is   recommended   that   this   be   kept
to

  2   levels   so   as   to   limit   the   time   taken   to   access   and   play   the   CD.
During
  play,   the   folder   structure   is   not   observed.
In
  order   to   be   able   to   play   a   recorded   CDR   or   CDRW,   when   recording
it

  is   preferable   to   select   standards   ISO   9660   level   1.2   or   Joliet.
If
  the   disc   is   recorded   in   another   format,   it   may   not   be   played   correctly.
It
  is   recommended   that   the   same   recording   standard   is   always   used
for

  an   individual   disc,   with   as   low   a   speed   as   possible   (4x   maximum)
for

  optimum   sound   quality.
In
  the   particular   case   of   a   multi-session   CD,   the   Joliet   standard   is
recommended.
Do

  not   connect   a   hard   disk   or   USB   device   other   than   audio   players   to
the

  USB   port.
This
  may   cause   damage   to   your   installation.
The
  audio   system   will   only   play   files   with   extension   ".mp3"   or   ".wma"
and

  a   compression   rate   that   is   constant   or   variable   between   32   Kbps
and

  320   Kbps.
It
  is   advisable   to   restrict   file   names   to   20   characters   without   using
special

  characters   (e.g.   "   ? ;   ù)   to   avoid   any   playing   or   displaying
problems.
The

  playlists   accepted   are   types   .m3u   and   .pls.
The
  number   of   files   is   limited   to   5   000   in   500   directories   on   a
maximum

  of   8   levels.

04
304
C4-2_en_Chap13c_RD5_ed01-2014
CD, USB
AUDIO
Playing a compilationInsert   an   MP3   compilation   in   the   CD   player   or
connect

  a   memory   stick   to   the   USB   port,   directly   or
via

  an   extension   lead.
The
  system   creates   playlists   (temporary   memory)   the   creation   time
for

  which   can   take   from   a   few   seconds   to   several   minutes.
The
  playlists   are   updated   every   time   the   ignition   is   switched   off   or   a
USB

  memory   stick   is   connected.
Play
  starts   automatically   after   a   period   which   depends   on   the
capacity

  of   the   USB   memory   stick.
Use
  only   USB   memory   sticks   formatted   FAT32   (File
Allocation

T

able). At
  a   first   connection,   the   order   suggested   is   by   folder.
When

  connecting   again,   the   order   previously   chosen   is
retained.T

o   play   a   disc   or   memory   stick
which

  has   already   been   inserted,
press

SOURCE or SRC   several   times   in
succession

  and   select   "CD" or "USB". Press one of the buttons to select the
next
  or   previous   track.
Press one of the buttons to select the
next
  or   previous   folder   in   the   order
chosen.
Press

  and   hold   one   of   the   buttons   for
fast

  forwards   or   backwards.
Press LIST


to   display   the   menu   of
folders

  in   the   compilation.

04
305
C4-2_en_Chap13c_RD5_ed01-2014

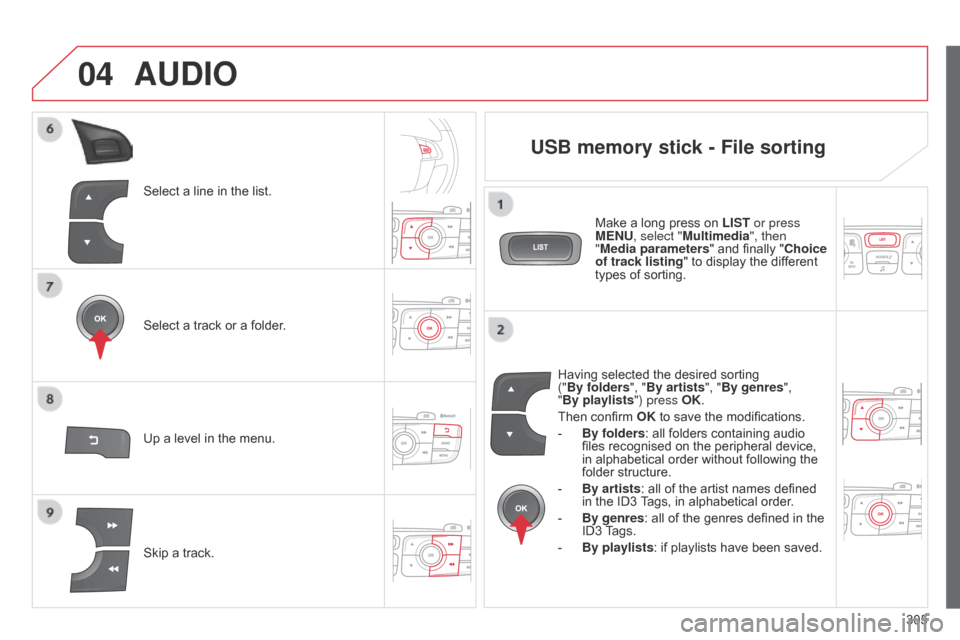

Select a line in the list.
Select   a   track   or   a   folder.
Skip
  a   track.
Up
  a   level   in   the   menu.
AUDIO
USB memory stick - File sorting
Having selected the desired sorting ("By folders", "By artists", "By genres",
"By
playlists") press OK.
Then
  confirm   OK   to   save   the   modifications.
-

By folders
:   all   folders   containing   audio
files

  recognised   on   the   peripheral   device,
in

  alphabetical   order   without   following   the
folder

  structure.
-

By artists :

  all   of   the   artist   names   defined
in

  the   ID3
T
ags,   in   alphabetical   order.
-

By genres
:   all   of   the   genres   defined   in   the
ID3


T
ags.
-

By playlists
:   if   playlists   have   been   saved.
Make
  a   long   press   on
LIST or press
MENU
, select "Multimedia", then
"Media parameters "   and   finally   "
Choice
of track listing "   to   display   the   different
types

  of   sorting.

04
C4-2_en_Chap13c_RD5_ed01-2014
306
AUDIO
APPLE® players or portable player
Management of the device is via the audio system controls.
The   audio   files   on   a   Mass   Storage   portable   player*   can
be

  heard   through   the   vehicle's   speakers   by   connecting
it

  to   the   USB   port   (cable   not   supplied).
If   the   portable   player   is   not   recognised   by   the   USB   port,   connect   it   to
the

  auxiliary   Jack   socket. The
a

pple
® player
 must  be  updated  regularly  for  the  best  connection.
The

playlists   are   those   defined   in   the
Apple® player.
The
a
pple
® player must be generation 5 or later.
*

Check

your

player's

manual.

04
307
C4-2_en_Chap13c_RD5_ed01-2014
AUDIO
Auxiliary socket (AUX)
Auxiliary jack socket
Do   not   connect   a   device   to   the   USB   port   and   to   the   auxiliary   Jack
socket

  at   the   same   time.
The
  auxiliary   Jack   socket   permits   the   connection   of   a   portable   non-
mass
  storage   device   or   an
Apple® player if not recognised by the USB

port.
Connect

the

portable

device

to

the   auxiliary   Jack   socket   using   a
suitable


cable

(not

supplied). Press the SOURCE or SRC button
several
  times   in   succession   and
select

"AUX".
First
  adjust   the   volume   on   your   portable   device.
Then
  adjust   the   volume   of   the   audio
system.
The

  display   and   management   of   controls   is   on   the
portable

  device.

04
308
C4-2_en_Chap13c_RD5_ed01-2014
AUDIO
Streaming - Playing audio files via
Bluetooth
Depending on the compatibility of the phonePair/connect   the   telephone:   see   the   "USING
THE

TELEPHONE"

  section.
Streaming
  allows   music   files   on   a   telephone   to   be   heard   via   the
vehicle's

  speakers.
The
  telephone   must   support   the   appropriate   bluetooth   profiles
(Profiles


A2DP
/
A
VRCP).
Activate
  the   streaming   source   by   pressing
SOURCE
or
SRC.
  Control   of   playback   is   via   the   audio   system.
The

contextual

  information   can   be   displayed   in   the   screen.
In
  certain   cases,   playing   of   the   audio   files   must   be   initiated   from   the
telephone.
The

  audio   quality   depends   on   the   quality   of   the   transmission   from
the

  telephone.
Play mode
The play modes available are:
-
Normal:
  the   tracks   are   played   in   order,   depending   on   the
classification

  of   the   selected   files.
-

Random:
  the   tracks   in   an   album   or   folder   are   played   in   a
random

  order.
-

Random
  all:   all   of   the   tracks   saved   in   the   media   are   played   in
random

  order.
-

Repeat:
  the   tracks   played   are   only   those   from   the   current
album

  or   folder.
Press OK
  for   access   to   the   contextual
menu.
or
Press

MENU.
Select "Multimedia"
  and   confirm.
Select "Media parameters "
  and
confirm.
Select "

Read mode"   and   confirm.
Select
  the   desired   play   mode   and
confirm

  OK   to   save   the   modifications.

05
309
C4-2_en_Chap13c_RD5_ed01-2014
USING THE TELEPHONE
Pairing a telephone
First connection
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.
Consult   your   telephone's   manual   and   your   operator   to   find   out   which   services   are   available   to   you.
Activate
  the   telephone's   Bluetooth   function   and
ensure that

it is "visible to all" (refer to the telephone
user
  guide). Press MENU. A


window   is   displayed   "Search in progress…"
Select
  the   telephone   to   be   connected
from

  the   list.   Only   one   telephone   can
be

  connected   at   a   time.
Select "Search for a device".
For
  safety   reasons   and   because   they   require   prolonged   attention   on   the   part   of   the   driver,   the   operations   for   pairing   of   the   Bluetooth   mobile
telephone

  with   the   Bluetooth   hands-free   system   of   your   audio   system   must   be   carried   out   with   the
vehicle stationary
  and   the   ignition   on.
Visit
  www.citroen.co.uk   for   more   information   (compatibility,   additional   help,   ...).
Select "Bluetooth connection "
  and
confirm.

05
Saisir code authentification
01
OK Del 23456789
_

310
C4-2_en_Chap13c_RD5_ed01-2014
USING THE TELEPHONE
A  virtual   keypad   is   displayed   on   the  screen:
  enter   a   code   with   at   least
4 digits

  and   conform   with
OK
.
A


message

is   displayed   on   the   screen   of   the
telephone:


enter   the   same   code   and   confirm. A


message   appears   in   the   screen   to   confirm   the   result   of   the
connection.
Pairing

  can   also   be   initiated   from   the   telephone   by   searching   for
detected

  Bluetooth   devices.
Accept
  the   connection   to   the   telephone.
If

pairing

fails,   try   again;   the   number   of   attempts   is   not   limited.The
  directory   and   the   calls   list   can   be   accessed   after   the
synchronisation

  period   (if   the   telephone   is   compatible).
Automatic
  connection   must   be   configured   in   the   telephone   to   allow
the

  connection   each   time   the   vehicle   is   started.
In

some

cases,   the   reference   number   of   the   telephone   or   the
Bluetooth


address   may   appear   instead   of   the   name   of   the   telephone.
Pair/connect   the   telephone   then   listen:   see   the
AUDIO
  section.
Streaming - Playing audio files via
Bluetooth
